Simpson Hangers | SKU:
HU314

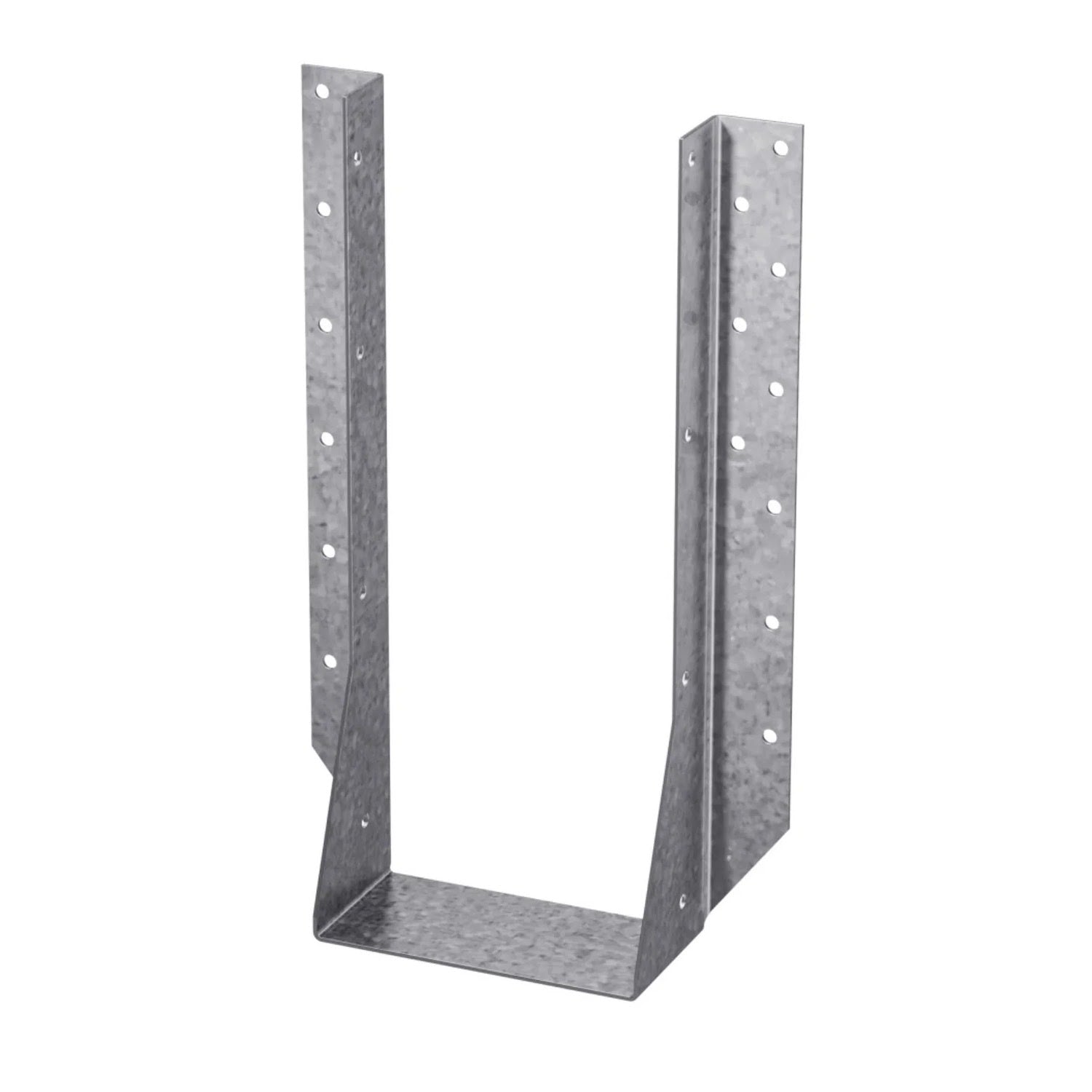

Simpson Strong-Tie HU314 (3" x 14") Face Mount Joist Hanger - G90 Galvanized
$23.07
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HU314 Description
The Simpson Strong-Tie HU Heavy Face-Mount Joist Hangers are engineered for robust support in various construction applications. These heavy-duty, face-mount hangers are crafted from 14-gauge steel, ensuring durability and reliability in both residential and commercial projects.
Simpson Strong-Tie HU314 Includes
- (1) 3" x 14" Face Mount Joist Hanger
Simpson Strong-Tie HU314 Features
- G90 Galvanized Finish: Provides standard corrosion resistance suitable for most indoor and dry applications.
- Versatile Applications: Designed to accommodate a wide range of joist sizes, these hangers are suitable for solid sawn lumber, engineered wood products, and cold-formed steel (CFS) joists.
- Code Compliance: HU-series hangers are tested, load-rated, and comply with building codes, ensuring reliable performance in structural applications.
Simpson Strong-Tie HU314 Applications

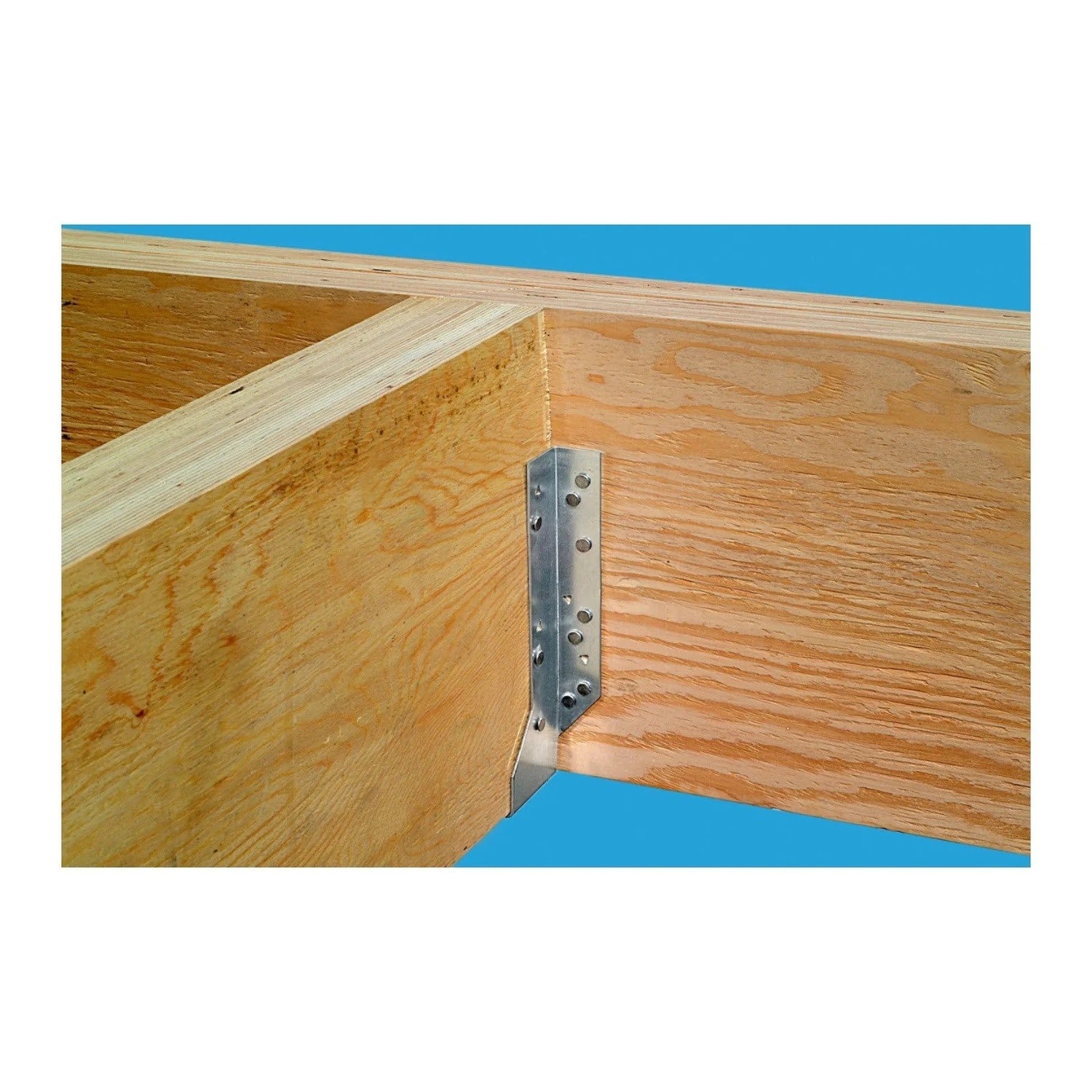

- Deck Framing: Securely fastens joists to beams for added structural support.
- Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
- Roof Framing: Used in truss and rafter connections for enhanced stability.
- Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
- Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
- Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.
Simpson Strong-Tie HU314 Installation Overview
- Fasteners: For G90 galvanized hangers, use hot-dip galvanized nails to ensure maximum corrosion resistance.
- Masonry and Concrete Attachment: These hangers can be installed into masonry and concrete using the appropriately specified Titen HD screws.
Simpson Strong-Tie HU314 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (18) 0.162" x 3-1/2" Nails, Joist - (8) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 12-3/8" |
| Joist size | 3" X 14" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 2-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
