Simpson Hangers | SKU:
HU316

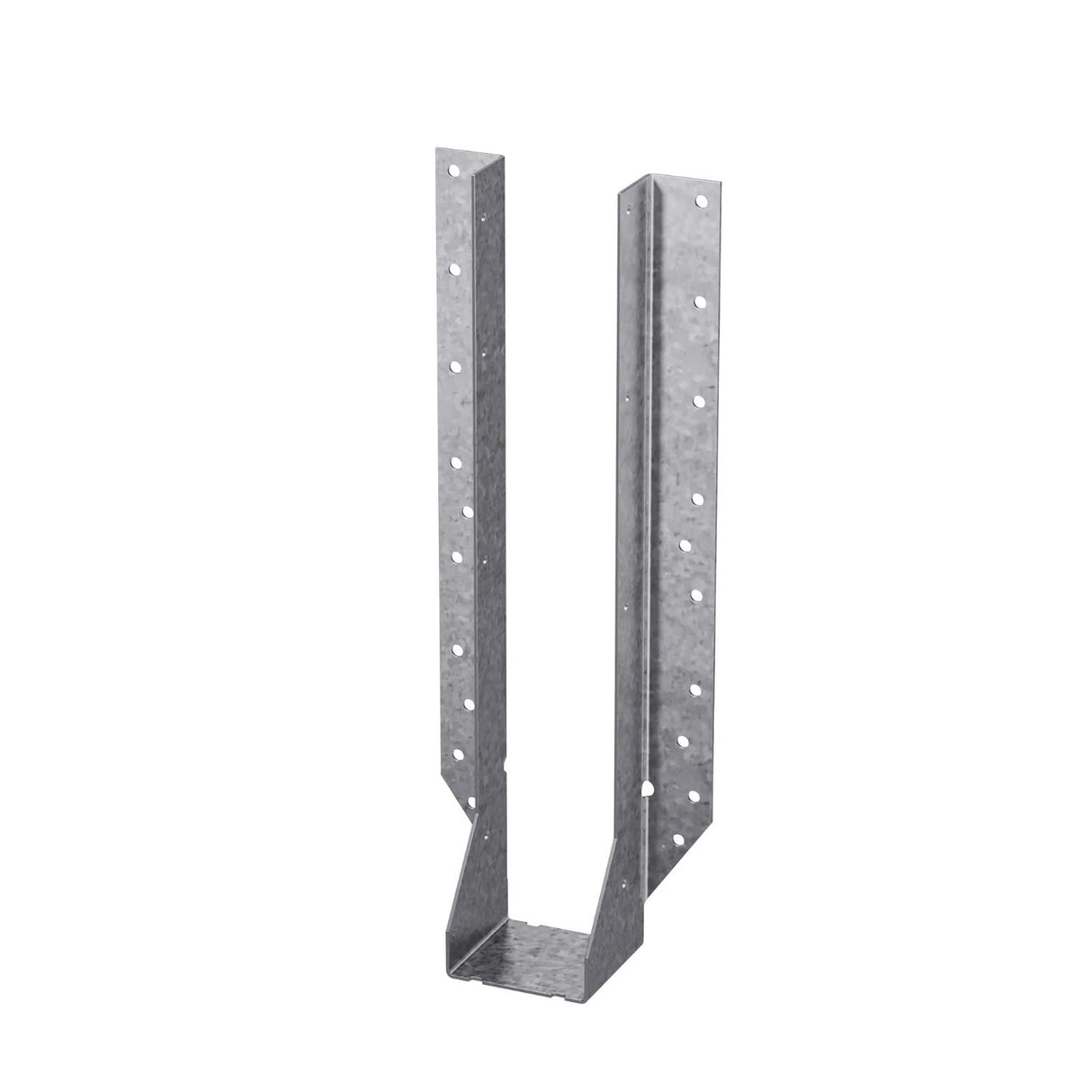

Simpson Strong-Tie HU316 (3" x 16") Heavy-Duty Face-Mount Joist Hanger
$25.73
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HU316 Description
The Simpson Strong-Tie HU316 is a heavy-duty face-mount joist hanger designed for 3x16 joists, offering robust support and durability for various construction applications.
Simpson Strong-Tie HU316 Includes
- (1) Heavy-Duty Face-Mount Joist Hanger for 3x16
Simpson Strong-Tie HU316 Features
- G90 Galvanized Finish for corrosion resistance
- 14-gauge steel construction for durability
- Tested and code-compliant for structural applications
- Versatile design for wood-to-wood and wood-to-masonry connections
Simpson Strong-Tie HU316 Applications

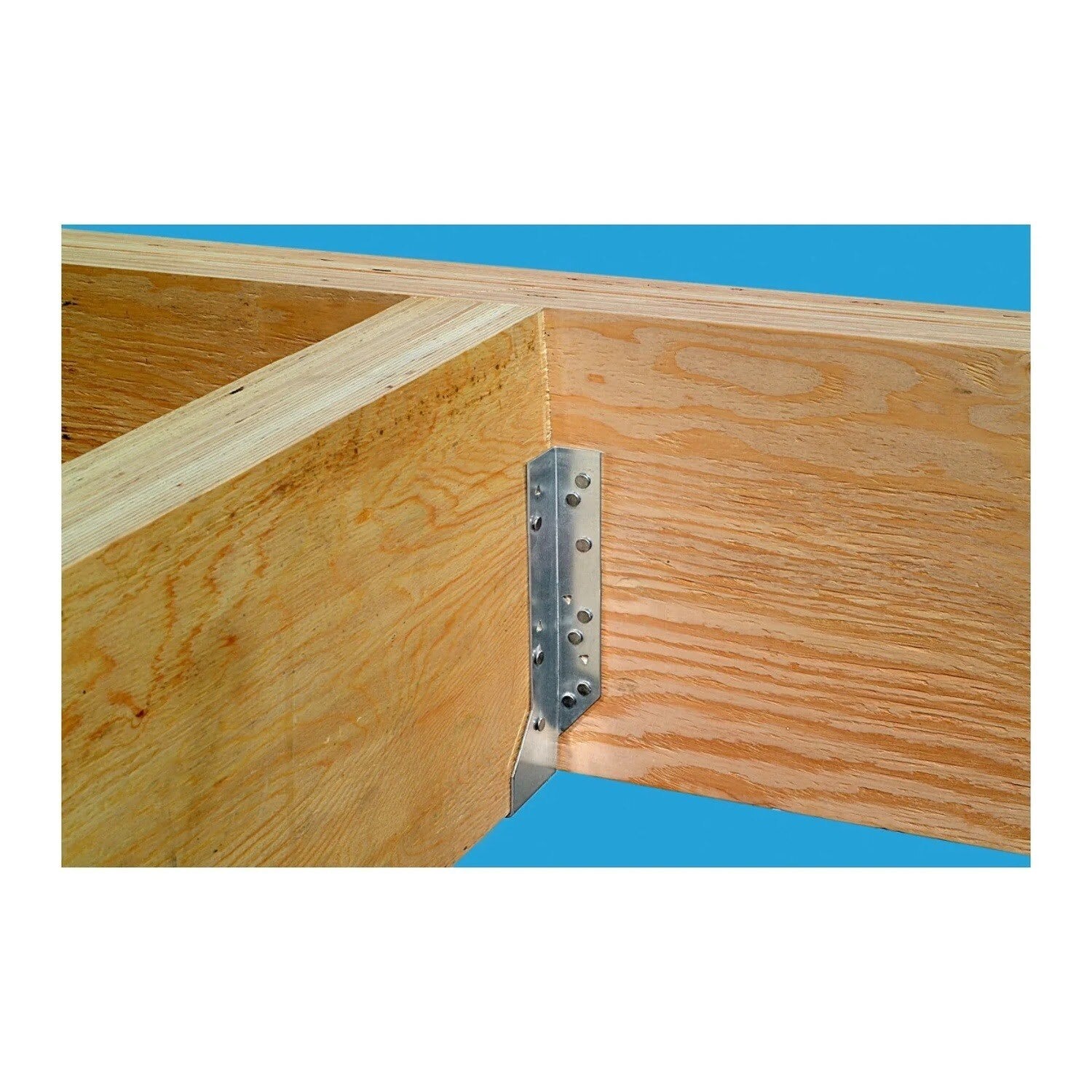

- Deck Framing: Securely fastens joists to beams for added structural support.
- Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
- Roof Framing: Used in truss and rafter connections for enhanced stability.
- Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
- Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
- Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.
Simpson Strong-Tie HU316 Installation Overview
- Use all specified fasteners as per guidelines.
- Install by filling round holes only or both round and triangle holes for maximum values.
- Ensure joists sloped up to 1/4:12 achieve table loads.
- For masonry or concrete installations, refer to specific guidelines.
- Web stiffeners are required for I-joist applications.
Simpson Strong-Tie HU316 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 14 Gauge |
| Width | 2-9/16" |
| Height | 14-1/8" |
| Joist size | 3" X 16" |
| Fasteners required | Face - (20) 0.162" x 3-1/2" Nails, Joist - (8) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
