Simpson Hangers | SKU:
HU3511

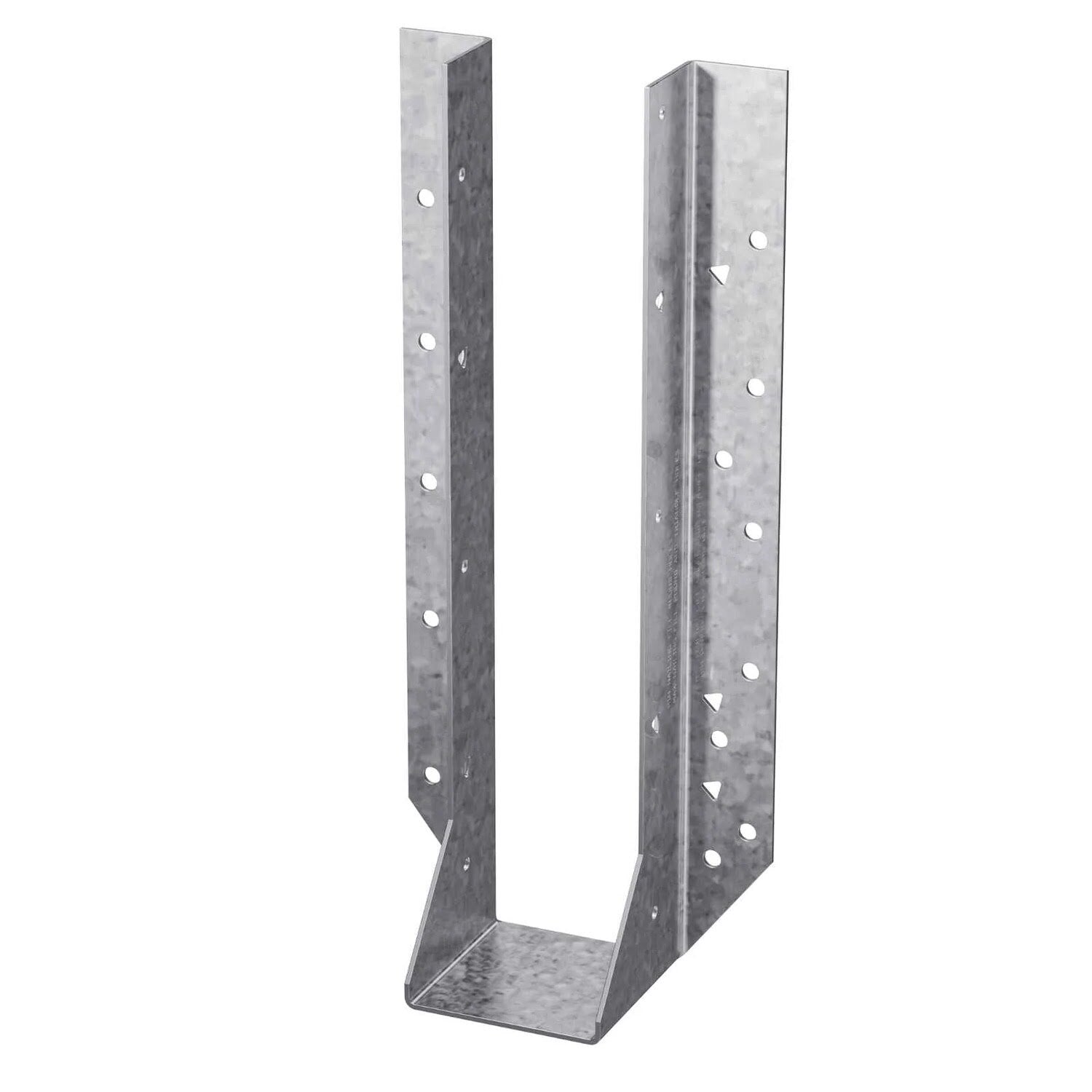

Simpson Strong-Tie HU3511 (2-5/16" x 11-7/8") Galvanized Face-Mount Joist Hanger for Engineered Wood
$23.50
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HU3511 Description
The Simpson Strong-Tie HU3511 is a heavy-duty face-mount joist hanger designed for robust support in various construction applications. Made from 14-gauge steel with a G90 galvanized finish, it ensures durability and reliability.
Simpson Strong-Tie HU3511 Includes
- (1) G90 Galvanized Face-Mount Joist Hanger
Simpson Strong-Tie HU3511 Features
- G90 Galvanized Finish for corrosion resistance
- Compatible with solid sawn lumber, engineered wood, and cold-formed steel joists
- Tested and load-rated for code compliance
- Made from durable 14-gauge steel
Simpson Strong-Tie HU3511 Applications
- Deck Framing: Securely fastens joists to beams for added structural support.
- Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
- Roof Framing: Used in truss and rafter connections for enhanced stability.
- Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
- Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
- Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.
Simpson Strong-Tie HU3511 Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Install into masonry and concrete using specified Titen HD screws.
Simpson Strong-Tie HU3511 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (22) 0.162" x 3-1/2" Nails, Joist - (10) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 10-15/16" |
| Joist size | 2-5/16" X 11-7/8" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 2-3/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
