Simpson Hangers | SKU:
HU359

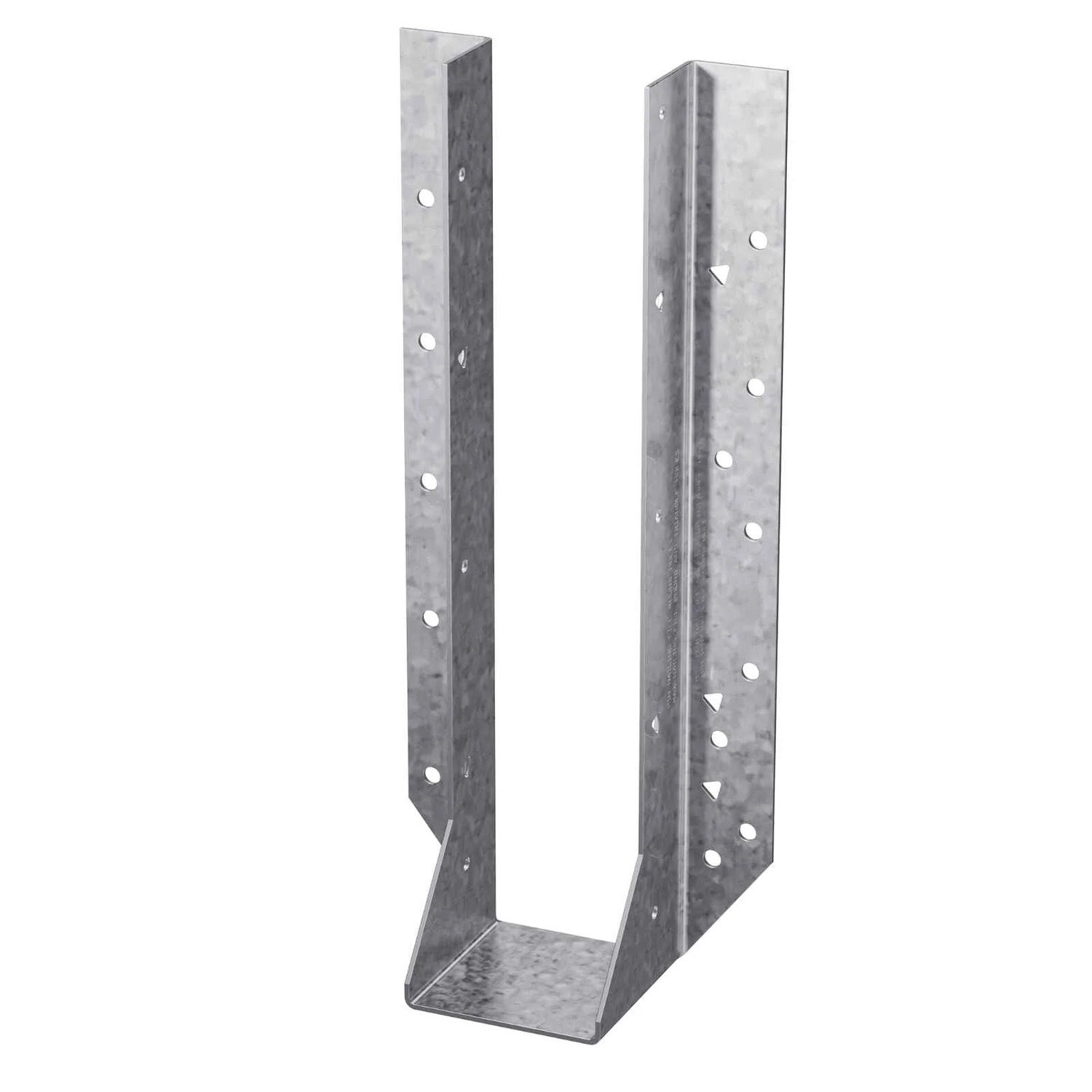

Simpson Strong-Tie HU359 (2-5/16" x 9-1/2") Galvanized Face-Mount Joist Hanger for Engineered Wood
$18.07
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HU359 Description
The Simpson Strong-Tie HU Heavy Face-Mount Joist Hangers are engineered for robust support in various construction applications, crafted from 14-gauge steel for durability and reliability.
Simpson Strong-Tie HU359 Includes
- (1) Galvanized Face-Mount Joist Hanger
Simpson Strong-Tie HU359 Features
- G90 Galvanized Finish for corrosion resistance
- Versatile applications for various joist sizes
- Code compliance ensuring reliable performance
Simpson Strong-Tie HU359 Applications
- Deck Framing: Securely fastens joists to beams for added structural support.
- Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
- Roof Framing: Used in truss and rafter connections for enhanced stability.
- Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
- Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
- Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.
Simpson Strong-Tie HU359 Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Install into masonry and concrete using specified Titen HD screws.
Simpson Strong-Tie HU359 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (18) 0.162" x 3-1/2" Nails, Joist - (10) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 9" |
| Joist size | 2-5/16" X 9-1/2" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 2-3/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
