Simpson Hangers | SKU: HU38 | Barcode: 044315404009

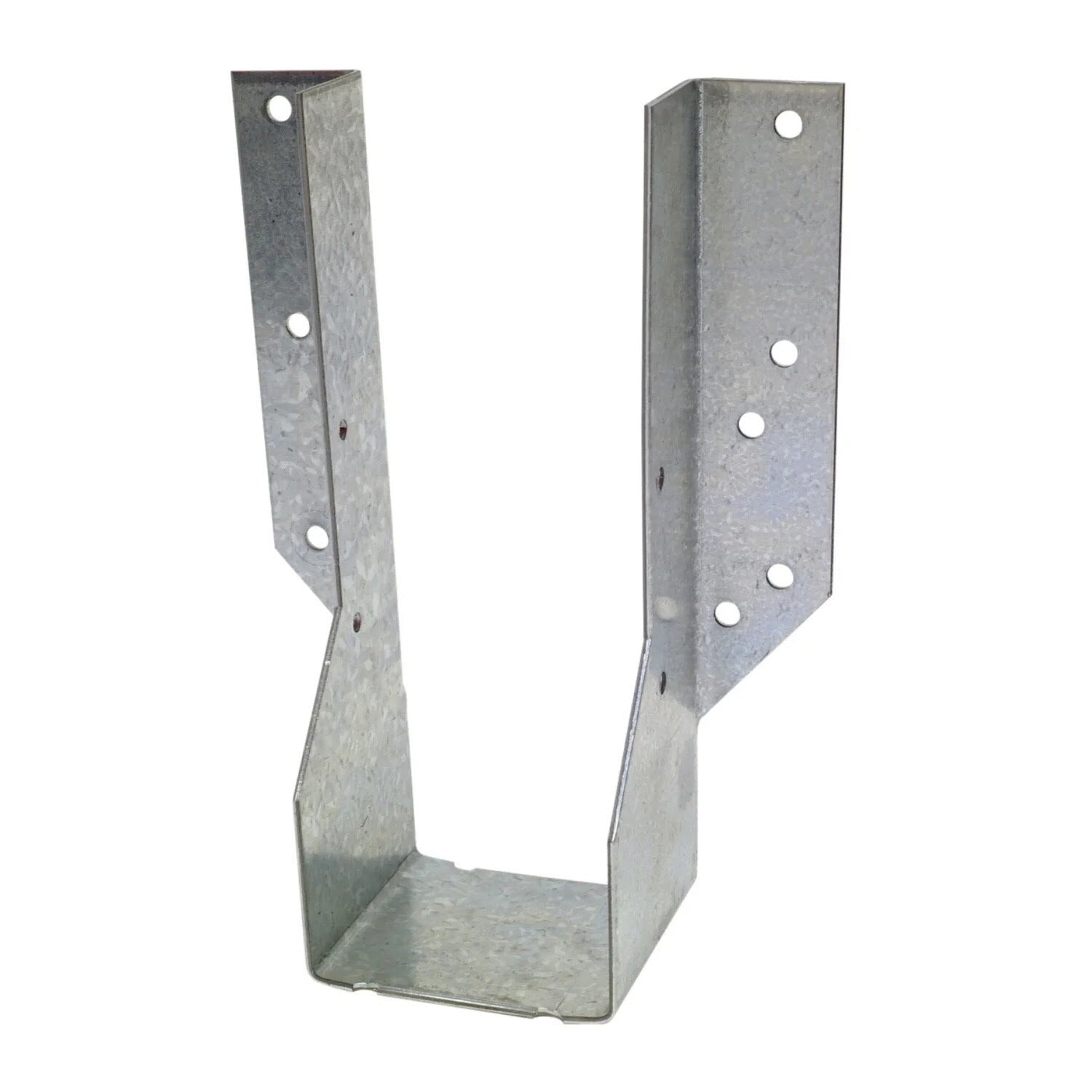

Simpson Strong-Tie HU38 (3" x 8") Heavy-Duty Face-Mount Joist Hanger

Name: Simpson Strong-Tie HU38 (3" x 8") Heavy-Duty Face-Mount Joist Hanger
Brand: Simpson Hangers
SKU: 248786
Price: 13.53 USD
Availability: BackOrder

$13.53 ~~$19.46~~

Description

Simpson Strong-Tie HU38 Description

The Simpson Strong-Tie HU38 is a heavy-duty face-mount joist hanger designed for 3x8 joists, offering robust support and durability for various construction applications.

Simpson Strong-Tie HU38 Includes

(1) HU38 Heavy-Duty Face-Mount Joist Hanger

Simpson Strong-Tie HU38 Features

G90 Galvanized Finish for corrosion resistance
14-gauge steel construction for durability
Tested and code-compliant for structural applications
Versatile design for wood-to-wood and wood-to-masonry connections

Simpson Strong-Tie HU38 Applications

Deck Framing: Securely fastens joists to beams for added structural support.
Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
Roof Framing: Used in truss and rafter connections for enhanced stability.
Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.

Simpson Strong-Tie HU38 Installation Overview

Use all specified fasteners as per guidelines.
Install by filling round holes only or both round and triangle holes for maximum values.
Ensure joists sloped up to 1/4:12 achieve table loads.
For masonry or concrete installations, use specified fasteners.
Web stiffeners are required for I-joist applications.

Simpson Strong-Tie HU38 Specifications

Material	Carbon Steel
Finish	G90 Galvanized
Thickness	14 Gauge
Width	2-9/16"
Height	7-1/8"
Joist size	3" X 8"
Fasteners required	Face - (10) 0.162" x 3-1/2" Nails, Joist - (4) 0.148" x 1-1/2" Nails
For Treated Lumber	No

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
