Simpson Hangers | SKU:
HU410-2

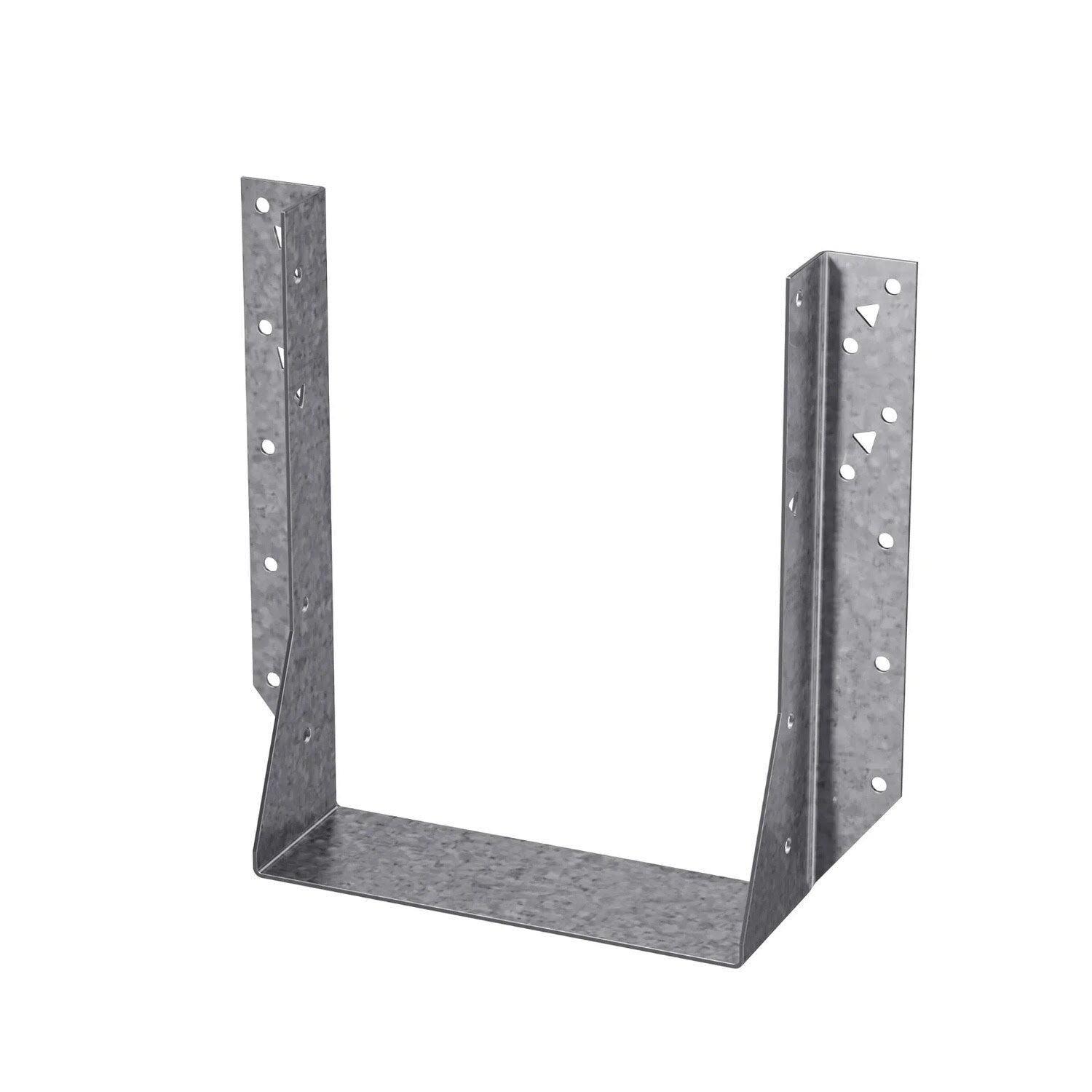

Simpson Strong-Tie HU410-2 (Double 4" x 10") Galvanized Face-Mount Joist Hanger
$33.81
$46.28
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HU410-2 Description
The Simpson Strong-Tie HU410-2 is a heavy-duty face-mount joist hanger designed for double 4x10 joists, featuring a G90 galvanized finish for corrosion resistance.
Simpson Strong-Tie HU410-2 Includes
- (1) HU410-2 Face-Mount Joist Hanger
Simpson Strong-Tie HU410-2 Features
- Heavy-duty construction for enhanced strength and durability
- G90 galvanized finish for corrosion resistance
- Designed for double 4x10 joists
- Tested, load-rated, and code compliant
- Triangular holes for additional load capacity
Simpson Strong-Tie HU410-2 Applications
- Engineered wood construction
- Schools and structures requiring additional strength
- General framing applications

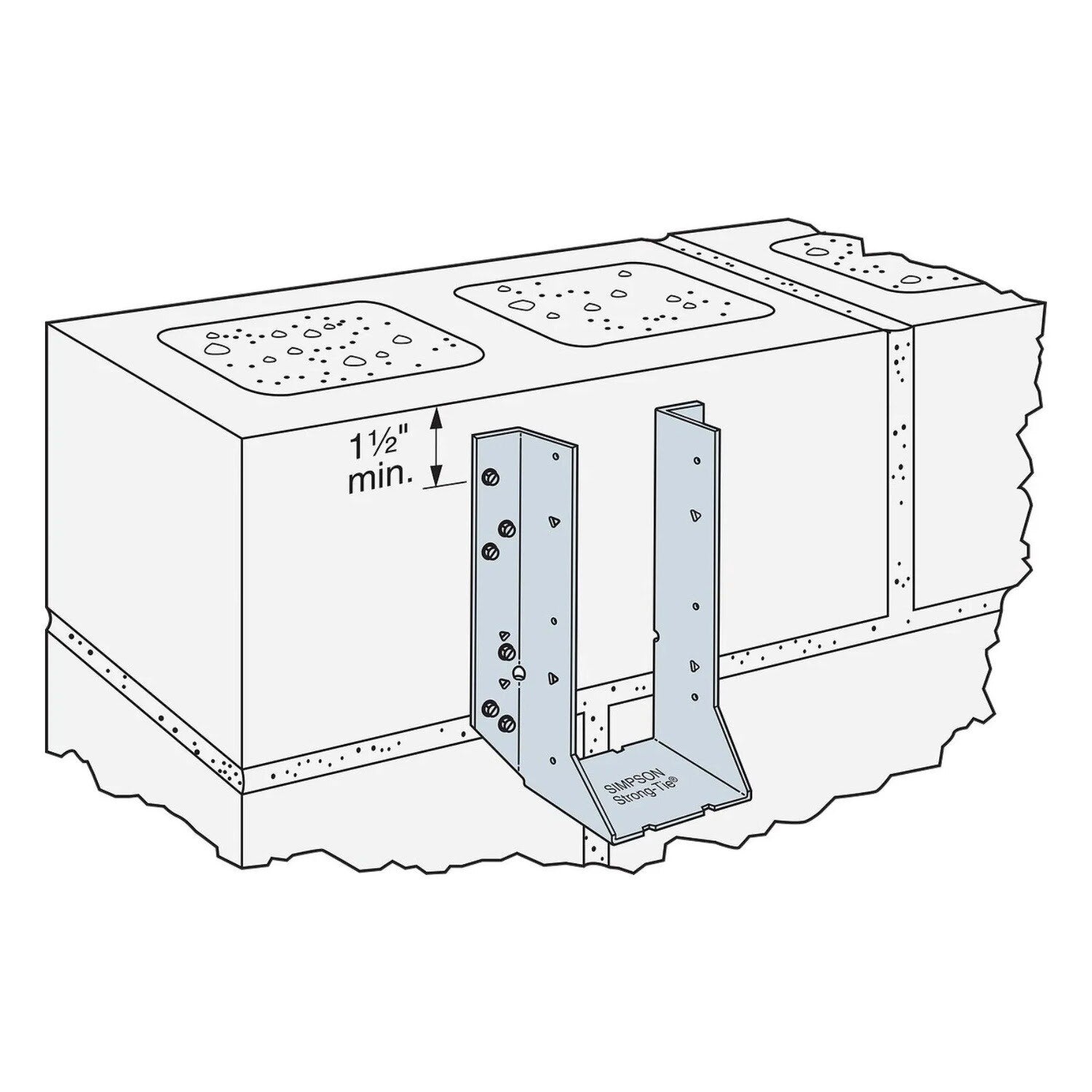

Simpson Strong-Tie HU410-2 Installation Overview
- Use all specified fasteners as per guidelines
- Can be installed filling round holes only or round and triangle holes for maximum values
- Joists sloped up to 1/4:12 achieve table loads
- Web stiffeners required for I-joist applications
- Can be welded to steel members with adjusted load values

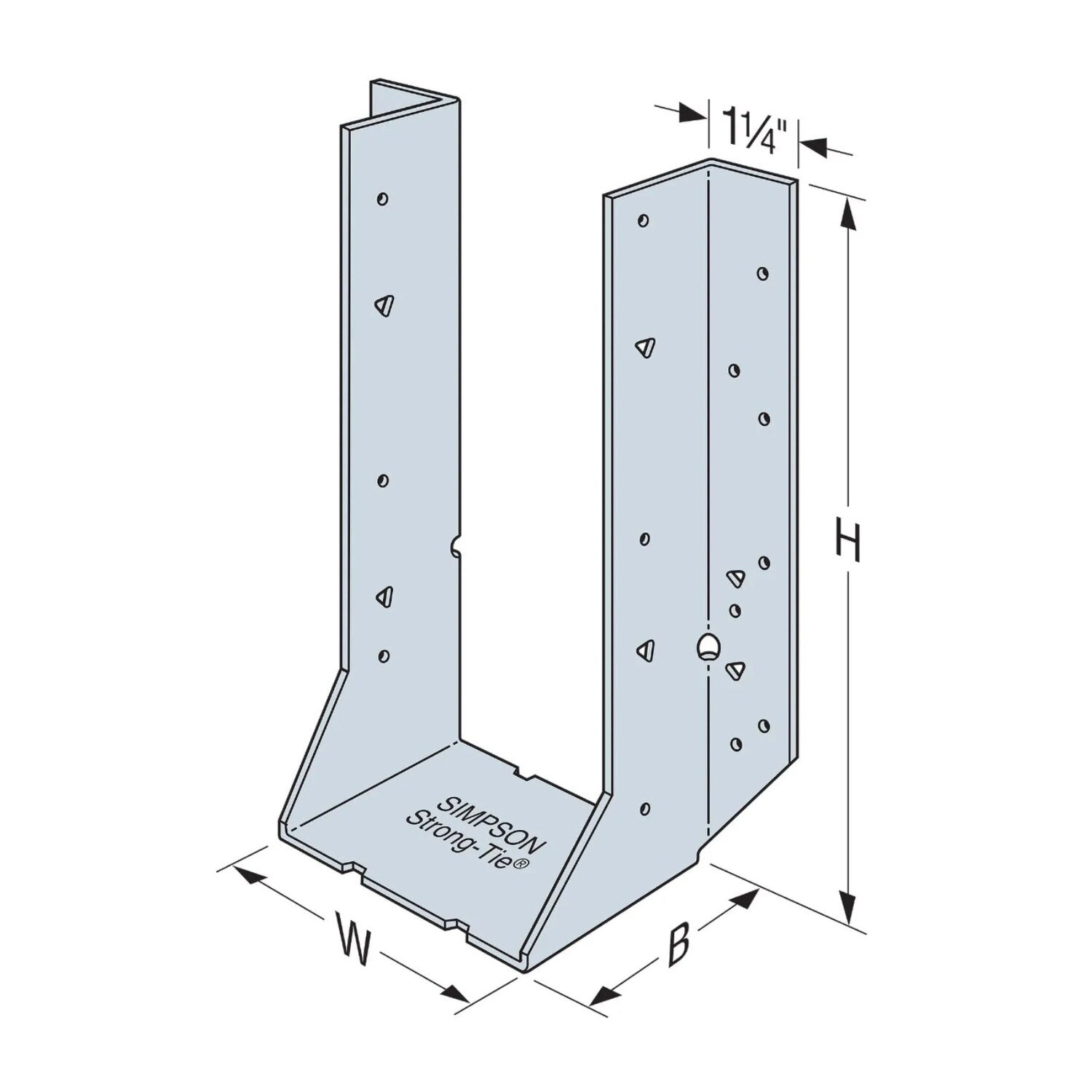

Simpson Strong-Tie HU410-2 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 14 Gauge |
| Width | 7-1/8" |
| Height | 8-9/16" |
| Joist size | 7" X 9-1/4" |
| Fasteners required | Face - (18) 0.162" x 3-1/2" Nails, Joist - (8) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
