Simpson Hangers | SKU: HU410 | Barcode: 044315405006

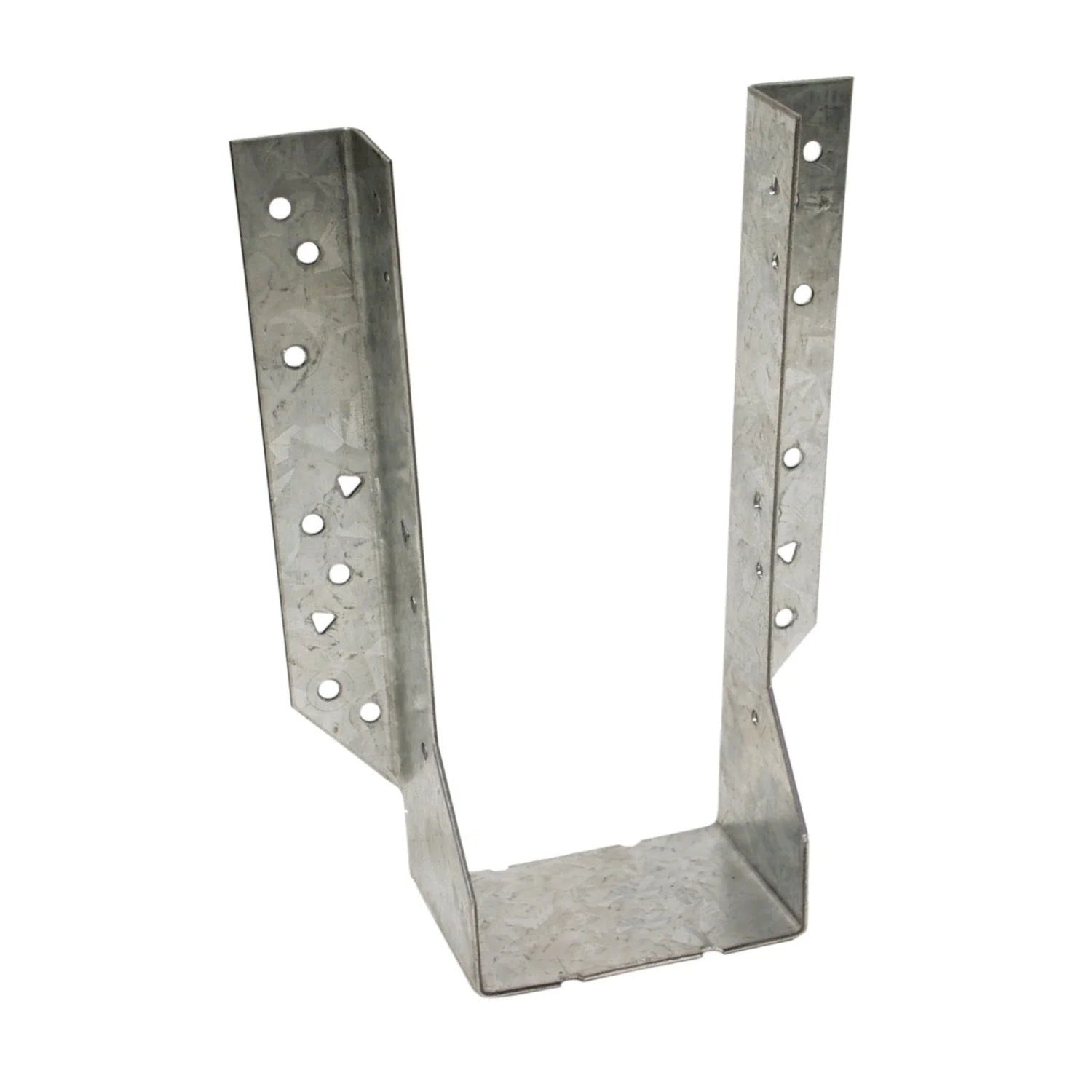

Simpson Strong-Tie HU410 (4" x 10") Heavy-Duty Galvanized Face-Mount Joist Hanger

Name: Simpson Strong-Tie HU410 (4" x 10") Heavy-Duty Galvanized Face-Mount Joist Hanger
Brand: Simpson Hangers
SKU: 248787
Price: 15.16 USD
Availability: InStock

$15.16 ~~$22.50~~

NOTE: This item is ineligible for free shipping

Description

Simpson HU410 Description

The Simpson HU410 is a heavy-duty galvanized face-mount joist hanger designed for 4x10 joists, offering robust support and durability for various construction applications.

Simpson HU410 Includes

(1) Heavy-Duty Galvanized Face-Mount Joist Hanger for 4x10

Simpson HU410 Features

G90 Galvanized Finish for corrosion resistance
14-gauge steel construction for durability
Tested and code-compliant for structural applications
Versatile design for solid sawn lumber and engineered wood
Triangular holes for additional load capacity

Simpson HU410 Applications

Deck Framing: Securely fastens joists to beams for added structural support.
Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
Roof Framing: Used in truss and rafter connections for enhanced stability.
Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.

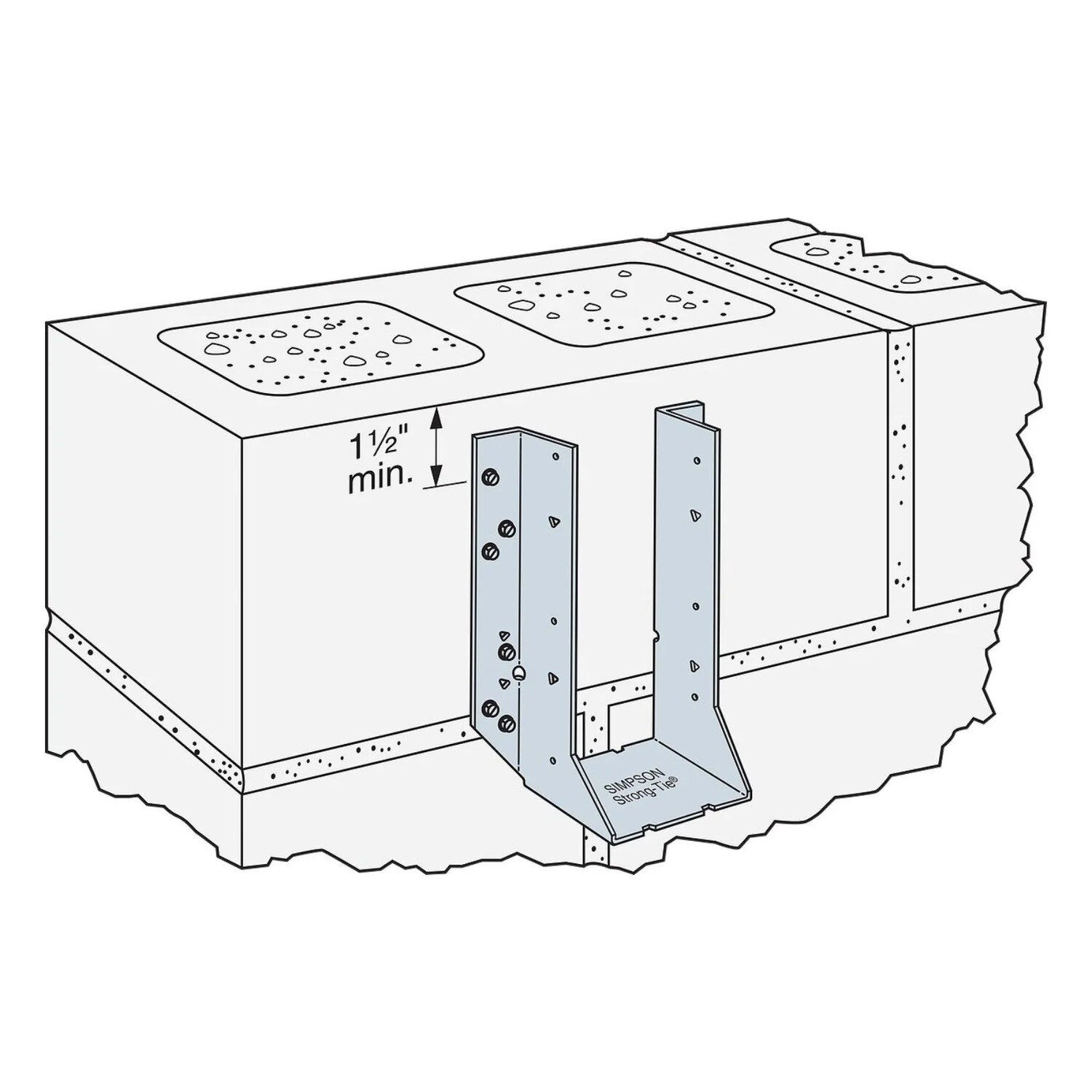

Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.

Simpson HU410 Installation Overview

Use all specified fasteners as per guidelines.
Install by filling round holes only or both round and triangular holes for maximum values.
Joists sloped up to 1/4:12 achieve table loads.
For masonry or concrete installations, refer to specific guidelines.
Can be welded to steel members with load considerations.
Adjust allowable load when nailing into solid sawn carrying member's end grain.
Web stiffeners required for I-joist applications.

Simpson HU410 Specifications

Finish	G90 Galvanized
Material	Carbon Steel
Fasteners required	Face - (18) 0.162" x 3-1/2" Nails, Joist - (10) 0.148" x 3" Nails
For Treated Lumber	No
Height	8-5/8"
Joist size	4" X 10"
Thickness	14 Gauge
Width	3-9/16"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
