Simpson Hangers | SKU:
HU410SS
Simpson Strong-Tie HU410SS Stainless-Steel Face-Mount Joist Hanger for 4x10 - Heavy-Duty Corrosion Resistant Connector
$98.09
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HU410SS Description

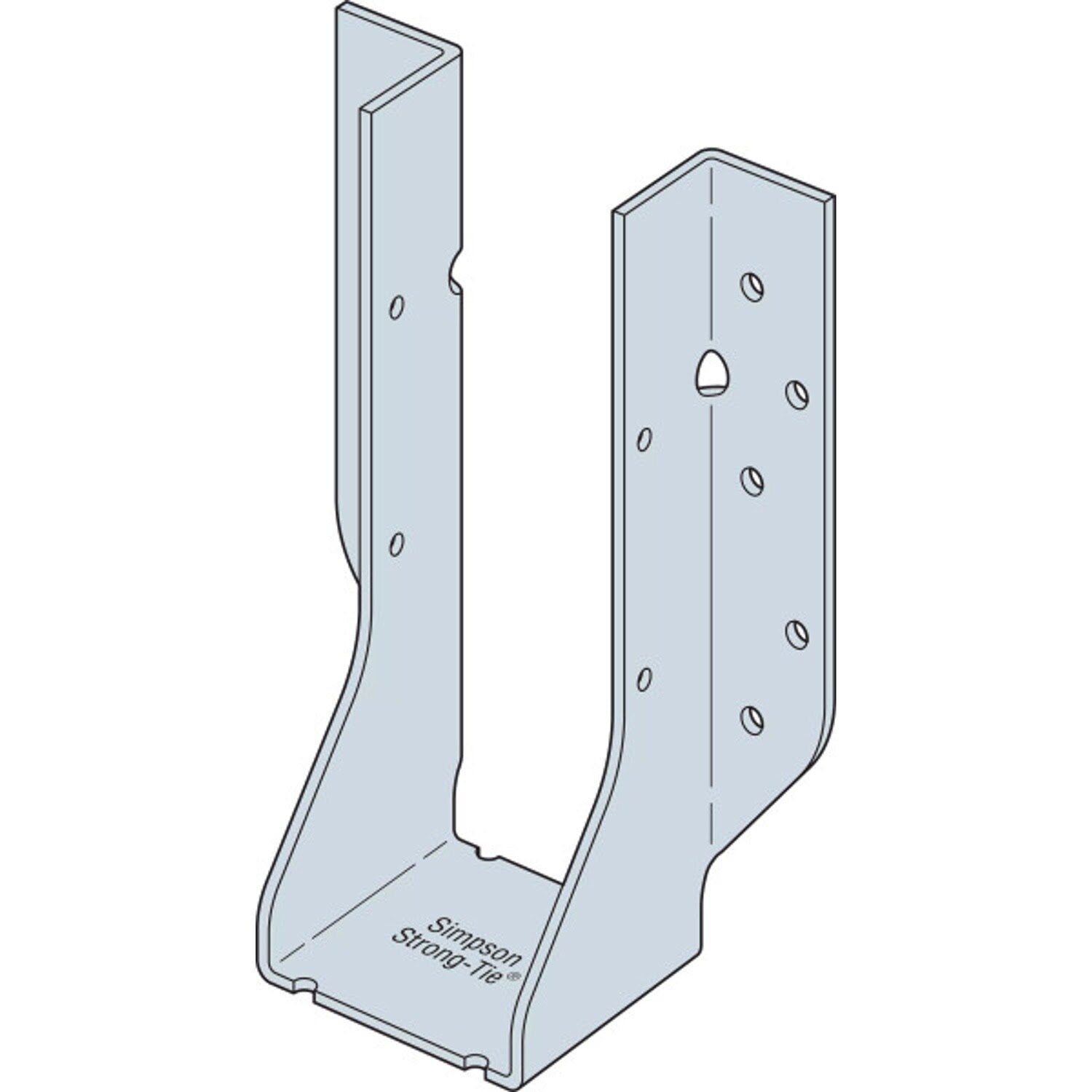

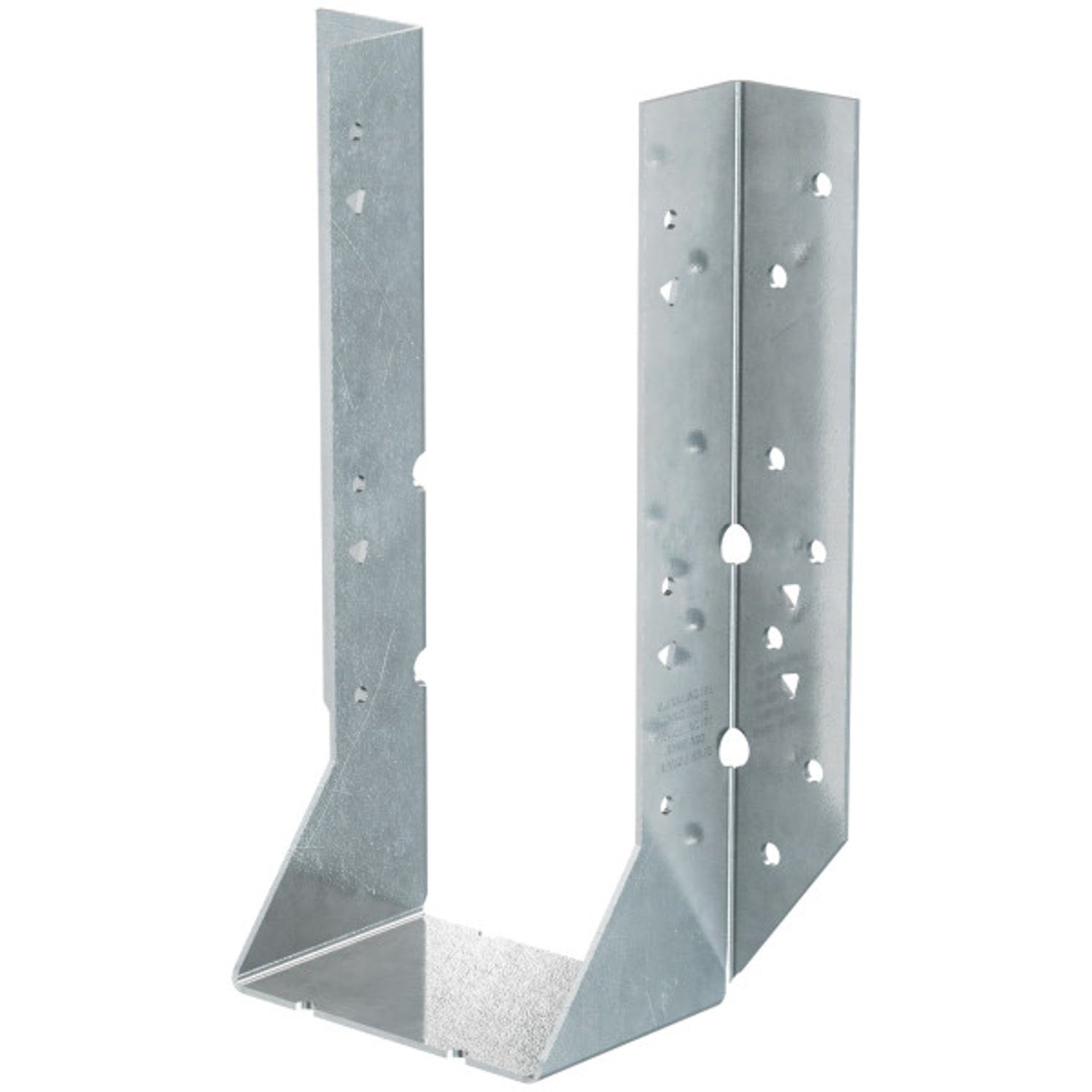

The Simpson Strong-Tie HU410SS is a stainless-steel face-mount joist hanger designed for 4x10 lumber, offering heavy-duty support and exceptional corrosion resistance for various construction applications.
Simpson Strong-Tie HU410SS Includes
- (1) Stainless-Steel Face-Mount Joist Hanger
Simpson Strong-Tie HU410SS Features
- Stainless steel construction for superior corrosion resistance
- Heavy-duty design for substantial load support
- Compatible with solid sawn lumber, engineered wood, and cold-formed steel
- Customizable options for unique design requirements
Simpson Strong-Tie HU410SS Applications
- Deck construction: Provides strong, long-lasting support for outdoor decks
- Commercial and industrial buildings: Ensures structural stability in large-scale projects
- Residential homes and timber framing: Used in floor joists, roof rafters, and load-bearing beams
- Treated lumber and marine applications: Protects against chemical exposure and harsh weather conditions
- Cold-formed steel construction: Suitable for specific steel-to-wood or steel-to-steel framing applications

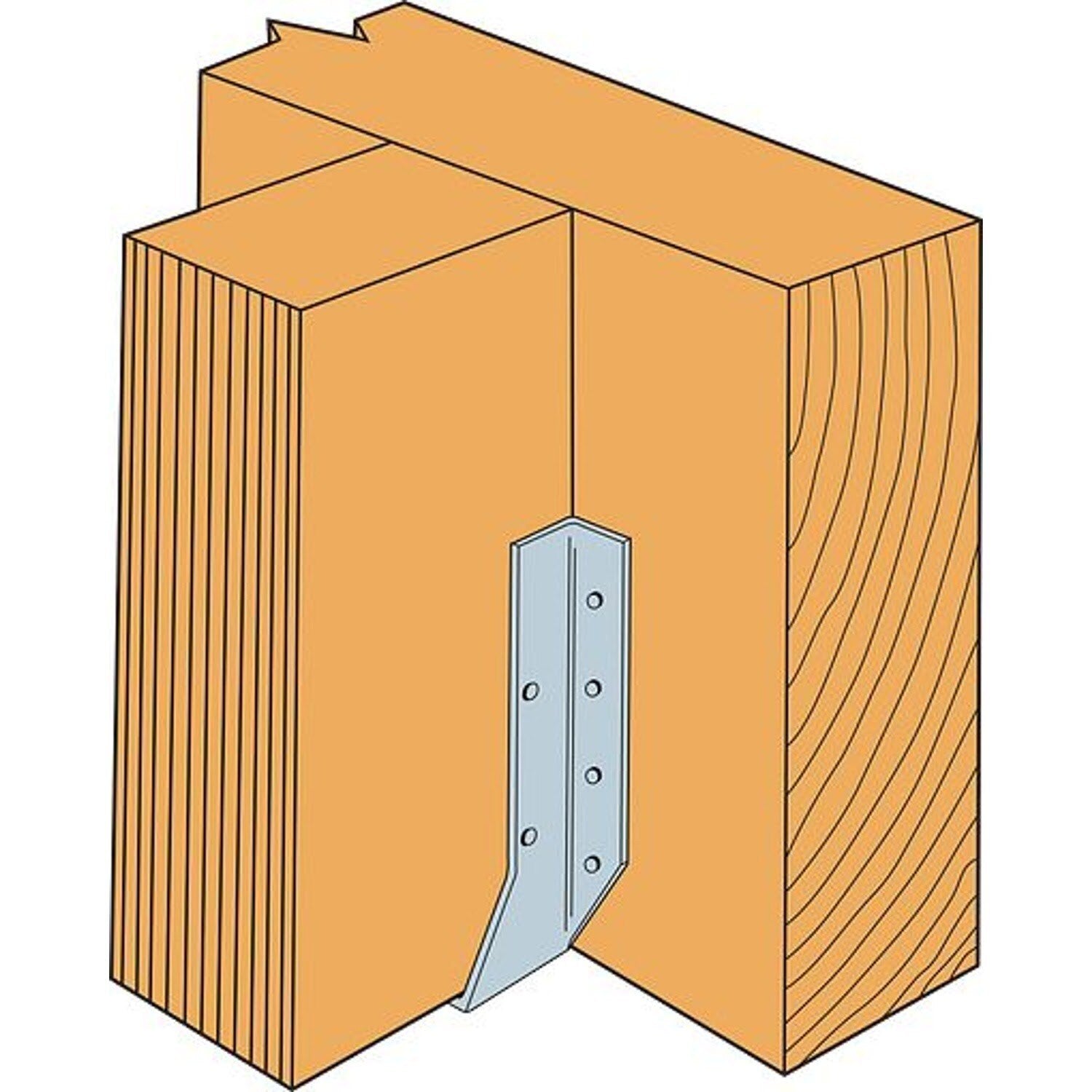

Simpson Strong-Tie HU410SS Installation Overview
- Use all specified fasteners as per guidelines
- Can be installed filling round holes only, or filling round and triangle holes for maximum values
- Joists sloped up to 1/4:12 achieve table loads
- For installations to masonry or concrete, refer to specific guidelines
- Can be welded to a steel member following technical bulletin instructions

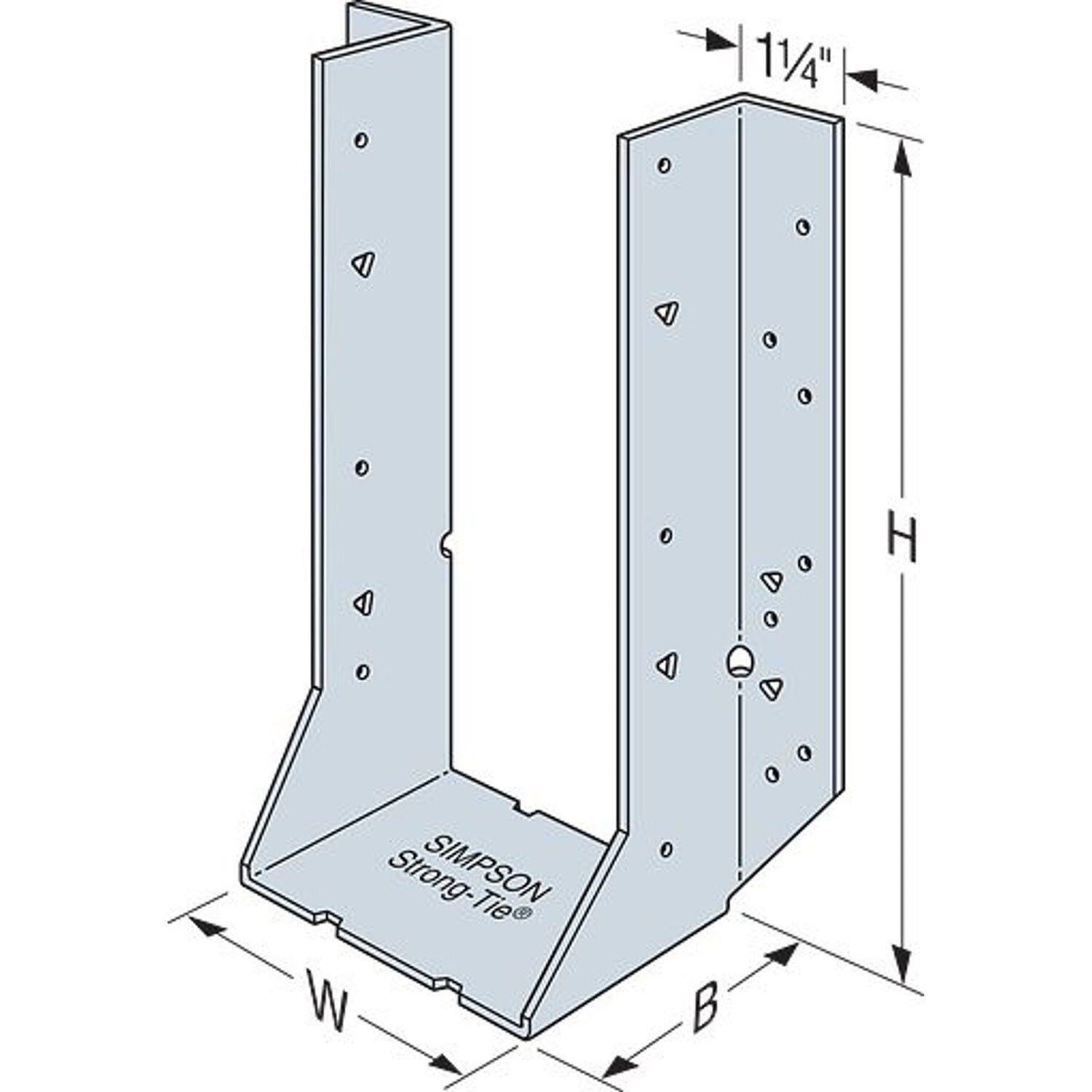

Simpson Strong-Tie HU410SS Specifications
| Material | Stainless Steel |
| Thickness | 14 Gauge |
| Width | 3-9/16" |
| Height | 8-3/8" |
| Joist size | 4" X 10" |
| For Treated Lumber | Yes |
