Simpson Hangers | SKU:
HU410Z

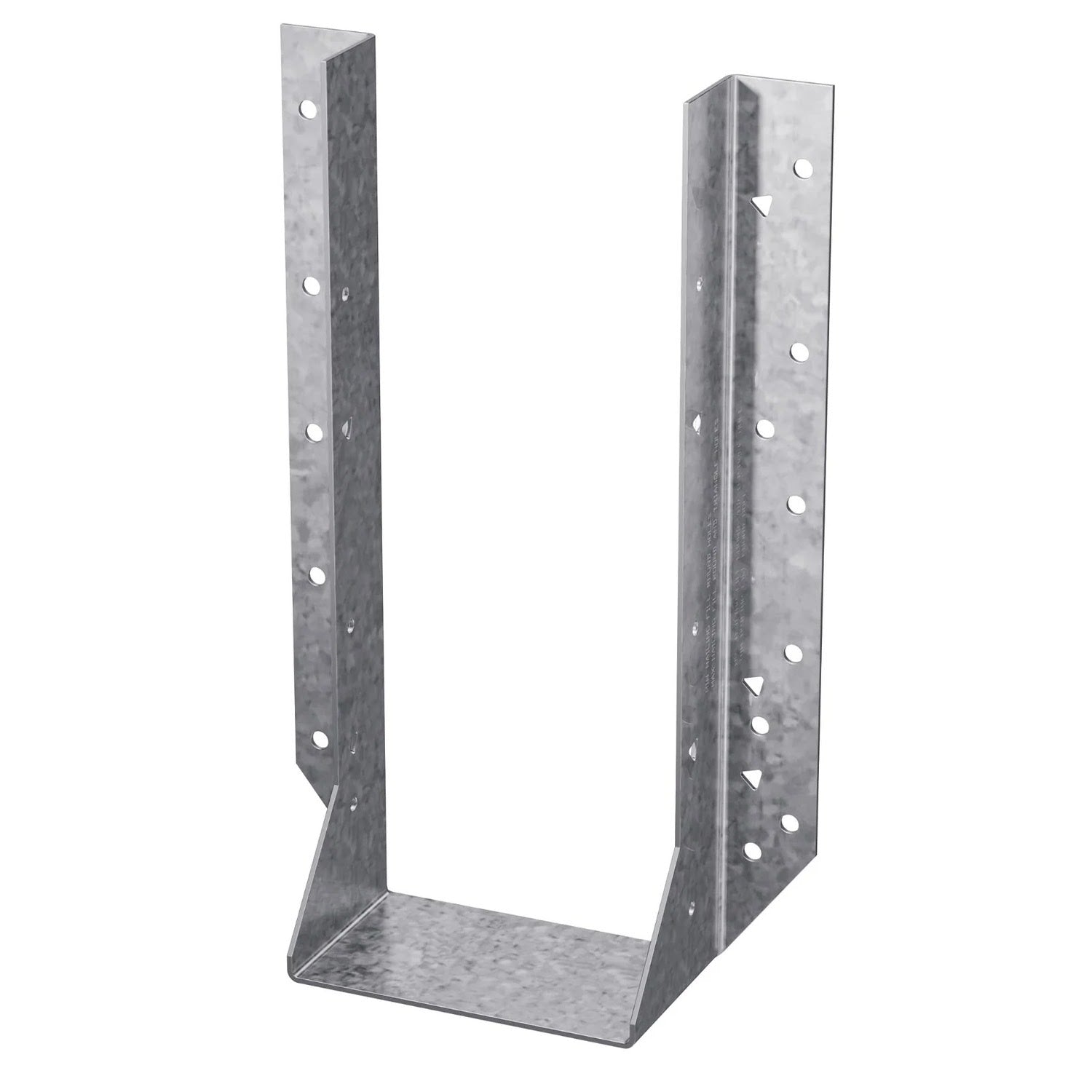

Simpson Strong-Tie HU410Z (4" x 10") Face Mount Joist Hanger ZMAX Finish
$24.13
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HU410Z Description
The Simpson Strong-Tie HU410Z is a heavy-duty face-mount joist hanger designed for robust support in structural applications. Featuring a ZMAX galvanized finish, it offers enhanced corrosion resistance, making it suitable for both interior and exterior use.
Simpson Strong-Tie HU410Z Includes
- (1) 4x10 Face Mount Joist Hanger
Simpson Strong-Tie HU410Z Features
- Heavy-duty construction for superior strength and durability
- ZMAX galvanized coating for enhanced corrosion resistance
- Compatible with solid sawn lumber and engineered wood products
- Code-compliant and rigorously tested for structural reliability
Simpson Strong-Tie HU410Z Applications
- Deck construction: Provides secure support for deck joists and ledger board connections.
- Floor framing: Ensures stability in wood-frame floor systems for residential and commercial buildings.
- Roof framing: Strengthens rafter and beam connections in trusses and roof assemblies.
- Post and beam structures: Ideal for pergolas, gazebos, and other timber-framed structures.
- Masonry and concrete applications: Can be installed with Titen HD screws for secure attachment to CMU or concrete.
Simpson Strong-Tie HU410Z Installation Overview
- Use appropriate fasteners for the specific application.
- Ensure all round and optional triangular holes are filled to achieve maximum load capacities.
- For masonry or concrete applications, use Simpson Strong-Tie Titen HD screws and maintain minimum end and edge distances.
Simpson Strong-Tie HU410Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (18) 0.162" x 3-1/2" Nails, Joist - (10) 0.148" x 3" Nails |
| For Treated Lumber | Yes |
| Height | 8-5/8" |
| Joist size | 4" X 10" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 3-9/16" |
NOTE: Ensure all fasteners are installed in the correct positions to achieve the published load values.
