Simpson Hangers | SKU: HU412-2 | Barcode: 044315516108

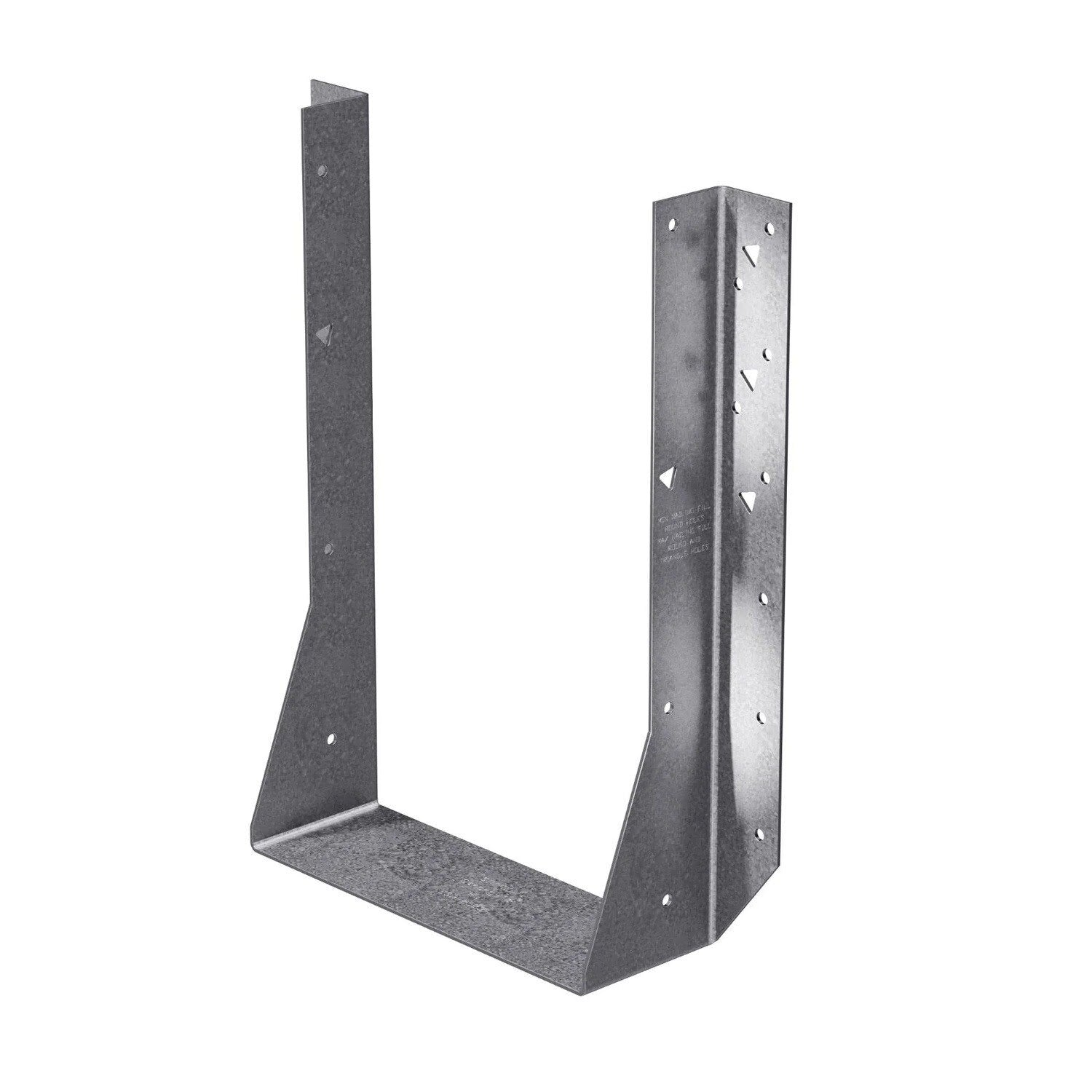

Simpson Strong-Tie HU412-2 (Double 4" x 12") Galvanized Face-Mount Joist Hanger

Name: Simpson Strong-Tie HU412-2 (Double 4" x 12") Galvanized Face-Mount Joist Hanger
Brand: Simpson Hangers
SKU: 248790
Price: 37.73 USD
Availability: BackOrder

$37.73 ~~$51.64~~

Description

Simpson Strong-Tie HU412-2 Description

The Simpson Strong-Tie HU412-2 is a heavy-duty, galvanized face-mount joist hanger designed for double 4x12 joists, providing robust support for various construction applications.

Simpson Strong-Tie HU412-2 Includes

(1) HU412-2 Joist Hanger

Simpson Strong-Tie HU412-2 Features

G90 Galvanized Finish for corrosion resistance
14-gauge steel construction for durability
Tested and code-compliant for structural applications
Triangular holes for additional load capacity

Simpson Strong-Tie HU412-2 Applications

Deck Framing: Securely fastens joists to beams for added structural support.
Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
Roof Framing: Used in truss and rafter connections for enhanced stability.
Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.

Simpson Strong-Tie HU412-2 Installation Overview

Use all specified fasteners as per guidelines.
Can be installed filling round holes only, or filling round and triangle holes for maximum values.
Joists sloped up to 1/4:12 achieve table loads.
For installations to masonry or concrete, use specified fasteners.
Web stiffeners required for I-joist applications.

Simpson Strong-Tie HU412-2 Specifications

Finish	G90 Galvanized
Material	Carbon Steel
Thickness	14 Gauge
Width	7-1/8"
Height	10-13/16"
Joist size	7" X 11-1/4"
Fasteners required	Face - (22) 0.162" x 3-1/2" Nails, Joist - (8) 0.162" x 3-1/2" Nails
For Treated Lumber	No

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
