Simpson Hangers | SKU: HU412 | Barcode: 044315406003

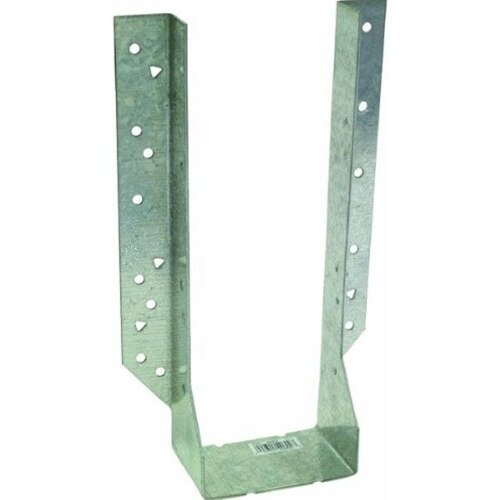

Simpson Strong-Tie HU412 (4" x 12") Galvanized Face-Mount Joist Hanger

Name: Simpson Strong-Tie HU412 (4" x 12") Galvanized Face-Mount Joist Hanger
Brand: Simpson Hangers
SKU: 41916
Price: 19.73 USD
Availability: InStock

$19.73 ~~$28.35~~

NOTE: This item is ineligible for free shipping

Description

Simpson HU412 Description

The Simpson HU412 is a heavy-duty galvanized face-mount joist hanger designed for 4x12 joists, offering robust support and durability for various construction applications.

Simpson HU412 Includes

(1) Galvanized Face-Mount Joist Hanger for 4x12

Simpson HU412 Features

G90 Galvanized Finish for corrosion resistance
Made from 14-gauge steel for durability
Versatile design for wood and masonry connections
Code compliant and load-rated for structural applications

Simpson HU412 Applications

Deck Framing: Securely fastens joists to beams for added structural support.
Floor Systems: Provides strong joist support in residential and commercial flooring.
Roof Framing: Enhances stability in truss and rafter connections.
Bridges & Boardwalks: Supports heavy timber construction projects.
Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
Masonry and Concrete Applications: Suitable for CMU walls or concrete slabs with appropriate fasteners.

Simpson HU412 Installation Overview

Use hot-dip galvanized nails for maximum corrosion resistance.
Install into masonry and concrete using specified Titen HD screws.
Ensure correct fasteners are installed in the correct position to achieve published load values.

Simpson HU412 Specifications

Material	Carbon Steel
Fasteners required	Face - (22) 0.162" x 3-1/2" Nails, Joist - (10) 0.148" x 3" Nails
For Treated Lumber	No
Height	10-3/8"
Joist size	4" X 12"
Thickness	14 Gauge
Width	3-9/16"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
