Simpson Hangers | SKU:
HU412Z
Simpson Strong-Tie HU412Z (4" x 12") Heavy-Duty Face-Mount Joist Hanger, ZMAX Finish
$27.85
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HU412Z Description

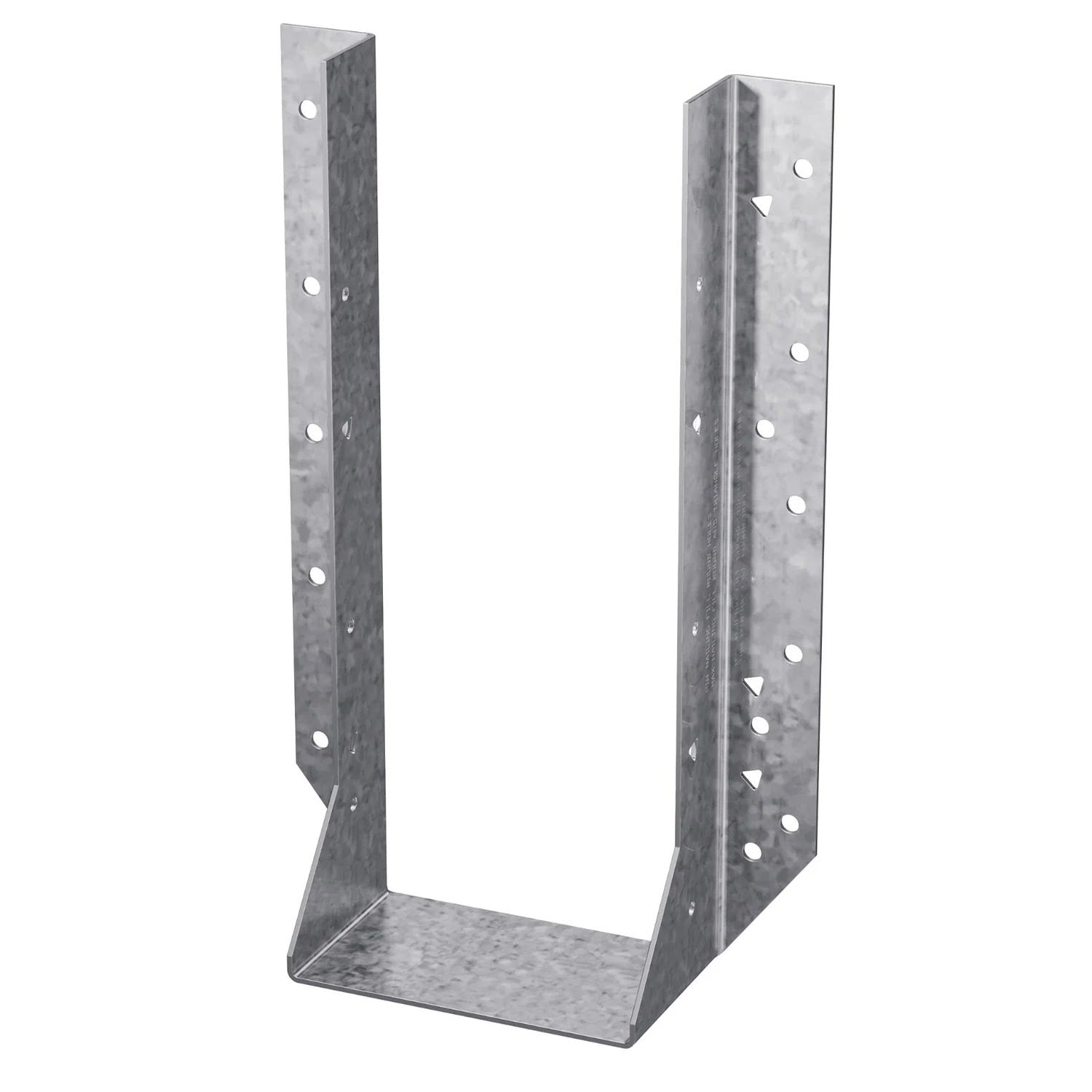

The Simpson Strong-Tie HU412Z is a heavy-duty face-mount joist hanger designed for 4x12 lumber, featuring a ZMAX galvanized finish for enhanced corrosion resistance.
Simpson Strong-Tie HU412Z Includes
- (1) HU412Z Joist Hanger
Simpson Strong-Tie HU412Z Features
- Heavy-duty construction for robust support
- ZMAX galvanized finish for corrosion resistance
- Designed for 4x12 lumber
- Tested and code-compliant for structural applications
Simpson Strong-Tie HU412Z Applications
- Deck Construction: Provides secure support for deck joists and ledger board connections.
- Floor Framing: Ensures stability in wood-frame floor systems for residential and commercial buildings.
- Roof Framing: Strengthens rafter and beam connections in trusses and roof assemblies.
- Post and Beam Structures: Ideal for pergolas, gazebos, and other timber-framed structures.
- Masonry and Concrete Applications: Can be installed with Titen HD screws for secure attachment to CMU or concrete.

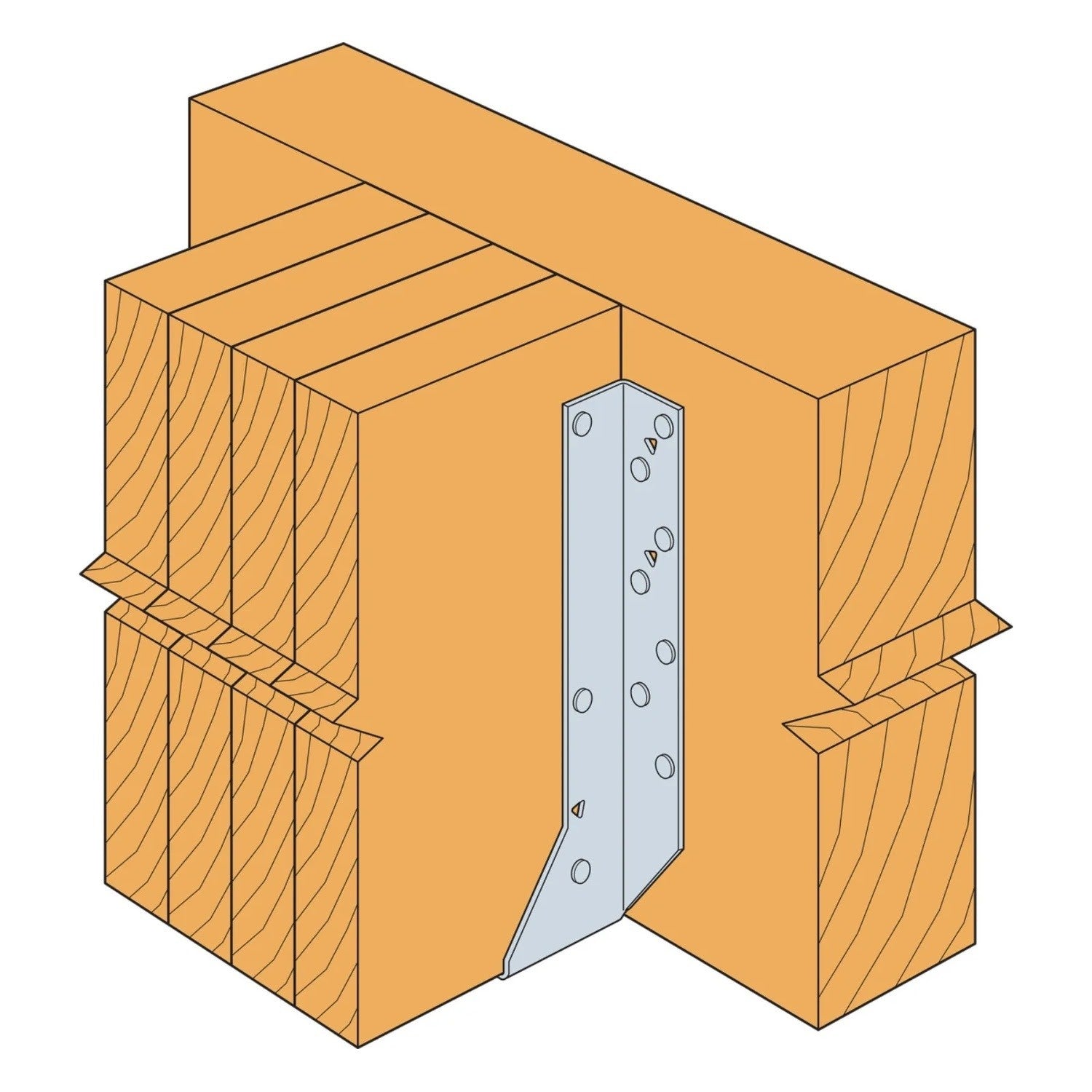

Simpson Strong-Tie HU412Z Installation Overview
- Use all specified fasteners as per guidelines.
- Fill all round and optional triangular holes for maximum load capacities.
- Ensure proper alignment and secure attachment to the supporting structure.
- For masonry or concrete installations, use appropriate fasteners like Titen HD screws.
- Follow manufacturer instructions for specific applications.
Simpson Strong-Tie HU412Z Specifications
| Material | Carbon Steel |
| Finish | ZMAX Galvanized |
| Thickness | 14 Gauge |
| Width | 3-9/16" |
| Height | 10-5/16" |
| Joist Size | 4" X 12" |
| Fasteners Required | Face - (22) 0.162" x 3-1/2" Nails, Joist - (10) 0.148" x 3" Nails |
| For Treated Lumber | Yes |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
