Simpson Strong-Tie HU414-2 Description

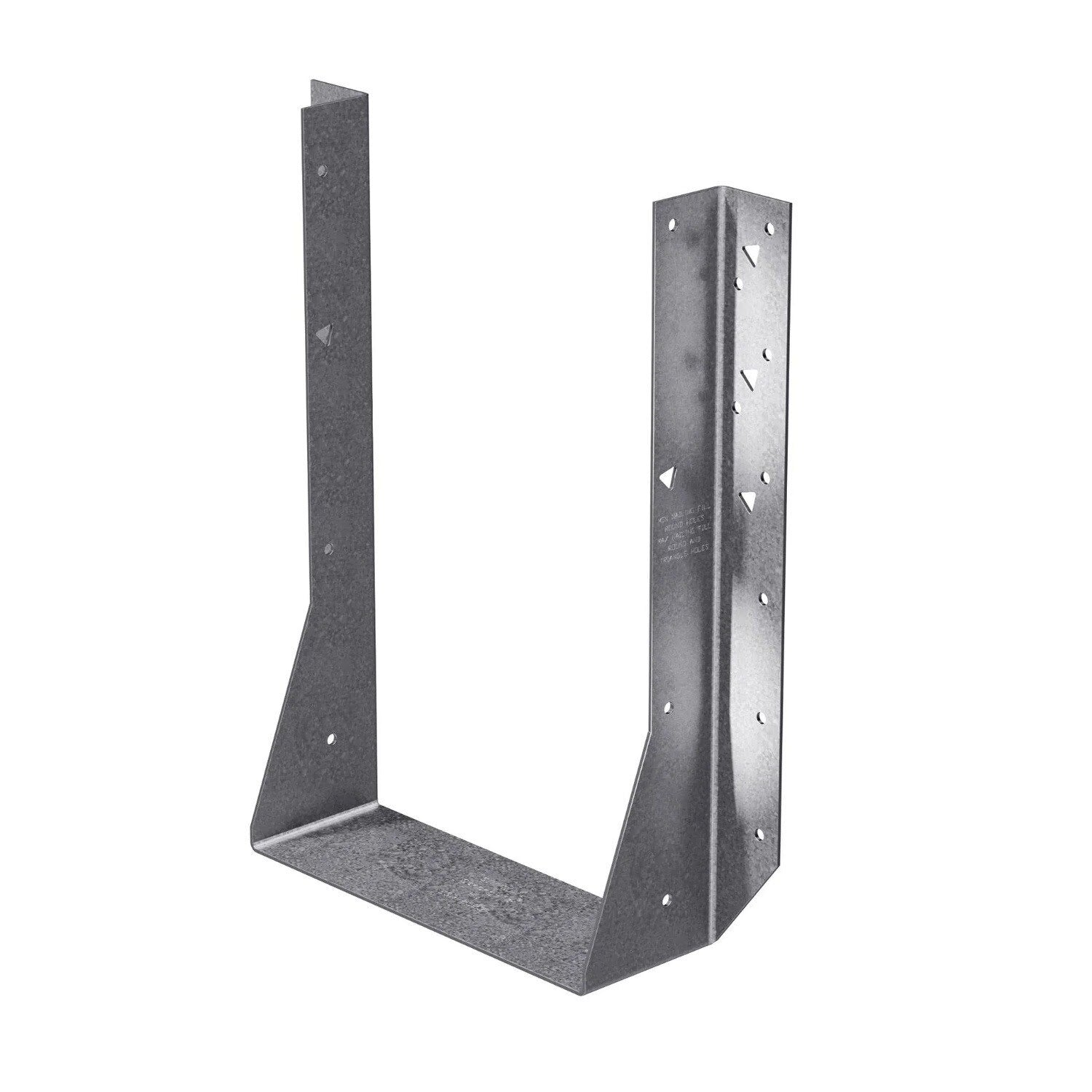

The HU414-2 is a galvanized face-mount joist hanger designed for double 4x14 lumber, providing reliable support and durability.
Simpson Strong-Tie HU414-2 Includes
- (1) HU414-2 Galvanized Face-Mount Joist Hanger
Simpson Strong-Tie HU414-2 Features
- Added triangular holes on most models for additional load capacity
- HU-series hangers are tested, load rated and code compliant
Simpson Strong-Tie HU414-2 Applications
- Engineered wood construction
- Solid sawn lumber connections
Simpson Strong-Tie HU414-2 Installation Overview
- Use all specified fasteners as per guidelines.
- Can be installed filling round holes only, or filling round and triangle holes for maximum values.
- Joists sloped up to 1/4:12 achieve table loads.
- For installations to masonry or concrete, refer to specific guidelines.
- Can be welded to a steel member with specific load considerations.
- When nailing into solid sawn carrying member's end grain, adjust allowable load by a factor of 0.67.
- Web stiffeners required for I-joist applications.
Simpson Strong-Tie HU414-2 Specifications
| Material | 14 gauge (68 mil) |
| Finish | Galvanized, G90 |
| Width | 7 1/8 in. |
| Height | 12 9/16 in. |
| Base | 2 1/2 in. |
Toolup Part # :
824269
