Simpson Hangers | SKU: HU414 | Barcode: 044315407000

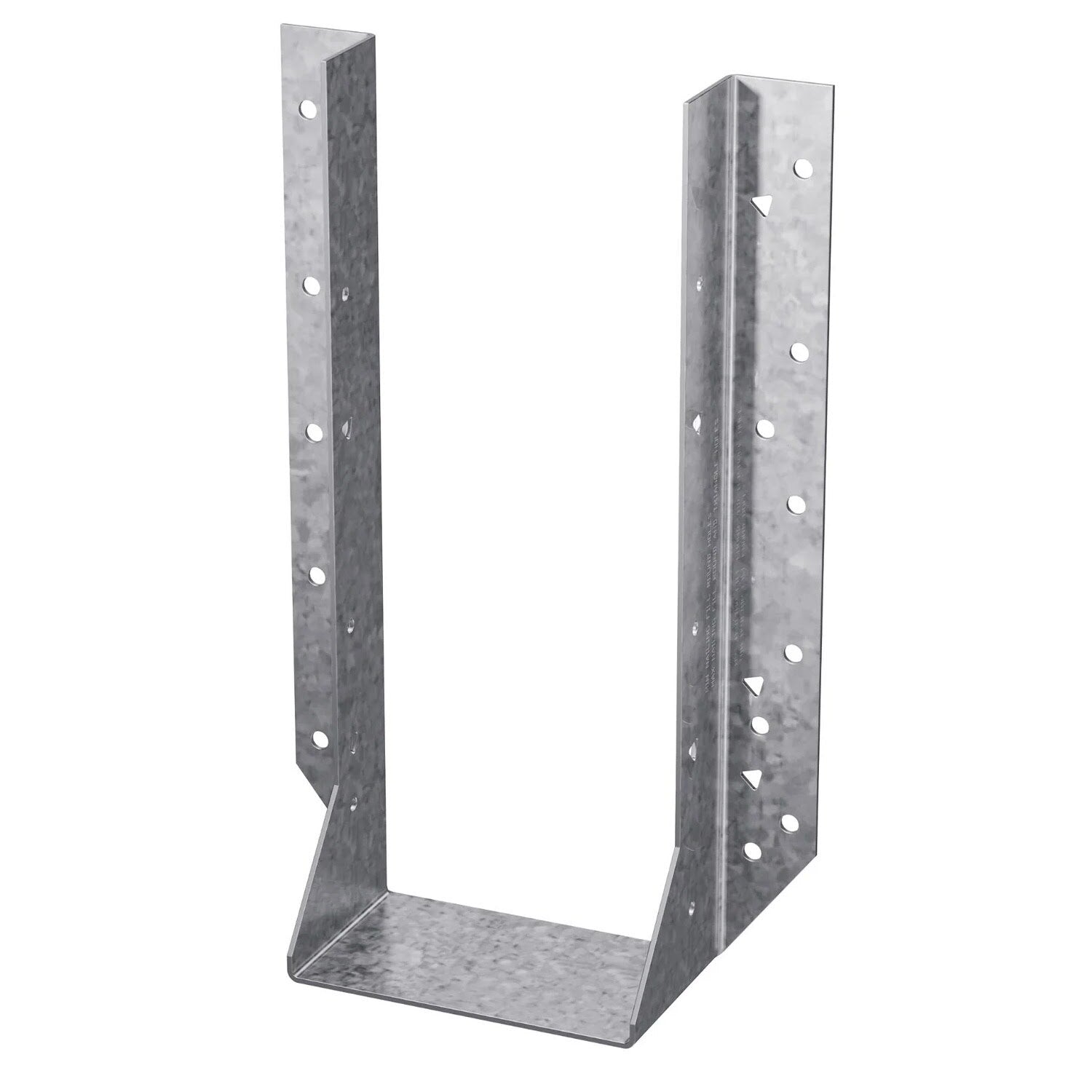

Simpson Strong-Tie HU414 (4" x 14") Galvanized Face-Mount Joist Hanger

Name: Simpson Strong-Tie HU414 (4" x 14") Galvanized Face-Mount Joist Hanger
Brand: Simpson Hangers
SKU: 248792
Price: 24.54 USD
Availability: InStock

$24.54 ~~$34.29~~

NOTE: This item is ineligible for free shipping

Description

Simpson HU414 Description

The Simpson HU414 is a heavy-duty galvanized face-mount joist hanger designed for 4x14 joists, offering robust support and durability for various construction applications.

Simpson HU414 Includes

(1) Galvanized Face-Mount Joist Hanger for 4x14

Simpson HU414 Features

G90 Galvanized Finish for corrosion resistance
Heavy-duty 14-gauge steel construction
Versatile design for solid sawn lumber, engineered wood, and cold-formed steel joists
Code-compliant and load-rated for structural applications

Simpson HU414 Applications

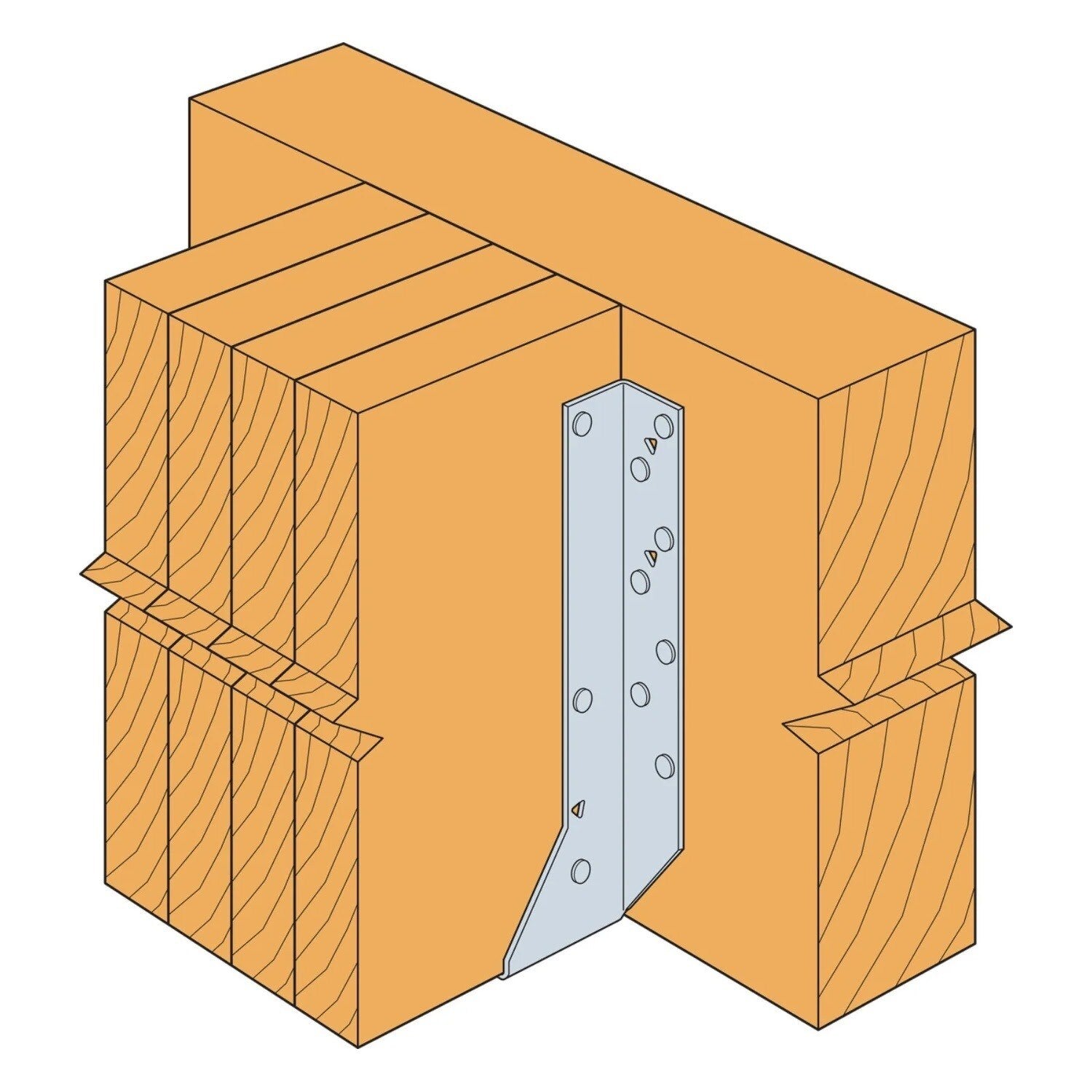

Deck Framing: Securely fastens joists to beams for added structural support.
Floor Systems: Provides strong joist support in residential and commercial flooring structures.
Roof Framing: Used in truss and rafter connections for enhanced stability.
Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.

Simpson HU414 Installation Overview

Use hot-dip galvanized nails for maximum corrosion resistance.
Install into masonry and concrete using specified Titen HD screws.
Ensure correct fasteners are installed in the correct position to achieve published load values.

Simpson HU414 Specifications

Material	Carbon Steel
Fasteners required	Face - (24) 0.162" x 3-1/2" Nails, Joist - (12) 0.148" x 3" Nails
For Treated Lumber	No
Height	12-5/8"
Joist size	4" X 14"
Thickness	14 Gauge
Width	3-9/16"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
