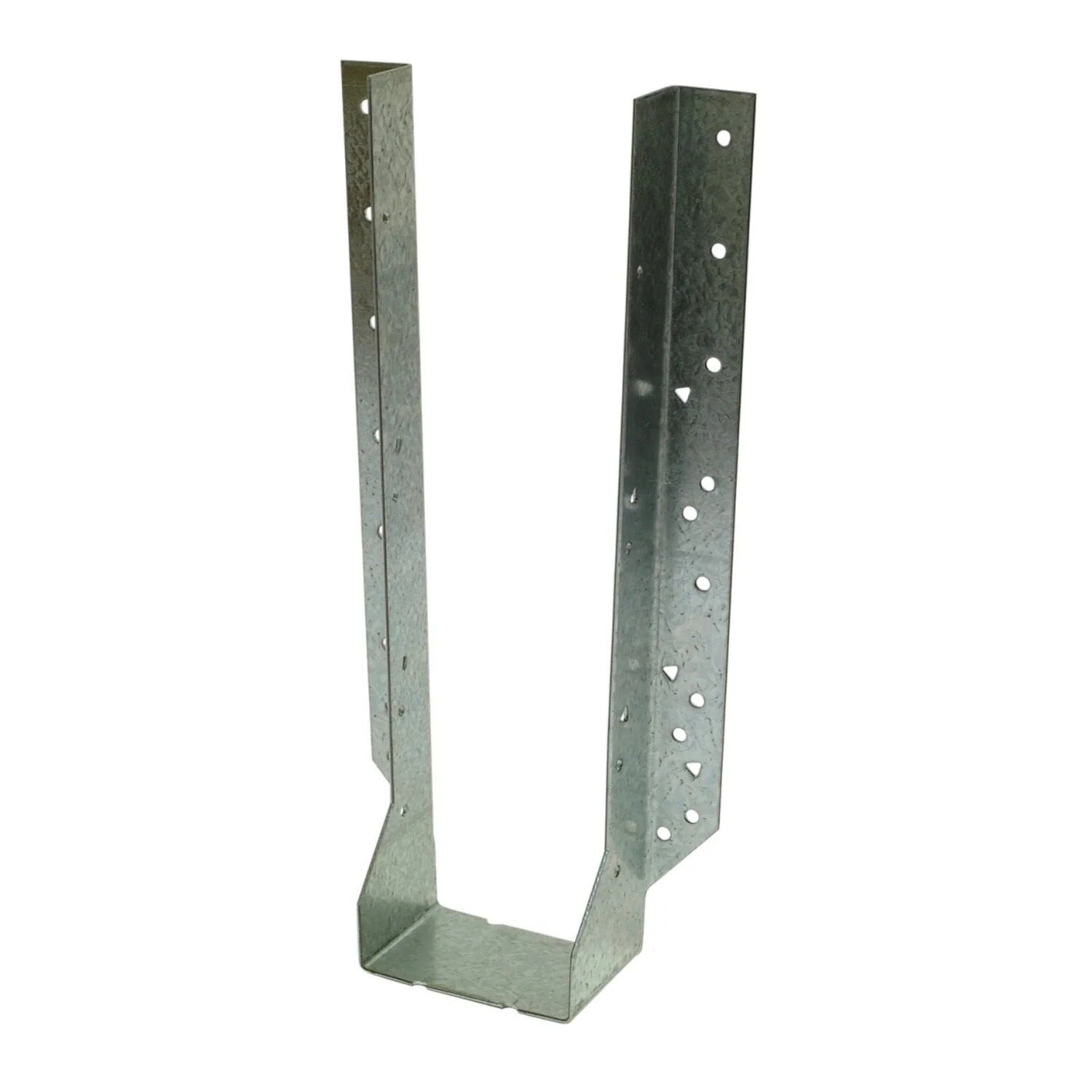

Simpson Strong-Tie HU416 (4" x 16") Galvanized Face-Mount Joist Hanger
$27.02
Unit price
/
Unavailable
Description
Description
Simpson HU416 Description
The Simpson HU416 is a heavy-duty face-mount joist hanger designed for robust support in wood-to-wood and wood-to-masonry connections. Made from 14-gauge steel with a G90 galvanized finish, it ensures durability and compliance with building codes.
Simpson HU416 Includes
- (1) Galvanized Face-Mount Joist Hanger for 4x16
Simpson HU416 Features
- G90 Galvanized Finish for corrosion resistance
- 14-Gauge Steel construction for durability
- Versatile design for wood and masonry connections
- Code-compliant and load-rated for structural applications
Simpson HU416 Applications
- Deck Framing: Securely fastens joists to beams for added structural support.
- Floor Systems: Provides strong joist support in residential and commercial flooring.
- Roof Framing: Used in truss and rafter connections for enhanced stability.
- Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
- Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
- Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.
Simpson HU416 Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Install into masonry and concrete using specified Titen HD screws.
- Ensure correct fasteners are installed in the correct position to achieve published load values.
Simpson HU416 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (26) 0.162" x 3-1/2" Nails, Joist - (12) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 13-5/8" |
| Joist size | 4" X 16" |
| Thickness | 14 Gauge |
| Width | 3-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
