Simpson Hangers | SKU:
HU46

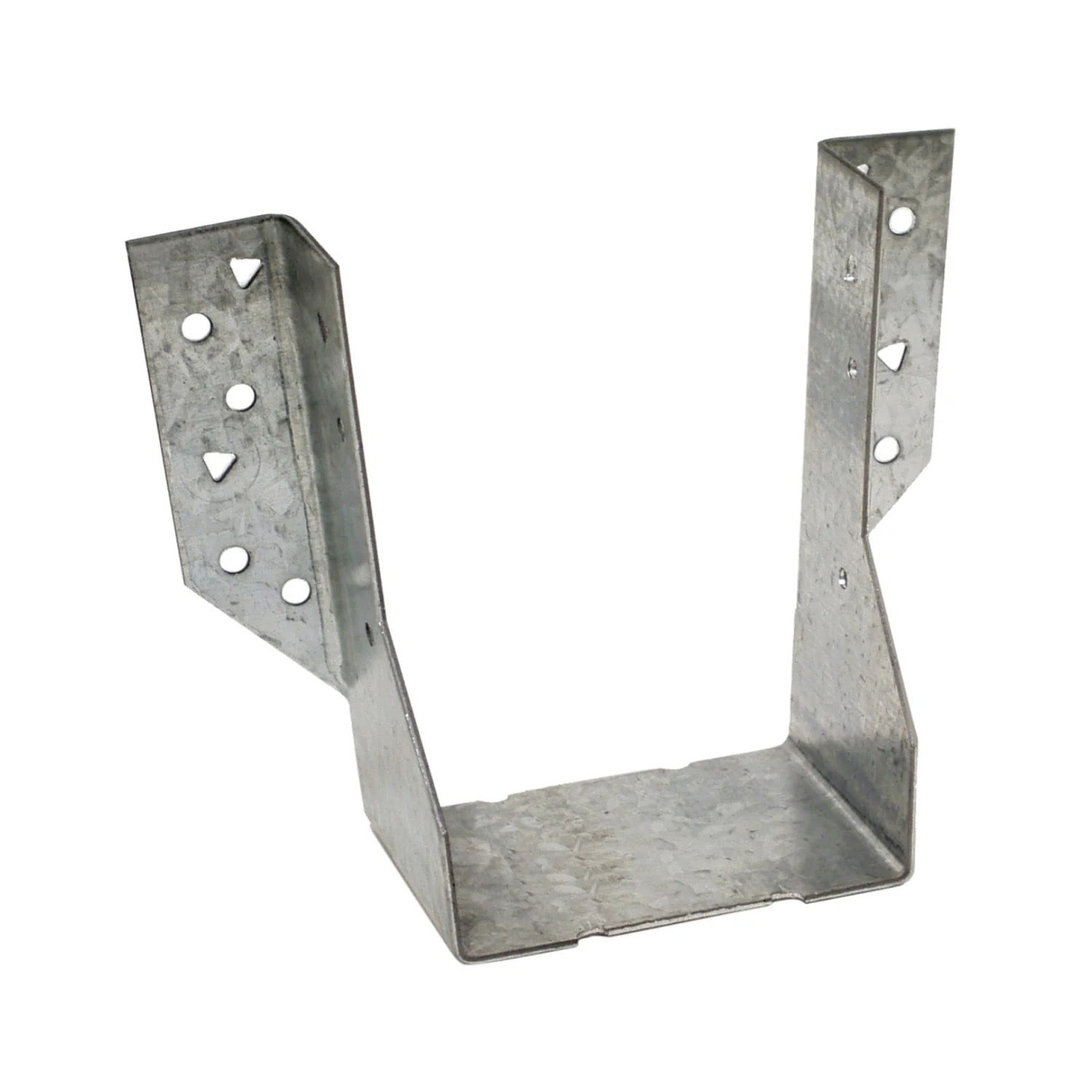

Simpson Strong-Tie HU46 Heavy Duty Face Mount Joist Hanger for 4x6 Nominal Lumber
$12.16
$16.99
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson HU46 Description
The Simpson HU46 is a heavy-duty face mount joist hanger designed for 4x6 nominal lumber, featuring a G90 galvanized finish for enhanced corrosion resistance.
Simpson HU46 Includes
- (1) Heavy Duty Face Mount Joist Hanger for 4x6 Nominal Lumber
Simpson HU46 Features
- Heavy-duty 14 gauge construction
- G90 galvanized finish for corrosion resistance
- Designed for 4x6 nominal lumber
- Tested, load-rated, and code compliant
- Triangular holes for additional load capacity
Simpson HU46 Applications
- Commercial construction requiring heavy-duty joist support
- Wood framing applications
- Masonry and concrete installations with specified screws
Simpson HU46 Installation Overview
- Use all specified fasteners
- Attach to grouted CMU walls using specified screws
- Drill holes to specified embedment depth and clean with compressed air
- Maintain minimum end and edge distances
- Provide moisture barrier between beam and wall
Simpson HU46 Specifications
| Material | 14 Gauge |
| Finish | G90 Galvanized |
| Width | 3-9/16" |
| Height | 5-3/16" |
| Joist Size | 4" X 6" |
| Fasteners Required | Face - (12) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 3" Nails |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values
