Simpson Hangers | SKU:
HU5.25/12TF
Simpson Strong-Tie HU5.25/12TF (5-1/8" x 12") Heavy Top-Flange Hanger for Joists, G90 Galvanized
$63.21
$86.51
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HU5.25/12TF Description

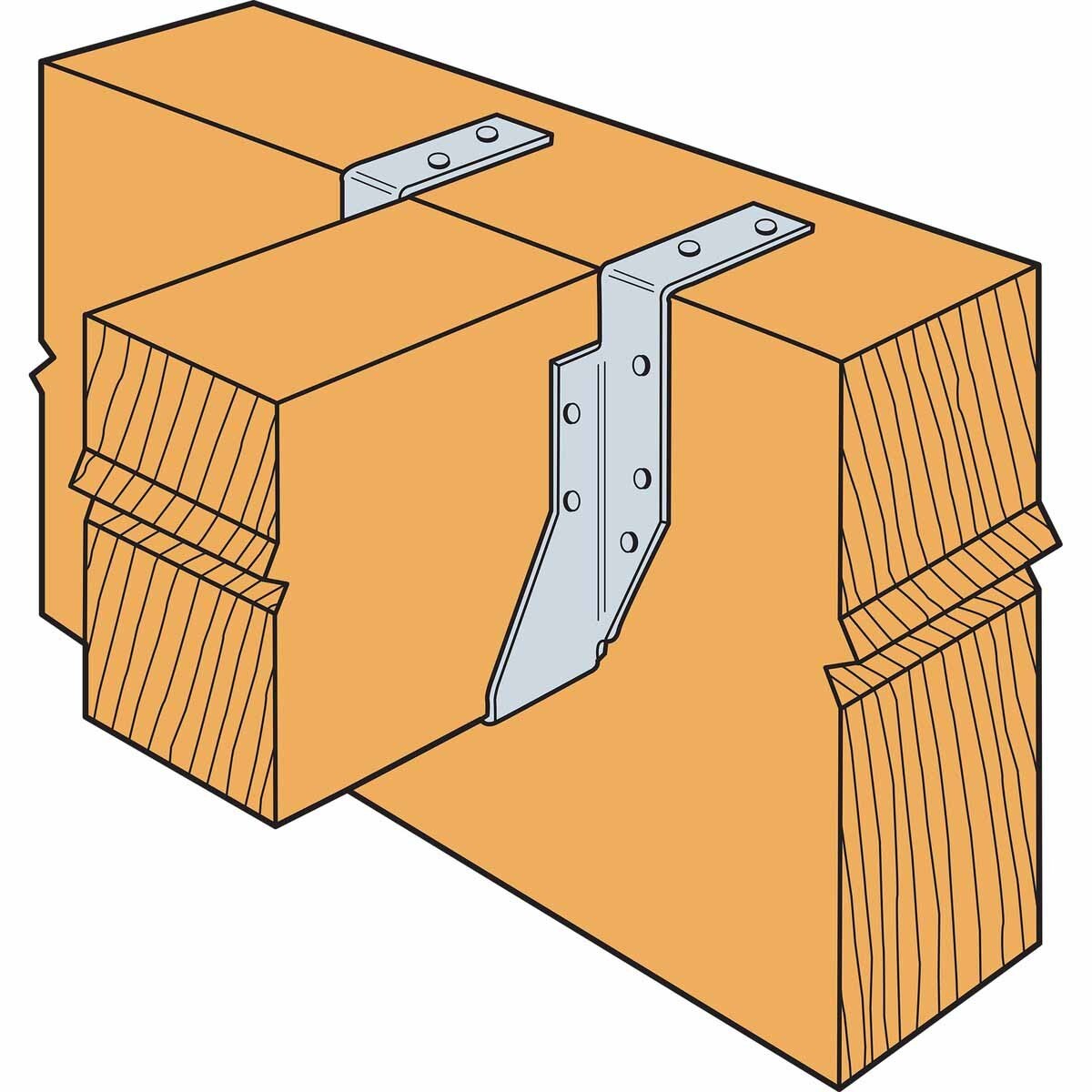

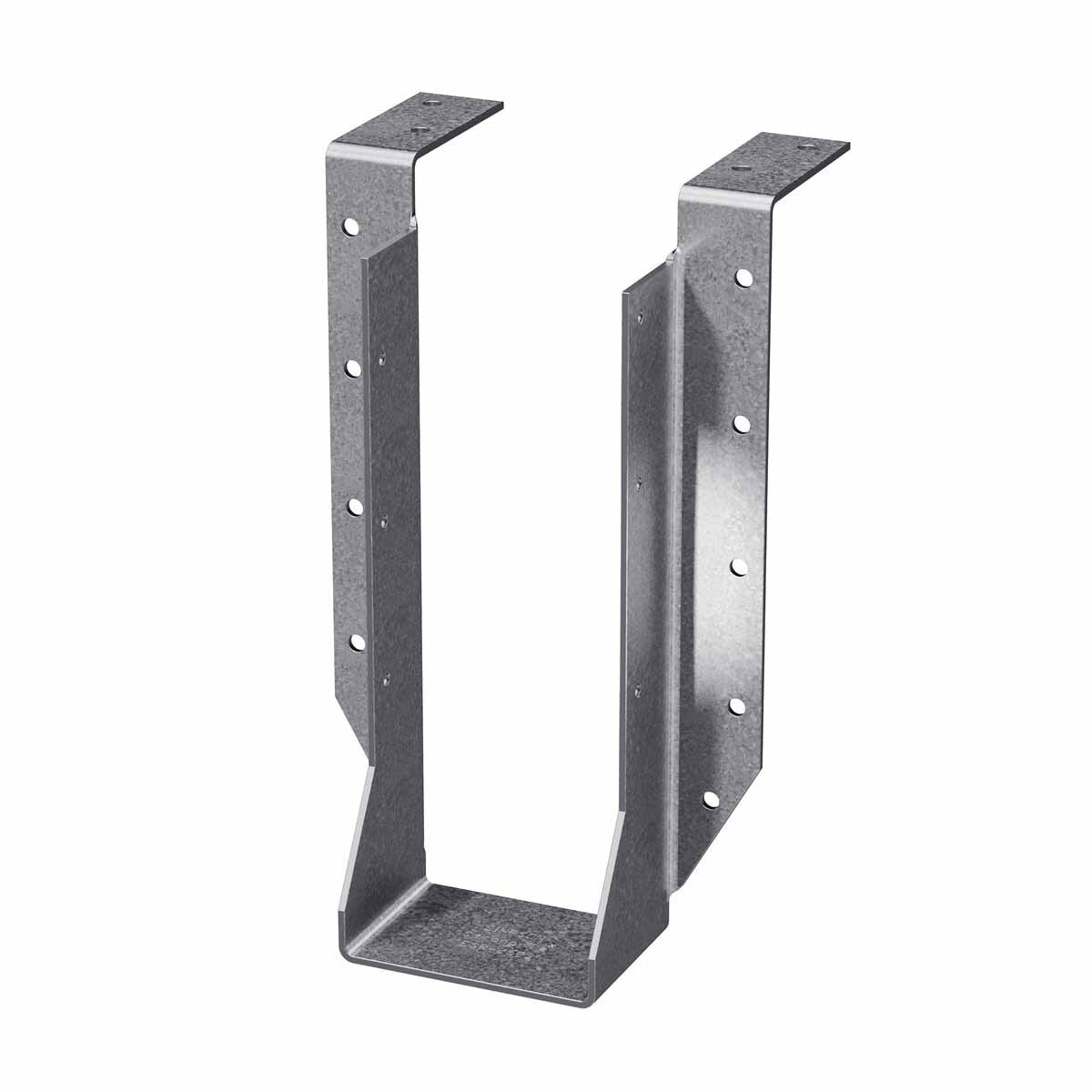

The HU5.25/12TF Heavy Top-Flange Hanger is designed for superior support in connecting solid sawn lumber, combining face-mount and top-mount designs for enhanced versatility and strength.
Simpson Strong-Tie HU5.25/12TF Includes
- (1) Heavy Top-Flange Hanger
Simpson Strong-Tie HU5.25/12TF Features
- Hybrid Design: Combines face-mount and top-mount hanger advantages for robust connections.
- Durable Construction: Made from 12-gauge galvanized steel for exceptional strength and corrosion resistance.
- Versatile Installation: Can be skewed or sloped up to 45° to accommodate various framing requirements.
Simpson Strong-Tie HU5.25/12TF Applications
- Residential and Commercial Floor Joists: Securely fastens joists to headers, ensuring stability and reducing movement in flooring systems.
- Roof Rafter Connections: Provides strong and lasting support for sloped rafters, helping maintain the structural integrity of pitched roofs.
- Deck Framing: Reinforces deck joists, creating a solid framework that withstands heavy loads and outdoor conditions.
- General Wood-to-Wood Structural Connections: Ideal for various framing needs, offering a reliable connection for beams, ledgers, and other timber structures.
Simpson Strong-Tie HU5.25/12TF Installation Overview
- Fasteners: Use all specified fasteners as per the manufacturer's instructions to ensure maximum load capacity.
- Header Size: The minimum header or ledger size compatible with the HUTF hanger is 3 1/2 inches.

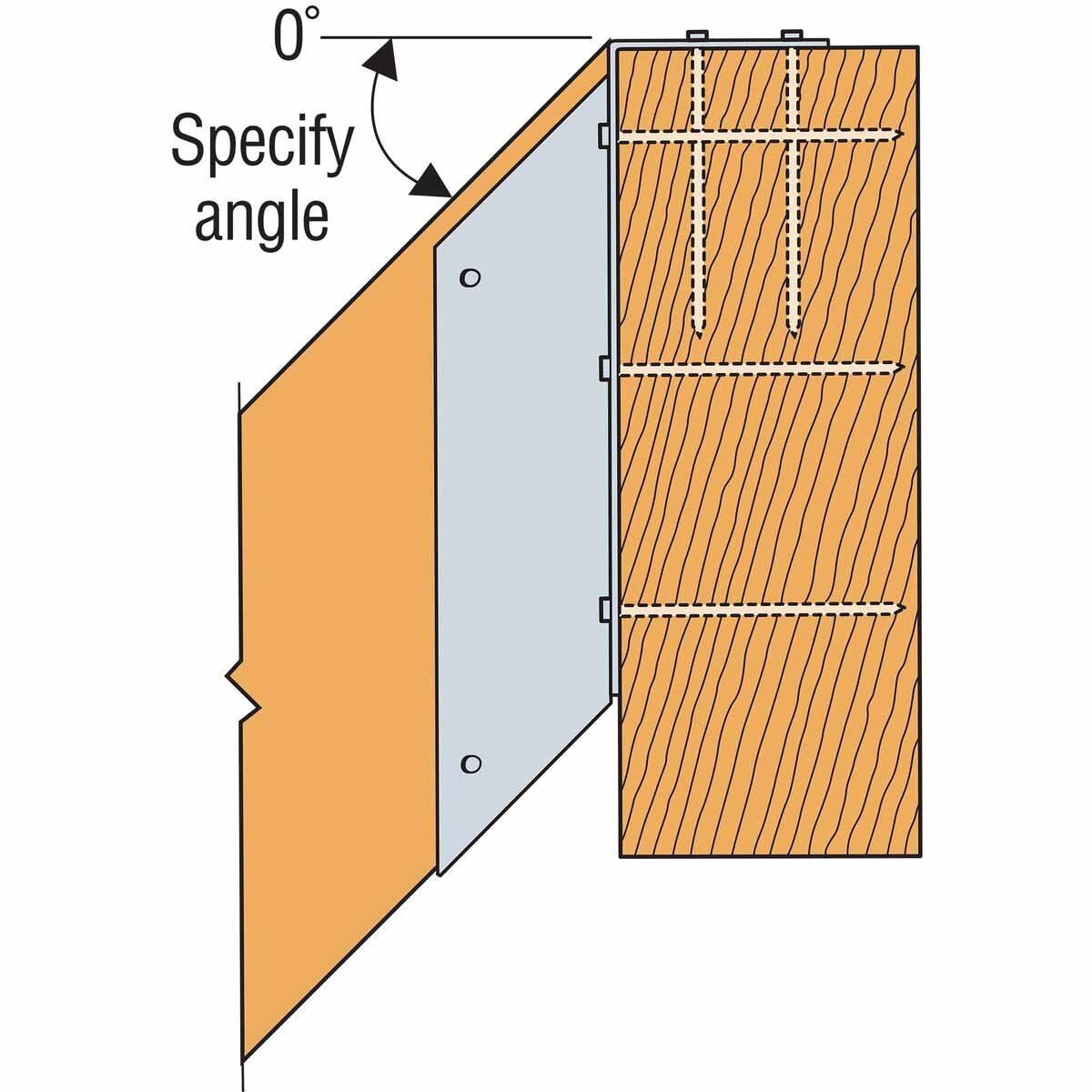

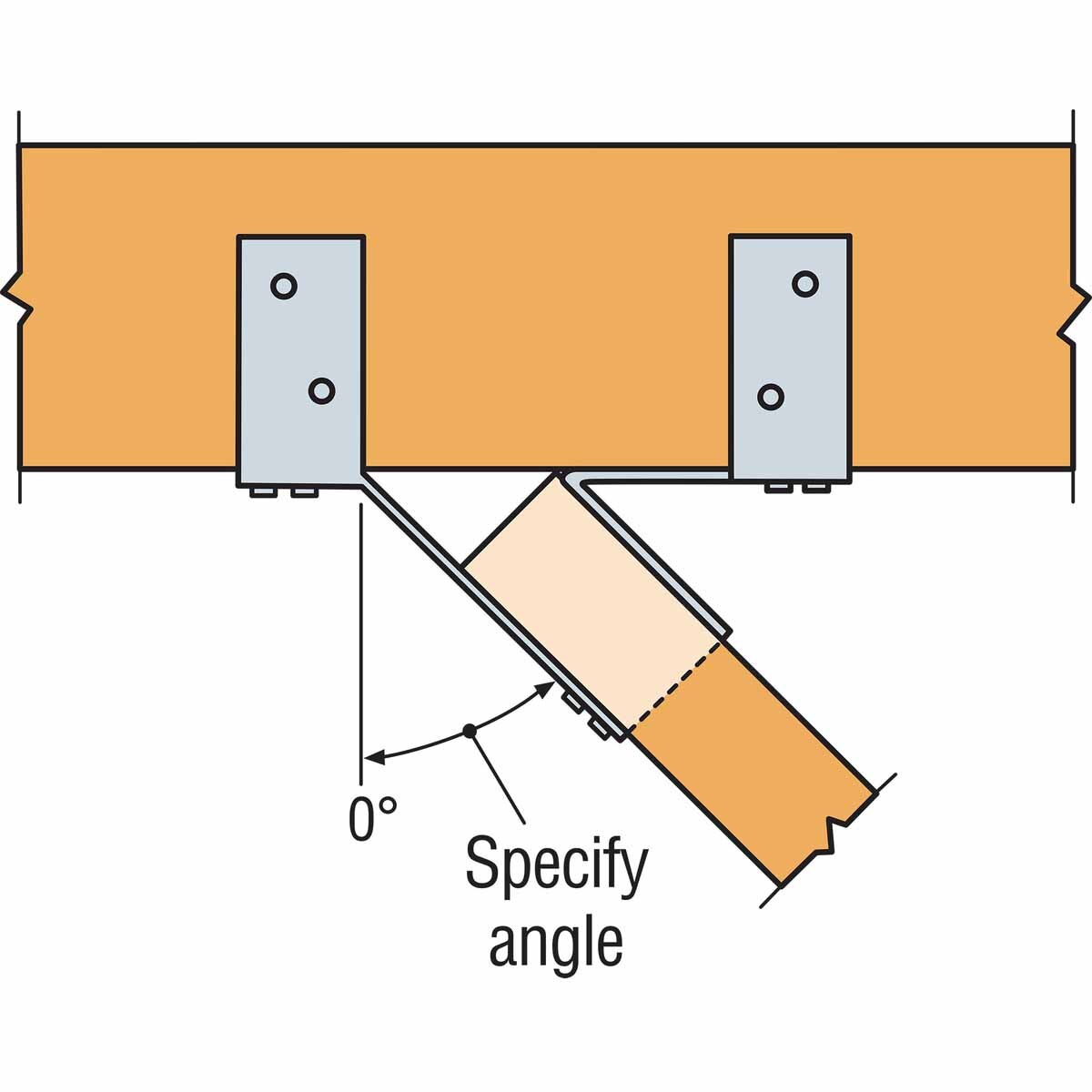

- Sloped and Skewed Installations: The HUTF hanger can be skewed up to 45° or sloped up to 45°. For combined sloped and skewed installations, allowable loads are adjusted to 70% of the table loads.
Simpson Strong-Tie HU5.25/12TF Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header - (16) 0.162" x 3-1/2" Nails Joist - (6) 0.148" x 3-1/2" Nails |
| Height | 12" |
| Joist size | 5-1/8" X 12" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 12 Gauge |
| Width | 5-1/4" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
