Simpson Hangers | SKU:
HU610Z

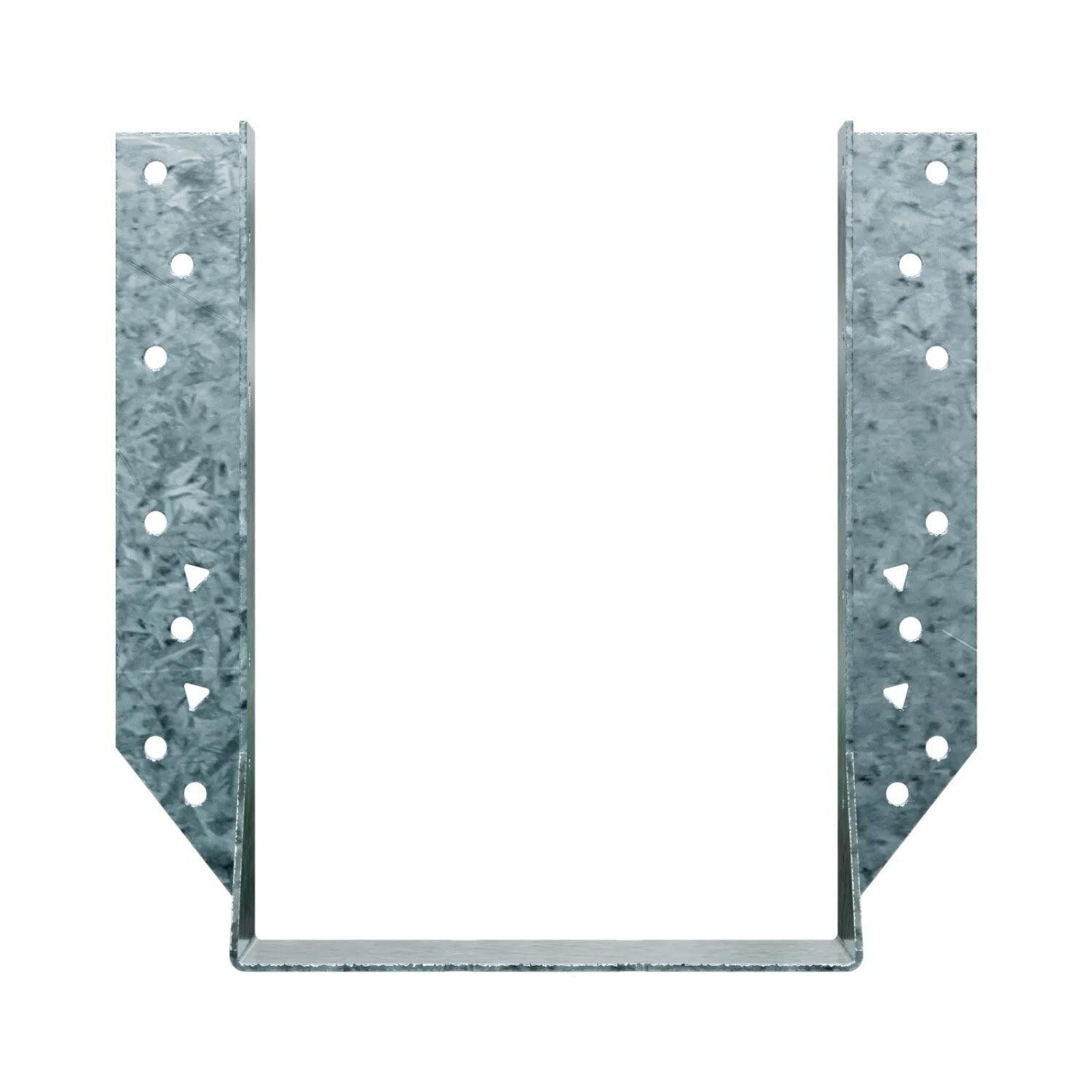

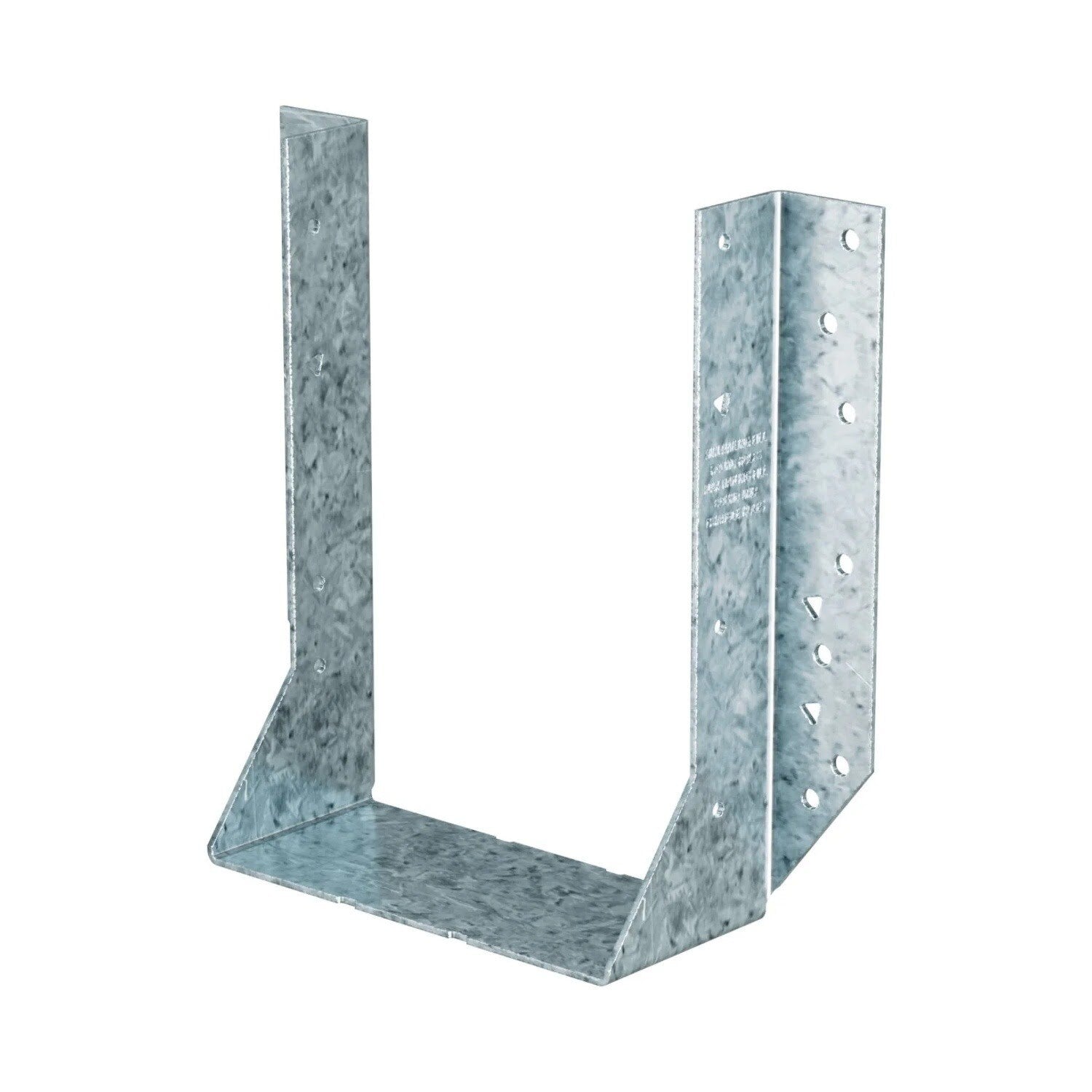

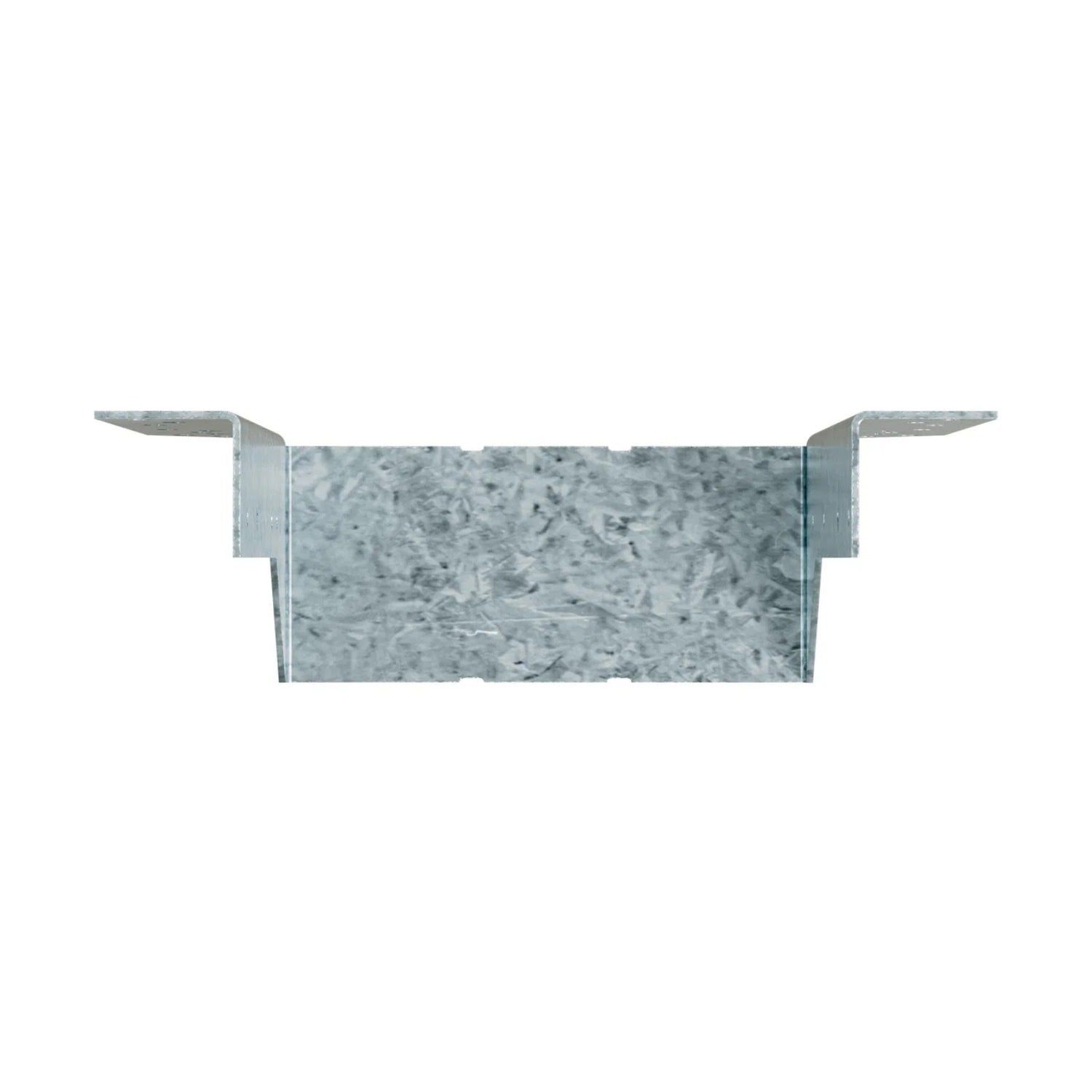

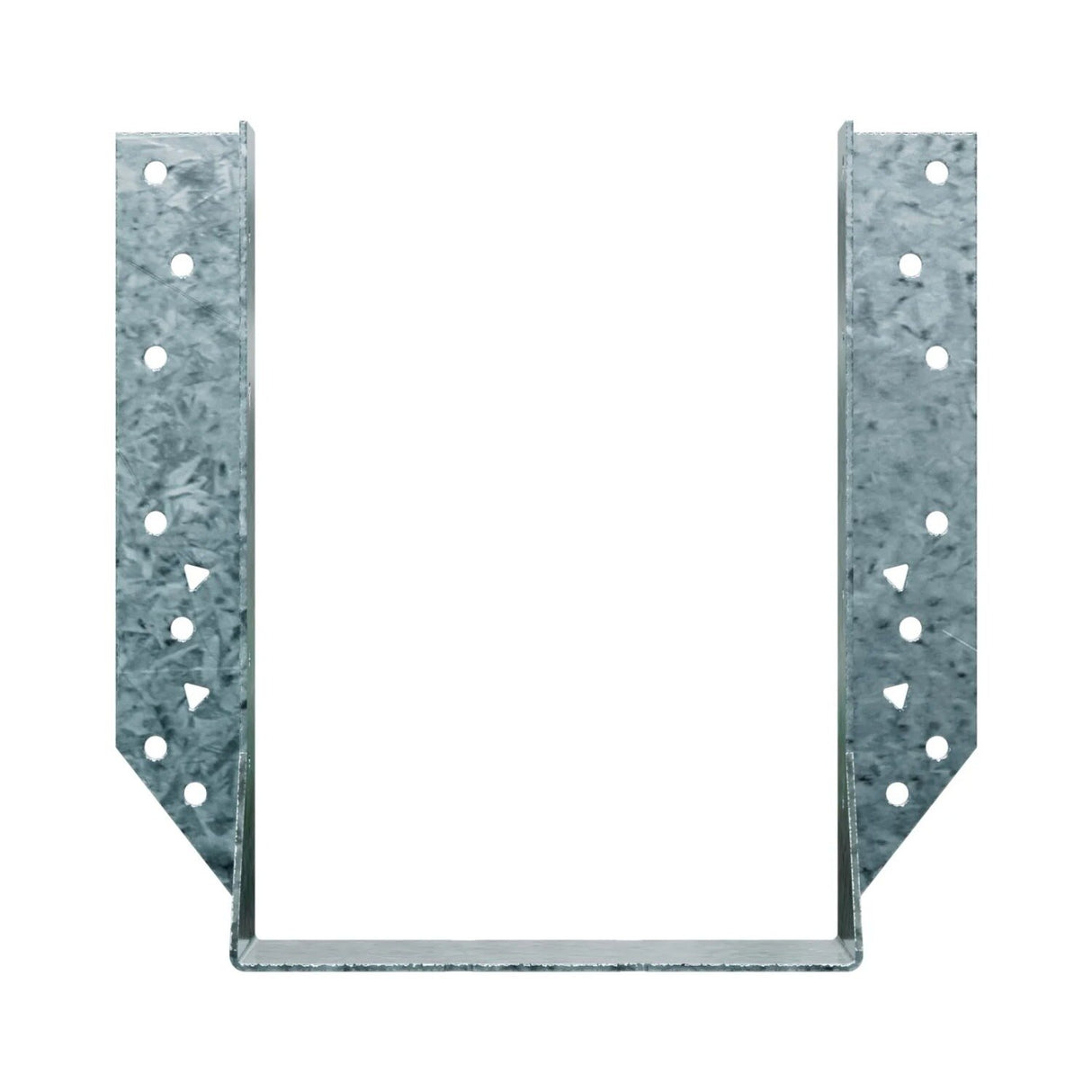

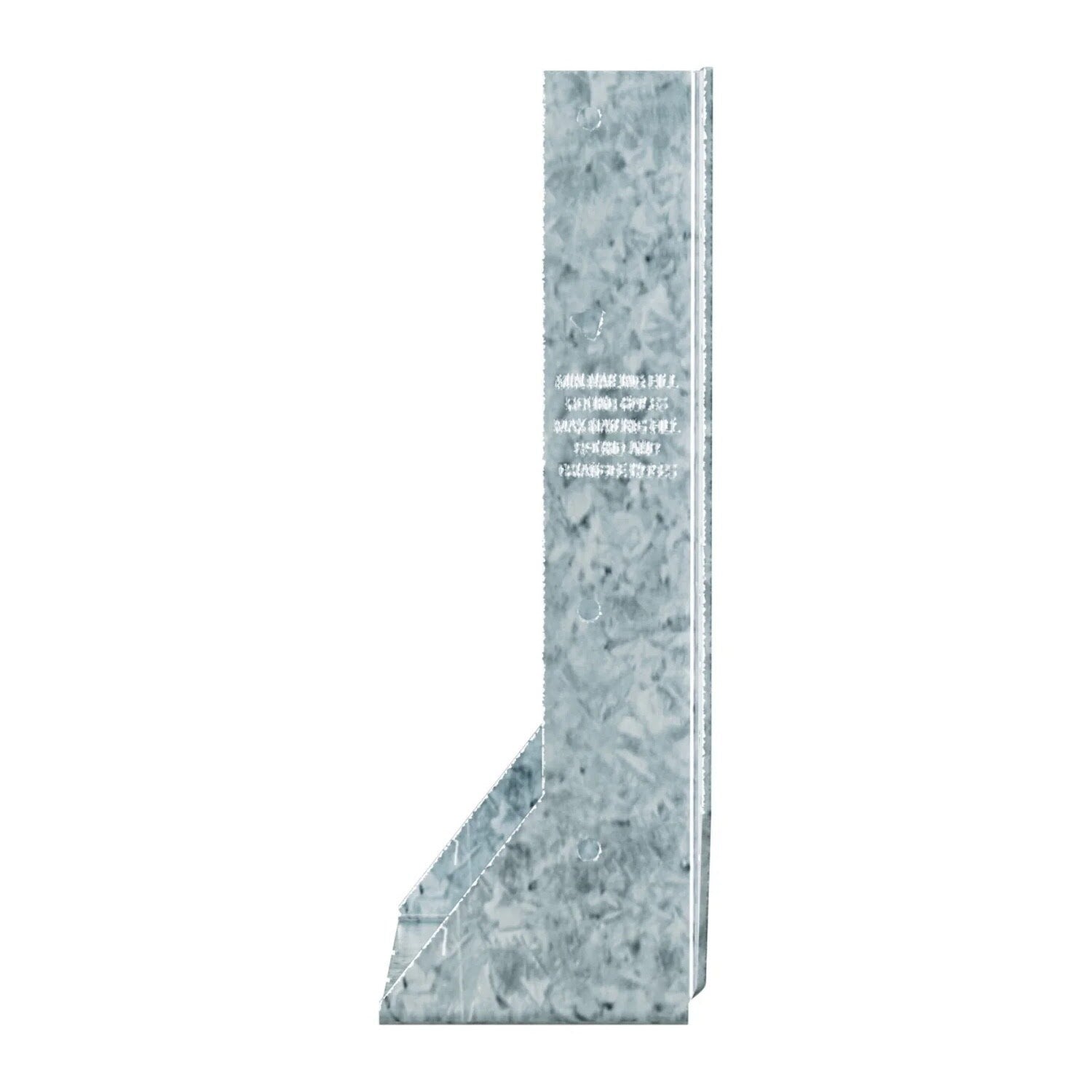

Simpson Strong-Tie HU610Z (6" x 10") 14-Gauge Heavy Face-Mount Joist Hanger - ZMAX Finish
$36.45
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HU610Z Description
The Simpson Strong-Tie HU610Z is a heavy-duty face-mount joist hanger designed for robust structural support, featuring ZMAX galvanized coating for enhanced corrosion resistance.
Simpson Strong-Tie HU610Z Includes
- (1) Heavy-Duty 6x10 Face-Mount Joist Hanger
Simpson Strong-Tie HU610Z Features
- Heavy-duty construction for robust structural support
- ZMAX galvanized coating for enhanced corrosion resistance
- Designed for use with solid sawn lumber and engineered wood products
- Suitable for installations involving masonry or concrete
- Tested, load-rated, and code compliant
Simpson Strong-Tie HU610Z Applications
- Deck Construction: Provides secure support for deck joists and ledger board connections.
- Floor Framing: Ensures stability in wood-frame floor systems for residential and commercial buildings.
- Roof Framing: Strengthens rafter and beam connections in trusses and roof assemblies.
- Post and Beam Structures: Ideal for pergolas, gazebos, and other timber-framed structures.
- Masonry and Concrete Applications: Can be installed with appropriate fasteners for secure attachment to CMU or concrete.
Simpson Strong-Tie HU610Z Installation Overview
- Use all specified fasteners as per guidelines.
- Fill all round and optional triangular holes for maximum load capacities.
- For masonry or concrete installations, use Simpson Strong-Tie Titen HD screws.
- Ensure minimum end and edge distances are maintained.
- Web stiffeners required for I-joist applications.
Simpson Strong-Tie HU610Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (18) 0.162" x 3-1/2" Nails, Joist - (8) 0.162" x 3-1/2" Nails |
| For Treated Lumber | Yes |
| Height | 7-5/8" |
| Joist size | 6" X 10" |
| Thickness | 14 Gauge |
| Width | 5-1/2" |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve maximum load values.
