Simpson Hangers | SKU: HU612 | Barcode: 044315413001

Simpson Strong-Tie HU612 (6" x 12") 14-Gauge Galvanized Heavy Face-Mount Joist Hanger

Name: Simpson Strong-Tie HU612 (6" x 12") 14-Gauge Galvanized Heavy Face-Mount Joist Hanger
Brand: Simpson Hangers
SKU: 248800
Price: 25.2 USD
Availability: InStock

$25.20 ~~$34.49~~

NOTE: This item is ineligible for free shipping

Description

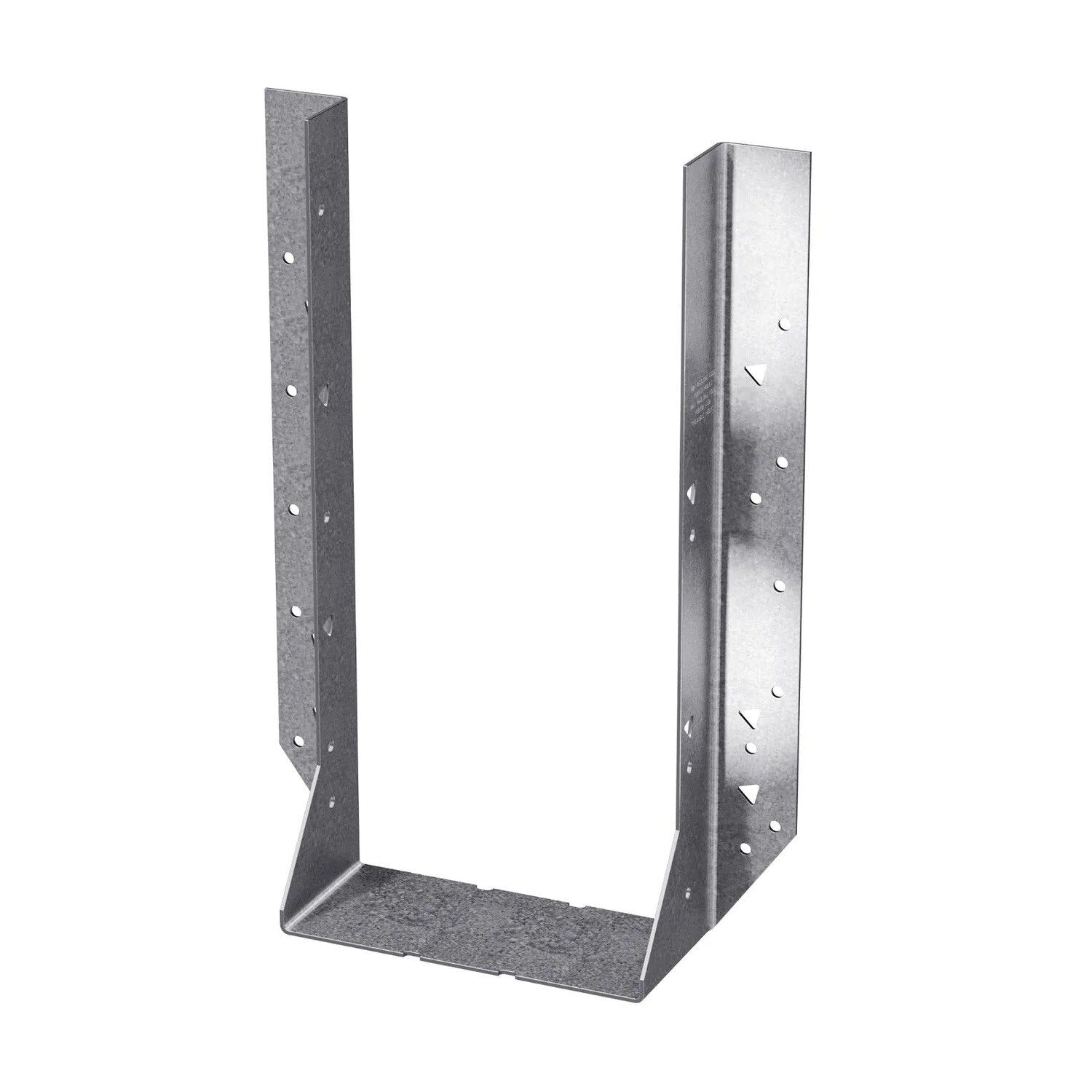

Simpson HU612 Description

The Simpson HU612 Heavy-Duty Face-Mount Joist Hanger is designed for robust support in various construction applications, crafted from 14-gauge steel with a G90 galvanized finish for durability and reliability.

Simpson HU612 Includes

(1) Heavy-Duty Face-Mount Joist Hanger for 6x12

Simpson HU612 Features

Added triangular holes for additional load capacity
Tested, load-rated, and code compliant
Crafted from 14-gauge steel for durability
G90 Galvanized finish for corrosion resistance
Versatile applications for solid sawn lumber, engineered wood, and cold-formed steel joists

Simpson HU612 Applications

Deck Framing: Securely fastens joists to beams for added structural support.
Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
Roof Framing: Used in truss and rafter connections for enhanced stability.
Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.

Simpson HU612 Installation Overview

Use all specified fasteners as per guidelines.
Can be installed filling round holes only, or filling round and triangle holes for maximum values.
Joists sloped up to 1/4:12 achieve table loads.
For installations to masonry or concrete, refer to specific guidelines.
Can be welded to a steel member, with load values determined by weld capacity.
When nailing into solid sawn carrying member's end grain, adjust allowable load by a factor of 0.67.
Web stiffeners required for I-joist applications.

Simpson HU612 Specifications

Material	Carbon Steel
Finish	G90 Galvanized
Thickness	14 Gauge
Width	5-1/2"
Height	9-3/8"
Joist size	6" X 12"
Fasteners required	Face - (22) 0.162" x 3-1/2" Nails, Joist - (8) 0.162" x 3-1/2" Nails
For Treated Lumber	No
Quantity	1

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
