Simpson Hangers | SKU:
HU66

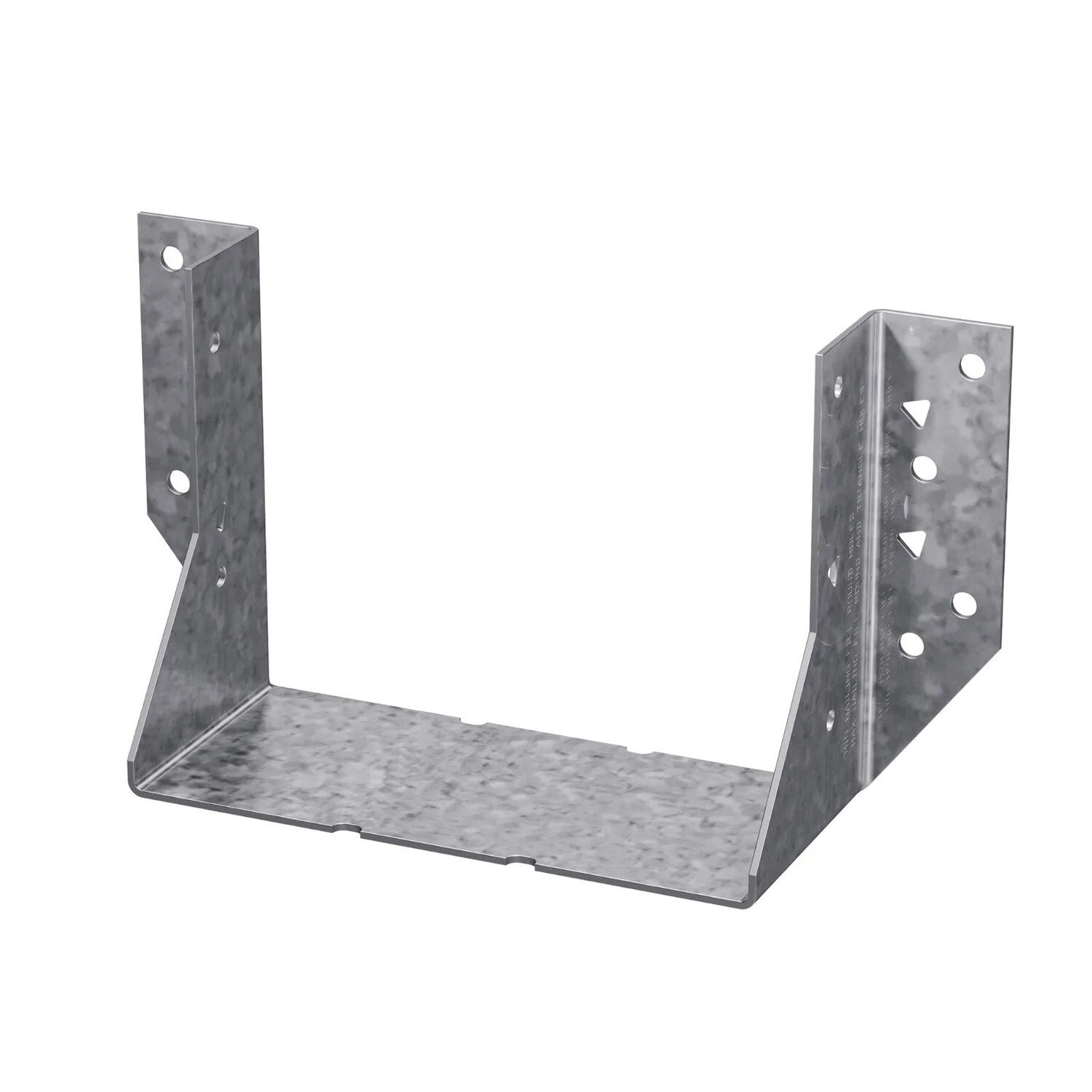

Simpson Strong-Tie HU66 (6" x 6") 14-Gauge Galvanized Heavy Face-Mount Joist Hanger
$14.33
$19.94
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HU66 Description
The Simpson Strong-Tie HU66 is a heavy-duty face-mount joist hanger designed for robust support in various construction applications, crafted from 14-gauge steel with a G90 galvanized finish for durability.
Simpson Strong-Tie HU66 Includes
- (1) 6x6 Face Mount Joist Hanger
Simpson Strong-Tie HU66 Features
- G90 Galvanized Finish for corrosion resistance
- Versatile design for various joist sizes
- Code-compliant and load-rated for structural applications
Simpson Strong-Tie HU66 Applications
- Deck Framing: Securely fastens joists to beams for added structural support.
- Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
- Roof Framing: Used in truss and rafter connections for enhanced stability.
- Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
- Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
- Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.
Simpson Strong-Tie HU66 Installation Overview
- Use hot-dip galvanized nails for G90 galvanized hangers.
- Install into masonry and concrete using specified Titen HD screws.
Simpson Strong-Tie HU66 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (12) 0.162" x 3-1/2" Nails, Joist - (6) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 4-13/16" |
| Joist size | 6" X 6" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 5-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
