Shop Simpson Hangers Store
SKU: HU68  |  Barcode: 044315417009

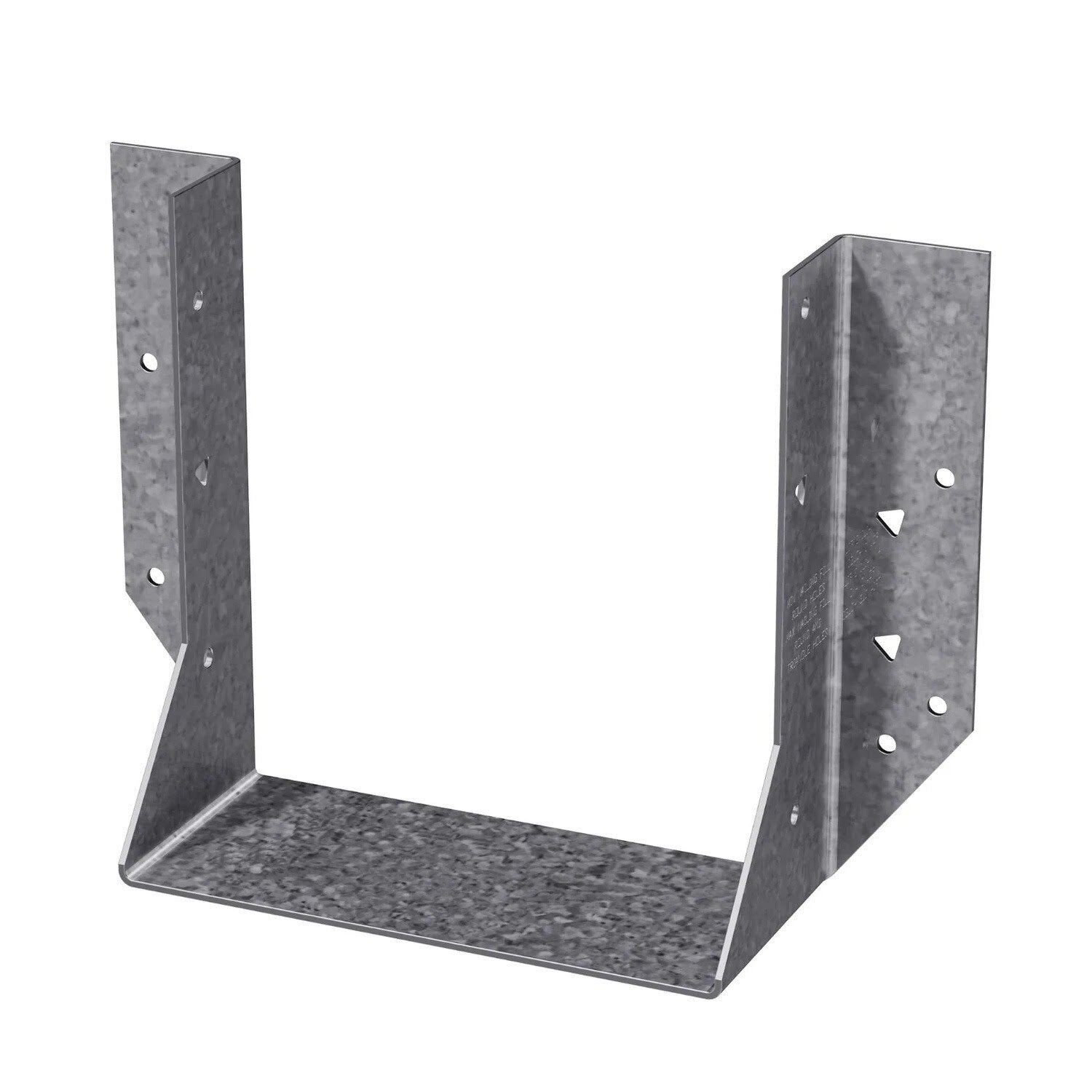

Simpson Strong-Tie HU68 (6" x 6") Heavy-Duty Face-Mount Joist Hanger

$18.94 $27.25
POWERED BY

We've got you covered.

Package Protection gives you peace of mind while saving you time and money.

  • Package Protection

    Coverage in case your package is damaged in transit, stolen, or doesn't arrive.

  • Instant Issue Resolution

    Get a refund or replacement in just a few clicks.

  • 24/7 Claim Support

    Route is here for you whenever an issue arises — with an average response time of under an hour.

Route Package Protection extends coverage for online purchases that are lost or damaged in transit, or stolen immediately after the carrier's proof of delivery where Route traces the transportation. Route App, Inc. (Route) is the named insured on the package insurance policy ("Policy"); Route Insurance Solutions ("RIS"), Route's licensed producer entity, procures the Policy from SEG Insurance Ltd. Route, through RIS, may receive compensation for its services.

Description

Simpson Strong-Tie HU68 Description

The Simpson Strong-Tie HU68 is a heavy-duty face-mount joist hanger designed for robust support in various construction applications, crafted from 14-gauge steel for durability.

Simpson Strong-Tie HU68 Includes

  • (1) Heavy-Duty Face-Mount Joist Hanger for 6x8

Simpson Strong-Tie HU68 Features

  • G90 Galvanized Finish for corrosion resistance
  • Engineered for solid sawn lumber and engineered wood
  • Tested and code compliant for structural applications
  • 14-gauge steel construction for durability

Simpson Strong-Tie HU68 Applications

  • Deck Framing: Securely fastens joists to beams for added structural support.
  • Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
  • Roof Framing: Used in truss and rafter connections for enhanced stability.
  • Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
  • Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
  • Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.

Simpson Strong-Tie HU68 Installation Overview

  1. Use all specified fasteners as per guidelines.

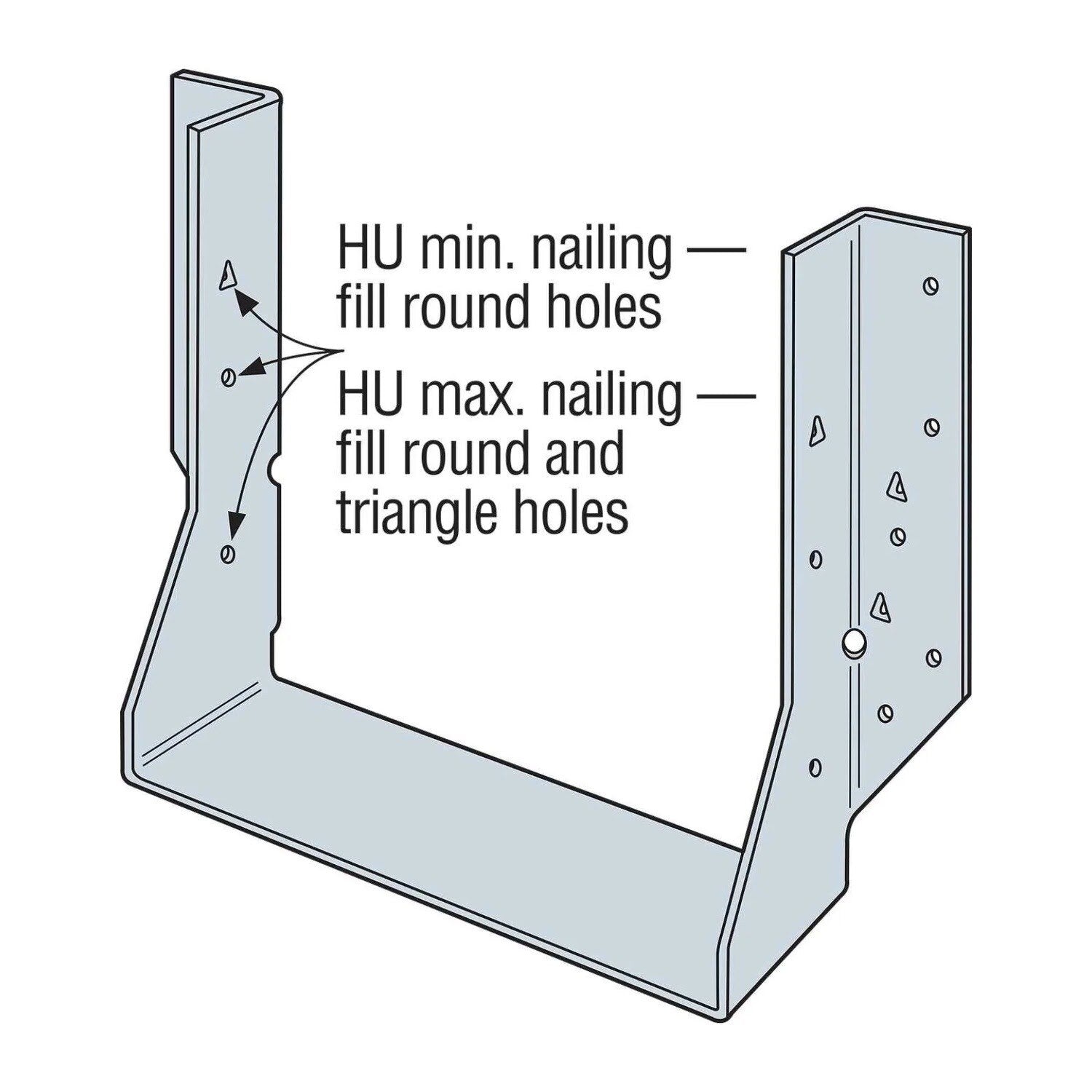

  2. Install by filling round holes or both round and triangle holes for maximum values.
  3. Ensure joists sloped up to 1/4:12 achieve table loads.
  4. For masonry or concrete installations, use specified fasteners.
  5. Can be welded to steel members following technical guidelines.
  6. Adjust allowable load when nailing into solid sawn carrying member's end grain.
  7. Use web stiffeners for I-joist applications.

Simpson Strong-Tie HU68 Specifications

Finish G90 Galvanized
Material Carbon Steel
Fasteners required Face - (14) 0.162" x 3-1/2" Nails, Joist - (6) 0.162" x 3-1/2" Nails
For Treated Lumber No
Height 5-13/16"
Joist size 6" X 8"
Thickness 14 Gauge
Width 5-1/2"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
