Simpson Hangers | SKU: HU7 | Barcode: 044315636608

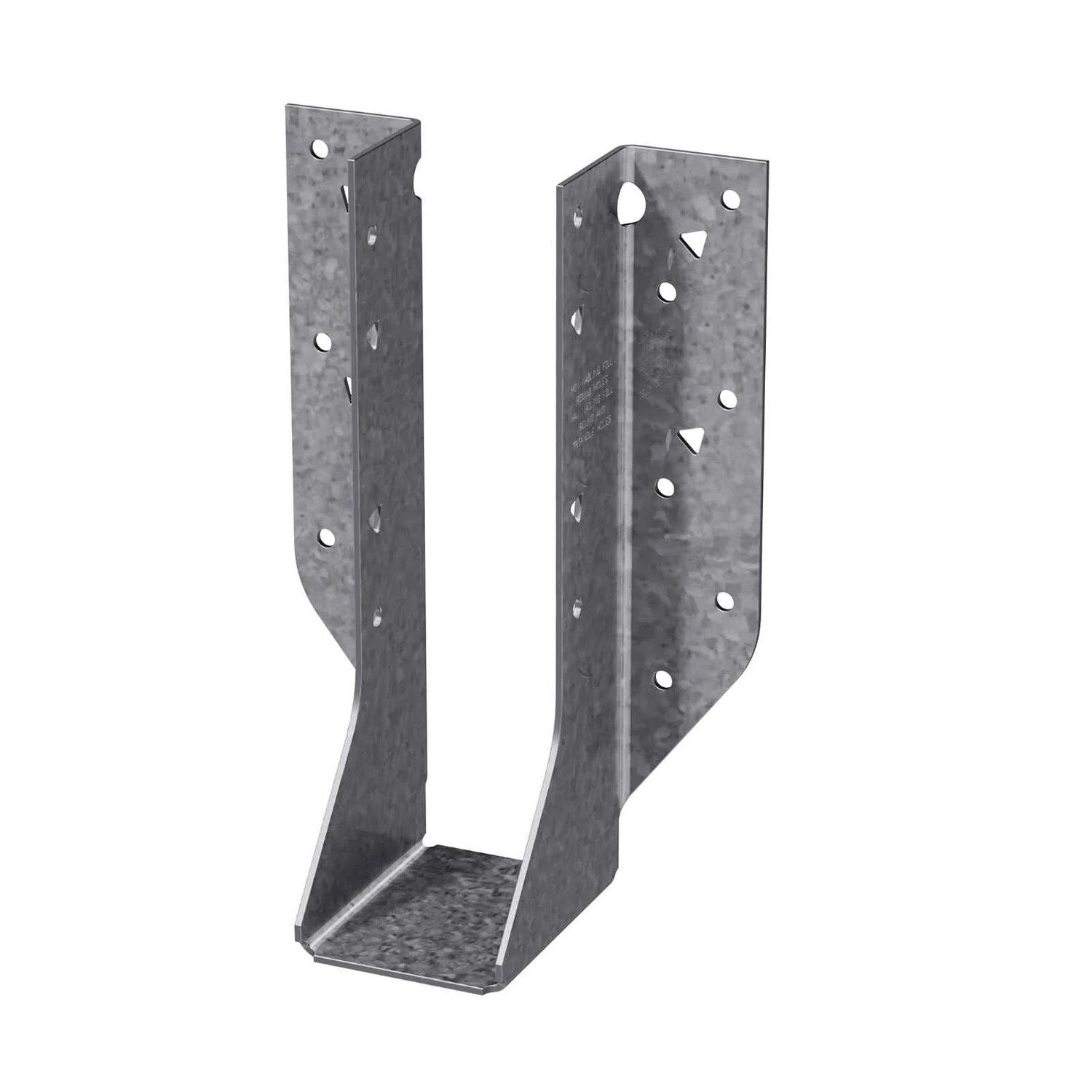

Simpson Strong-Tie HU7 (1-3/4" x 7-1/4") Galvanized Face-Mount Joist Hanger for Engineered Wood

Name: Simpson Strong-Tie HU7 (1-3/4" x 7-1/4") Galvanized Face-Mount Joist Hanger for Engineered Wood
Brand: Simpson Hangers
SKU: 824813
Price: 15.5 USD
Availability: InStock

$15.50

Description

Simpson HU7 Description

The Simpson HU7 Galvanized Face-Mount Joist Hanger is designed for engineered wood applications, offering robust support and durability.

Simpson HU7 Includes

(1) Galvanized Face-Mount Joist Hanger for Engineered Wood

Simpson HU7 Features

G90 Galvanized Finish for corrosion resistance
Engineered for solid sawn lumber and engineered wood
Complies with building codes for structural applications
Made from durable 14-gauge steel

Simpson HU7 Applications

Deck Framing: Securely fastens joists to beams for added structural support.
Floor Systems: Provides strong joist support in residential and commercial flooring.
Roof Framing: Used in truss and rafter connections for enhanced stability.
Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.

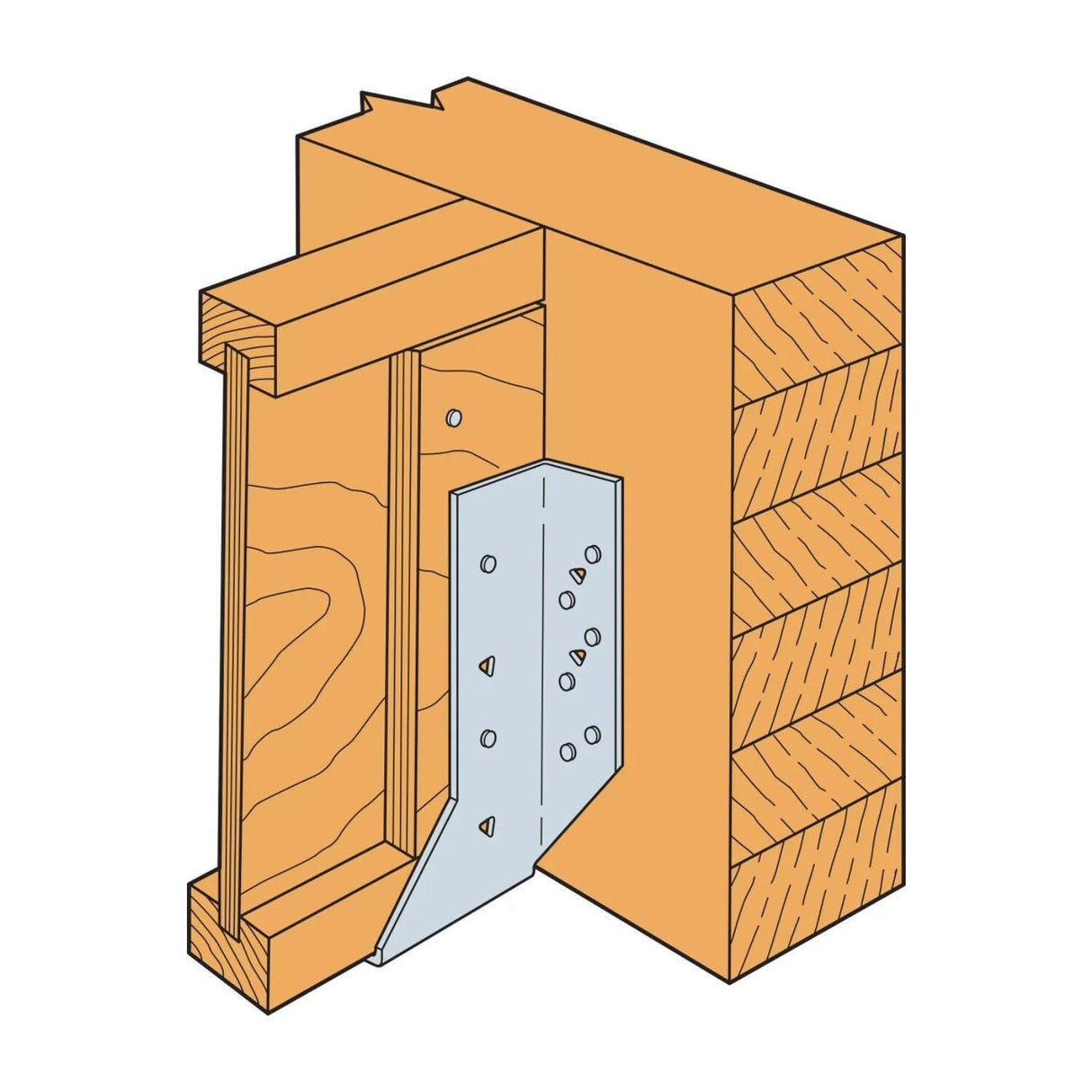

Simpson HU7 Installation Overview

Use hot-dip galvanized nails for maximum corrosion resistance.
Install into masonry and concrete using specified Titen HD screws.
Ensure correct fasteners are used in the correct positions to achieve load values.

Simpson HU7 Specifications

Finish	G90 Galvanized
Material	Carbon Steel
Fasteners required	Face - (16) 0.162" x 3-1/2" Nails, Joist - (8) 0.148" x 1-1/2" Nails
For Treated Lumber	No
Height	6-11/16"
Joist size	1-3/4" X 7-1/4"
Thickness	14 Gauge
Width	1-13/16"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
