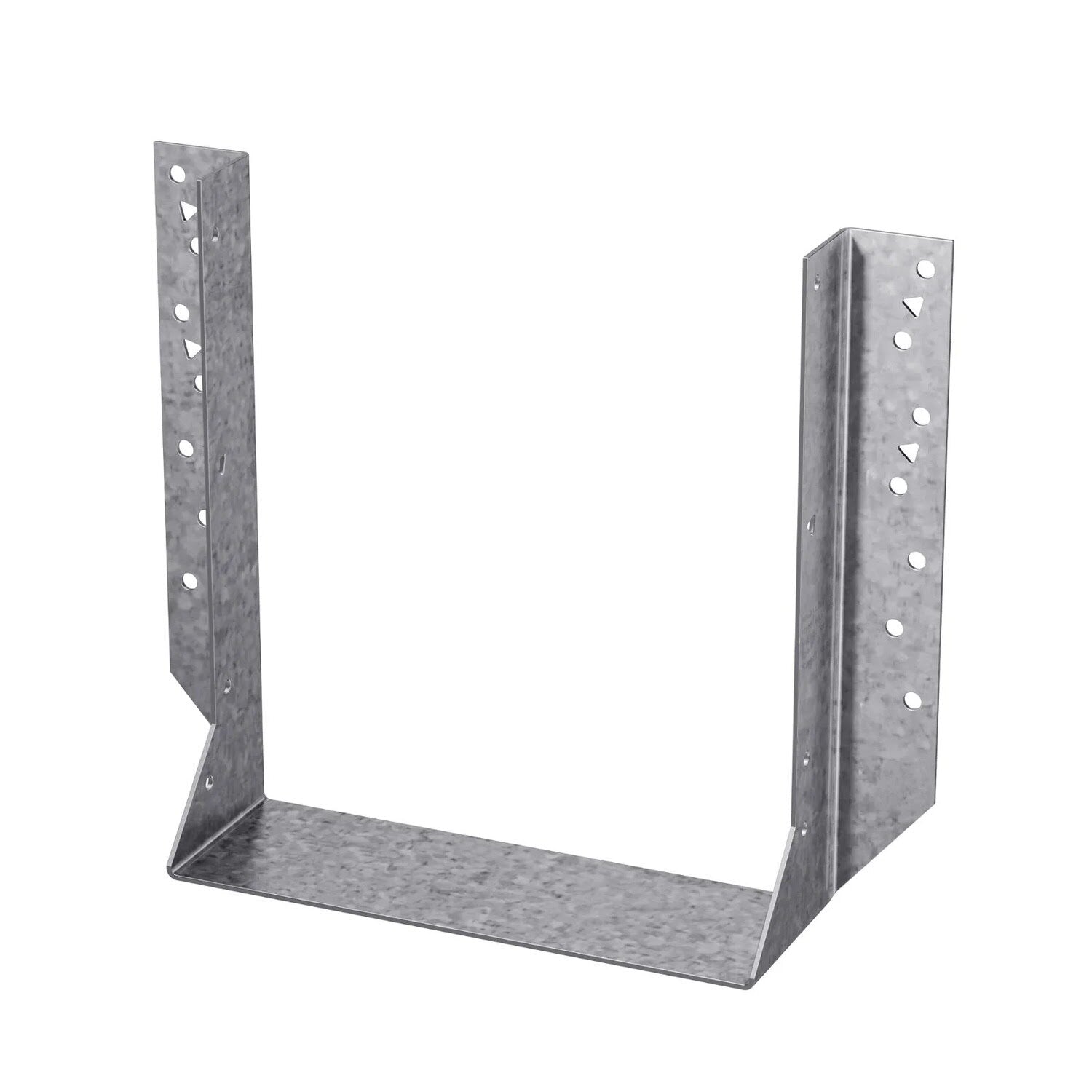

Simpson Strong-Tie HU810 (8" x 10") Heavy-Duty Face-Mount Joist Hanger

$35.37 $48.40

POWERED BY

We've got you covered.

Package Protection gives you peace of mind while saving you time and money.

  • Package Protection

    Coverage in case your package is damaged in transit, stolen, or doesn't arrive.

  • Instant Issue Resolution

    Get a refund or replacement in just a few clicks.

  • 24/7 Claim Support

    Route is here for you whenever an issue arises — with an average response time of under an hour.

Description

Simpson Strong-Tie HU810 Description

The Simpson Strong-Tie HU810 Heavy-Duty Face-Mount Joist Hanger is engineered for robust support in various construction applications, crafted from 14-gauge steel for durability and reliability.

Simpson Strong-Tie HU810 Includes

  • (1) Heavy-Duty Face-Mount Joist Hanger

Simpson Strong-Tie HU810 Features

  • G90 Galvanized Finish for corrosion resistance
  • Engineered for solid sawn lumber and engineered wood
  • Tested and code compliant for structural applications
  • Crafted from 14-gauge steel for durability

Simpson Strong-Tie HU810 Applications

  • Deck Framing: Securely fastens joists to beams for added structural support.
  • Floor Systems: Provides strong joist support in residential and commercial flooring.
  • Roof Framing: Used in truss and rafter connections for enhanced stability.
  • Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
  • Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.

Simpson Strong-Tie HU810 Installation Overview

  1. Use all specified fasteners as per guidelines.
  2. Can be installed filling round holes only, or filling round and triangle holes for maximum values.
  3. Joists sloped up to 1/4:12 achieve table loads.
  4. For installations to masonry or concrete, use specified fasteners.
  5. Web stiffeners required for I-joist applications.

Simpson Strong-Tie HU810 Specifications

Finish G90 Galvanized
Material Carbon Steel
Fasteners required Face - (18) 0.162" x 3-1/2" Nails, Joist - (8) 0.162" x 3-1/2" Nails
For Treated Lumber No
Height 8-3/8"
Joist size 8" X 10"
Thickness 14 Gauge
Width 7-1/2"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
