Simpson Hangers | SKU:
HU812

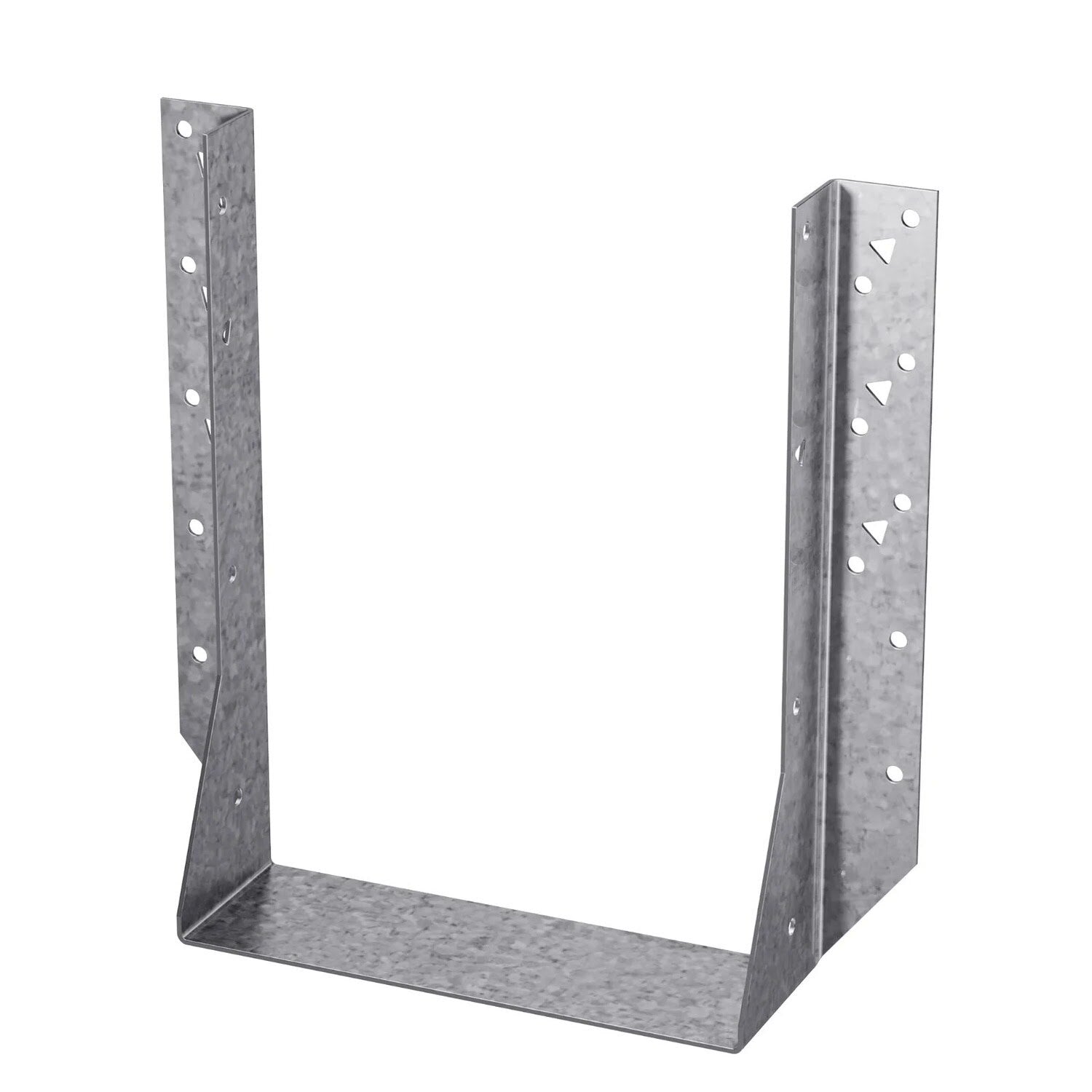

Simpson Strong-Tie HU812 (8" x 12") Heavy-Duty Face-Mount Joist Hanger
$41.38
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HU812 Description
The Simpson Strong-Tie HU812 is a heavy-duty face-mount joist hanger designed for robust support in various construction applications, crafted from 14-gauge steel with a G90 galvanized finish.
Simpson Strong-Tie HU812 Includes
- (1) Heavy-Duty Face-Mount Joist Hanger for 8x12
Simpson Strong-Tie HU812 Features
- Added triangular holes for additional load capacity
- Tested, load-rated, and code compliant
- Crafted from 14-gauge steel for durability
- G90 galvanized finish for corrosion resistance
Simpson Strong-Tie HU812 Applications
- Deck Framing: Securely fastens joists to beams for added structural support.
- Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
- Roof Framing: Used in truss and rafter connections for enhanced stability.
- Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
- Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
- Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.

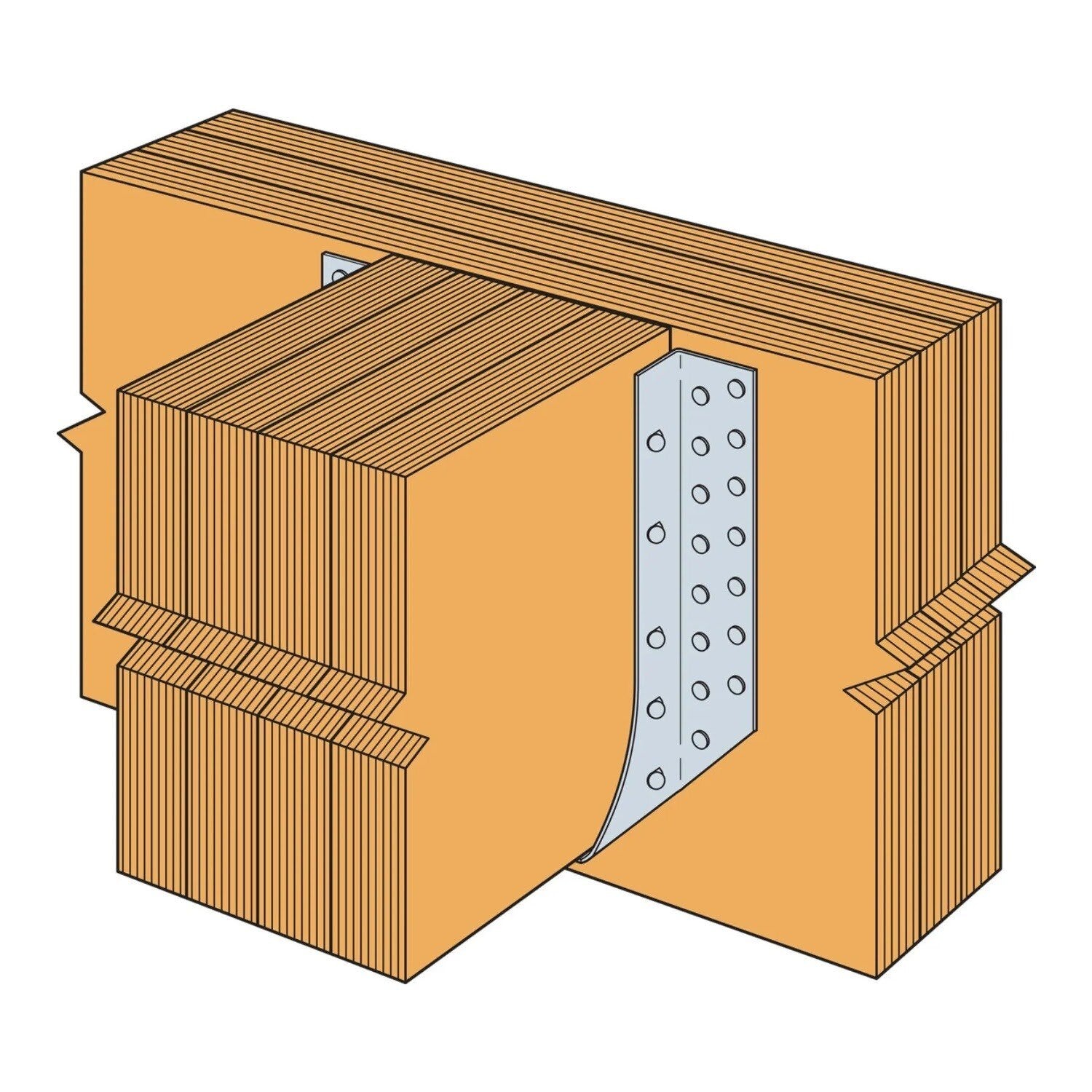

Simpson Strong-Tie HU812 Installation Overview
- Use all specified fasteners as per guidelines.
- Install by filling round holes only or both round and triangle holes for maximum values.
- Ensure joists sloped up to 1/4:12 achieve table loads.
- For masonry or concrete installations, use specified fasteners.
- Can be welded to steel members following technical guidelines.
- Adjust allowable load when nailing into solid sawn carrying member's end grain.
- Use web stiffeners for I-joist applications.
Simpson Strong-Tie HU812 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 14 Gauge |
| Width | 7-1/2" |
| Height | 10-1/8" |
| Joist size | 8" X 12" |
| Fasteners required | Face - (22) 0.162" x 3-1/2" Nails, Joist - (8) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Quantity | 1 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
