Simpson Strong-Tie HU816 (8" x 16") Galvanized Face-Mount Joist Hanger
$58.27
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HU816 Description

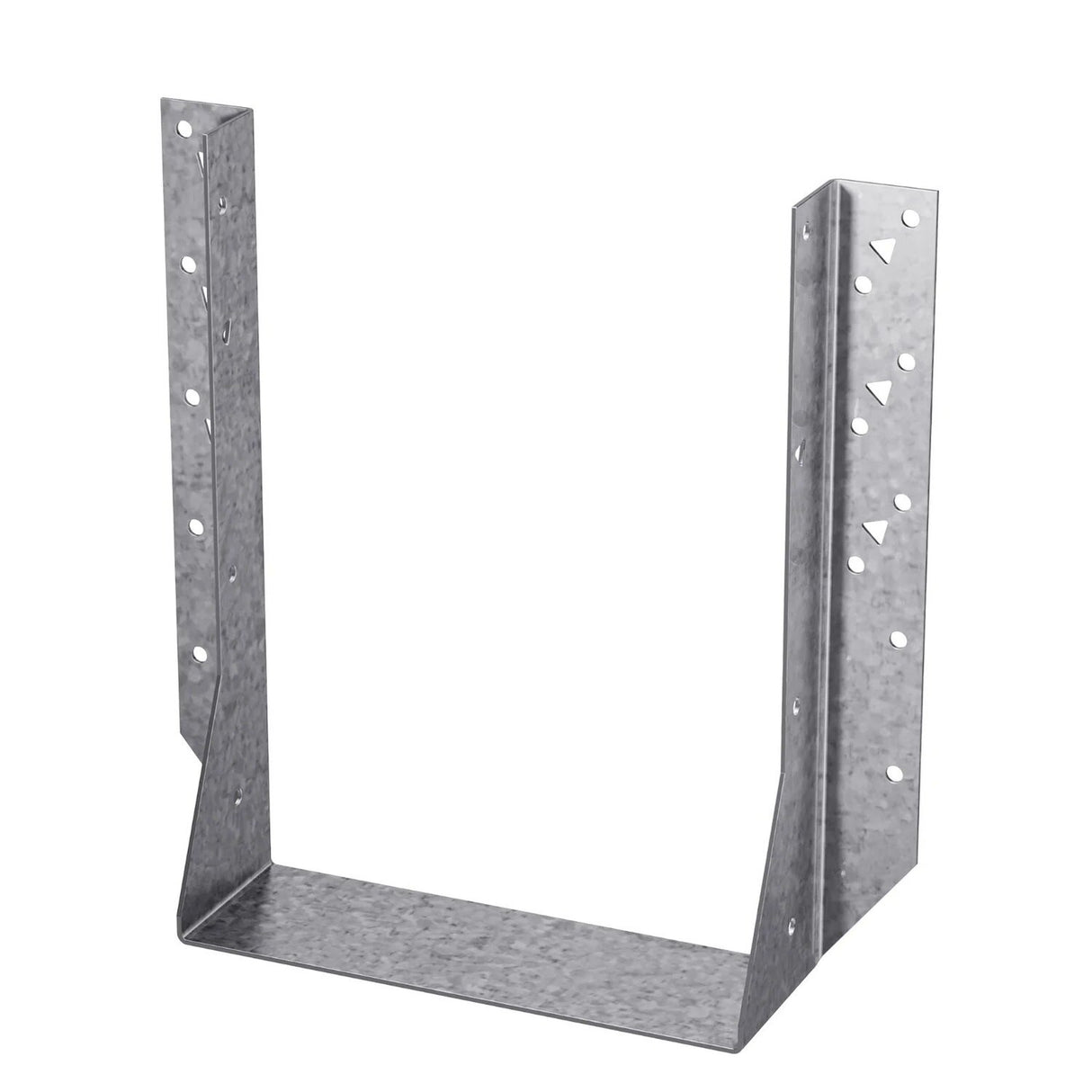

The Simpson Strong-Tie HU816 Heavy-Duty Face-Mount Joist Hanger is designed for robust support in various construction applications, crafted from 14-gauge steel with a G90 galvanized finish for durability.
Simpson Strong-Tie HU816 Includes
- (1) Heavy-Duty Face-Mount Joist Hanger
Simpson Strong-Tie HU816 Features
- G90 Galvanized Finish for corrosion resistance
- Versatile design for various joist sizes
- Code-compliant and load-rated
- Made from durable 14-gauge steel
Simpson Strong-Tie HU816 Applications
- Deck Framing: Securely fastens joists to beams for added structural support.
- Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
- Roof Framing: Used in truss and rafter connections for enhanced stability.
- Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
- Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
- Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.
Simpson Strong-Tie HU816 Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Install into masonry and concrete using specified Titen HD screws.
Simpson Strong-Tie HU816 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (26) 0.162" x 3-1/2" Nails, Joist - (12) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 13-5/8" |
| Joist size | 8" X 16" |
| Thickness | 14 Gauge |
| Width | 7-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
