Simpson Strong-Tie HUC210-2 (Double 2" x 10") 14Ga Heavy-Duty Galvanized Concealed-Flange Face-Mount Joist Hanger

Name: Simpson Strong-Tie HUC210-2 (Double 2" x 10") 14Ga Heavy-Duty Galvanized Concealed-Flange Face-Mount Joist Hanger
Brand: Simpson Hangers
SKU: 248807
Price: 21.55 USD
Availability: InStock

$21.55 ~~$29.50~~

NOTE: This item is ineligible for free shipping

Description

Simpson HUC210-2 Description

The Simpson HUC210-2 is a heavy-duty concealed-flange face-mount joist hanger designed for double 2x10 joists, offering robust support and corrosion resistance with its G90 galvanized finish.

Simpson HUC210-2 Includes

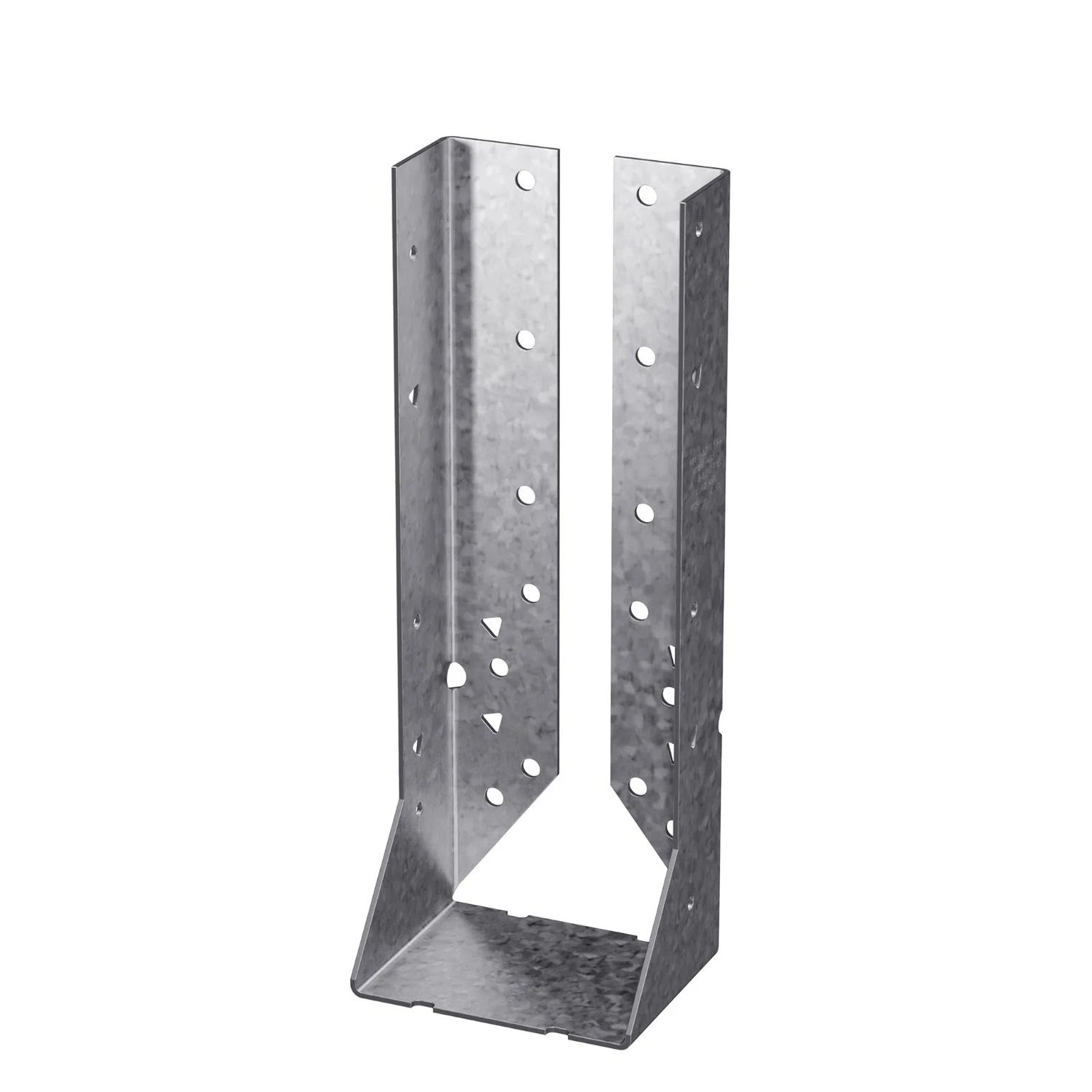

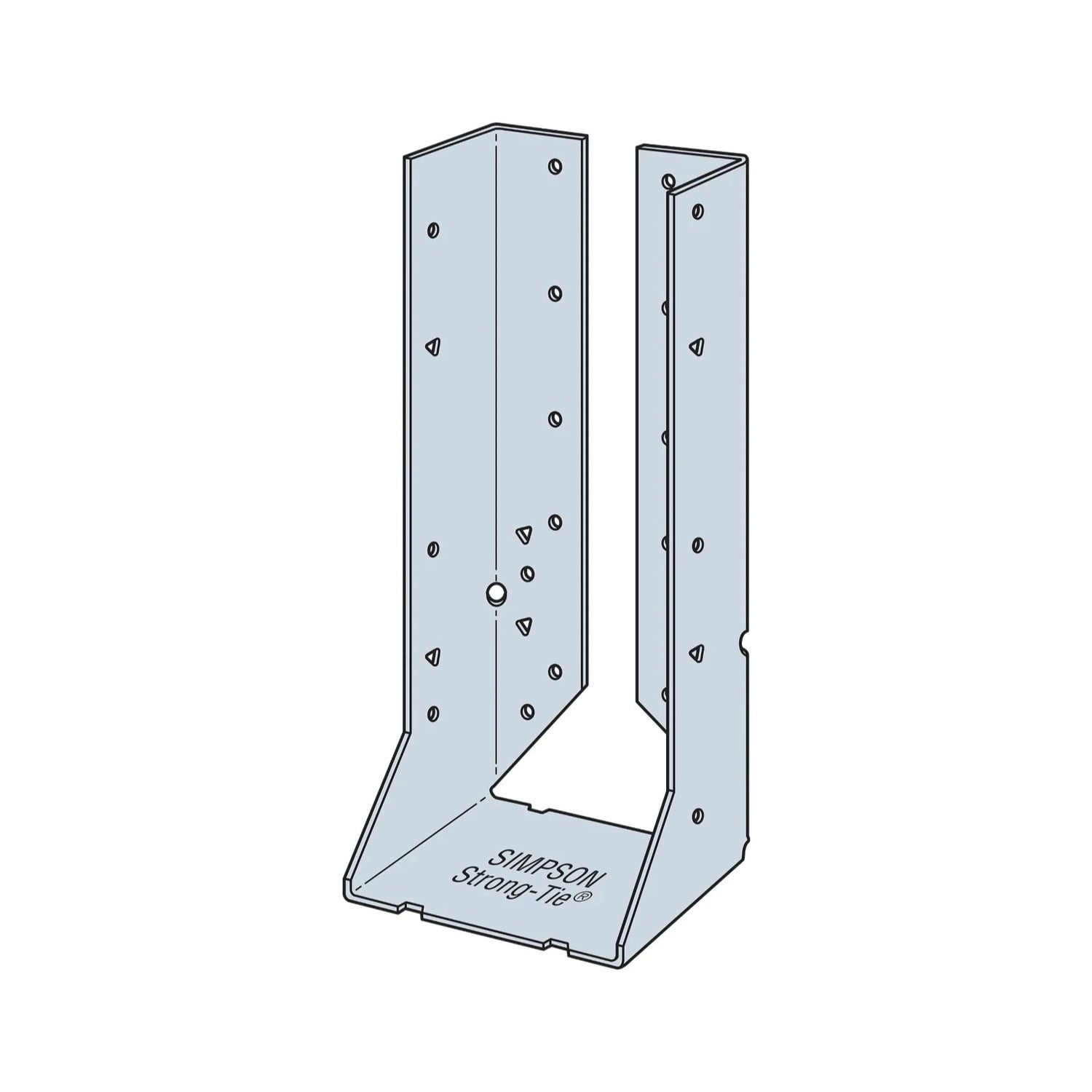

(1) Galvanized Face-Mount Concealed-Flange Joist Hanger for Double 2x10

Simpson HUC210-2 Features

Concealed Flange Design for clean lines and close installation to beam ends
G90 Galvanized Finish for corrosion resistance
Versatile Applications for various joist sizes and materials
Code Compliance ensuring reliable structural performance

Simpson HUC210-2 Applications

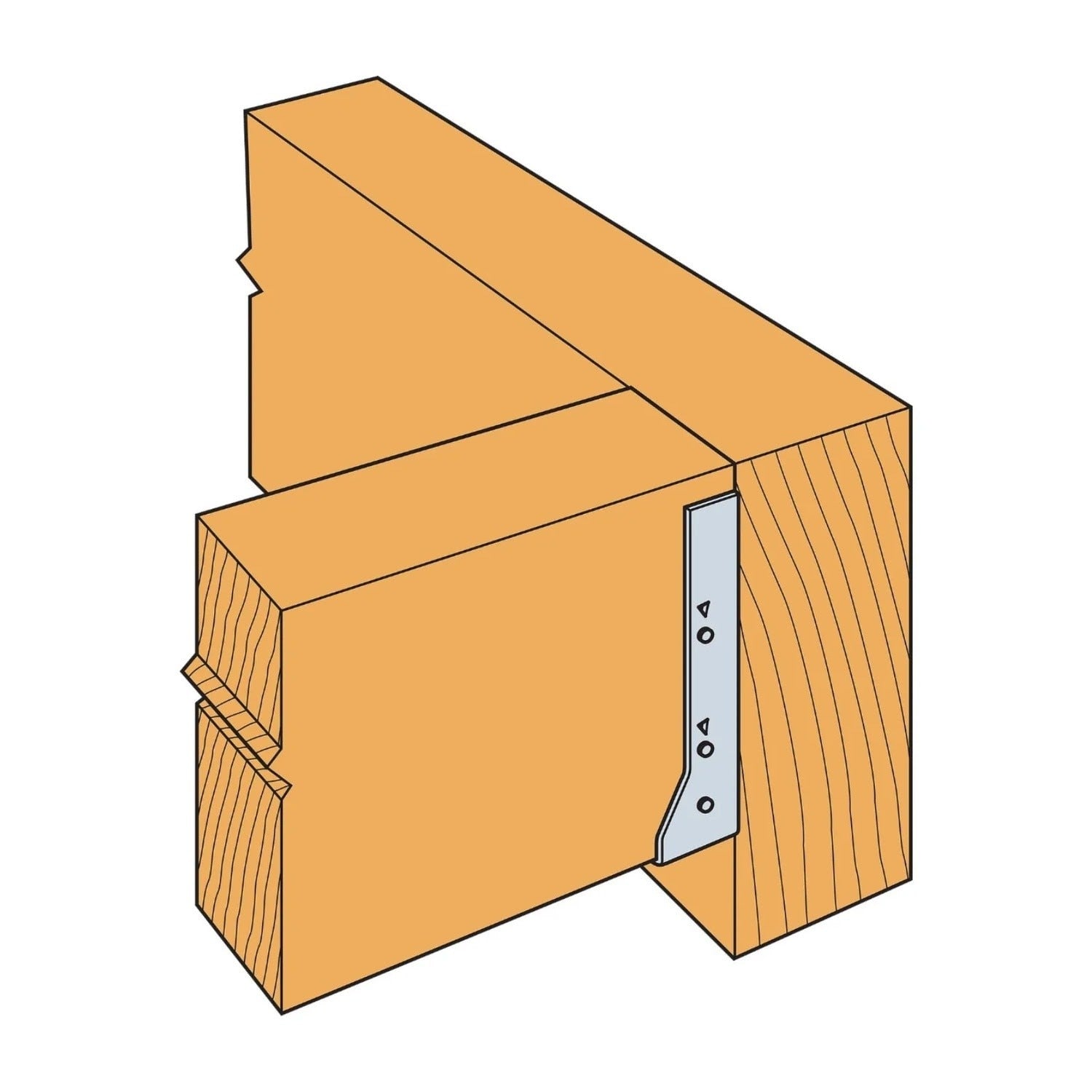

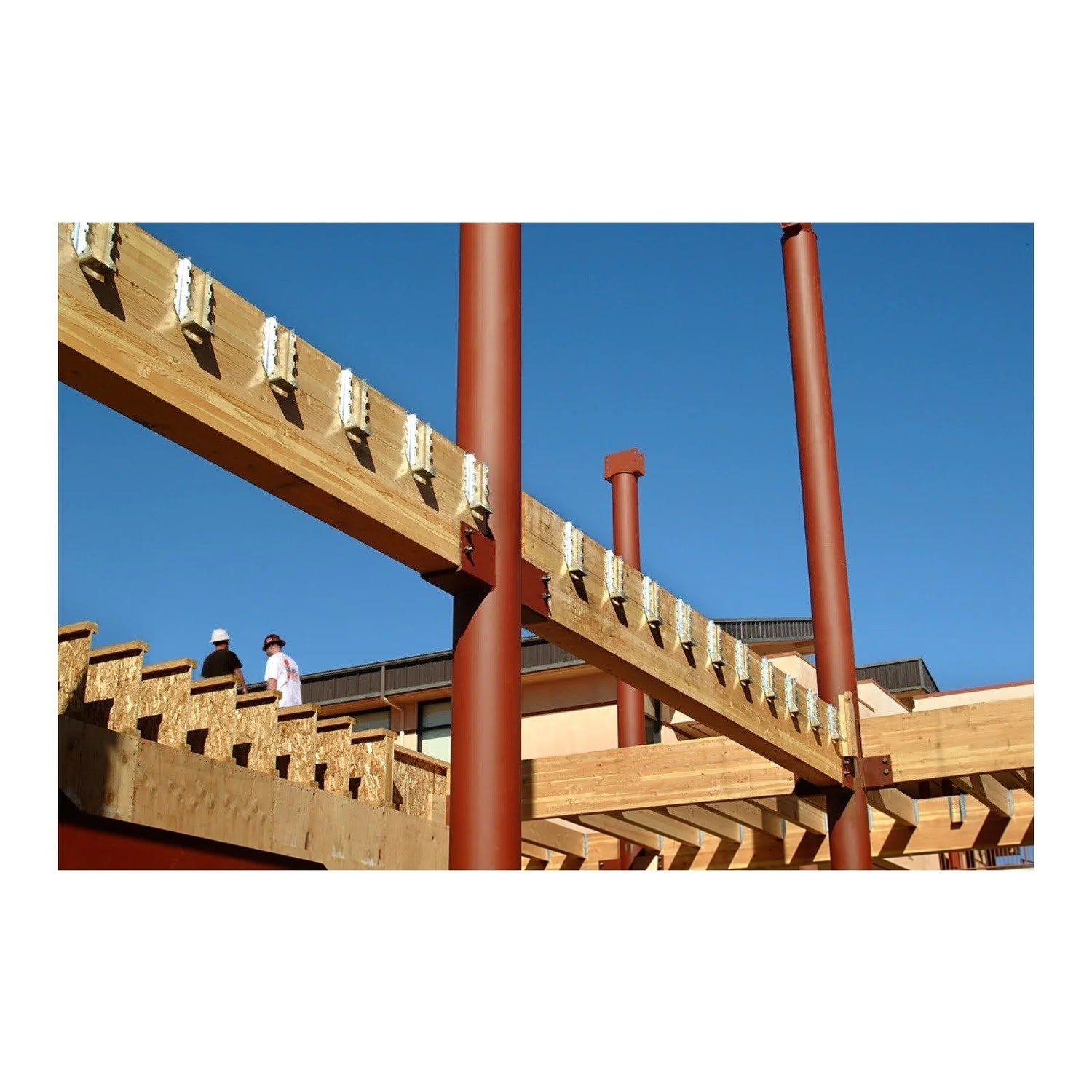

Decks and Outdoor Structures: Provides strong, concealed connections for deck framing, pergolas, and covered porches.
Floor Joists and Ceiling Framing: Ensures secure joist connections in residential and commercial construction.
Multi-Family Housing and Commercial Buildings: Used in large-scale framing applications for apartments, offices, and mixed-use buildings.

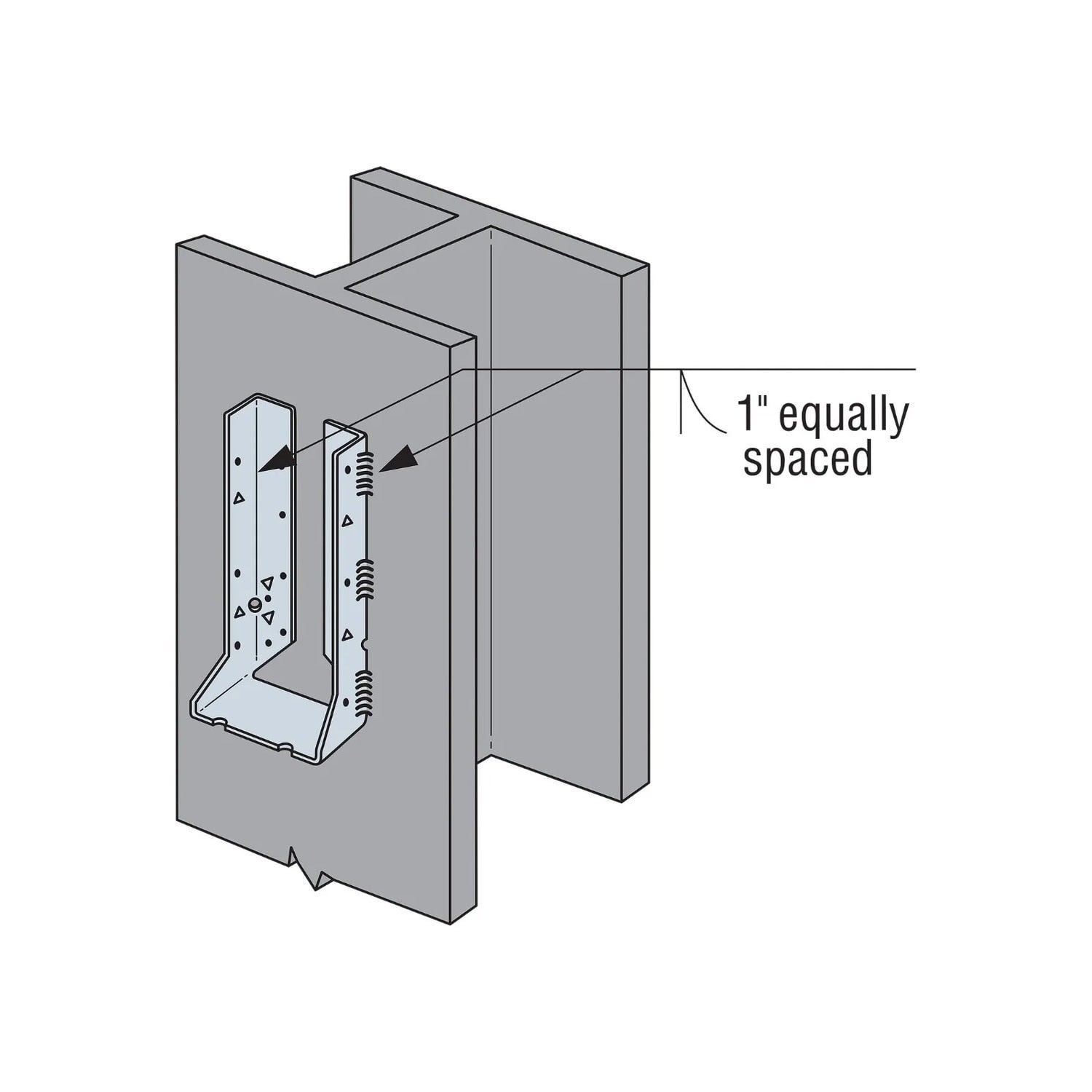

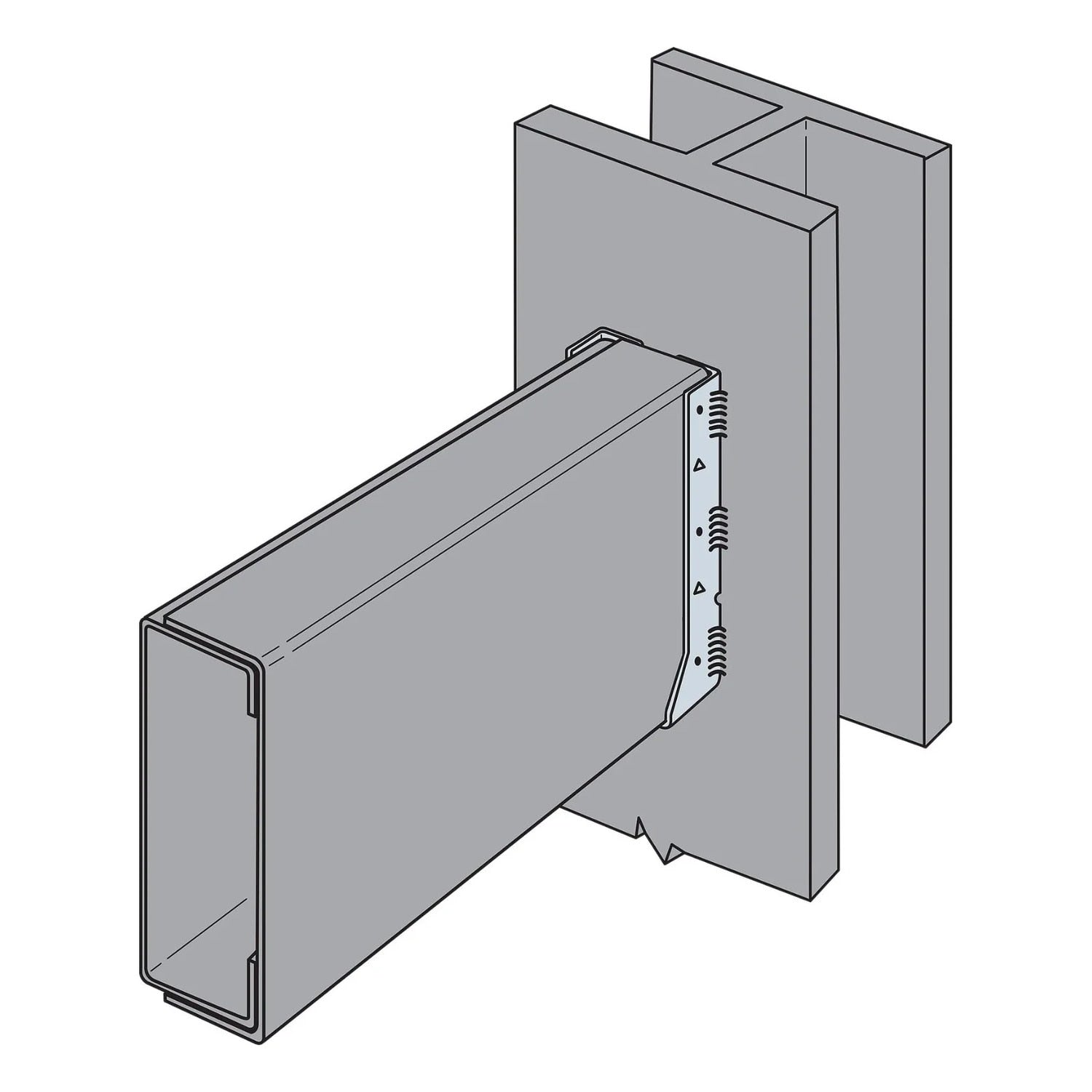

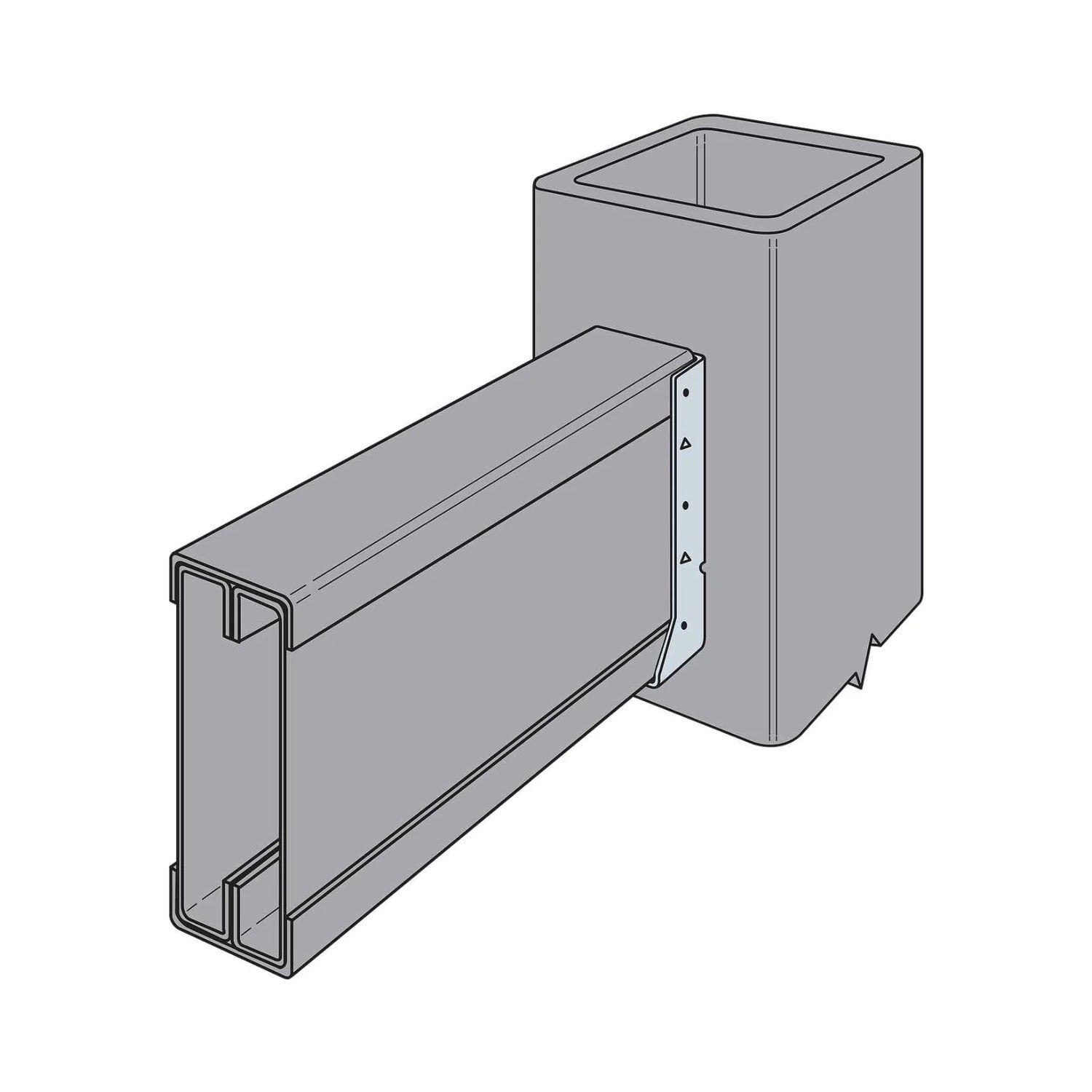

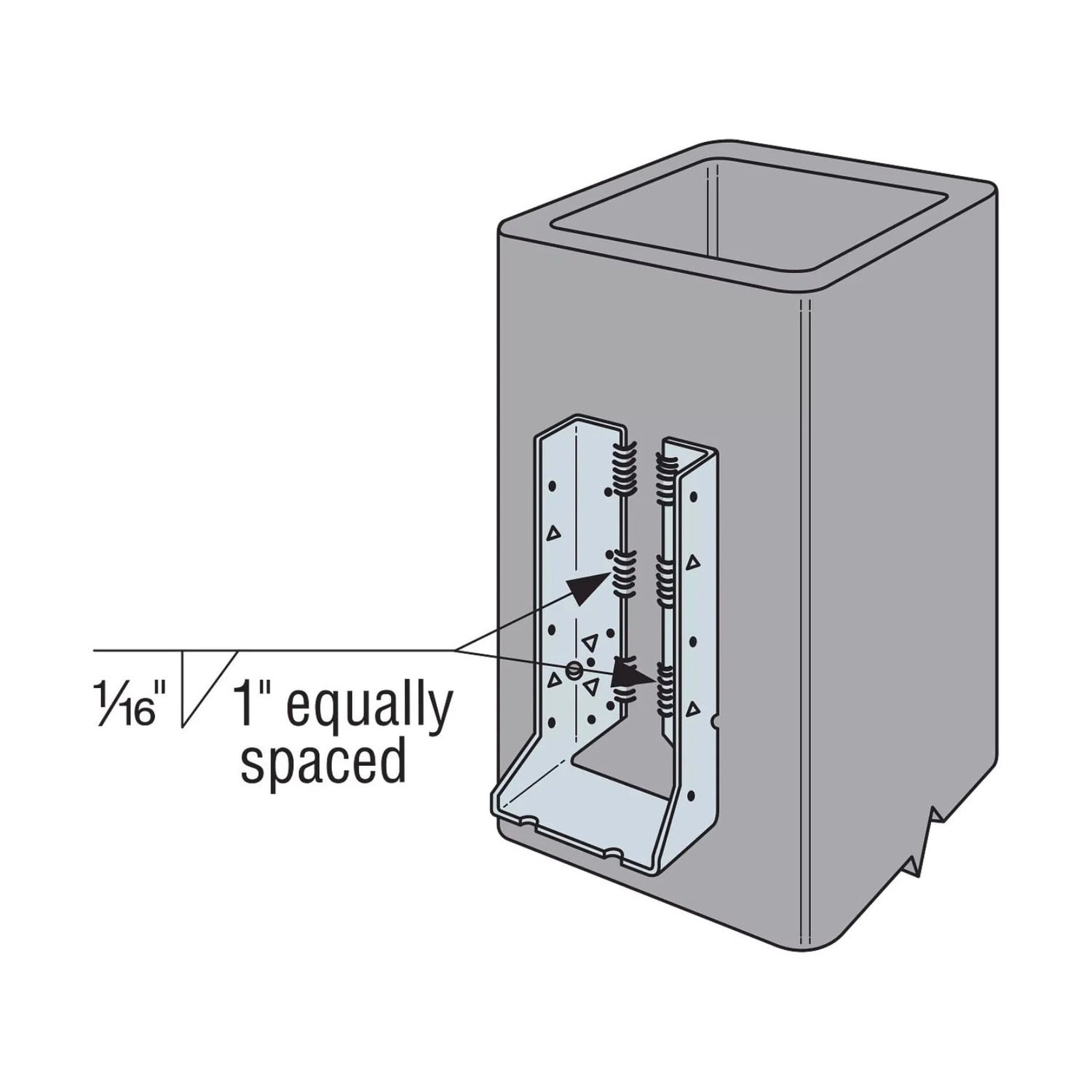

Engineered Wood and Steel Framing: Compatible with LVL, PSL, and CFS joists for advanced construction needs.
Retrofitting and Renovation Projects: Ideal for reinforcing existing structures while maintaining a clean, unobtrusive look.

Simpson HUC210-2 Installation Overview

Use hot-dip galvanized nails for maximum corrosion resistance.
Fill both round and optional triangle holes with common nails to achieve maximum load capacity.

Simpson HUC210-2 Specifications

Finish	G90 Galvanized
Material	Carbon Steel
Fasteners required	Face - (18) 0.162" x 3-1/2" Nails, Joist - (10) 0.148" x 3" Nails
For Treated Lumber	No
Height	8-5/8"
Joist size	Double 2" X 10"
Thickness	14 Gauge
Width	3-1/8"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
