Simpson Hangers | SKU:
HUC210-2Z
Simpson Strong-Tie HUC210-2Z (Double 2" x 10") Concealed Double Face Mount Joist Hanger
$25.94
Unit price
/
Unavailable
Description
Description

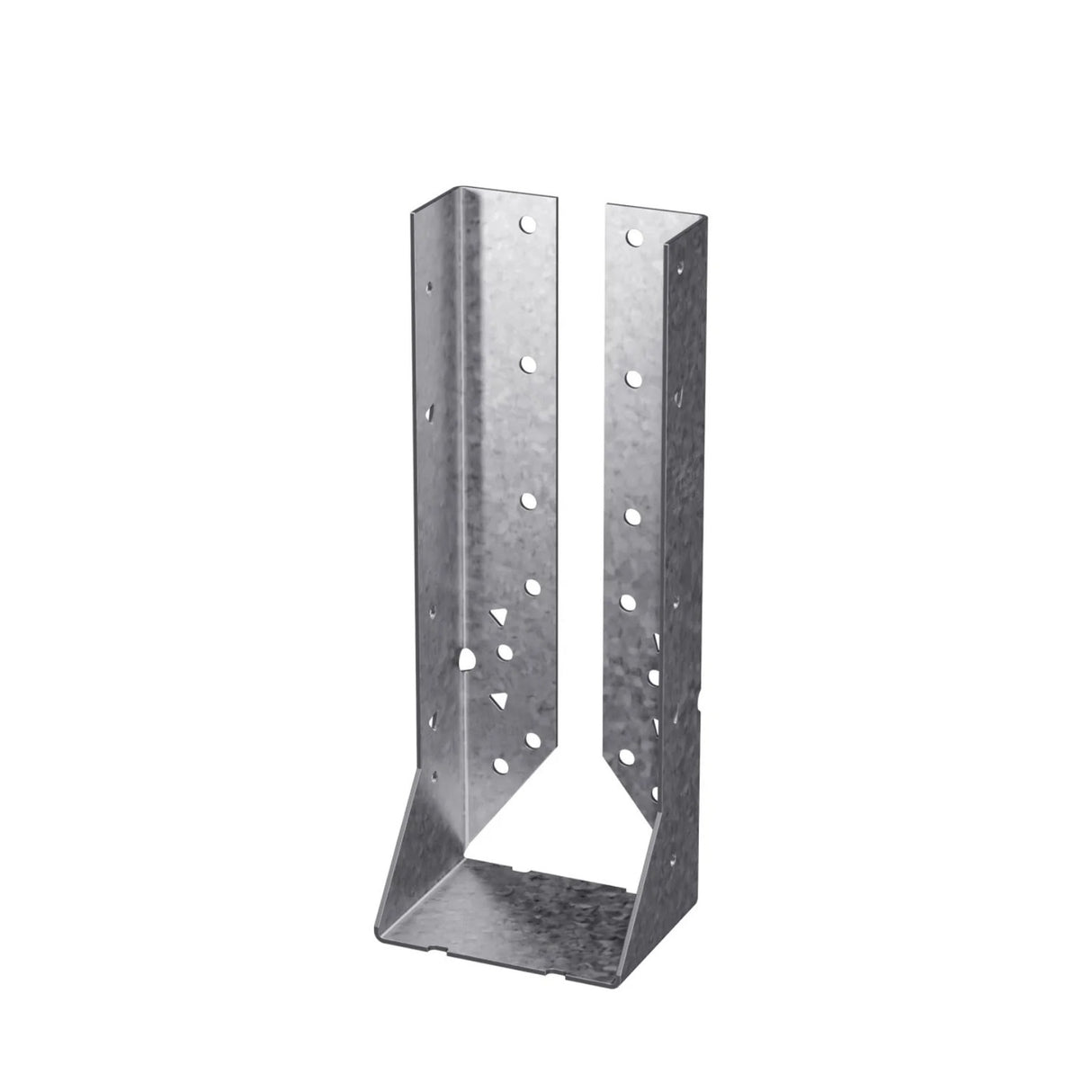

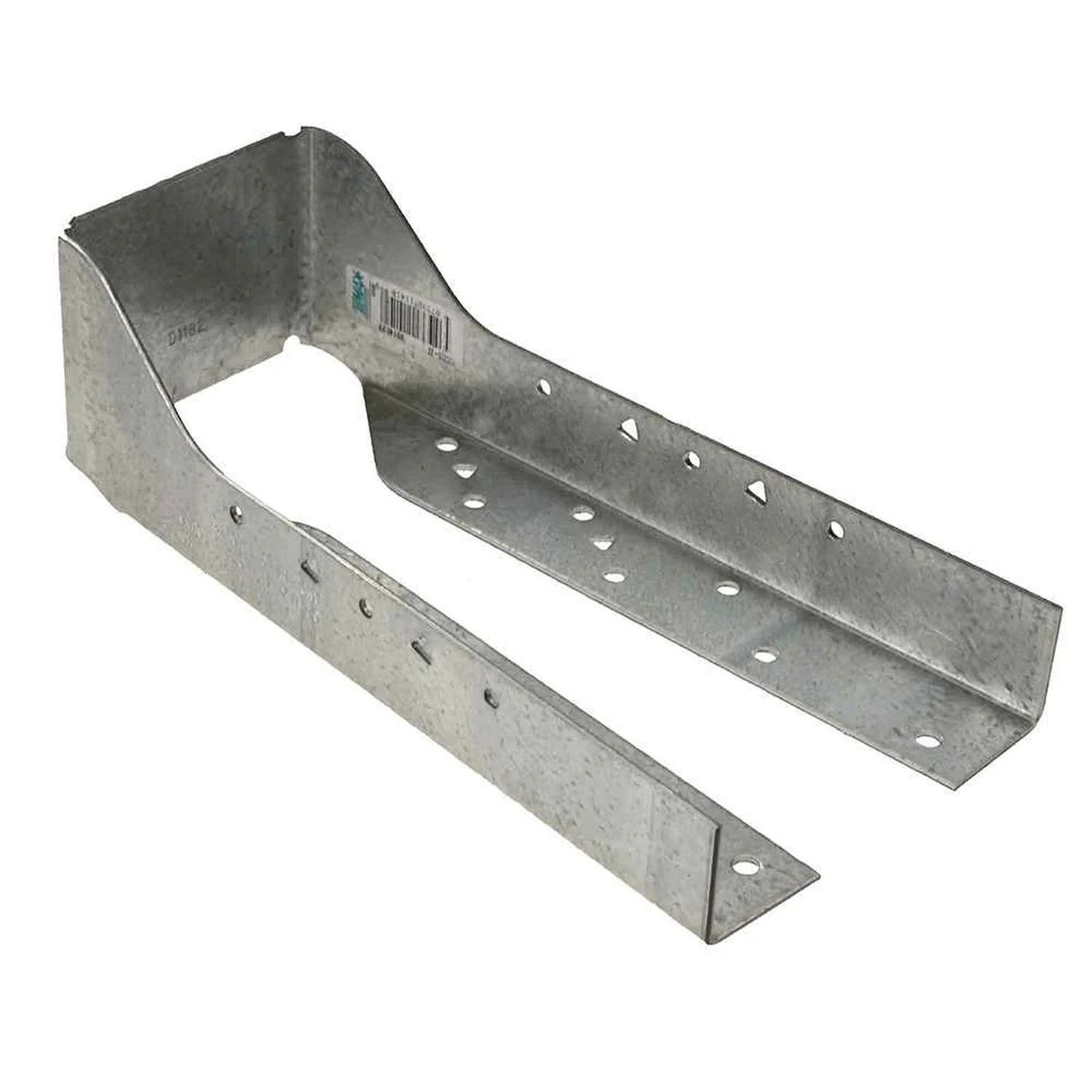

Simpson HUC210-2Z Description

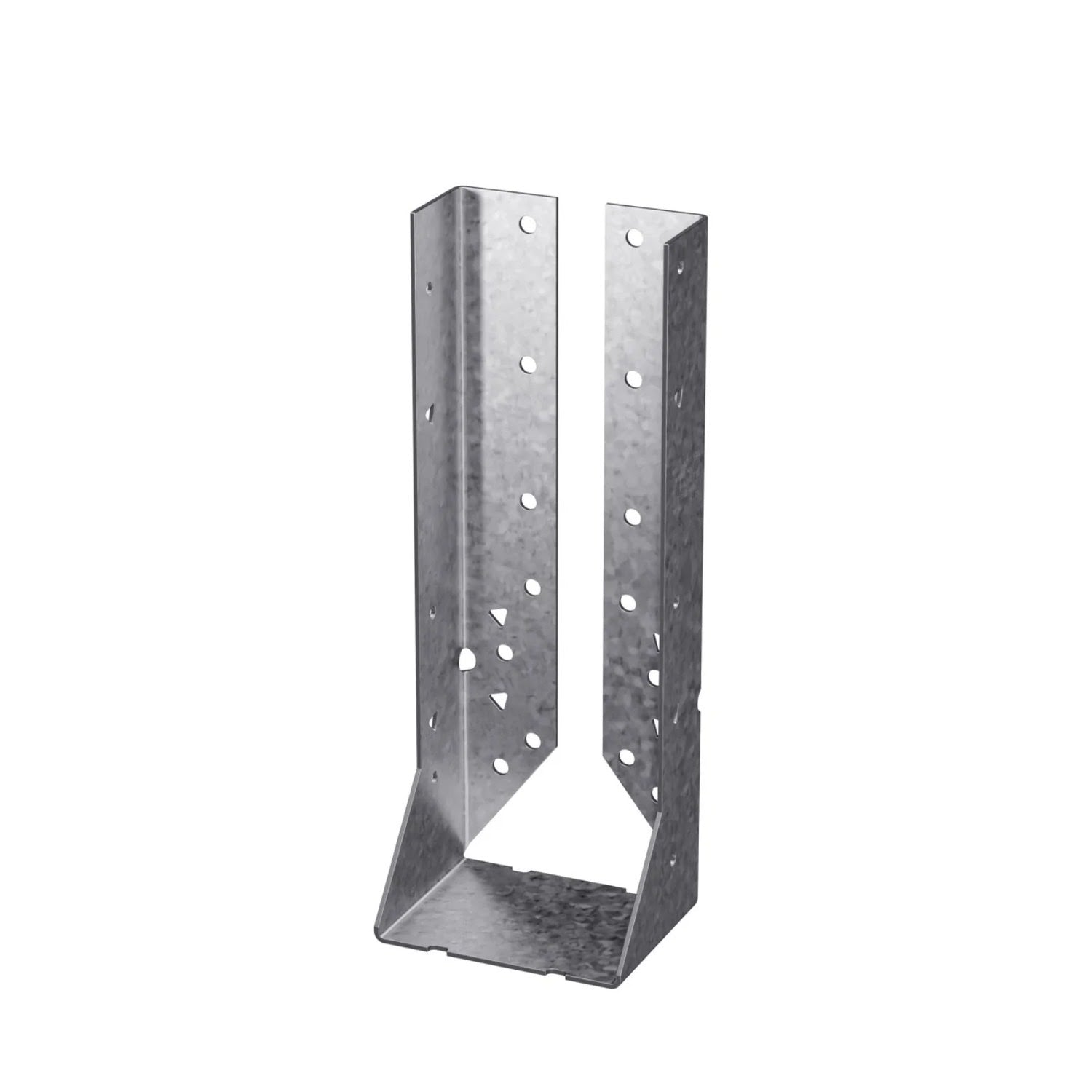

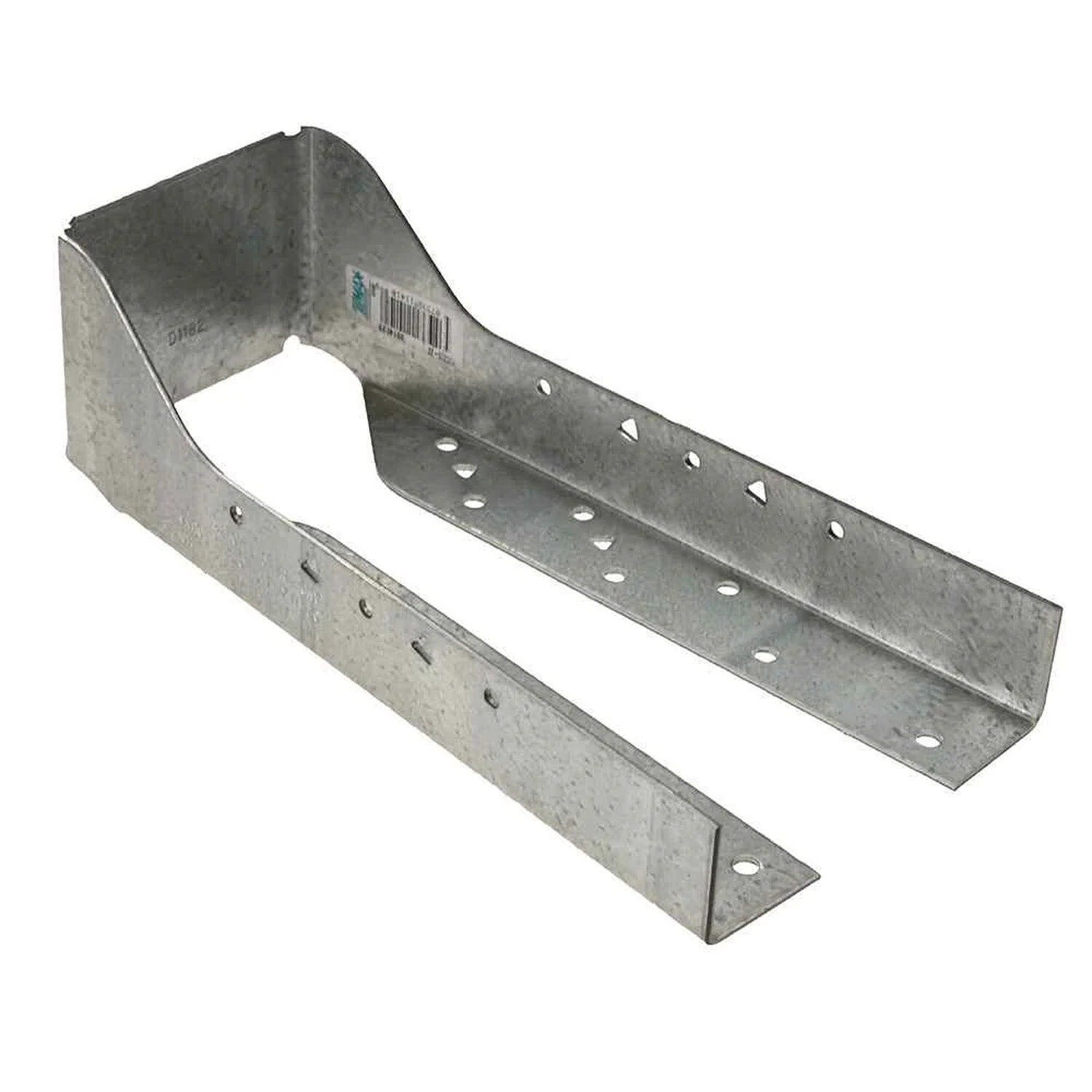

The Simpson HUC210-2Z is a concealed double face mount joist hanger designed for double 2x10 joists, featuring a ZMAX galvanized finish for enhanced corrosion resistance.
Simpson HUC210-2Z Includes
- (1) Concealed Double Face Mount Joist Hanger for Double 2x10
Simpson HUC210-2Z Features

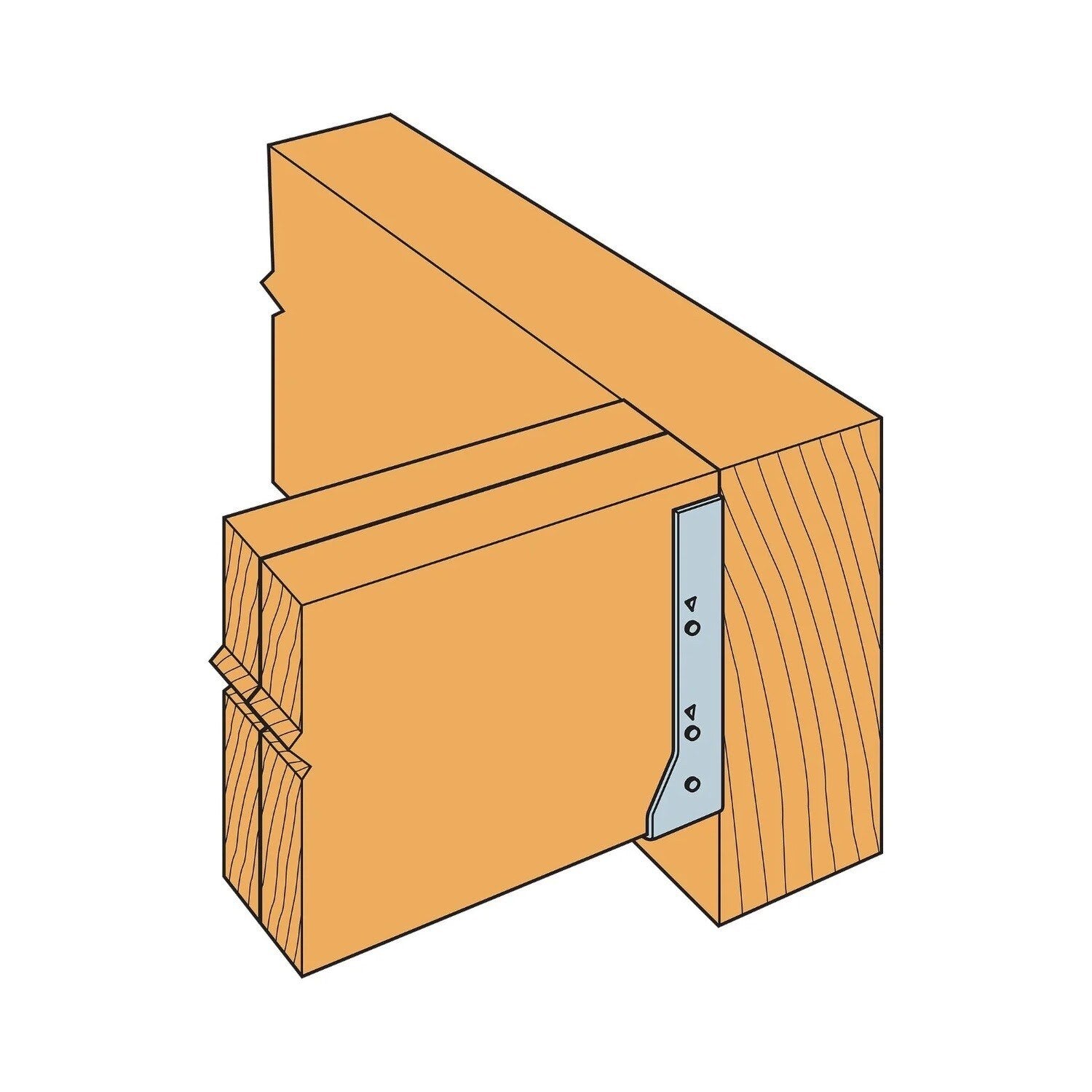

- Concealed-Flange Design for clean lines and structural integrity
- ZMAX Galvanized Coating for corrosion resistance

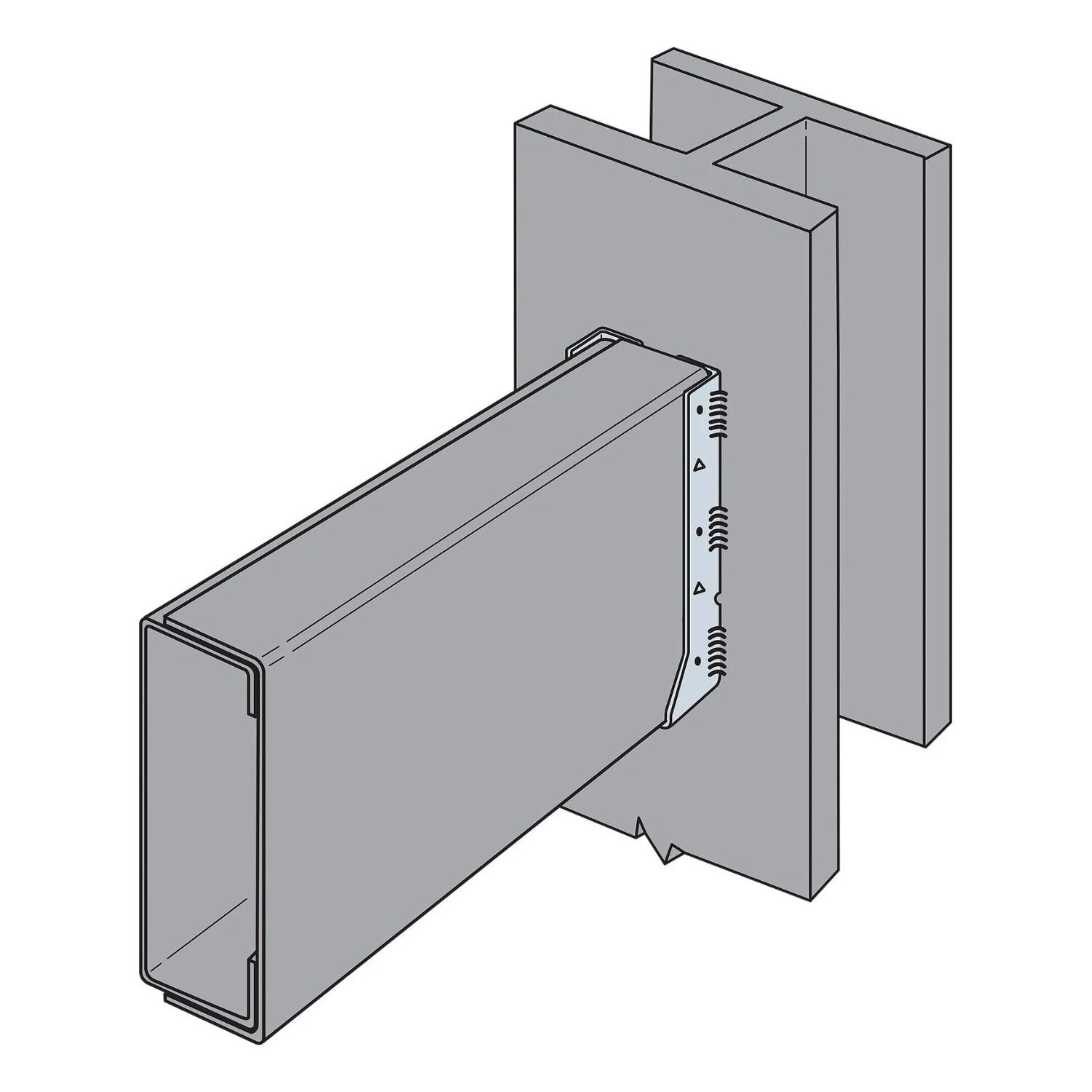

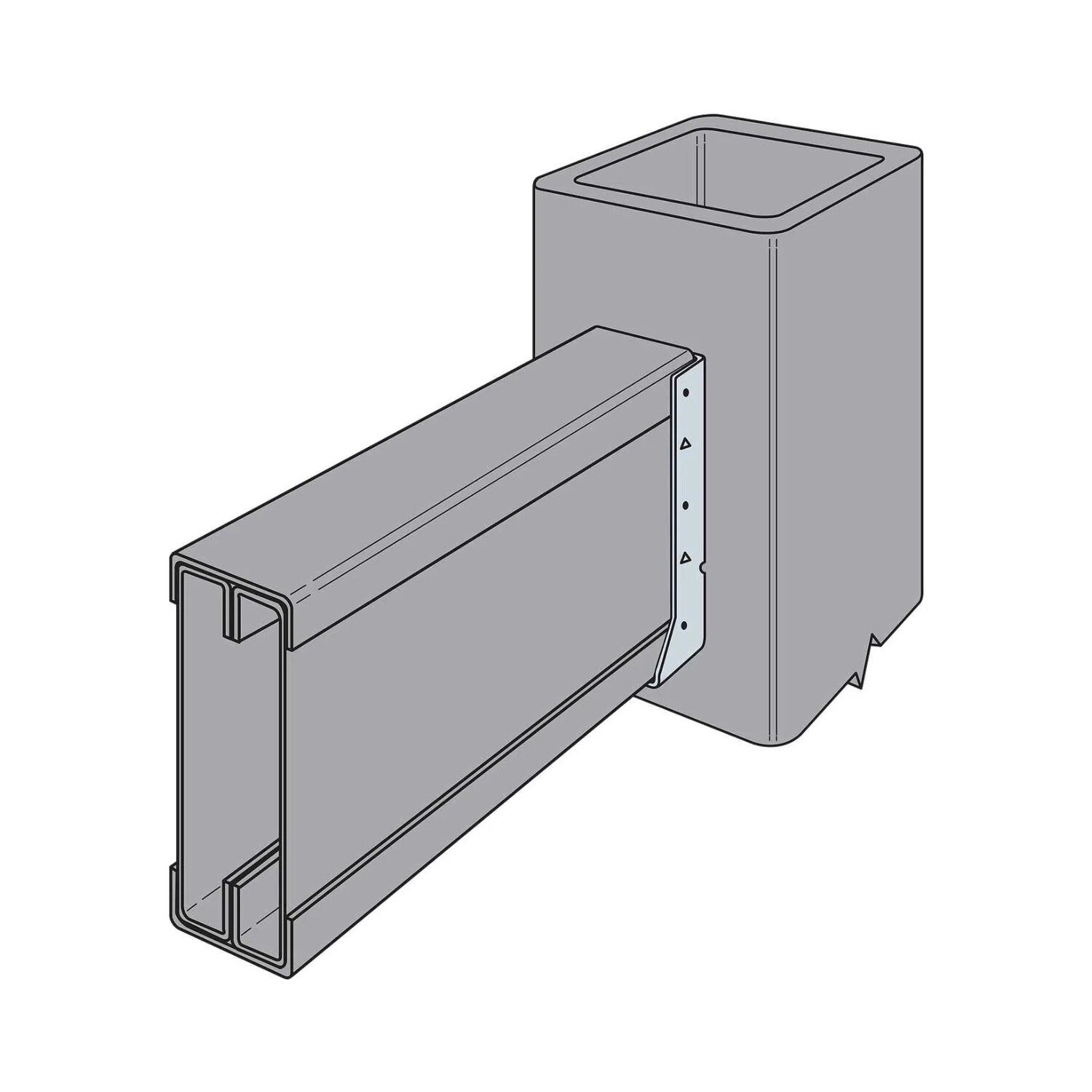

- Versatile Applications for wood, masonry, and concrete connections
- Code Compliance ensuring reliable performance
- Heavy-duty construction for robust support
Simpson HUC210-2Z Applications

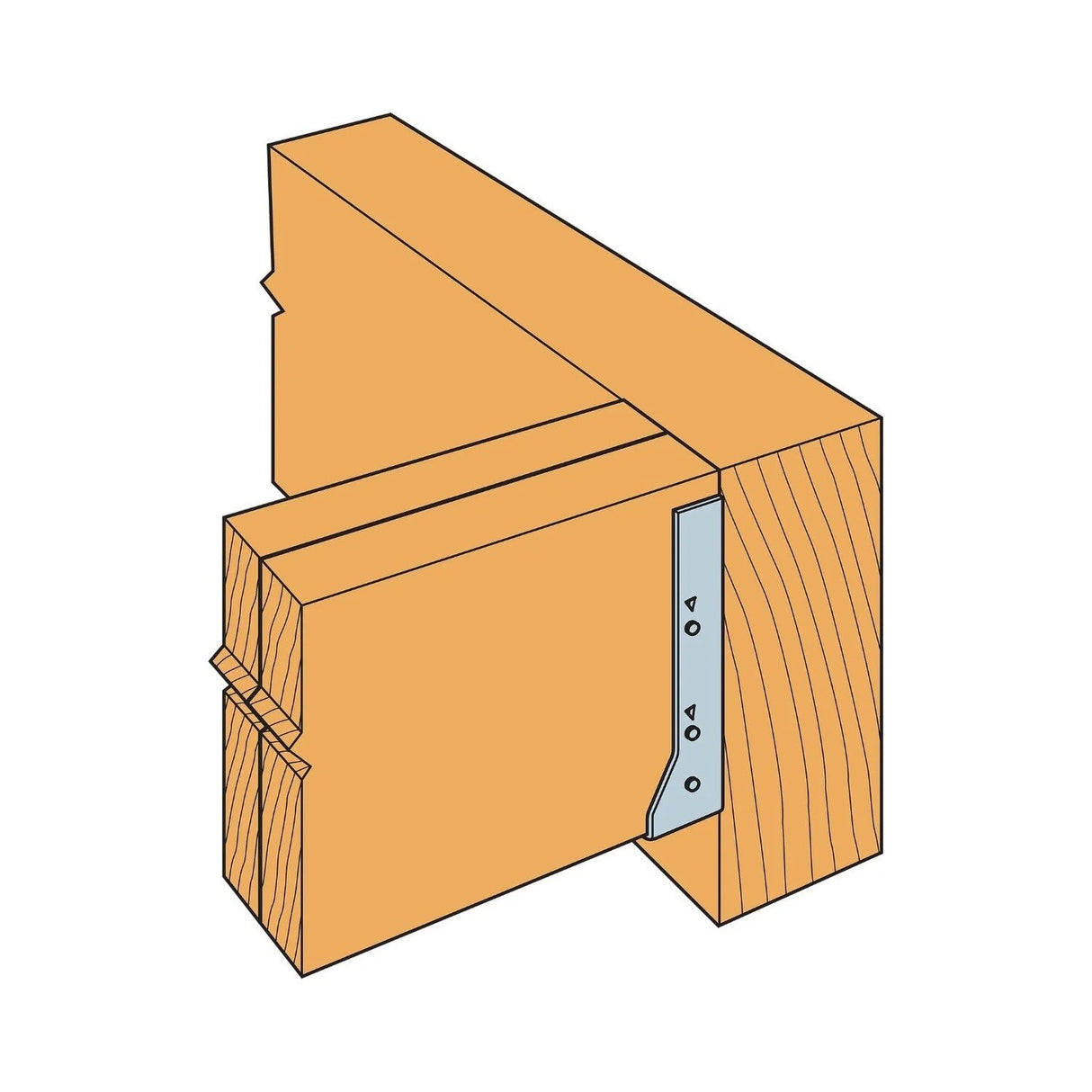

- Decks & Outdoor Structures: Provides strong, concealed support for wood joists in deck construction, pergolas, and gazebos.
- Timber Framing: Ideal for exposed beam connections in architectural and decorative wood framing.
- Treated Wood & Exterior Construction: Corrosion-resistant ZMAX coating makes it suitable for structures exposed to moisture, such as porches, patios, and sheds.

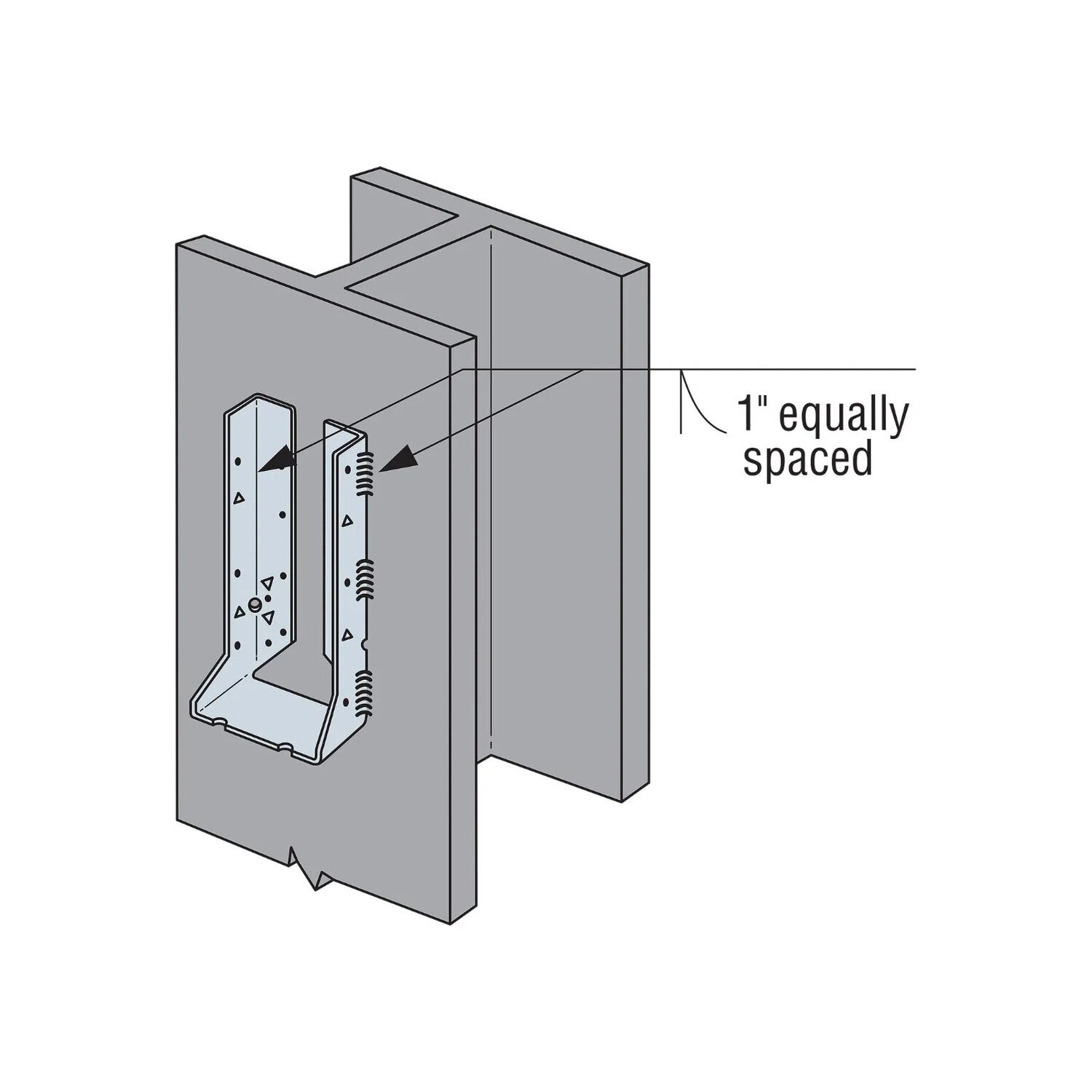

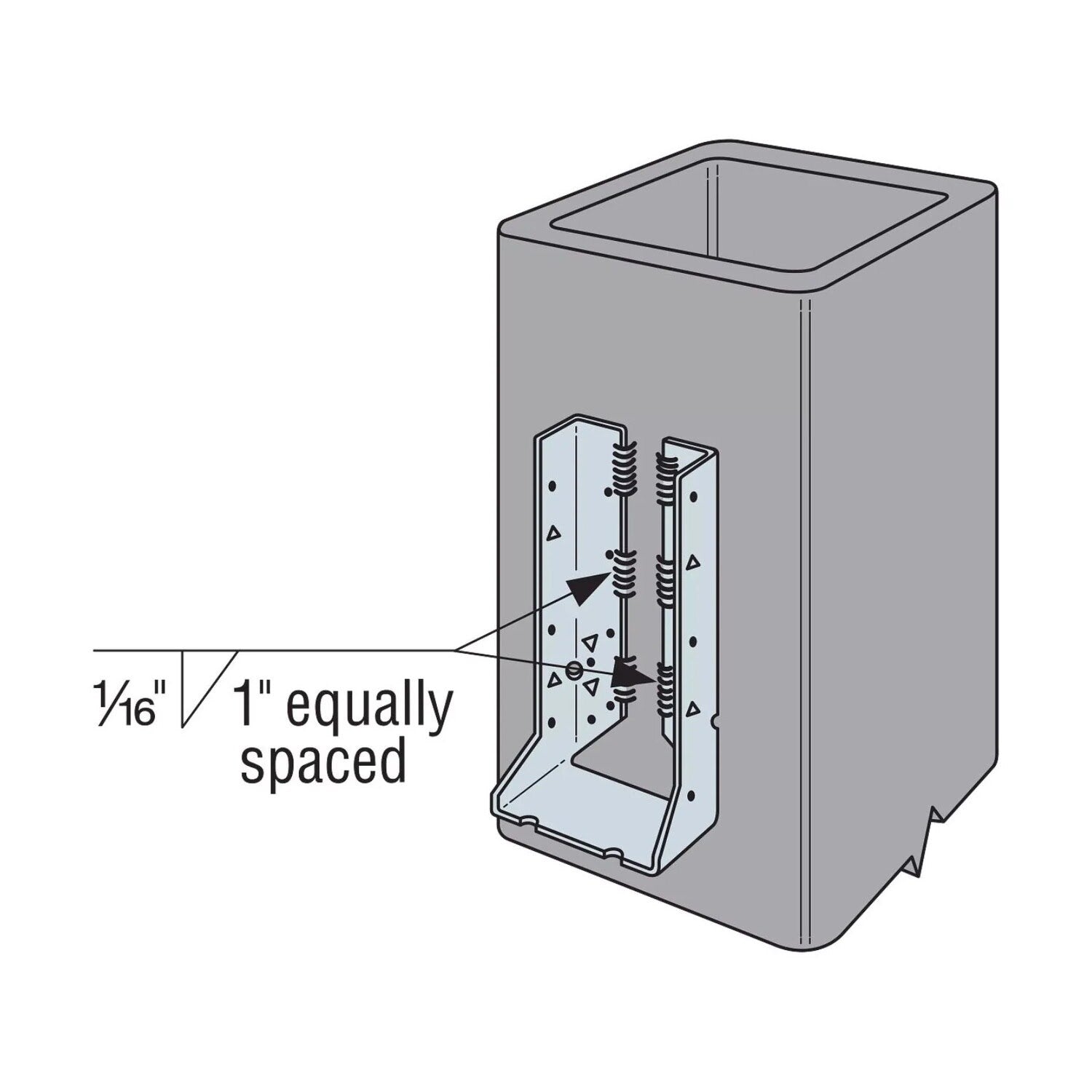

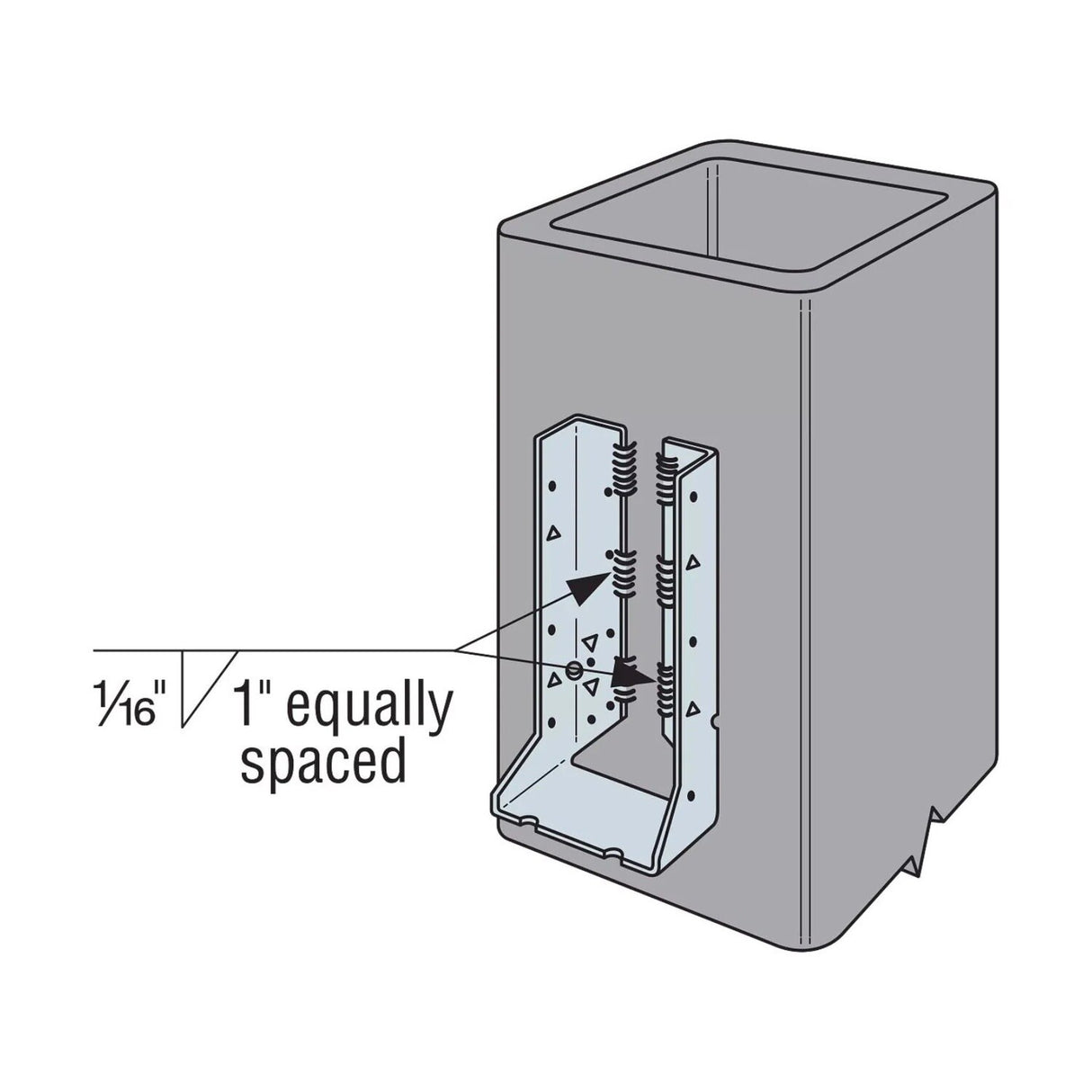

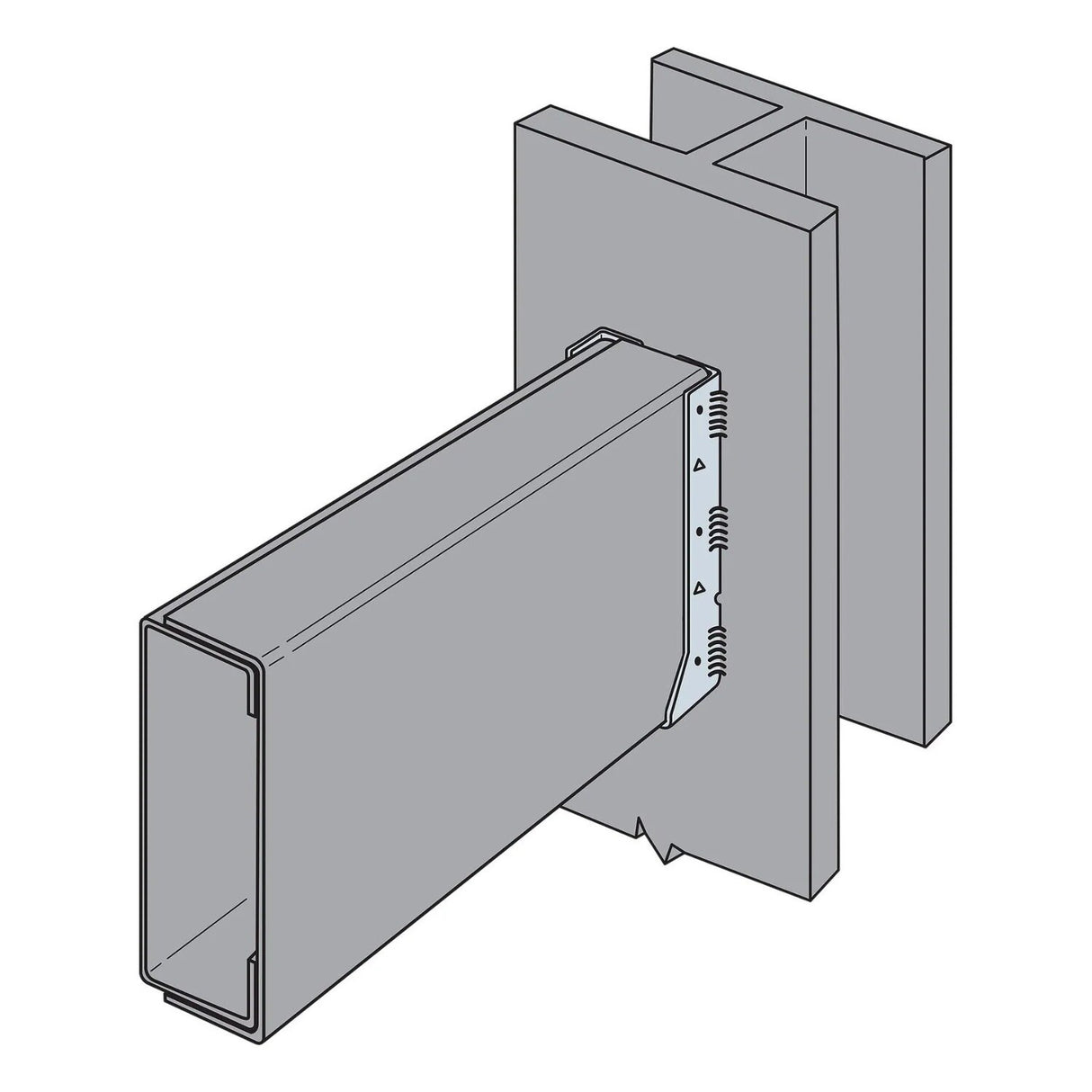

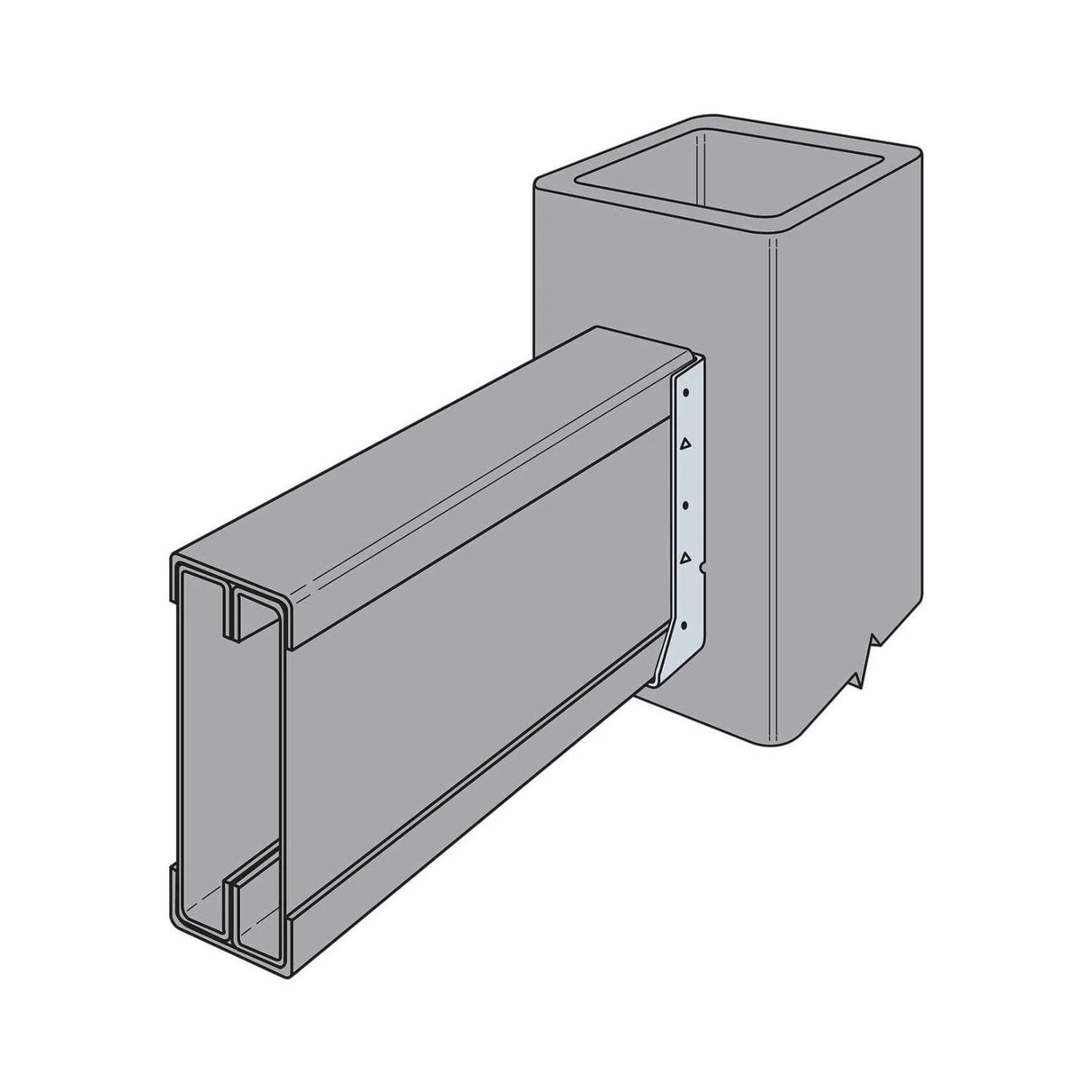

- Masonry & Concrete Connections: Compatible with wood, masonry, and concrete connections.
Simpson HUC210-2Z Installation Overview
- Use hot-dip galvanized nails for ZMAX galvanized hangers.
- Fill both round and triangle holes with common nails for maximum load capacity.
- Special order options available for skewable seat and sloped seat up to 45 degrees.
Simpson HUC210-2Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (18) 0.162" x 3-1/2" Nails, Joist - (10) 0.148" x 3" Nails |
| For Treated Lumber | Yes |
| Height | 8-5/8" |
| Joist size | Double 2" X 10" |
| Thickness | 14 Gauge |
| Width | 3-1/8" |
NOTE: Ensure the correct fasteners are used in the specified positions to achieve the published load values
