Simpson Hangers | SKU:
HUC212-2
Simpson Strong-Tie HUC212-2 (10-9/16") 14Ga Heavy-Duty Galvanized Concealed-Flange Face-Mount Joist Hanger
$25.73
$35.21
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson HUC212-2 Description

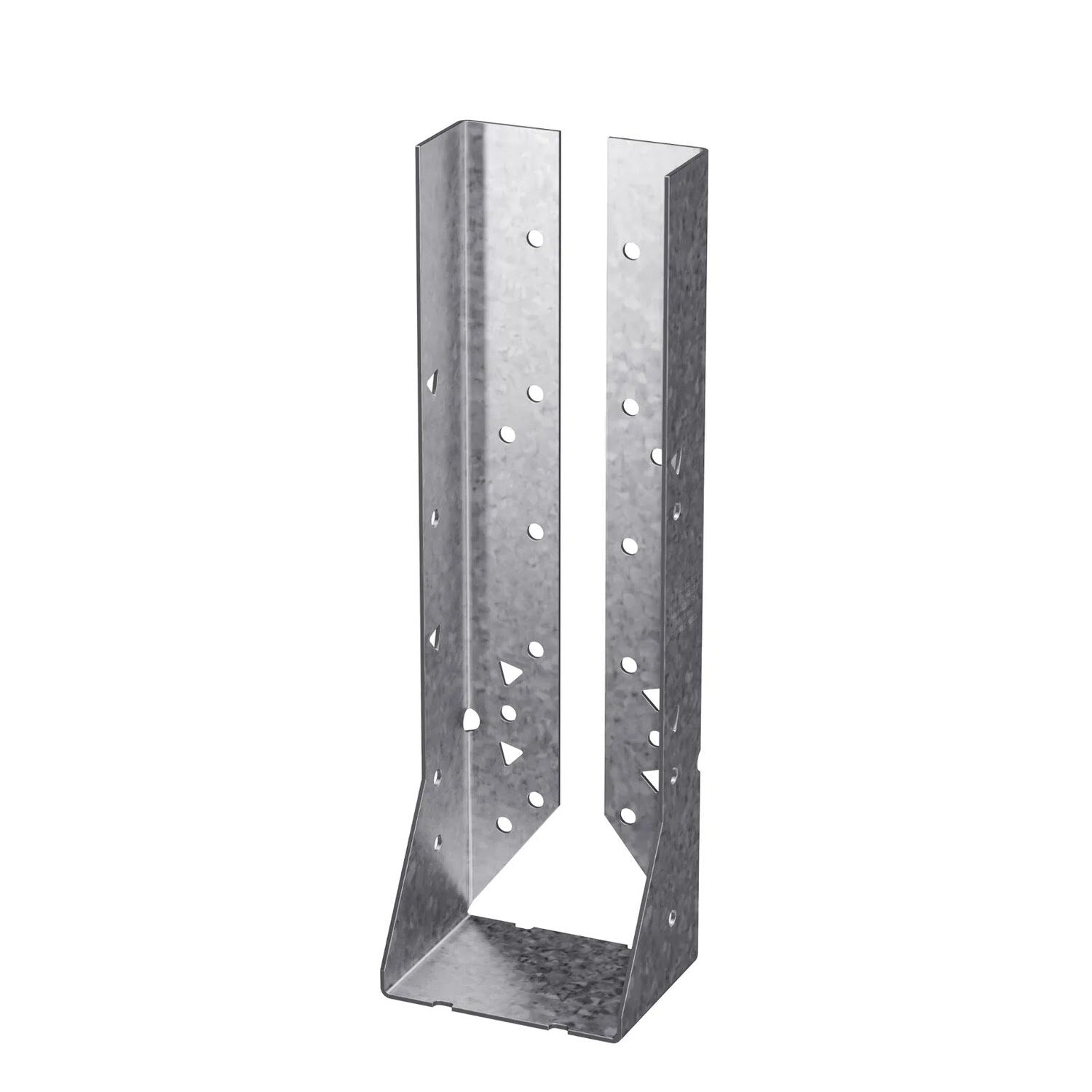

The Simpson HUC212-2 is a heavy-duty concealed-flange face-mount joist hanger designed for double 2x12 joists, offering robust support and corrosion resistance with a G90 galvanized finish.
Simpson HUC212-2 Includes
- (1) Galvanized Face-Mount Concealed-Flange Joist Hanger for Double 2x12
Simpson HUC212-2 Features
- Concealed Flange Design for clean lines and close installation to beam ends
- G90 Galvanized Finish for corrosion resistance
- Versatile Applications for various joist sizes and materials
- Code Compliance ensuring reliable structural performance
Simpson HUC212-2 Applications

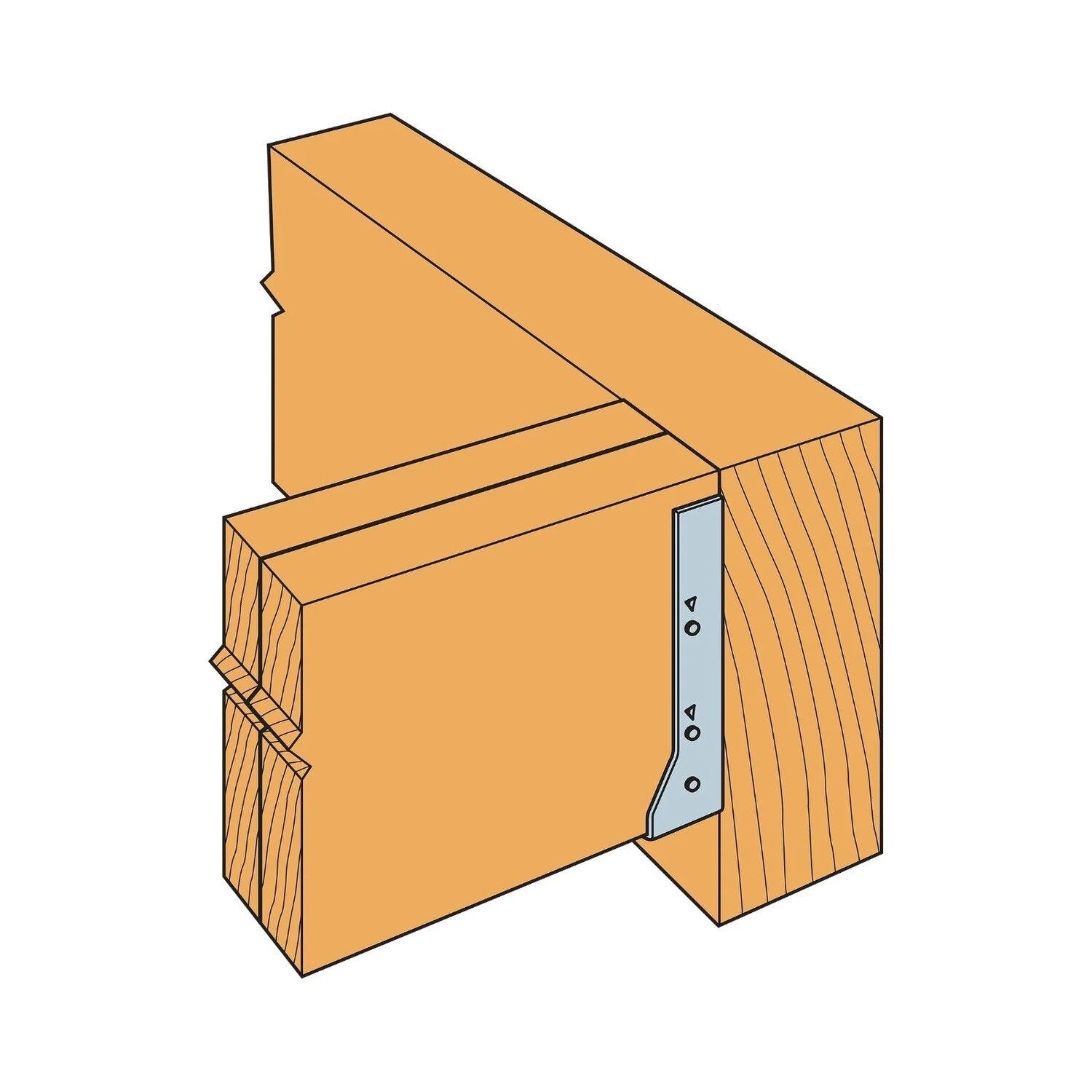

- Decks & Outdoor Structures: Provides strong, concealed connections for deck framing, pergolas, and covered porches.
- Floor Joists & Ceiling Framing: Ensures secure joist connections in residential and commercial construction.
- Multi-Family Housing & Commercial Buildings: Used in large-scale framing applications for apartments, offices, and mixed-use buildings.

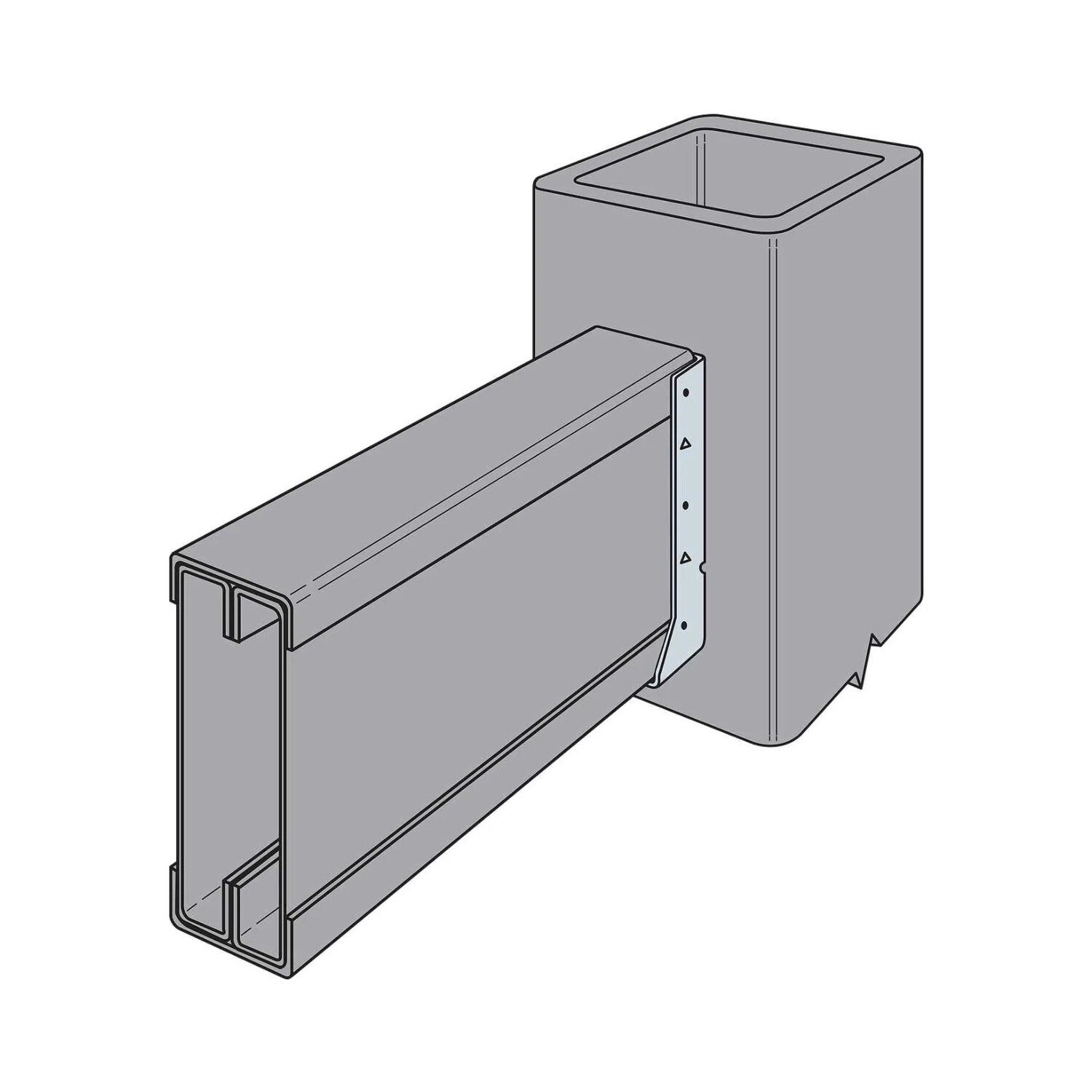

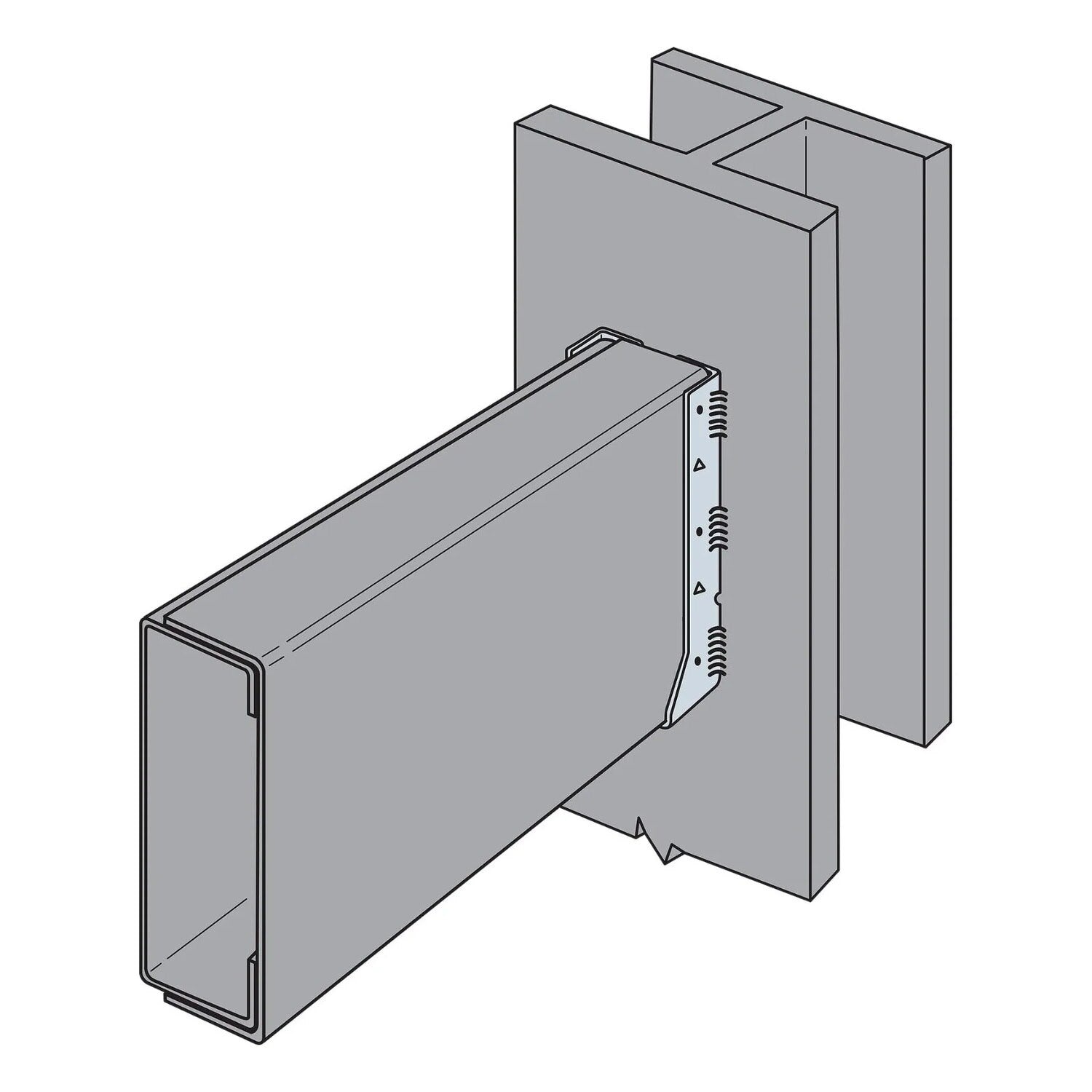

- Engineered Wood & Steel Framing: Compatible with LVL, PSL, and CFS joists for advanced construction needs.
- Retrofitting & Renovation Projects: Ideal for reinforcing existing structures while maintaining a clean, unobtrusive look.
Simpson HUC212-2 Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Fill both round and triangle holes with common nails for maximum load capacity.
Simpson HUC212-2 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (22) 0.162" x 3-1/2" Nails, Joist - (10) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 10-9/16" |
| Joist size | Double 2" X 12" |
| Thickness | 14 Gauge |
| Width | 3-1/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
