Simpson Hangers | SKU:
HUC212-3

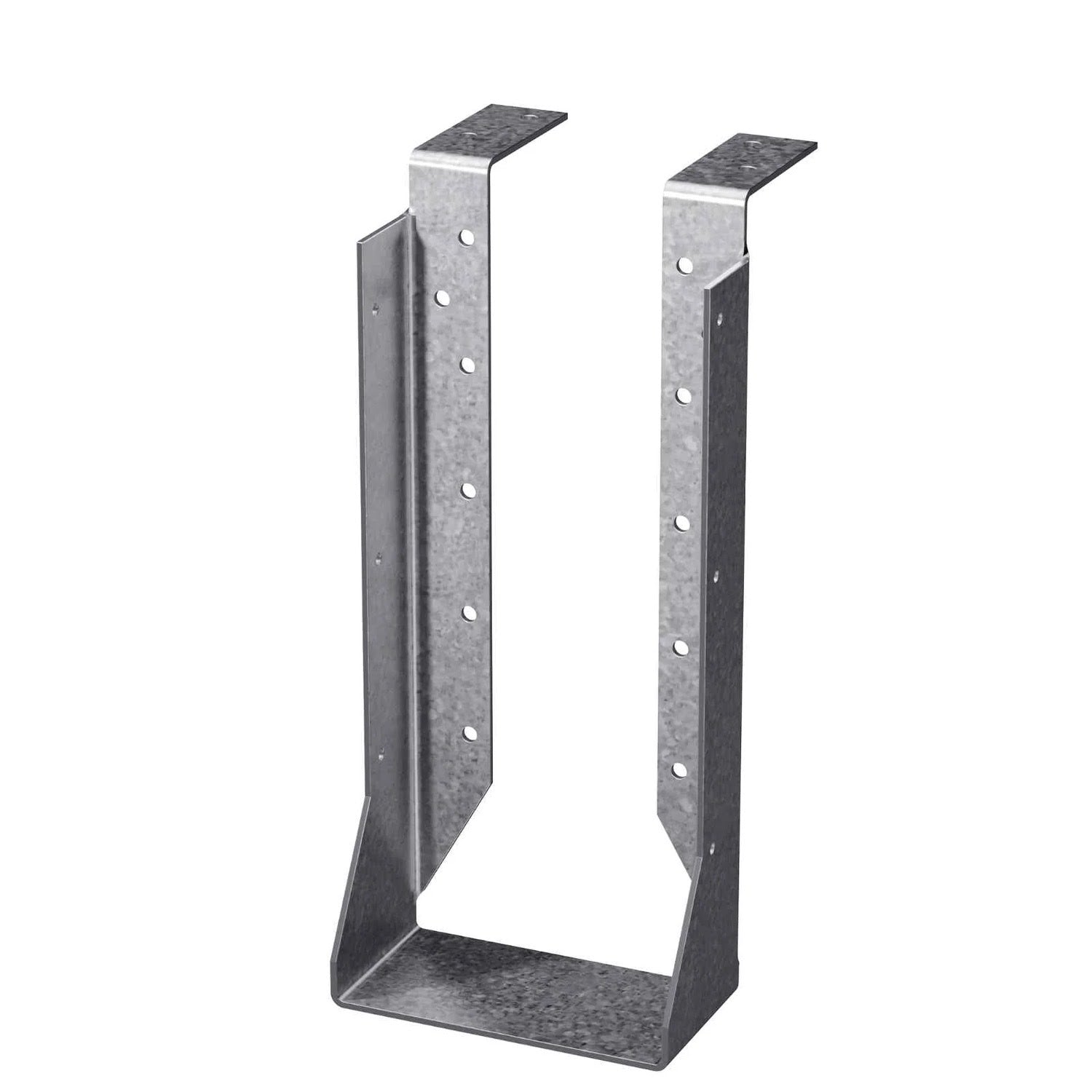

Simpson Strong-Tie HUC212-3 (Triple 2" x 12") Galvanized Face-Mount Concealed-Flange Joist Hanger
$51.60
Unit price
/
Unavailable
Description
Description
Simpson HUC212-3 Description
The Simpson HUC212-3 is a heavy-duty concealed-flange joist hanger designed for triple 2x12 joists, offering robust support and a clean aesthetic.
Simpson HUC212-3 Includes
- (1) Galvanized Face-Mount Concealed-Flange Joist Hanger for Triple 2x12
Simpson HUC212-3 Features
- Concealed Flange Design for seamless aesthetic
- Heavy-duty construction with 12-gauge steel
- G90 Galvanized finish for corrosion resistance
Simpson HUC212-3 Applications
- Residential and commercial structural projects
- End-of-wall joist installations
- Corner joist connections
Simpson HUC212-3 Installation Overview
- Use all specified fasteners according to manufacturer guidelines
- Ensure minimum header size of 3 1/2 inches
- Do not modify for sloped or skewed seat applications
Simpson HUC212-3 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (16) 0.162" x 3-1/2" Nails, Joist - (6) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 11" |
| Joist size | Triple 2" X 12" |
| Thickness | 12 Gauge |
| Width | 4-11/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
