Simpson Hangers | SKU:
HUC26-2

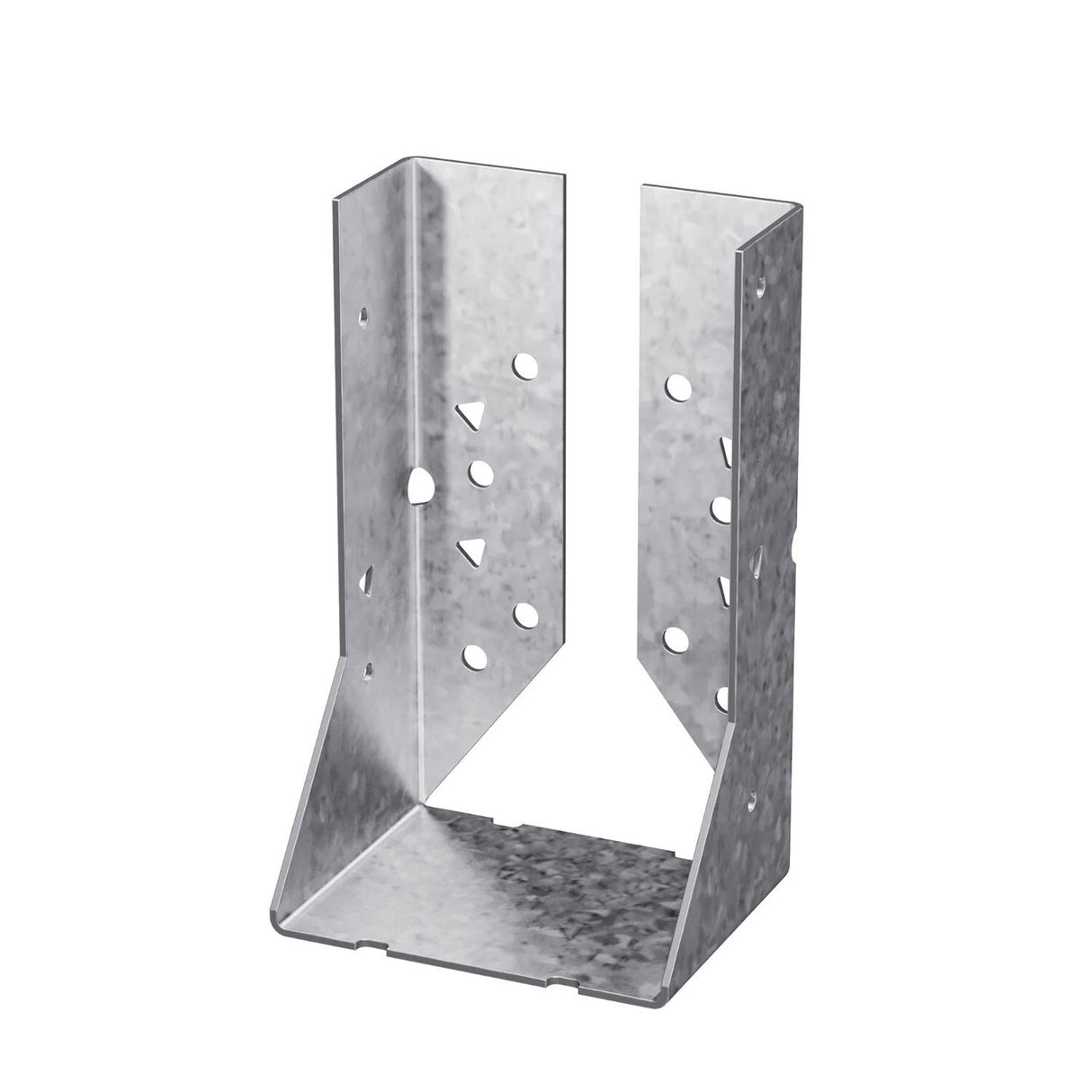

Simpson Strong-Tie HUC26-2 (Double 2" x 6") Galvanized Face-Mount Concealed-Flange Joist Hanger
$16.56
$23.04
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUC26-2 Description
The Simpson Strong-Tie HUC26-2 is a concealed flange joist hanger designed for double 2x6 joists, featuring a G90 galvanized finish for durability and corrosion resistance.
Simpson Strong-Tie HUC26-2 Includes
- (1) HUC26-2 Concealed Flange Joist Hanger
Simpson Strong-Tie HUC26-2 Features
- Concealed flange design for a clean appearance
- G90 galvanized coating for corrosion resistance
- Compatible with double 2x6 joists
- Heavy-duty construction for enhanced strength
- Designed for use with hot-dip galvanized fasteners
Simpson Strong-Tie HUC26-2 Applications
- Ideal for schools and structures requiring additional strength

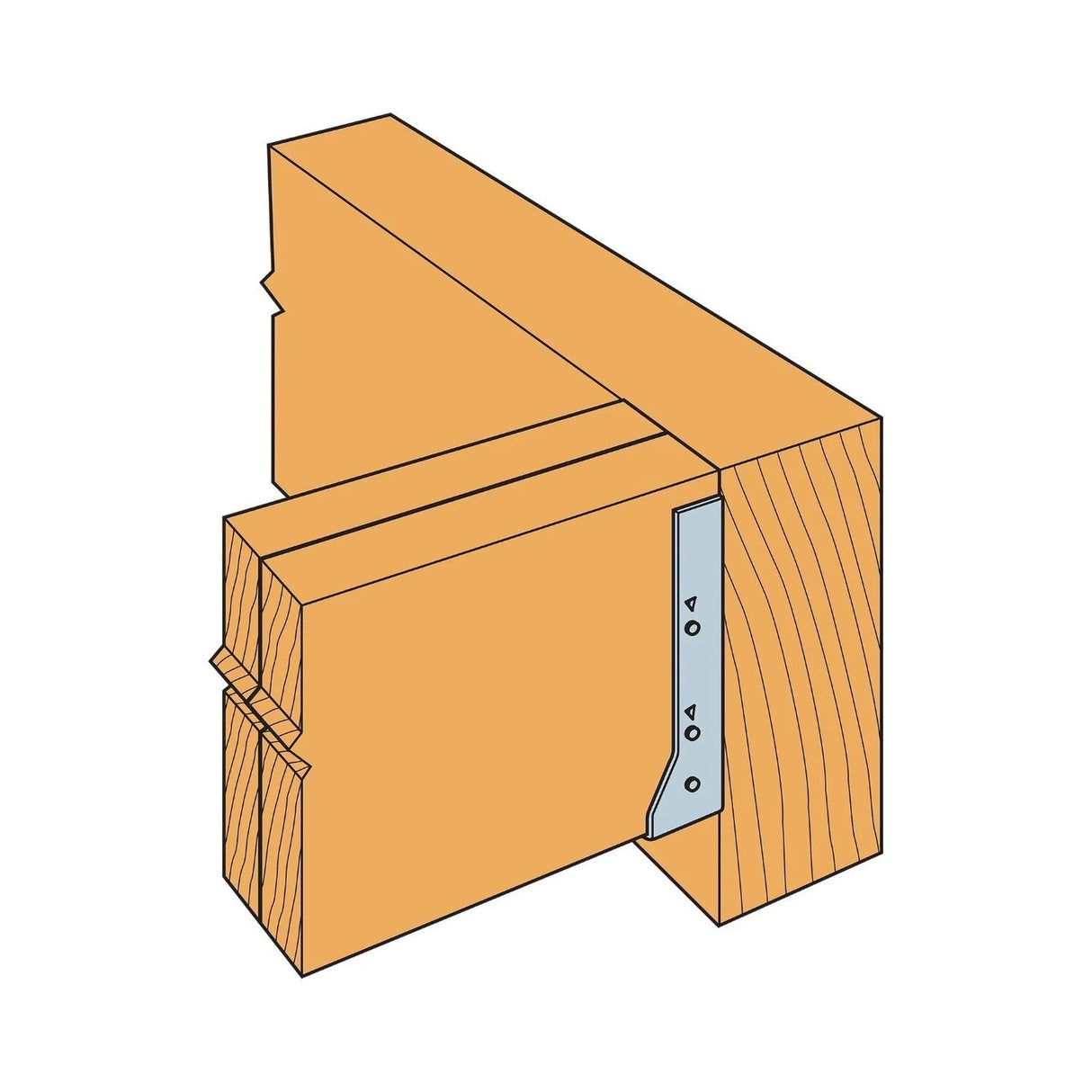

- Suitable for wood-to-wood connections in framing
- Used in applications where concealed flange is preferred
Simpson Strong-Tie HUC26-2 Installation Overview
- Use all specified fasteners for installation
- Can be installed filling round holes only or both round and triangle holes for maximum values
- Joists sloped up to 1/4:12 achieve load tables

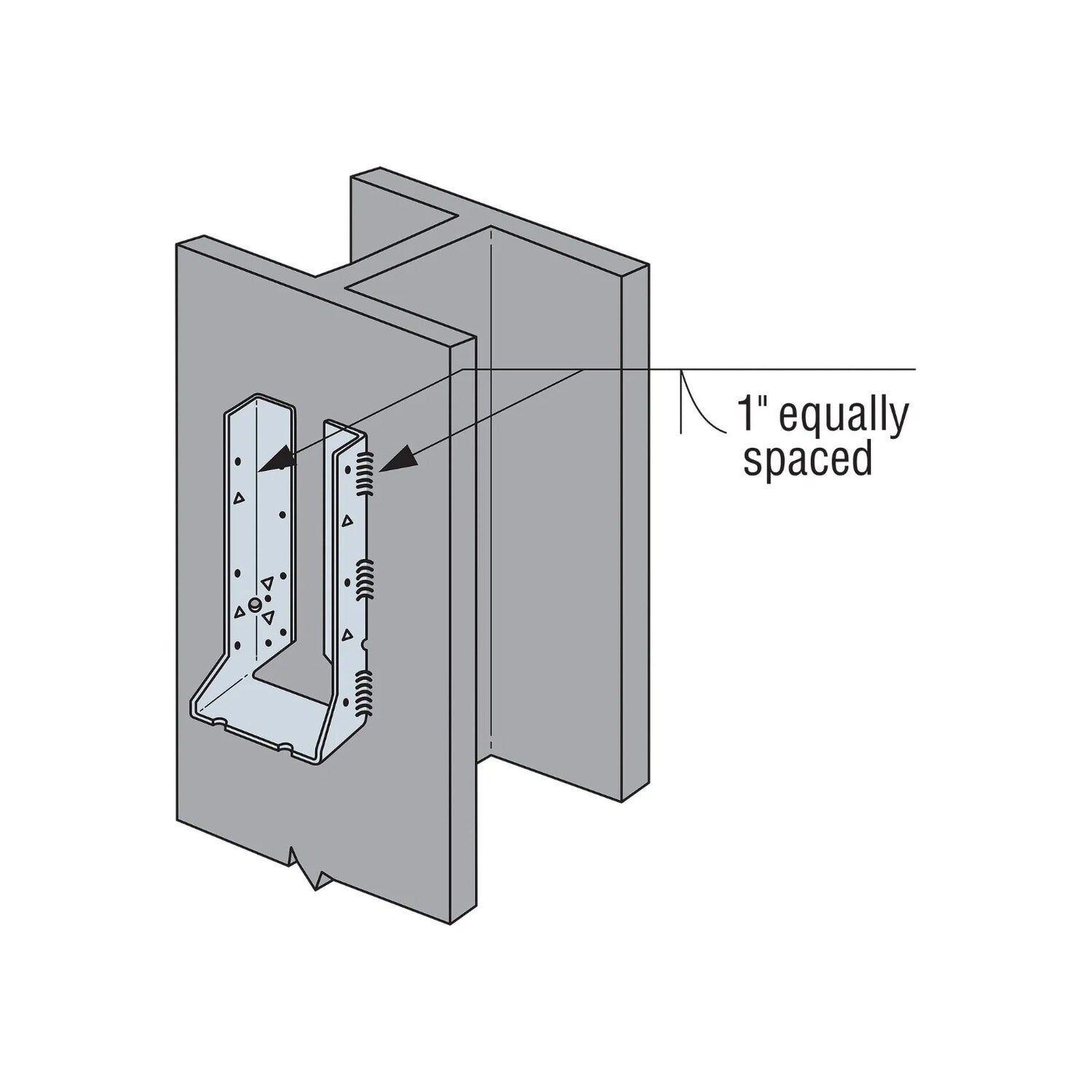

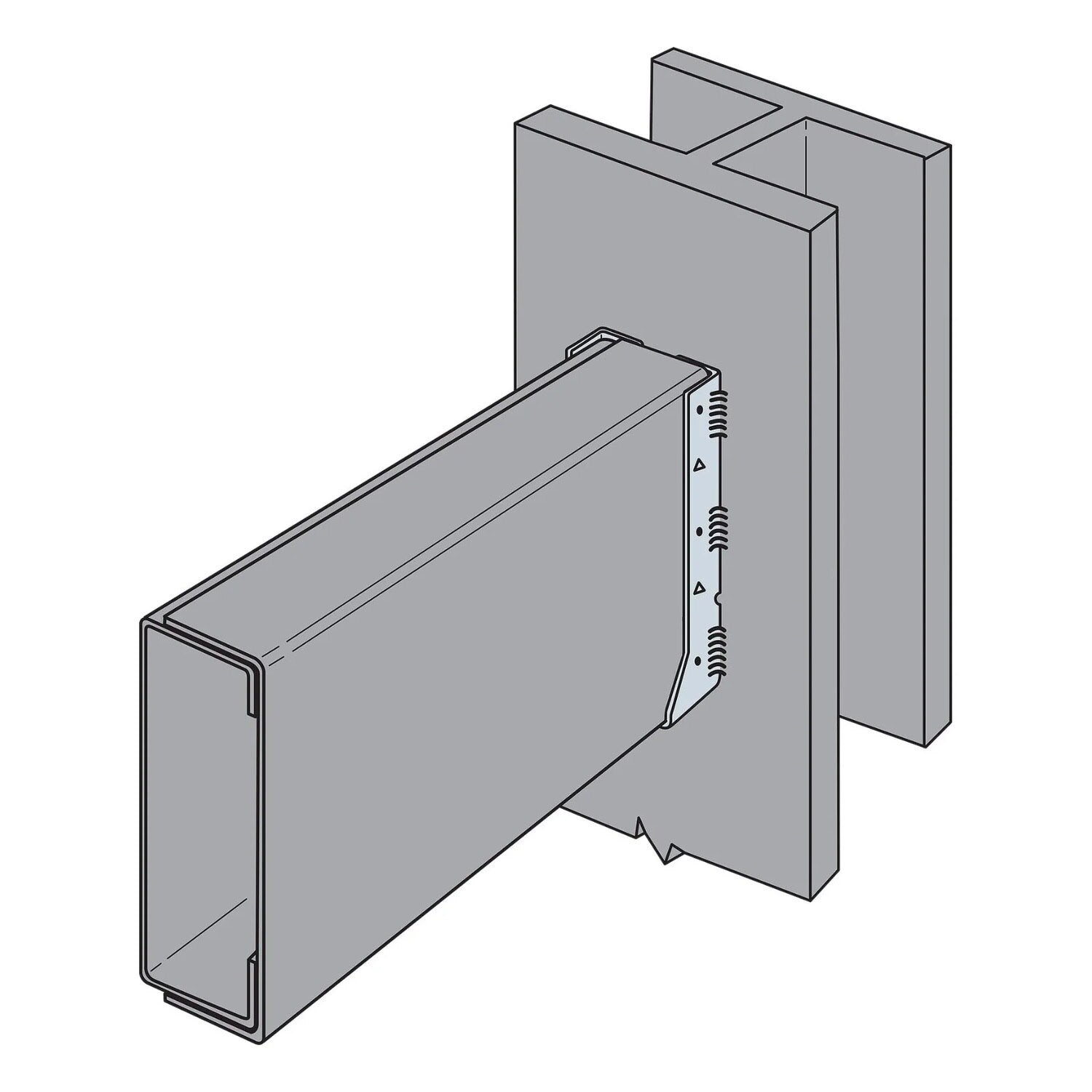

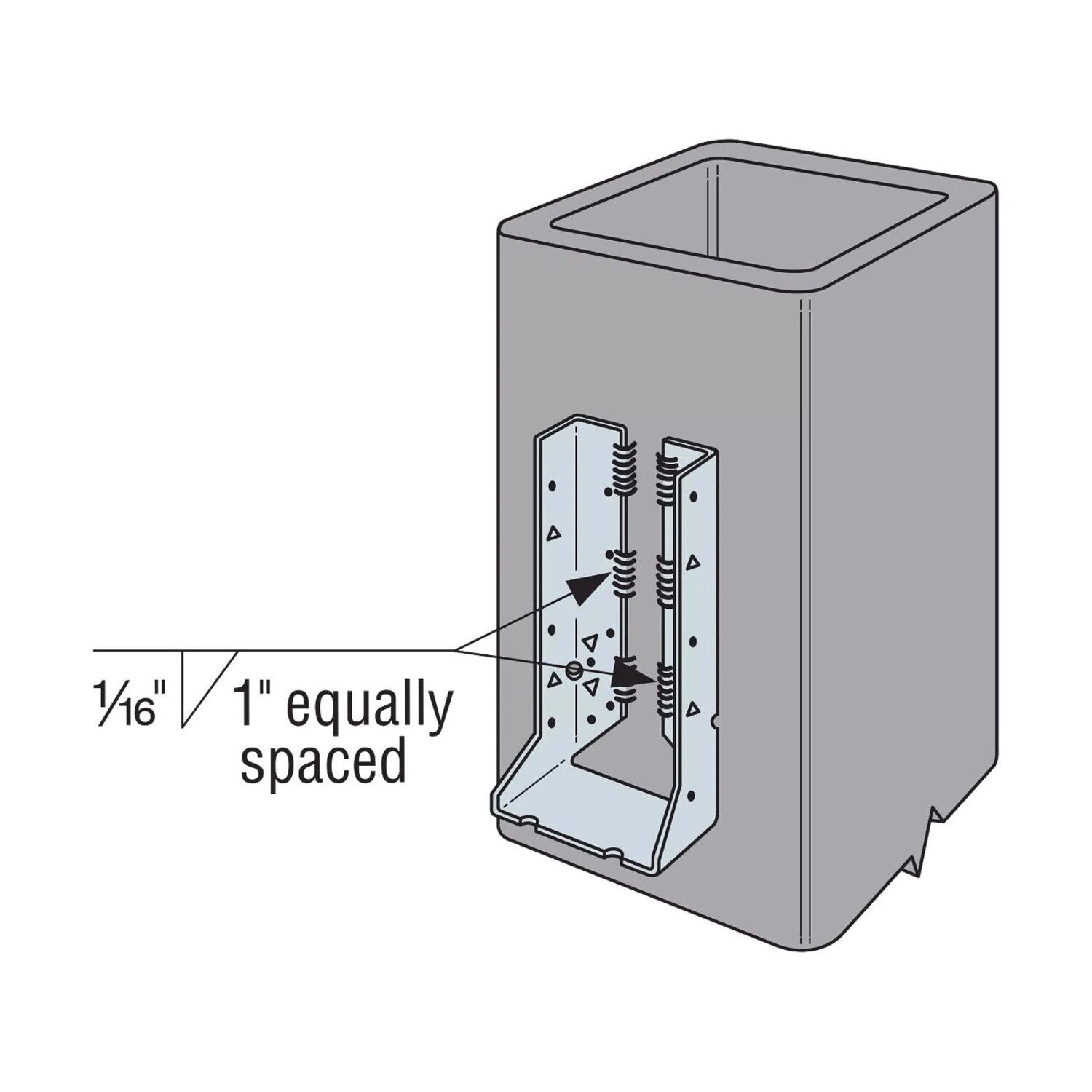

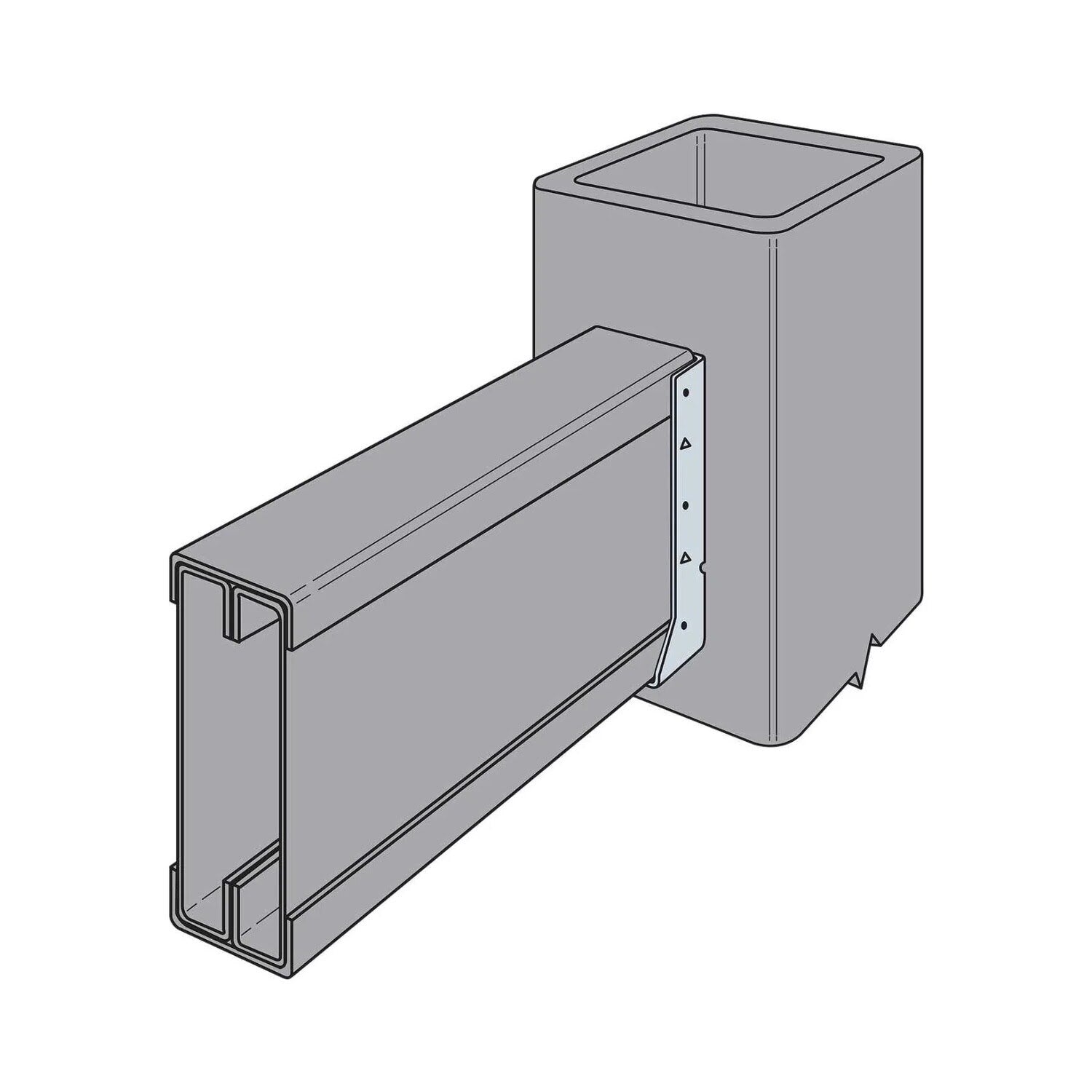

- Can be welded to a steel member following technical guidelines
Simpson Strong-Tie HUC26-2 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (12) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 4-15/16" |
| Joist size | Double 2" X 6" |
| Thickness | 14 Gauge |
| Width | 3-1/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
