Simpson Hangers | SKU:
HUC26-2Z

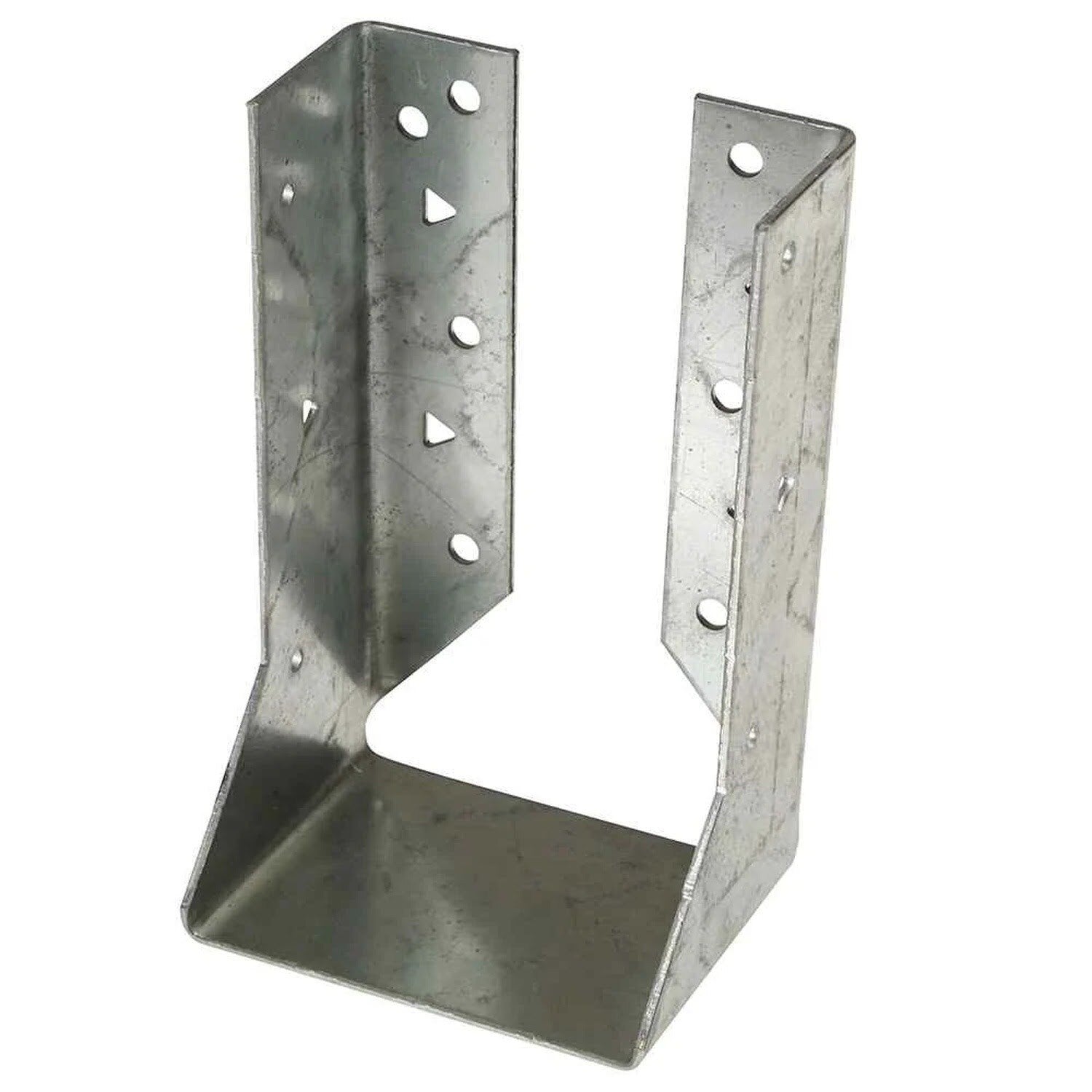

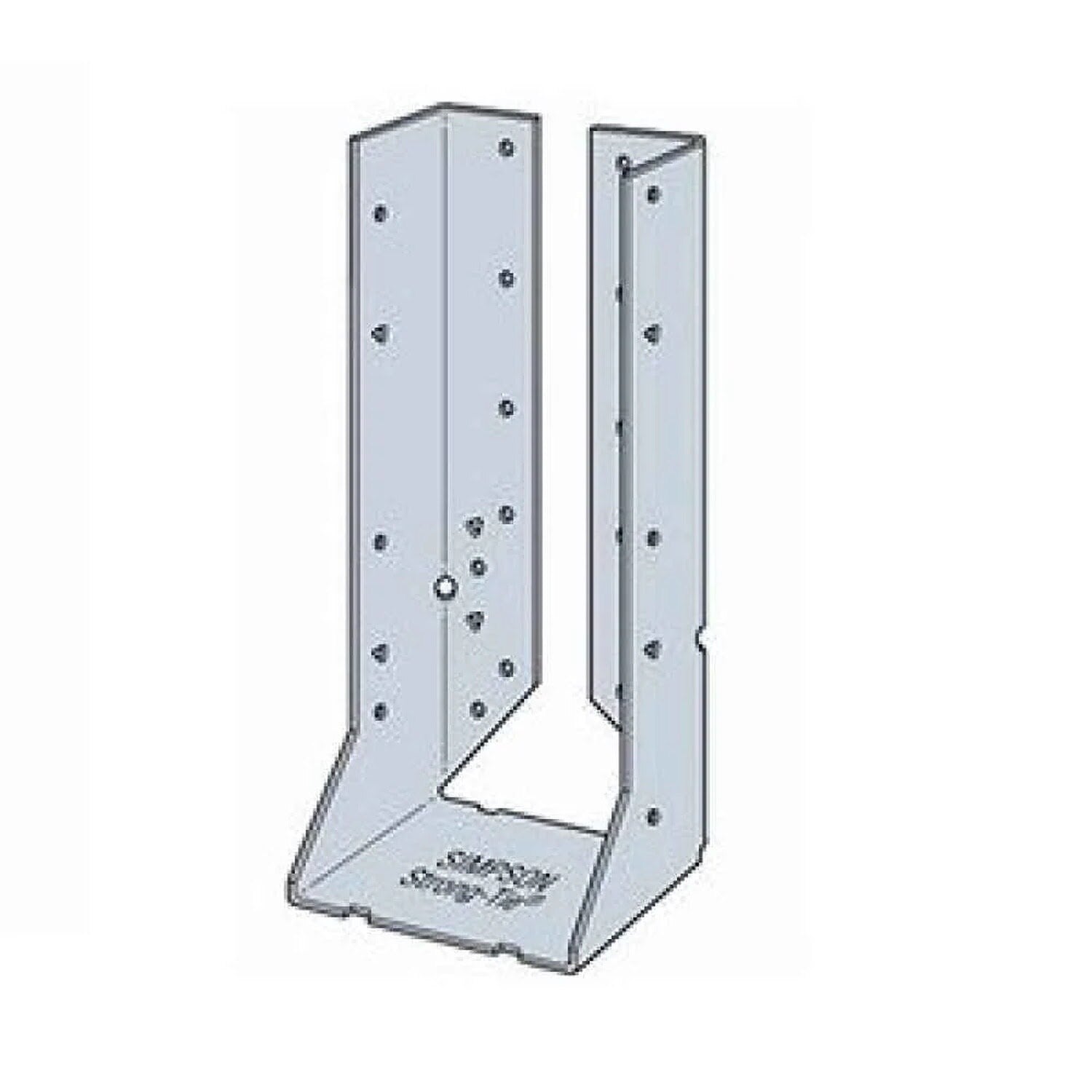

Simpson Strong-Tie HUC26-2Z (Double 2x6) Concealed Double Face Mount Joist Hanger
$23.52
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUC26-2Z Description
The Simpson Strong-Tie HUC26-2Z is a concealed flange hanger designed for double 2x6 joists, featuring a ZMAX galvanized finish for enhanced corrosion resistance.
Simpson Strong-Tie HUC26-2Z Includes
- (1) Concealed Double Face Mount Joist Hanger for Double 2x6
Simpson Strong-Tie HUC26-2Z Features
- Concealed flange design for a clean appearance
- ZMAX galvanized finish for corrosion resistance
- Compatible with double 2x6 joists
- Heavy-duty construction for structural integrity
- Designed for schools and structures requiring additional strength
Simpson Strong-Tie HUC26-2Z Applications
- Structural framing requiring concealed flange hangers

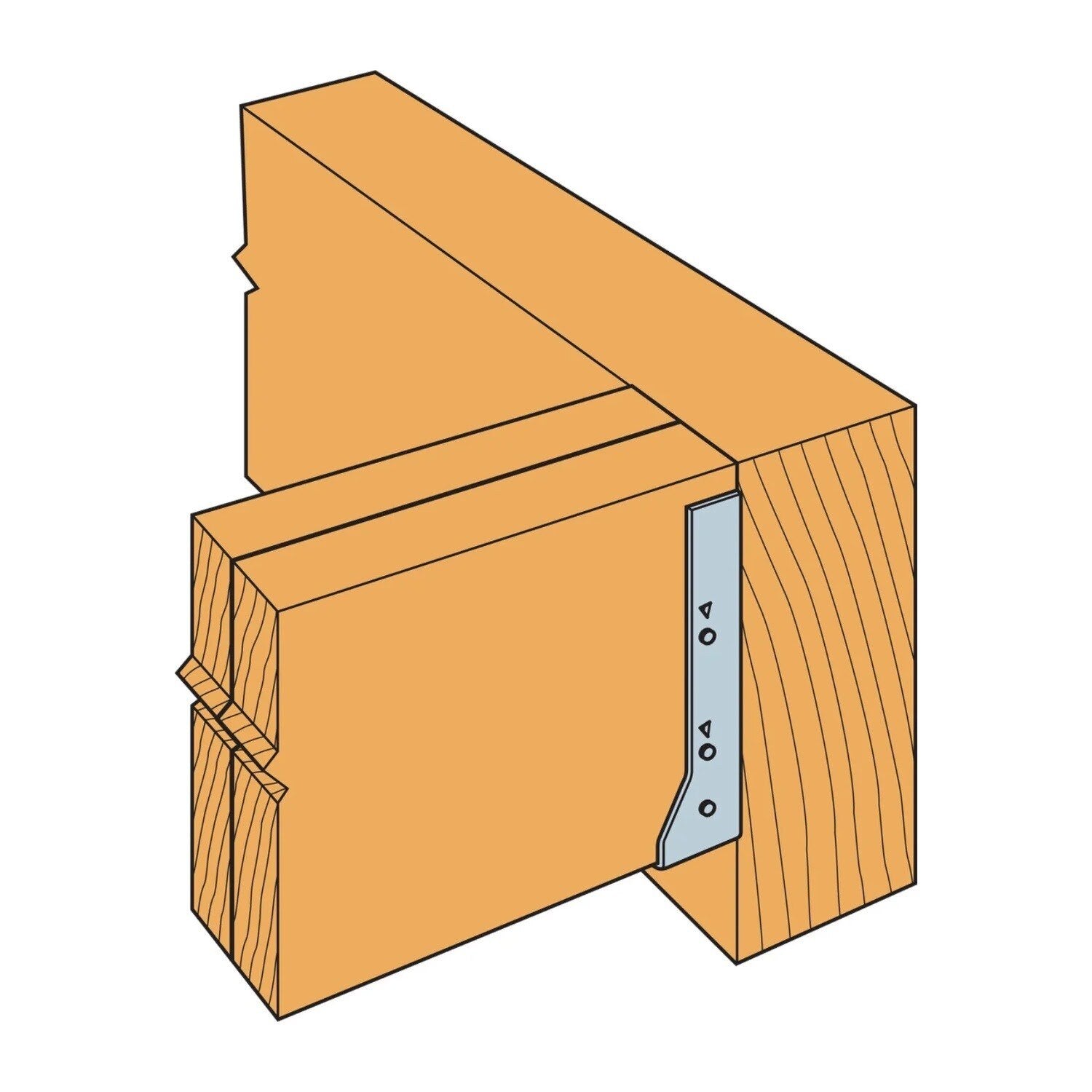

- Double 2x6 joist connections in residential and commercial buildings
- Projects demanding enhanced corrosion resistance
Simpson Strong-Tie HUC26-2Z Installation Overview
- Use all specified fasteners
- Install by filling round holes only or both round and triangle holes for maximum values
- Joists sloped up to 1/4:12 achieve load tables

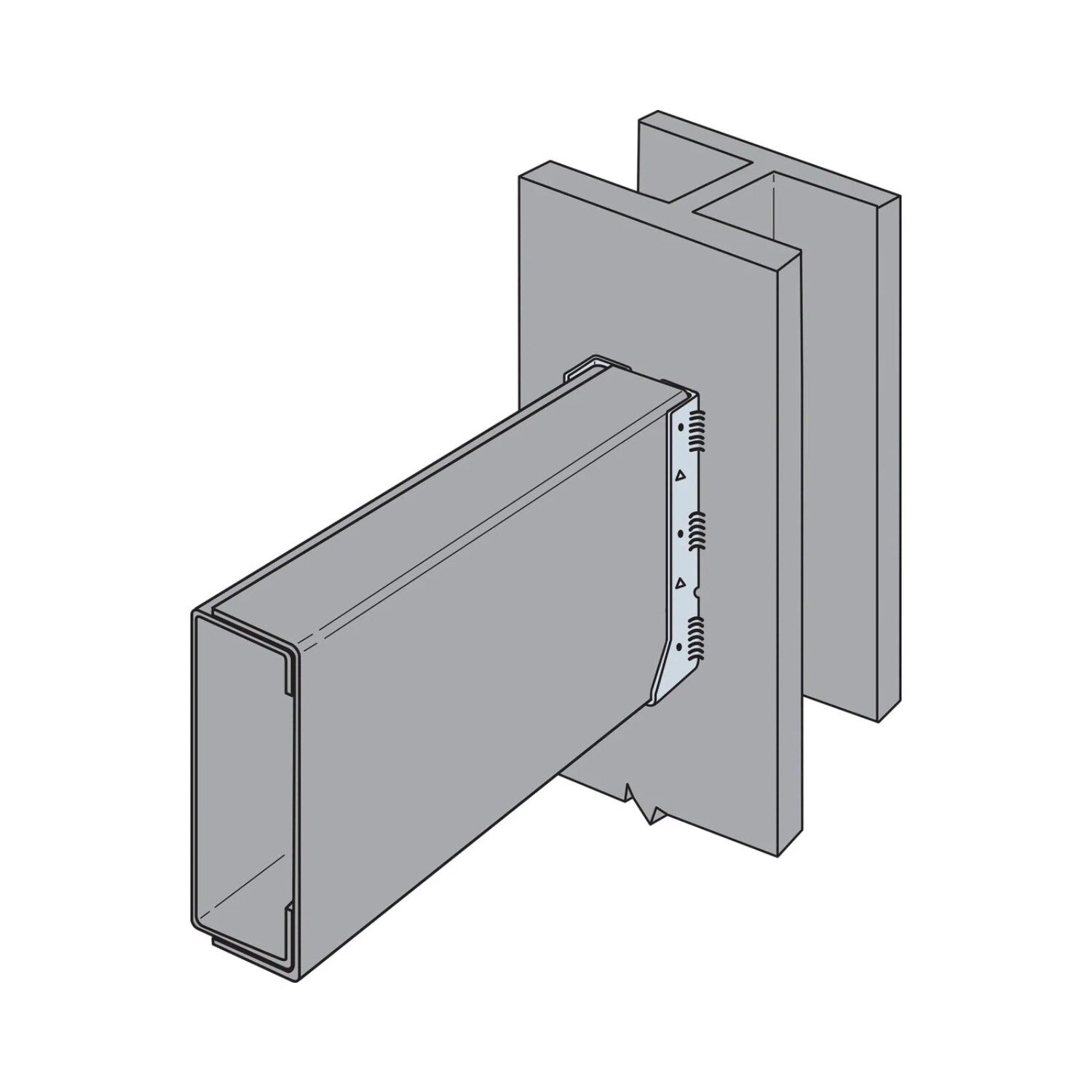

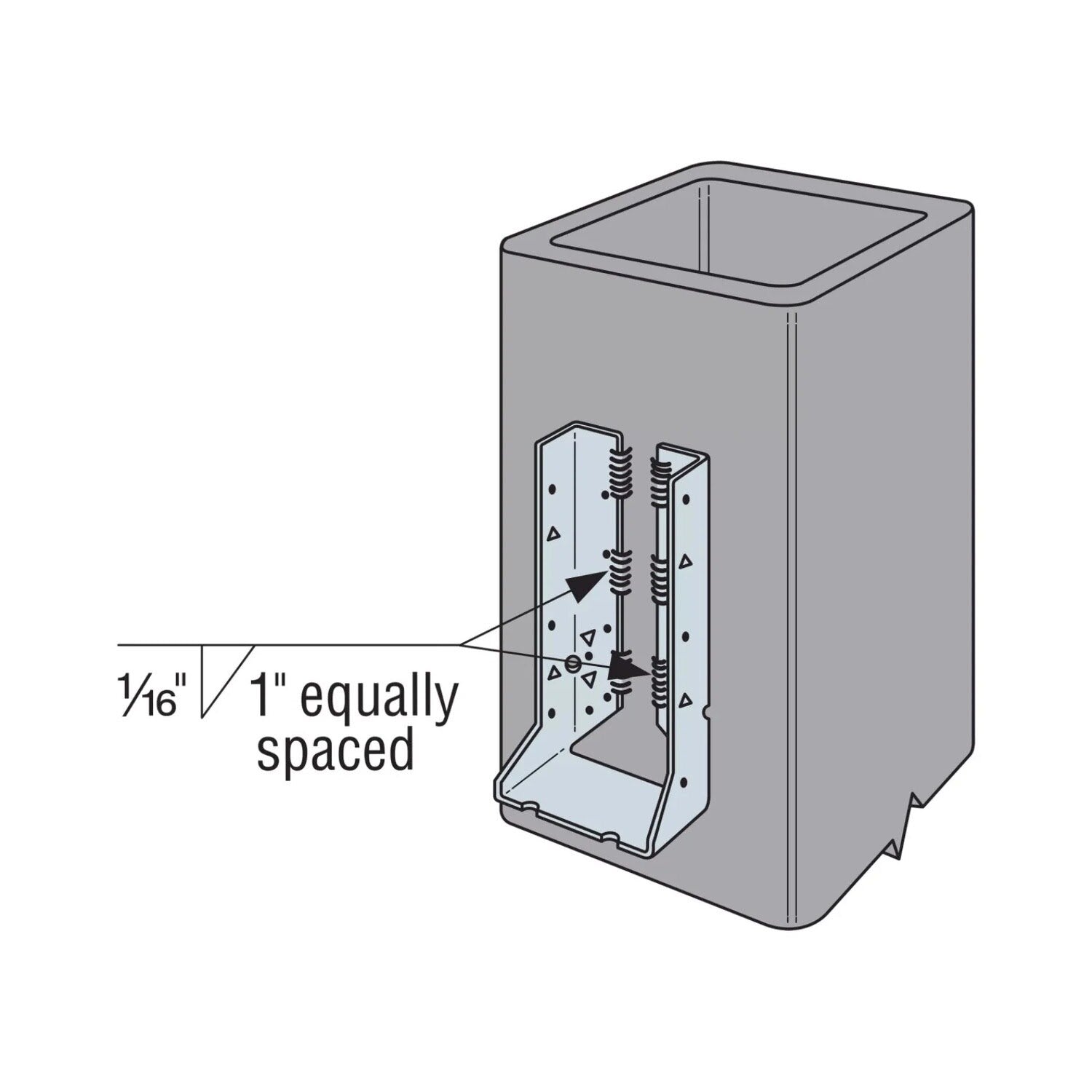

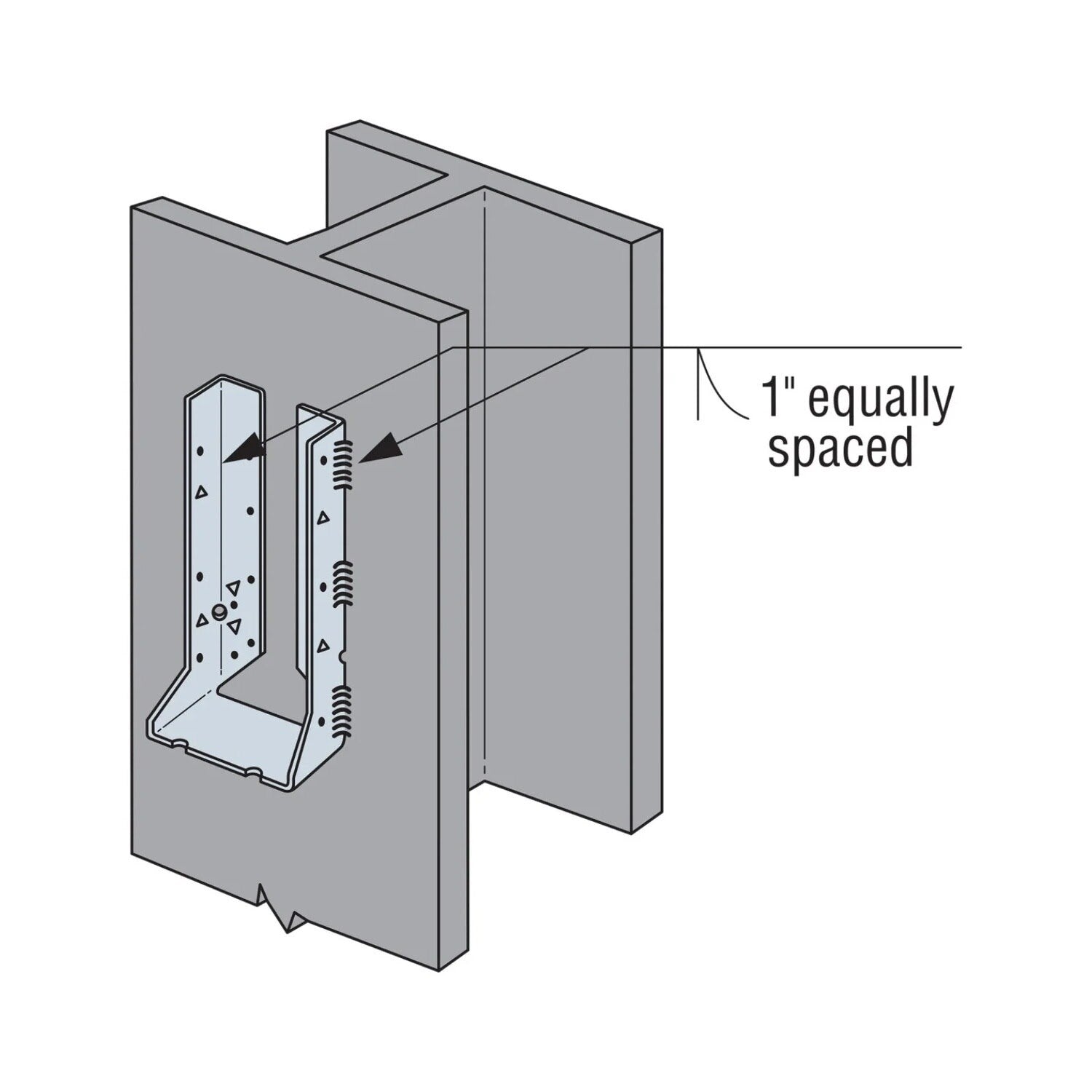

- Can be welded to steel members following technical guidelines
Simpson Strong-Tie HUC26-2Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (12) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 3" Nails |
| For Treated Lumber | Yes |
| Height | 4-15/16" |
| Joist size | Double 2" X 6" |
| Thickness | 14 Gauge |
| Width | 3-1/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
