Simpson Hangers | SKU:
HUC28-2
Simpson Strong-Tie HUC28-2 (Double 2" x 8") Galvanized Face-Mount Concealed-Flange Joist Hanger
$18.94
Unit price
/
Unavailable
Description
Description
Simpson HUC28-2 Description

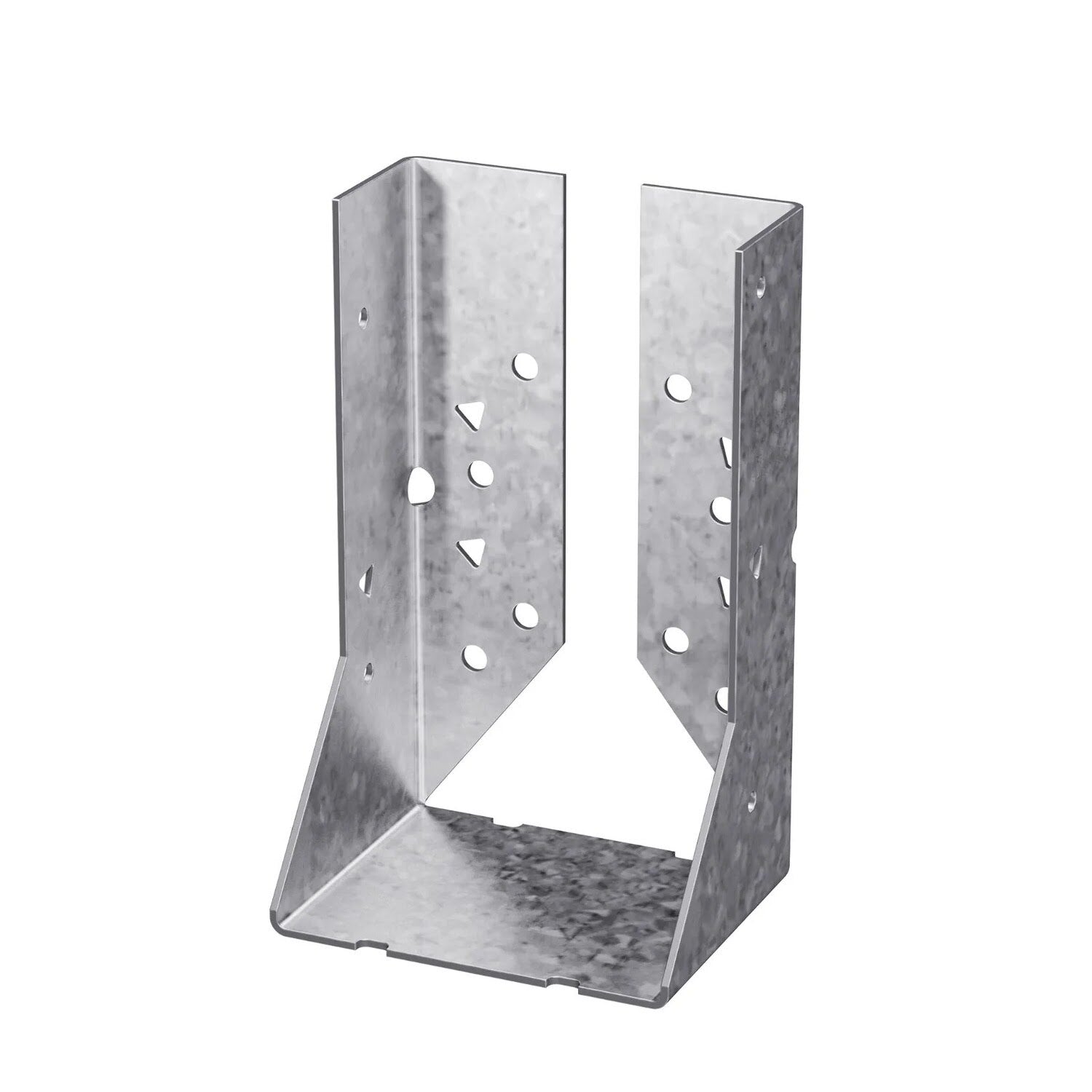

The Simpson HUC28-2 is a concealed flange heavy-duty face-mount hanger designed for double 2x8 joists, featuring a G90 galvanized finish for durability and corrosion resistance.
Simpson HUC28-2 Includes
- (1) Galvanized Face-Mount Concealed-Flange Joist Hanger for Double 2x8
Simpson HUC28-2 Features
- Concealed flange design for a clean appearance
- Heavy-duty construction for enhanced strength
- G90 galvanized coating for corrosion resistance
- Compatible with double 2x8 joists
- Designed for schools and structures requiring additional safety factors
Simpson HUC28-2 Applications
- Structural framing requiring concealed flange hangers

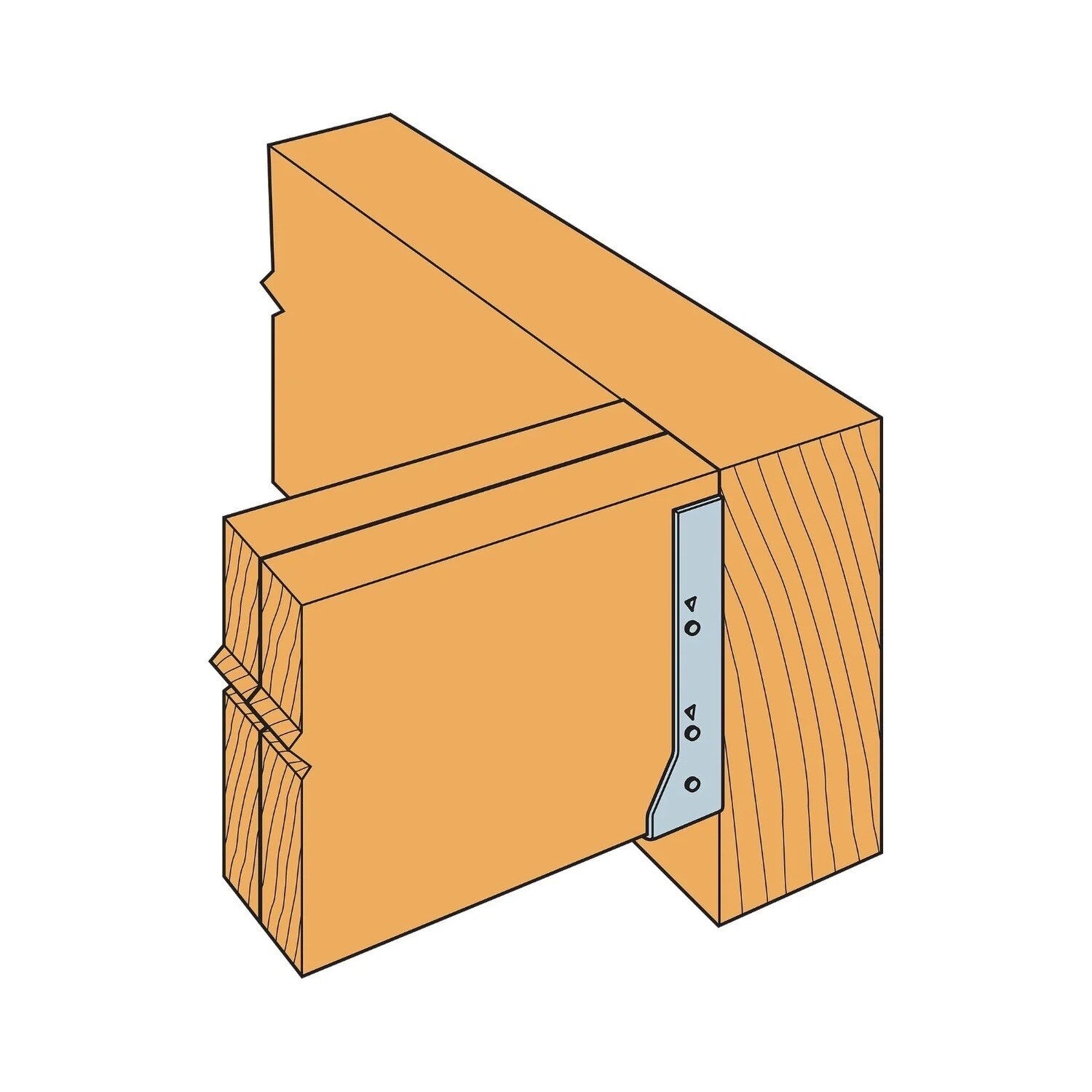

- Double 2x8 joist connections in wood construction
- Heavy-duty applications in schools and other buildings
Simpson HUC28-2 Installation Overview
- Use all specified fasteners
- Can be installed filling round holes only, or filling round and triangle holes for maximum values
- Joists sloped up to 1/4:12 achieve load tables

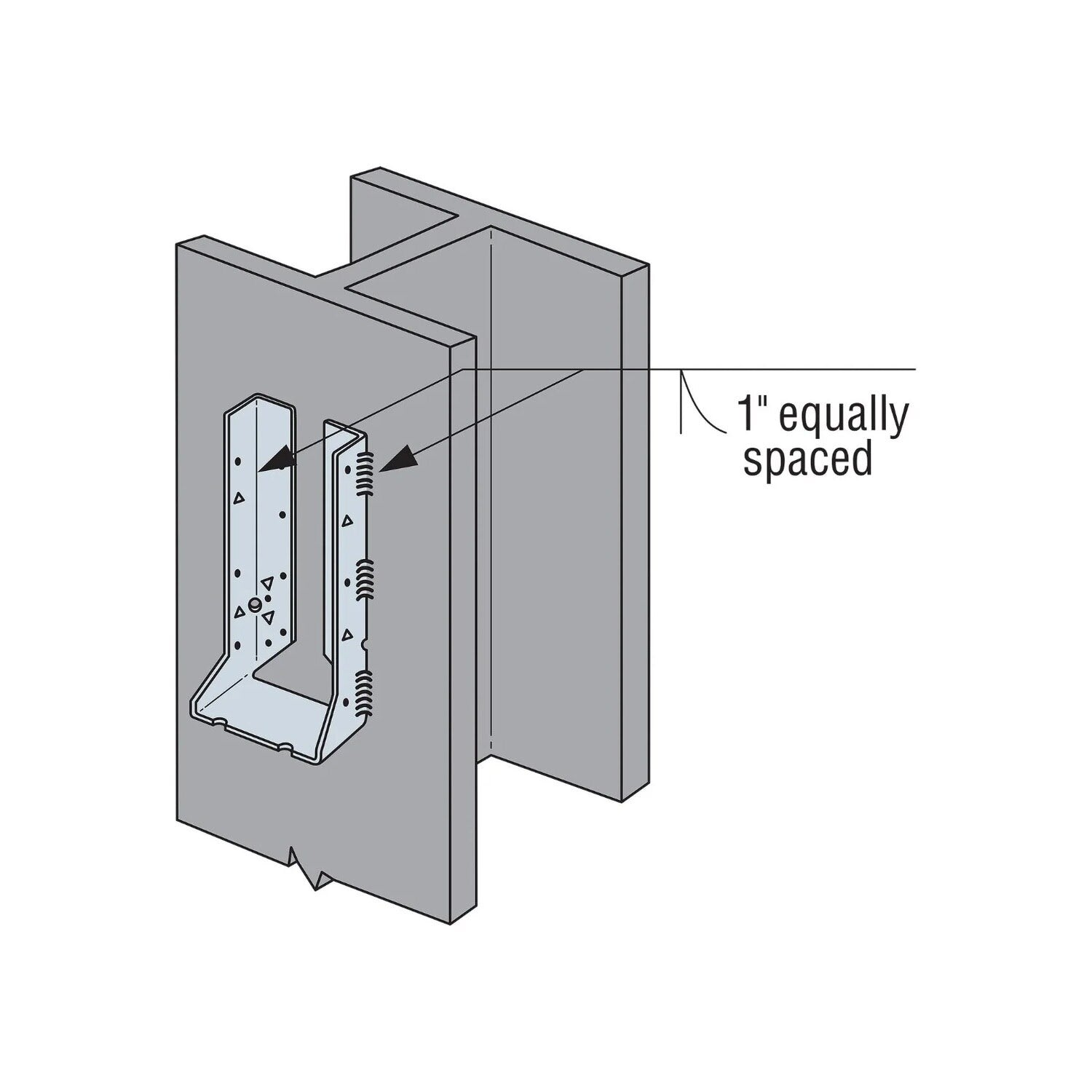

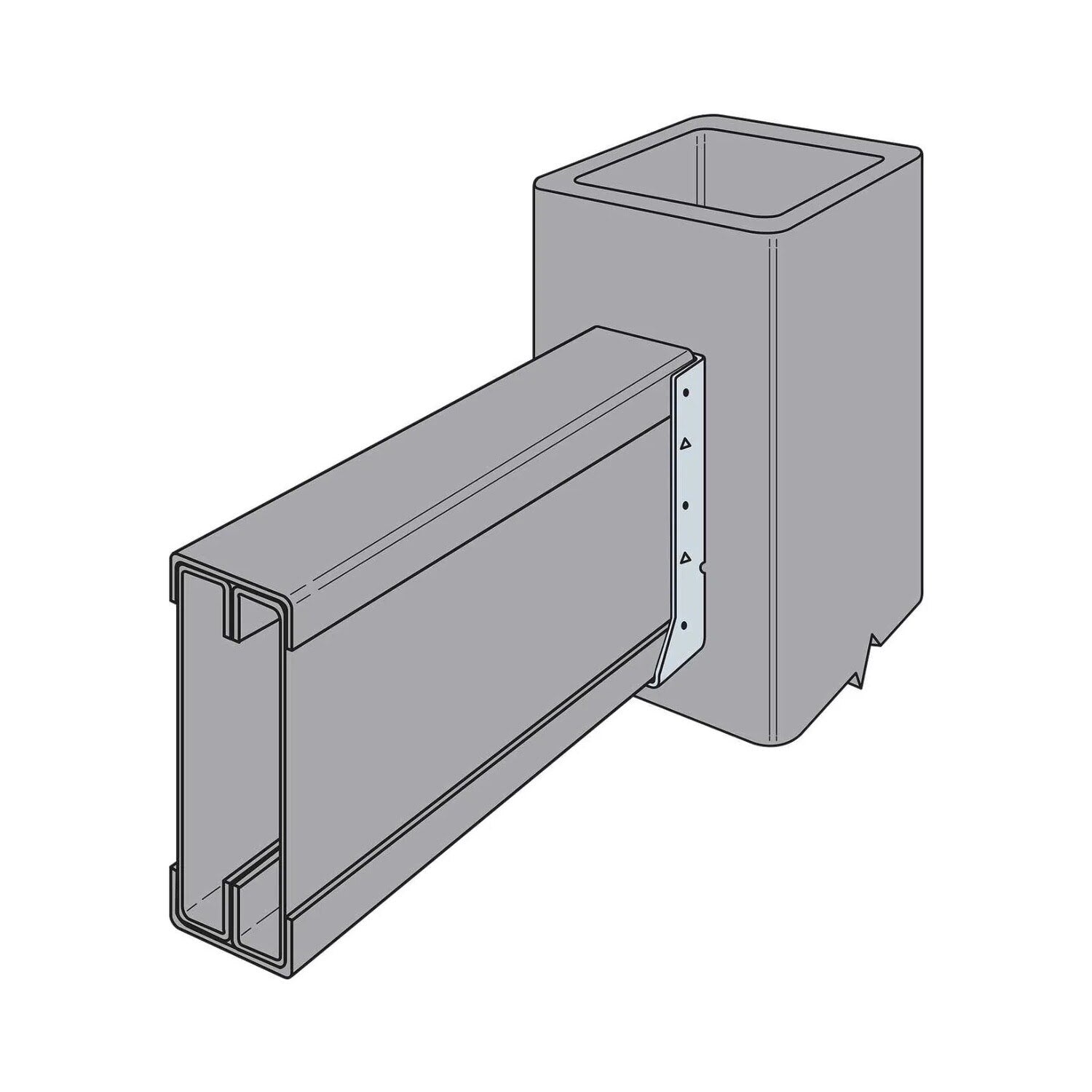

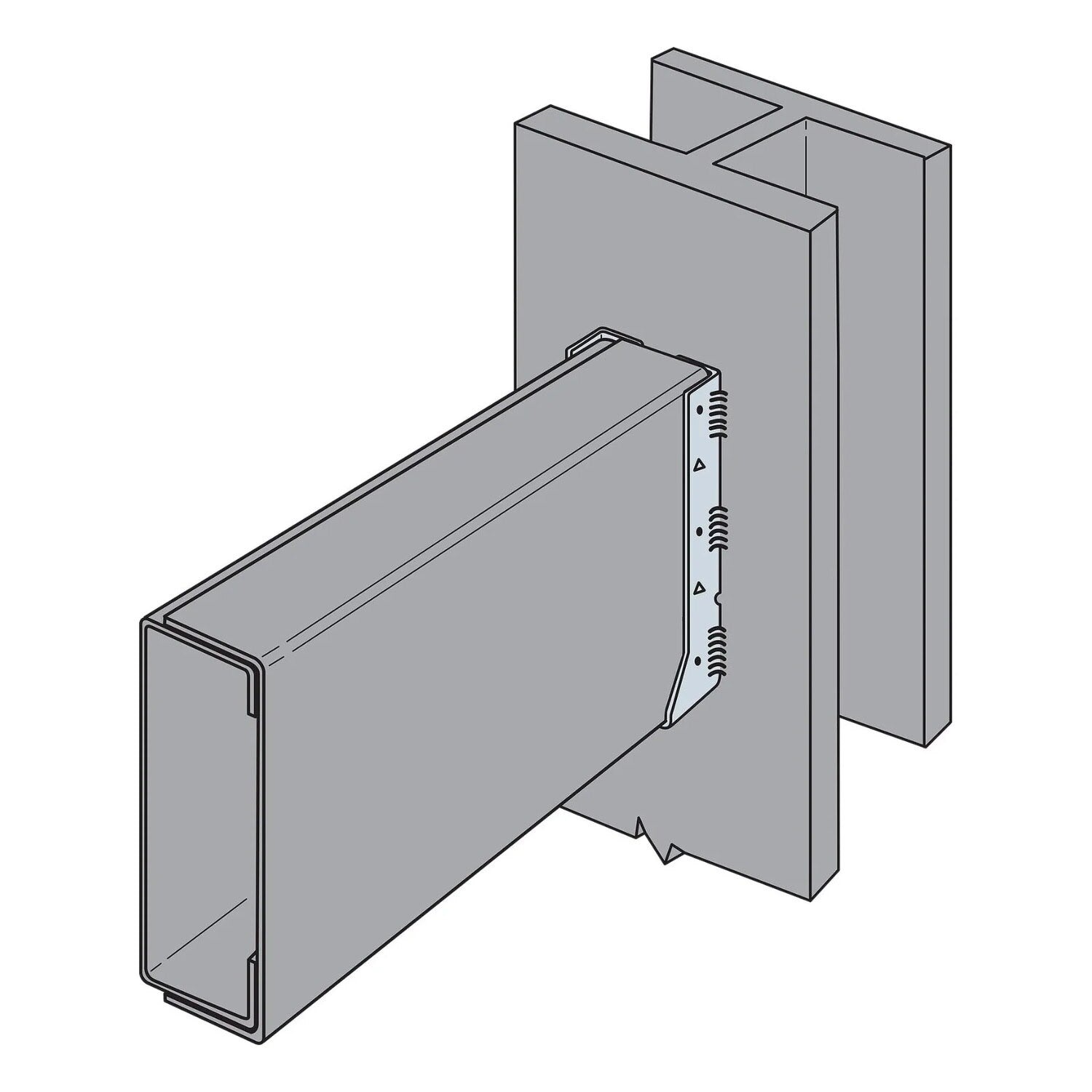

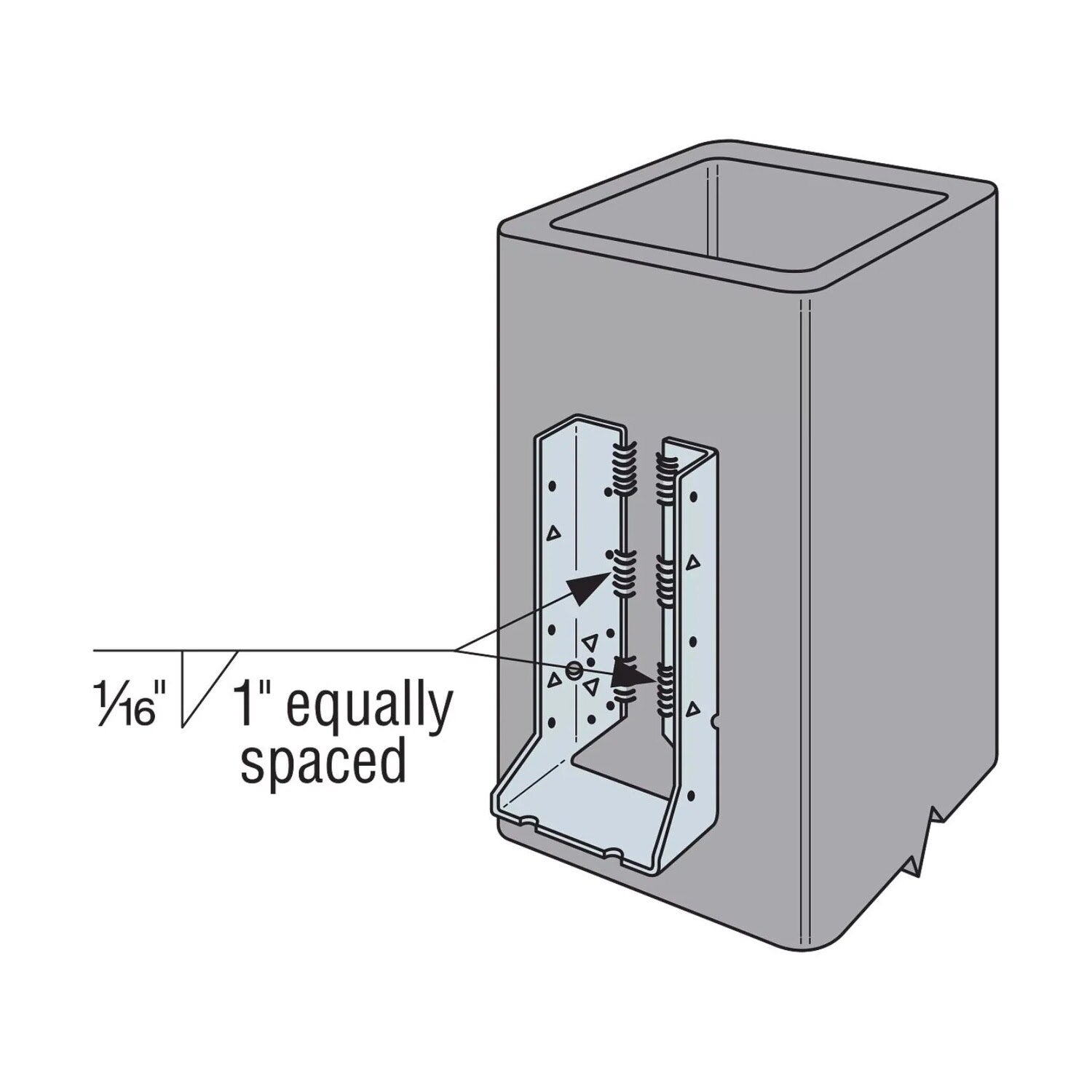

- Can be welded to a steel member; allowable loads are the lesser of the values in the hanger tables or the weld capacity
Simpson HUC28-2 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (14) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 6-5/16" |
| Joist size | Double 2" X 8" |
| Thickness | 14 Gauge |
| Width | 3-1/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
