Simpson Hangers | SKU:
HUC3.25/12
Simpson Strong-Tie HUC3.25/12 Concealed Glulam Beam Hanger for Engineered Wood
$35.57
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUC3.25/12 Description

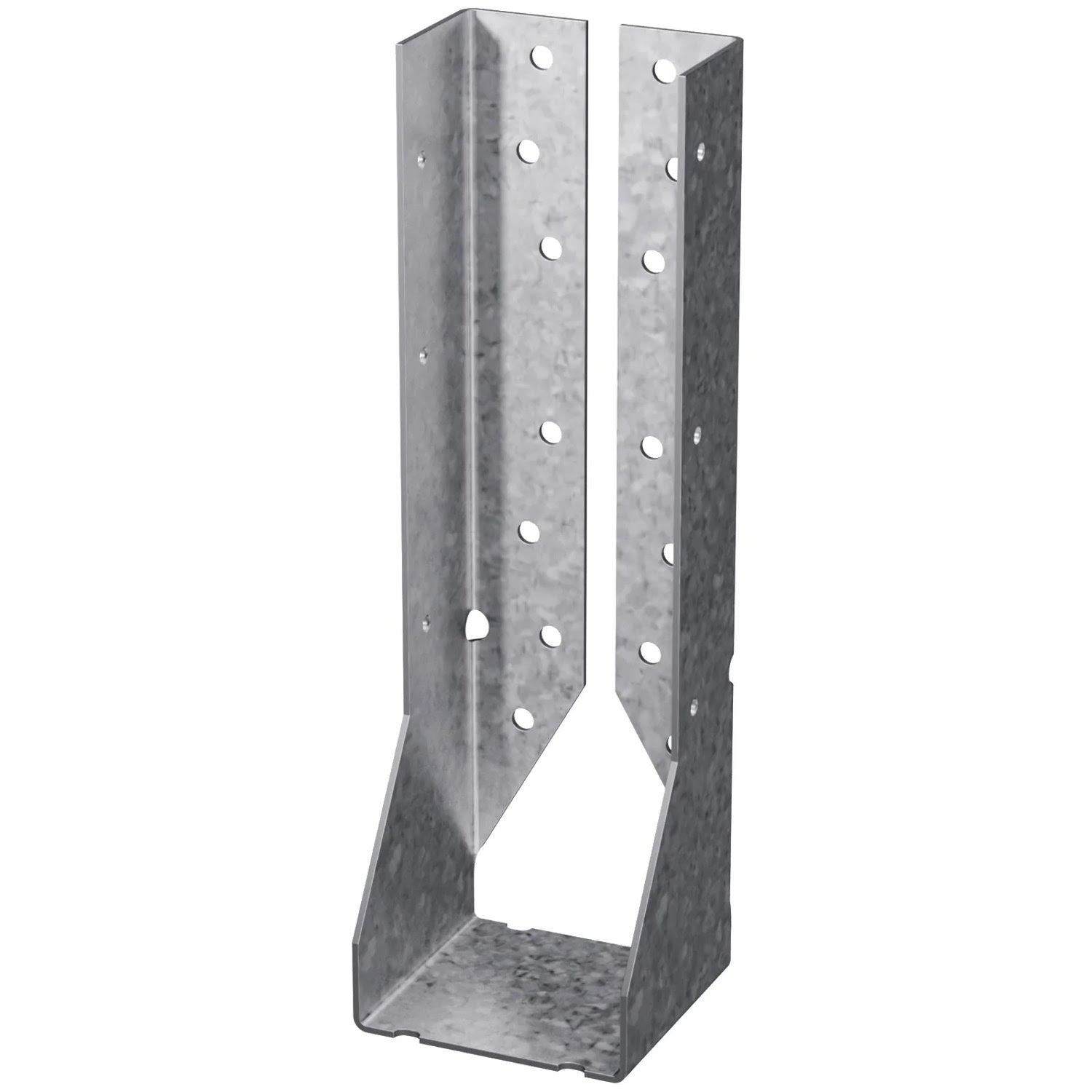

The Simpson Strong-Tie HUC3.25/12 Concealed Glulam Beam Hanger is a heavy-duty connector designed for engineered wood applications, offering strength, durability, and compliance with building codes.
Simpson Strong-Tie HUC3.25/12 Includes
- (1) Concealed Glulam Beam Hanger
Simpson Strong-Tie HUC3.25/12 Features
- Extra optional triangle holes for additional load
- HUC-series hangers are tested, load rated and code compliant
- G90 galvanized finish for corrosion resistance
Simpson Strong-Tie HUC3.25/12 Applications
- Engineered wood construction
- Heavy-duty structural connections

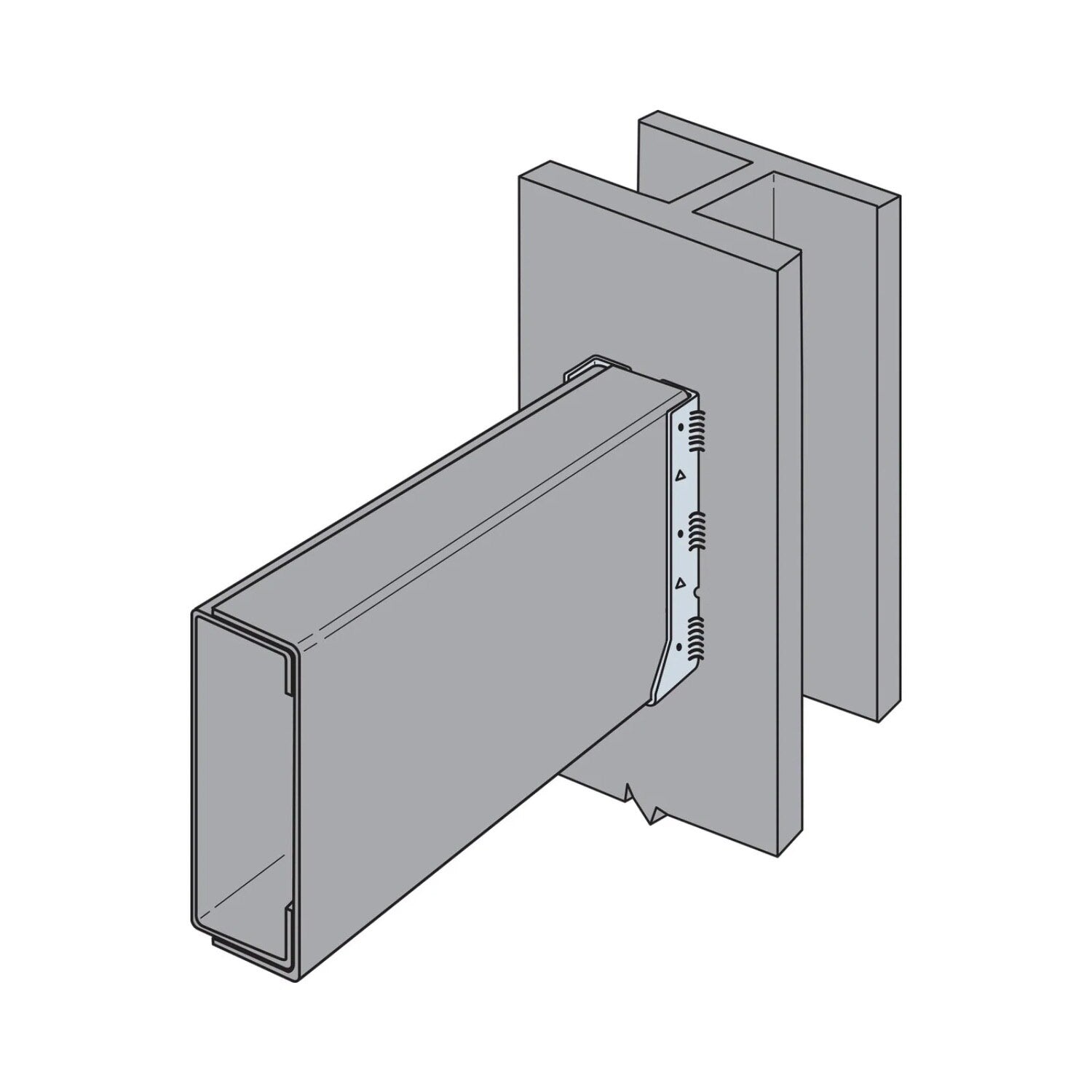

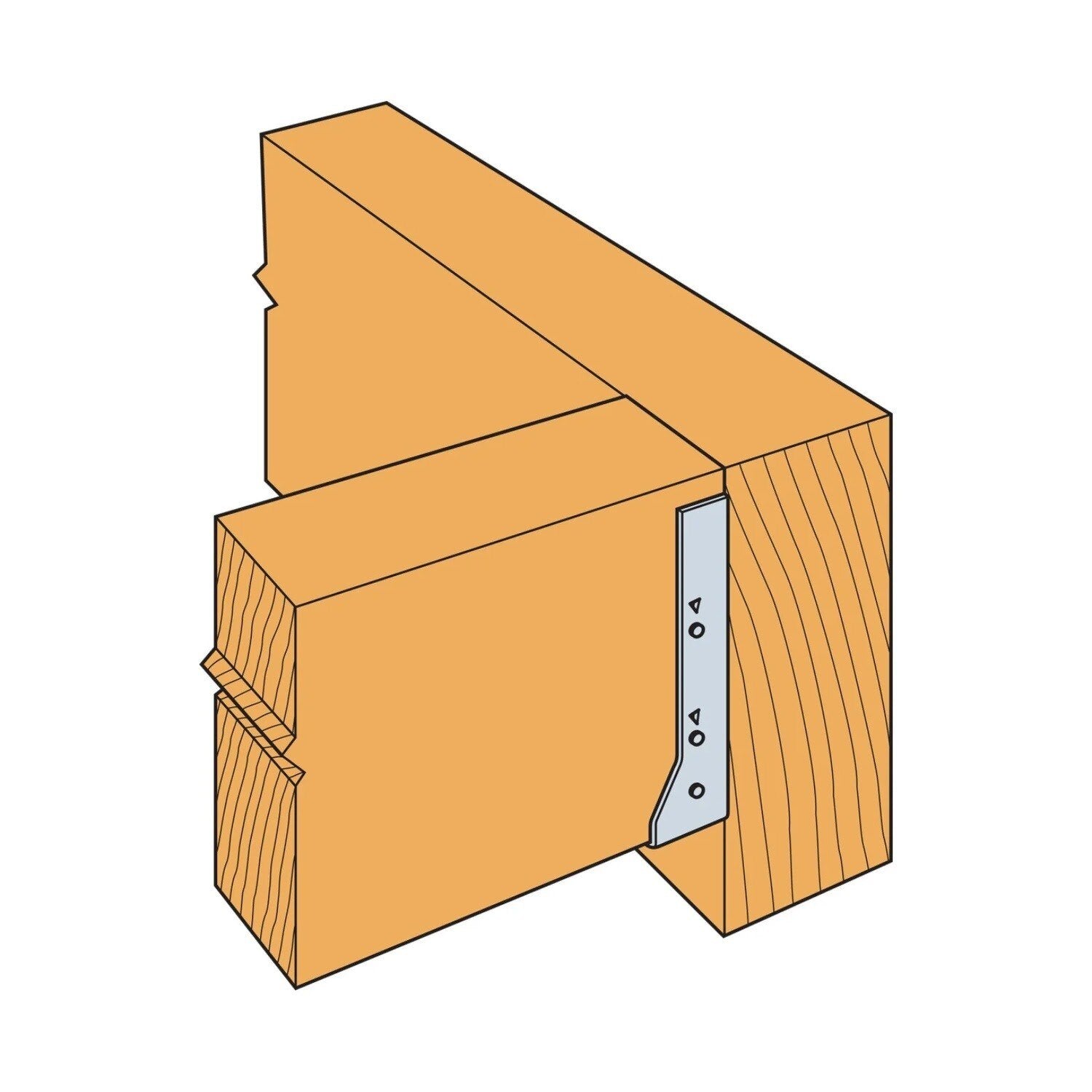

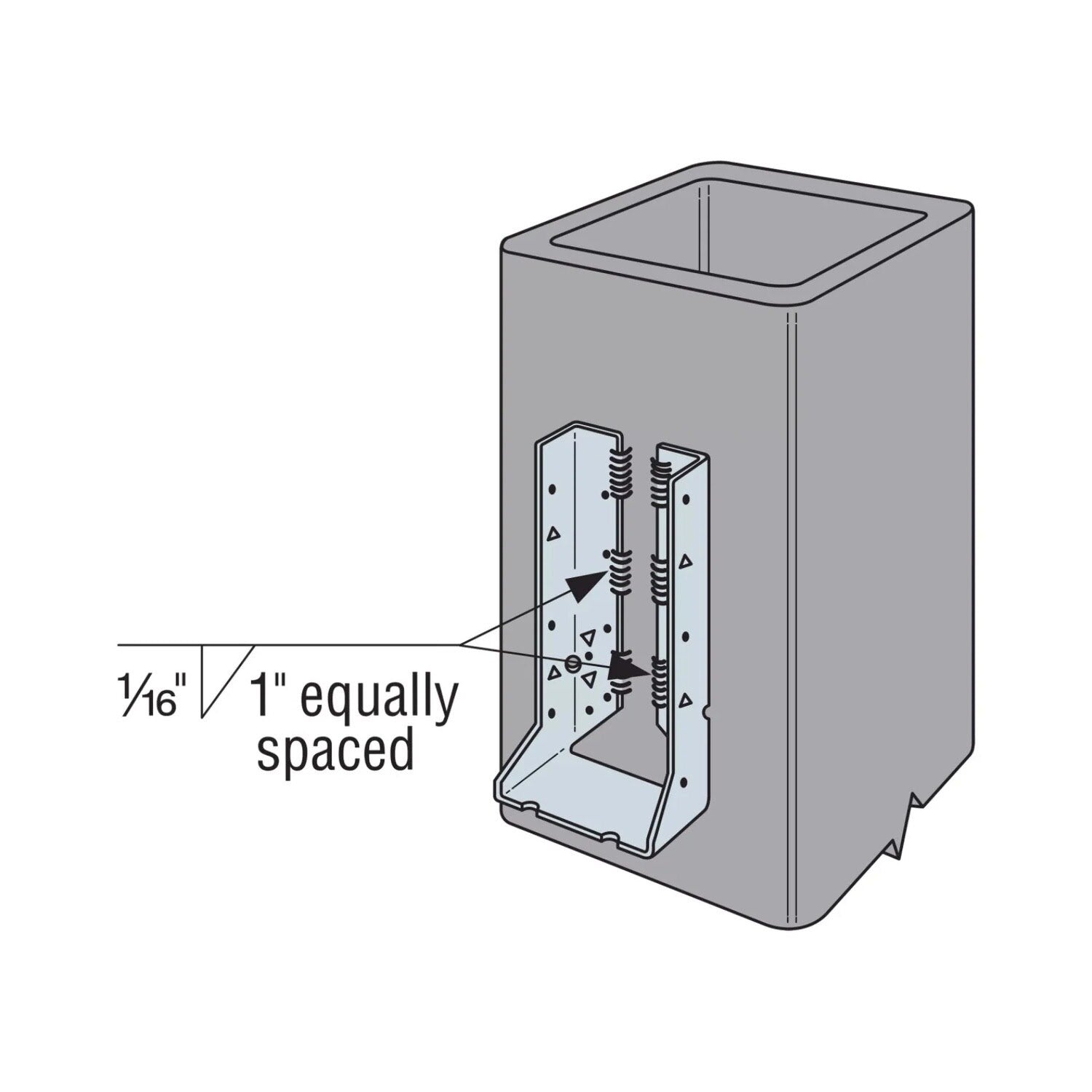

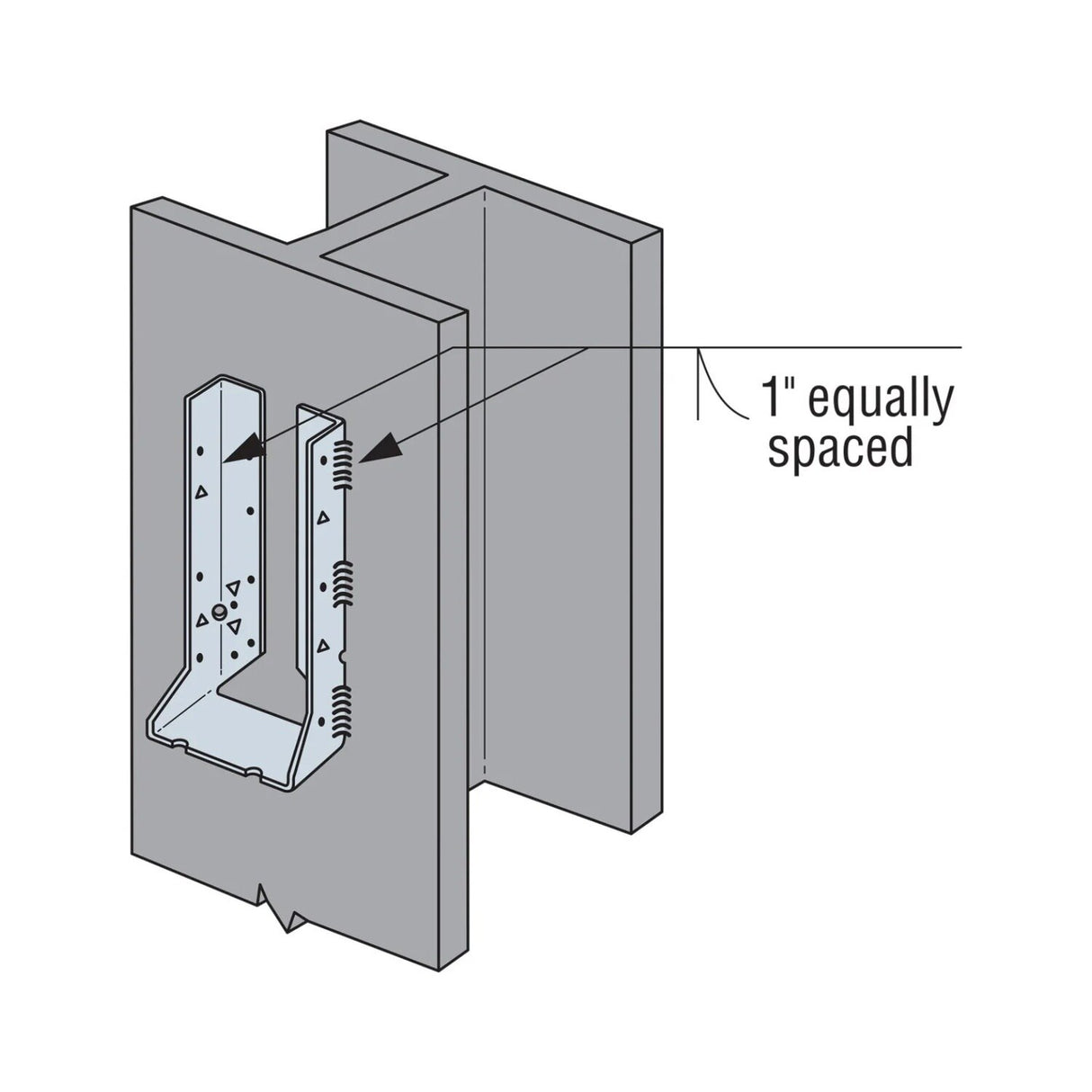

Simpson Strong-Tie HUC3.25/12 Installation Overview
- Use all specified fasteners as per guidelines.
- Can be installed filling round holes only, or filling round and triangle holes for maximum values.
- Joists sloped up to 1/4:12 achieve table loads.
- Web stiffeners required for I-joist applications.
Simpson Strong-Tie HUC3.25/12 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Gauge | 14 |
| Height | 11-3/4" |
| Width | 3-1/4" |
| Joist size | 3-1/4" X 12" |
| Weight | 1.3 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
