Simpson Hangers | SKU:
HUC314
Simpson Strong-Tie HUC314 (12-7/16") 14Ga Heavy Galvanized Concealed-Flange Face-Mount Joist Hanger
$23.07
Unit price
/
Unavailable
Description
Description

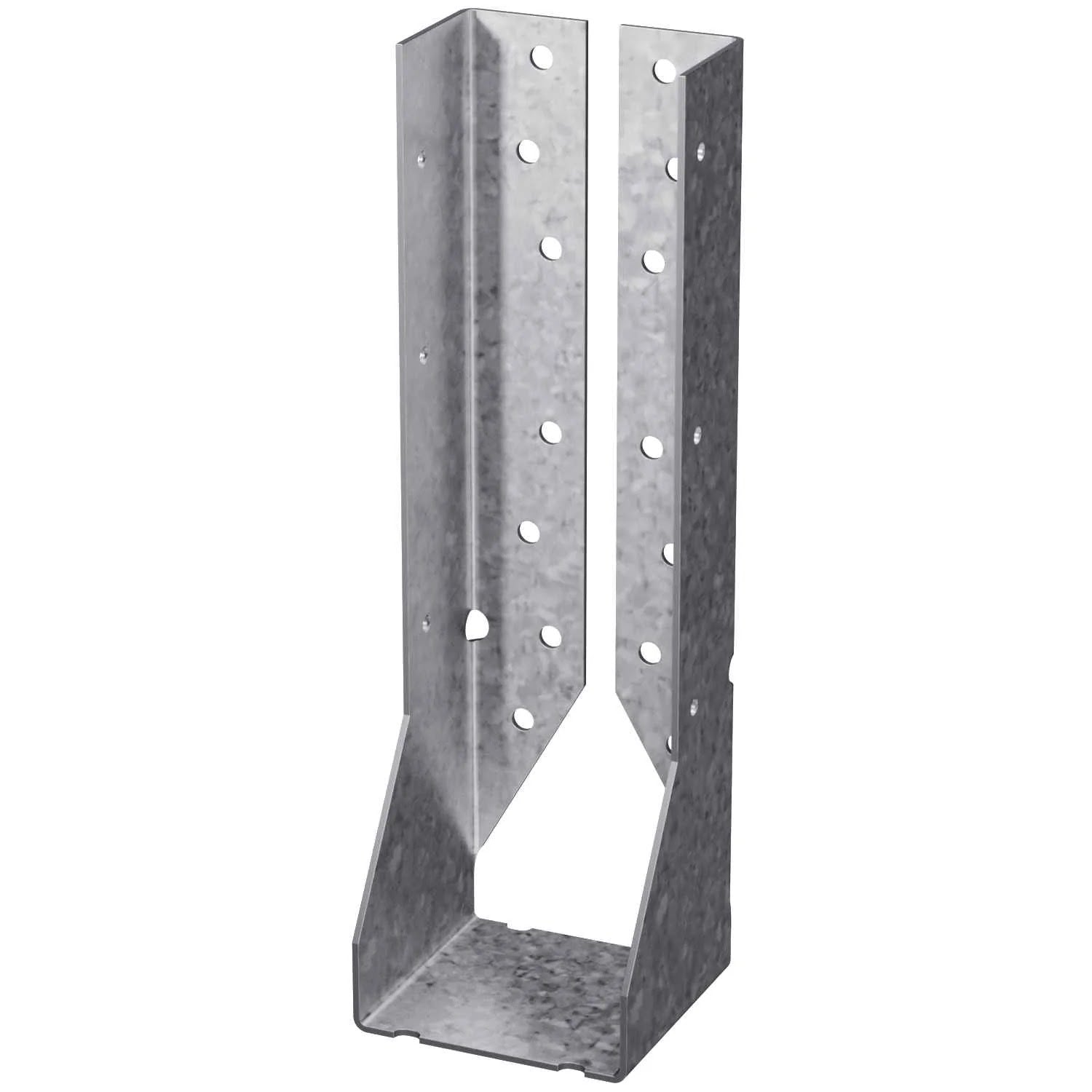

Simpson Strong-Tie HUC314 Description
The Simpson Strong-Tie HUC314 is a heavy-duty, concealed-flange face-mount joist hanger designed for robust support in various construction applications. Made from 14-gauge steel with a G90 galvanized finish, it ensures durability and corrosion resistance.
Simpson Strong-Tie HUC314 Includes
- (1) Heavy Concealed-Flange Face-Mount Joist Hanger
Simpson Strong-Tie HUC314 Features
- Concealed flange design for clean lines and close installation to beam ends
- G90 galvanized finish for corrosion resistance
- Compatible with solid sawn lumber, engineered wood, and cold-formed steel joists
- Tested and load-rated for code compliance
Simpson Strong-Tie HUC314 Applications

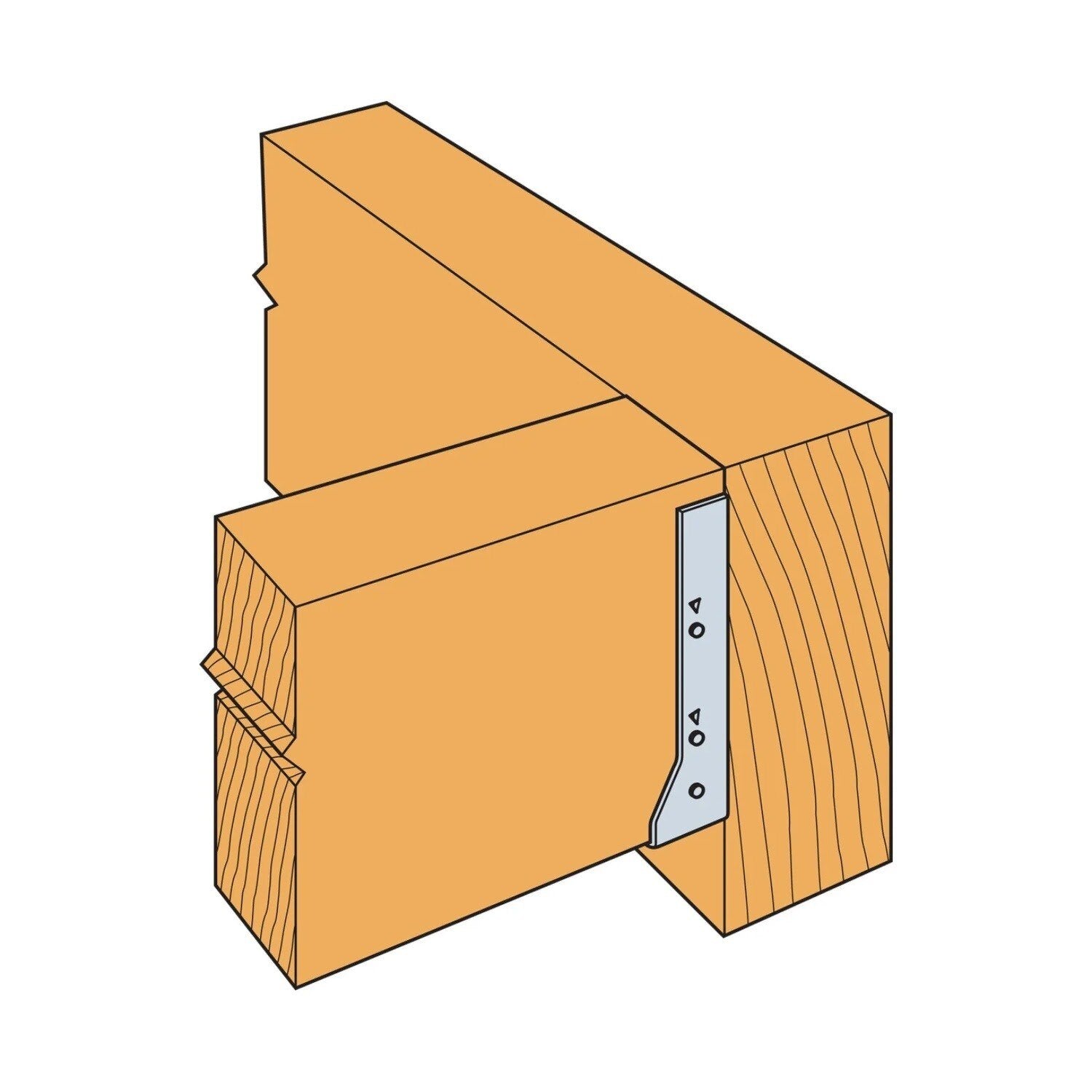

- Decks and outdoor structures: Provides strong, concealed connections for deck framing, pergolas, and covered porches.
- Floor joists and ceiling framing: Ensures secure joist connections in residential and commercial construction.
- Multi-family housing and commercial buildings: Used in large-scale framing applications for apartments, offices, and mixed-use buildings.

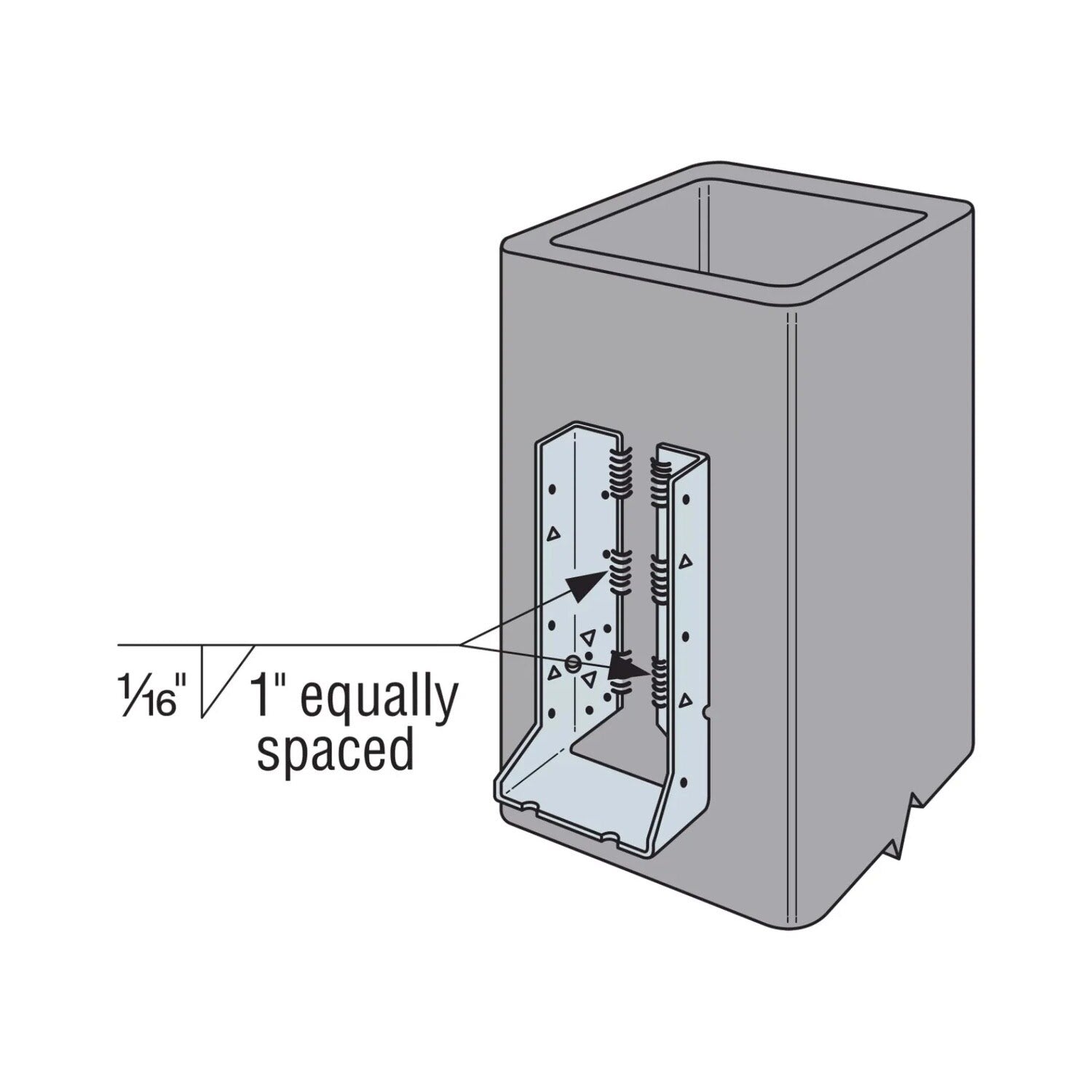

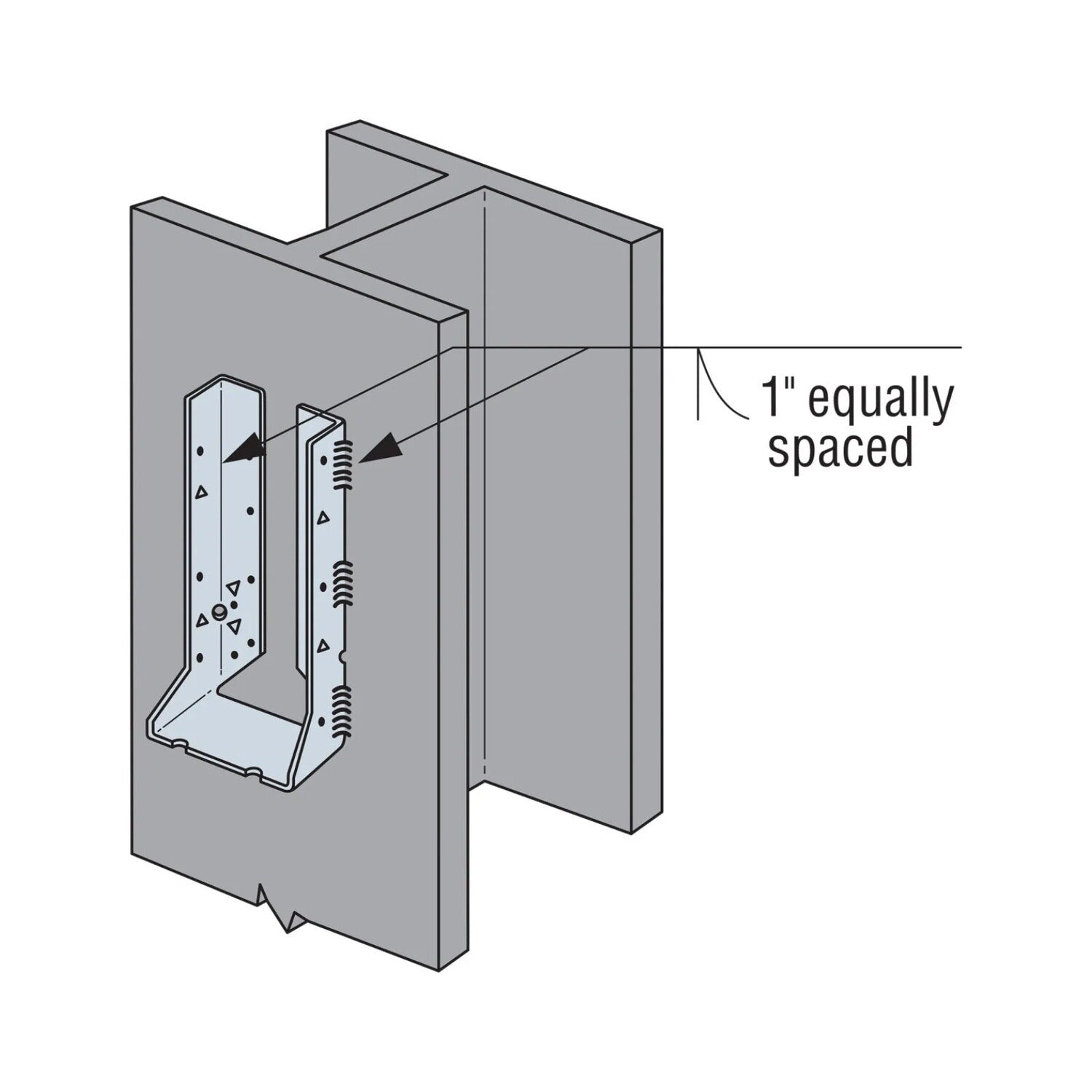

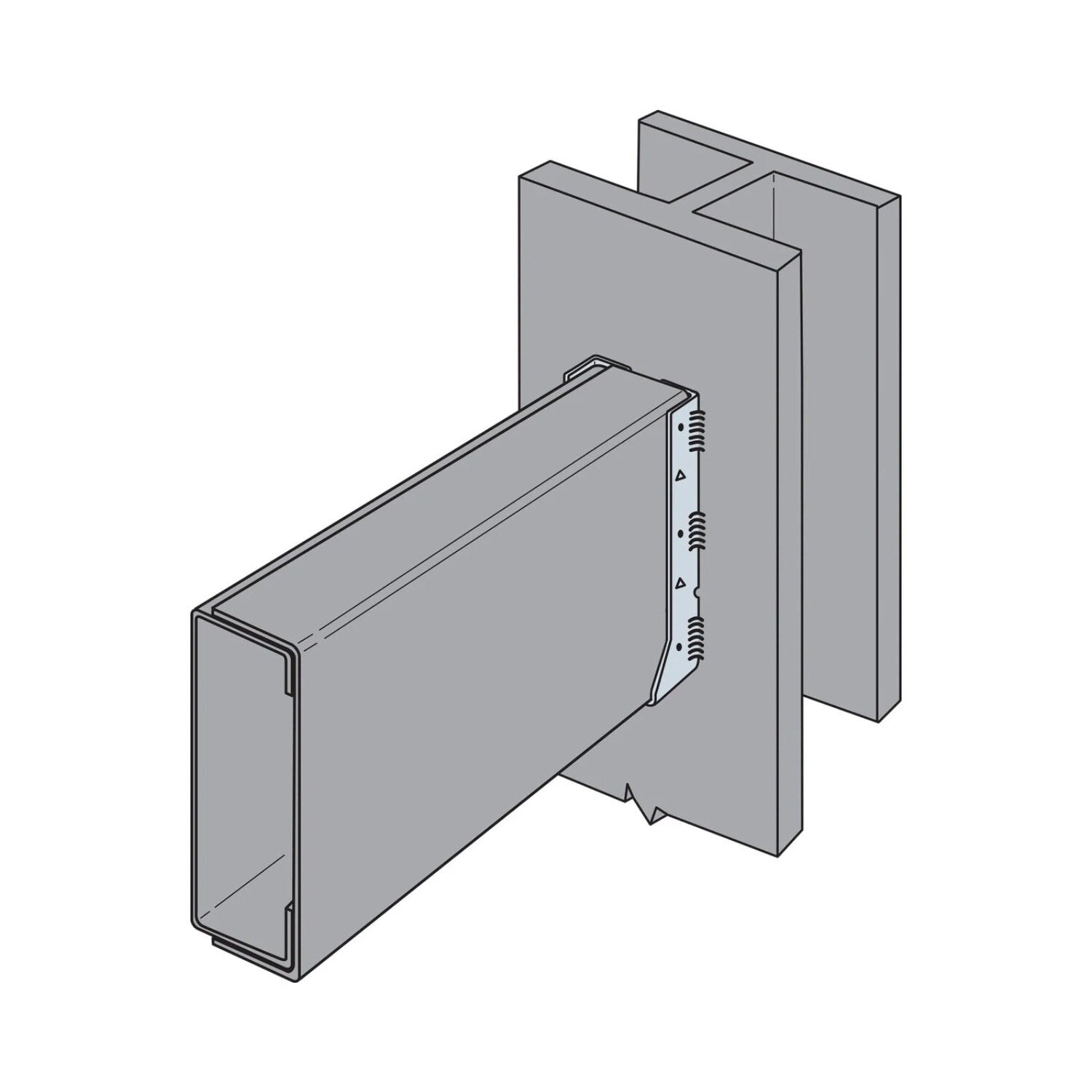

- Engineered wood and steel framing: Compatible with LVL, PSL, and CFS joists for advanced construction needs.
- Retrofitting and renovation projects: Ideal for reinforcing existing structures while maintaining a clean, unobtrusive look.
Simpson Strong-Tie HUC314 Installation Overview
- Use hot-dip galvanized nails for G90 galvanized hangers to ensure maximum corrosion resistance.
- Fill both round and optional triangle holes with common nails to achieve maximum load capacity.
Simpson Strong-Tie HUC314 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | TNT25134H for concrete; TNT25234H for GFCMU |
| Height | 12-3/8" |
| Joist size | 3 X 14 |
| Thickness | 14 Gauge |
| Width | 2-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
