Simpson Hangers | SKU:
HUC38
Simpson Strong-Tie HUC38 (5-5/8") 14Ga Heavy Galvanized Concealed-Flange Face-Mount Joist Hanger
$14.72
$19.46
Unit price
/
Unavailable
Description
Description

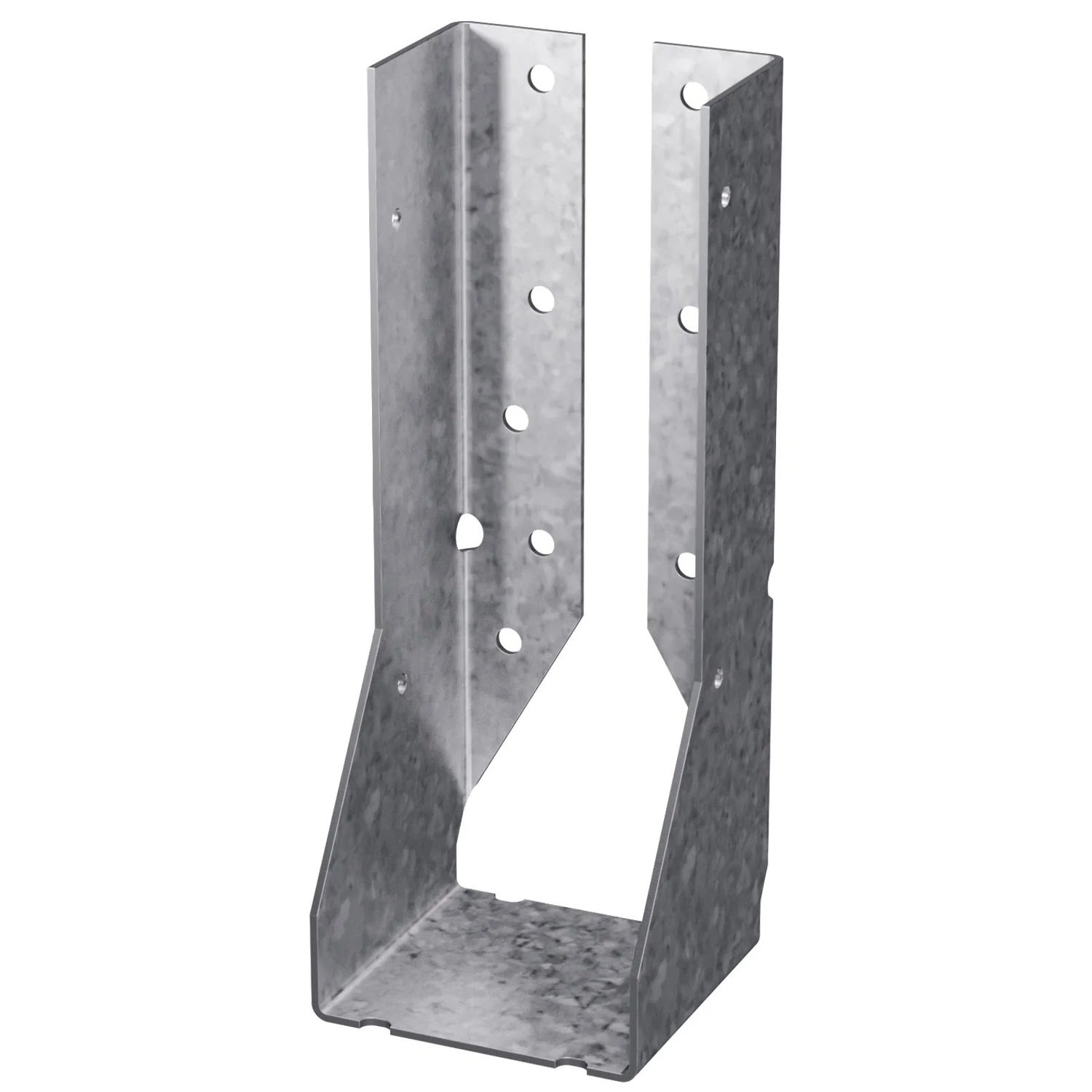

Simpson Strong-Tie HUC38 Description
The Simpson Strong-Tie HUC38 is a concealed flange heavy face mount hanger designed for 3x8 joists, featuring a G90 galvanized finish for durability and corrosion resistance.
Simpson Strong-Tie HUC38 Includes
- (1) Concealed Flange Heavy Face Mount Hanger
Simpson Strong-Tie HUC38 Features
- Concealed flange design for a clean appearance
- G90 galvanized finish for corrosion resistance
- Compatible with 3x8 joists
- Heavy-duty construction for enhanced strength
Simpson Strong-Tie HUC38 Applications
- Ideal for schools and structures requiring additional strength and safety

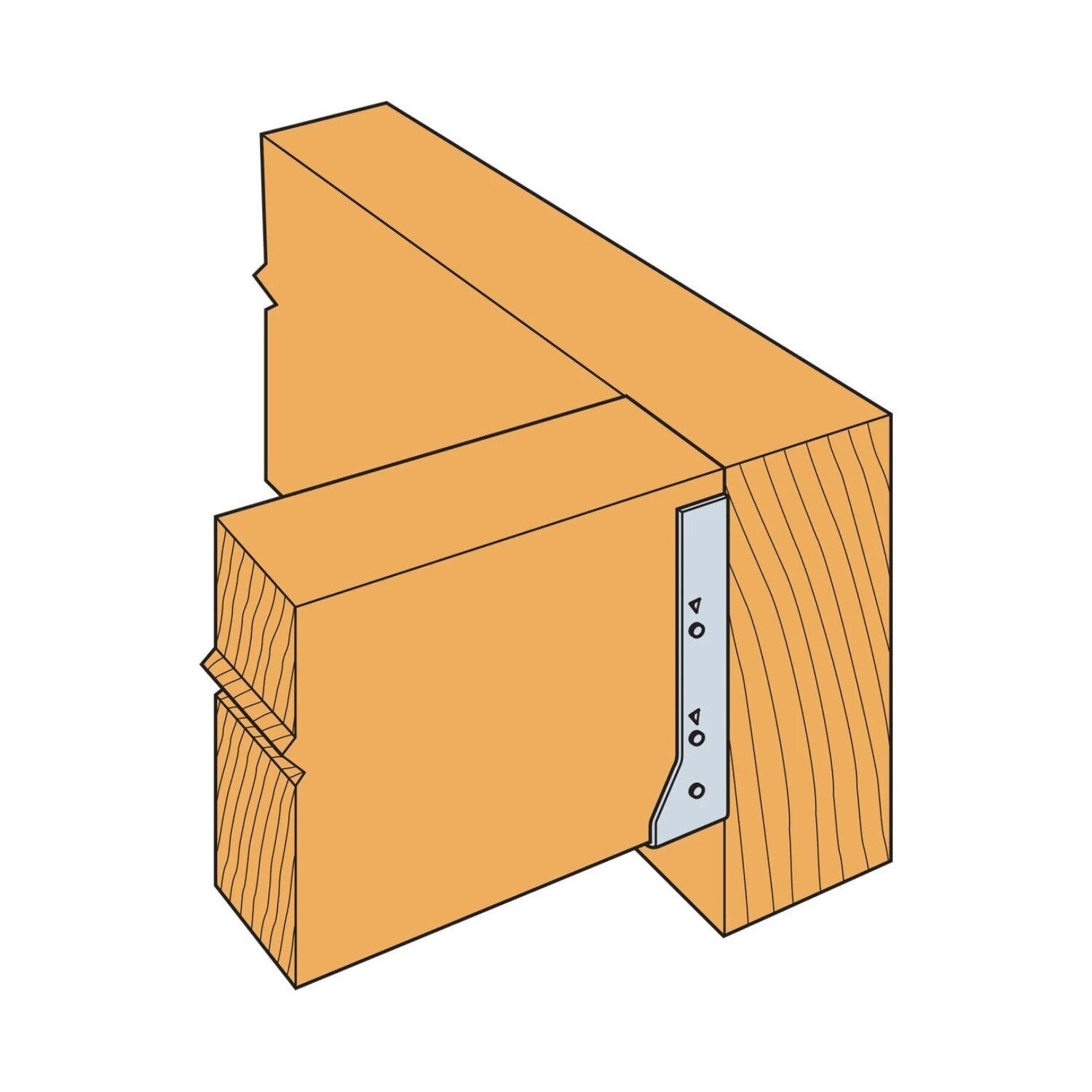

- Suitable for wood-to-wood connections in framing projects
Simpson Strong-Tie HUC38 Installation Overview
- Use all specified fasteners for installation
- Can be installed filling round holes only or both round and triangle holes for maximum values
- Joists sloped up to 1/4:12 achieve load tables

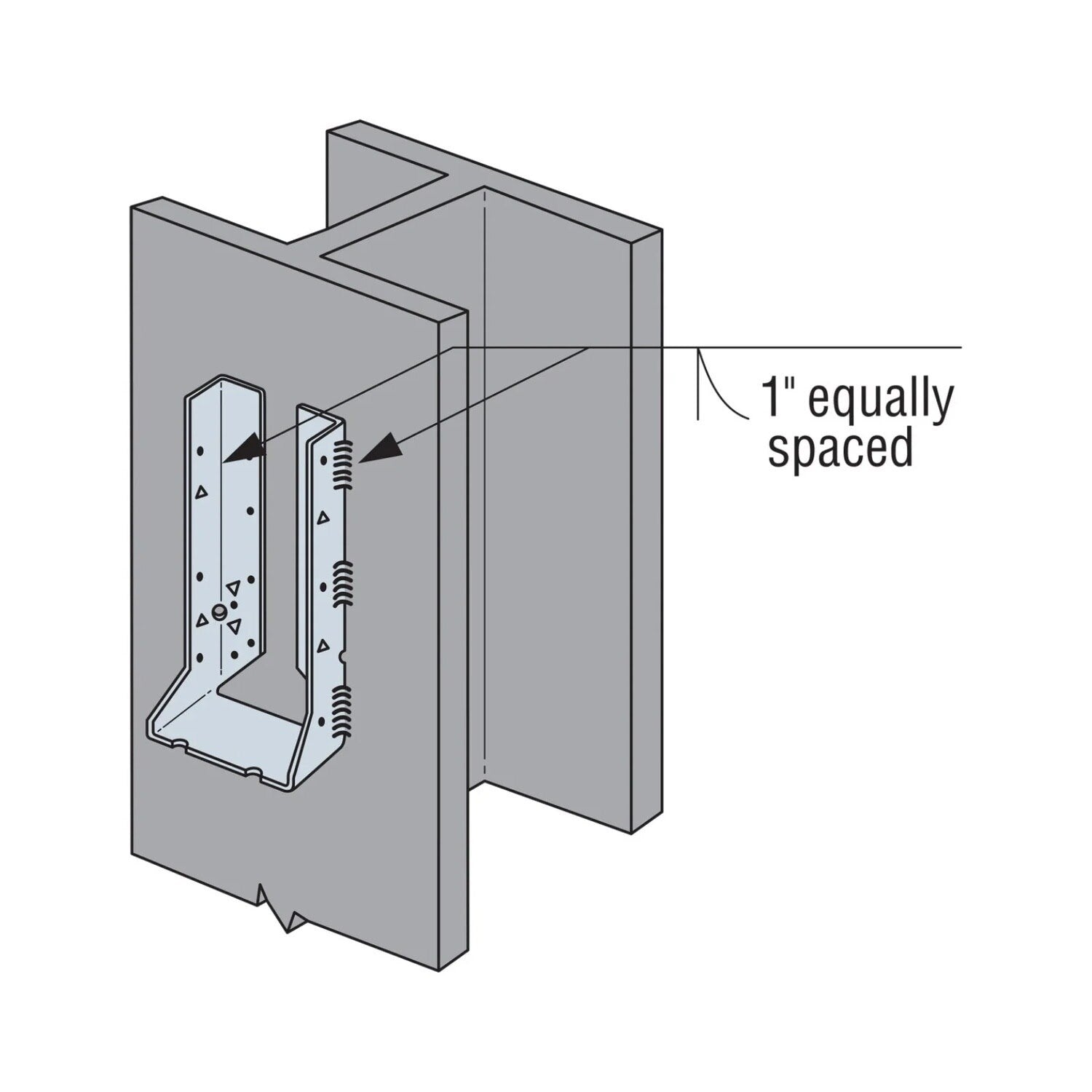

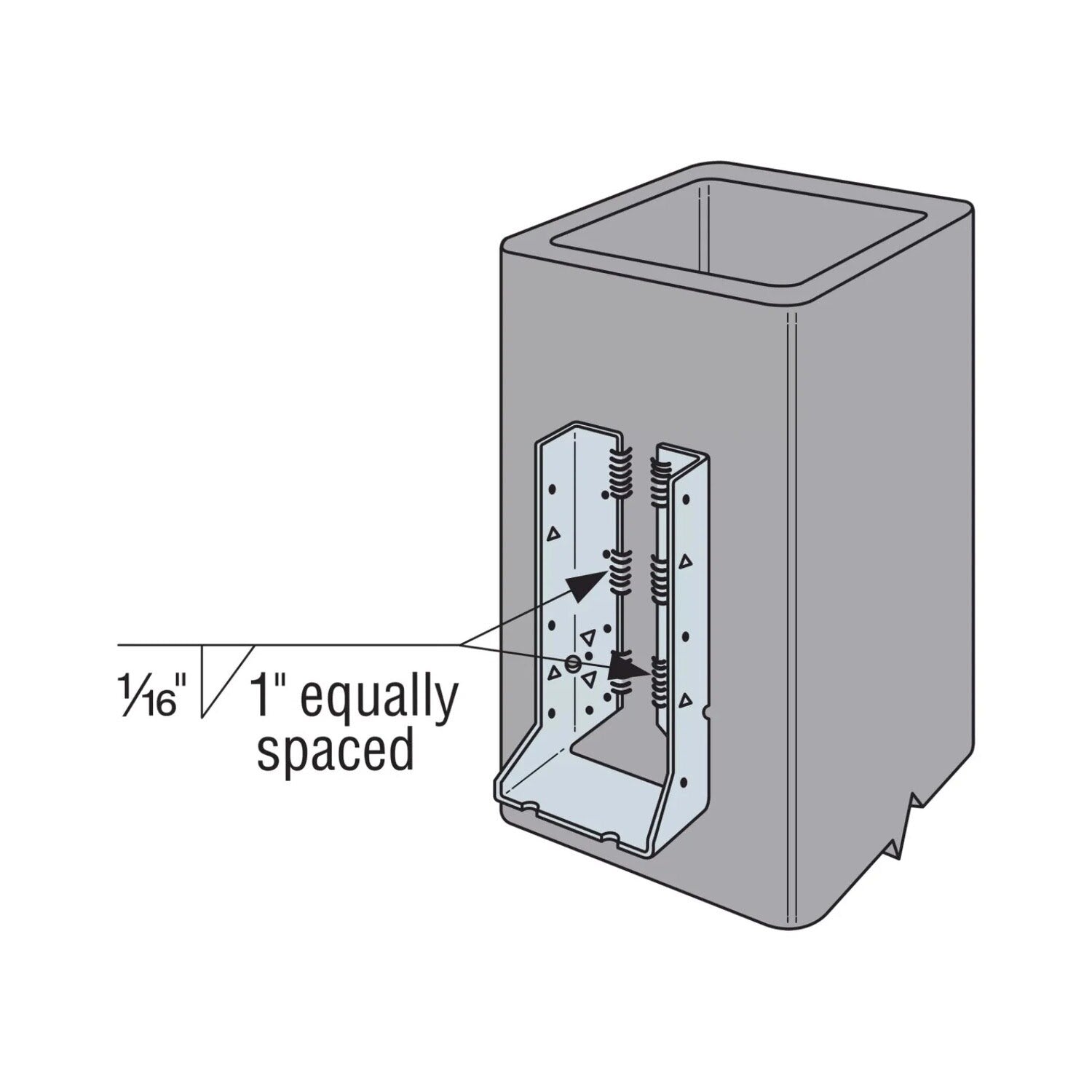

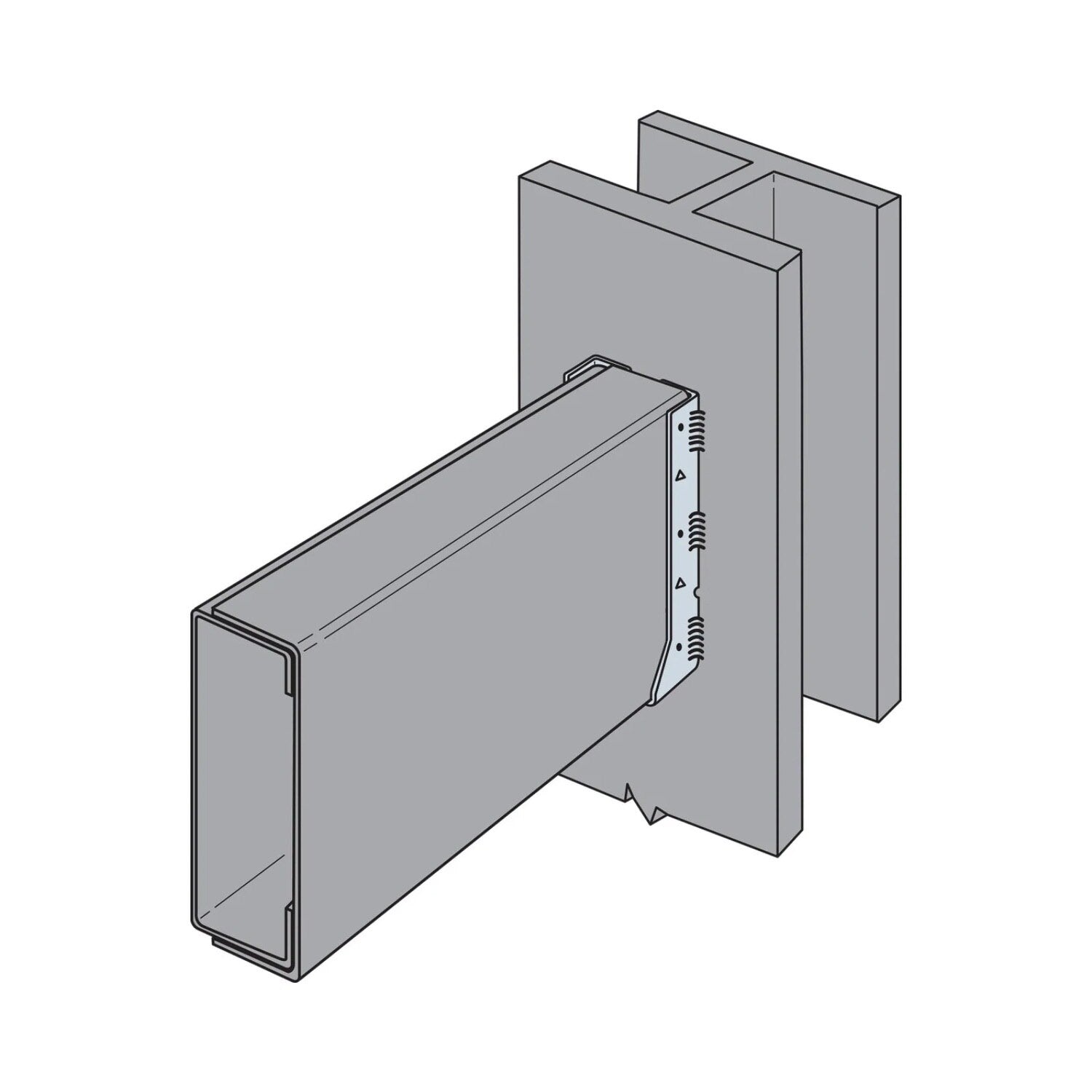

- Can be welded to a steel member following technical guidelines
Simpson Strong-Tie HUC38 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (10) 0.162" x 3-1/2" Nails, Joist - (4) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
| Height | 5-5/8" |
| Joist size | 3" X 8" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 2-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
