Simpson Hangers | SKU:
HUC410Z
Simpson Strong-Tie HUC410Z (8-3/8") 14Ga Heavy-Duty Concealed-Flange Face-Mount Joist Hanger - ZMAX Finish
$23.64
Unit price
/
Unavailable
Description
Description
Simpson HUC410Z Description

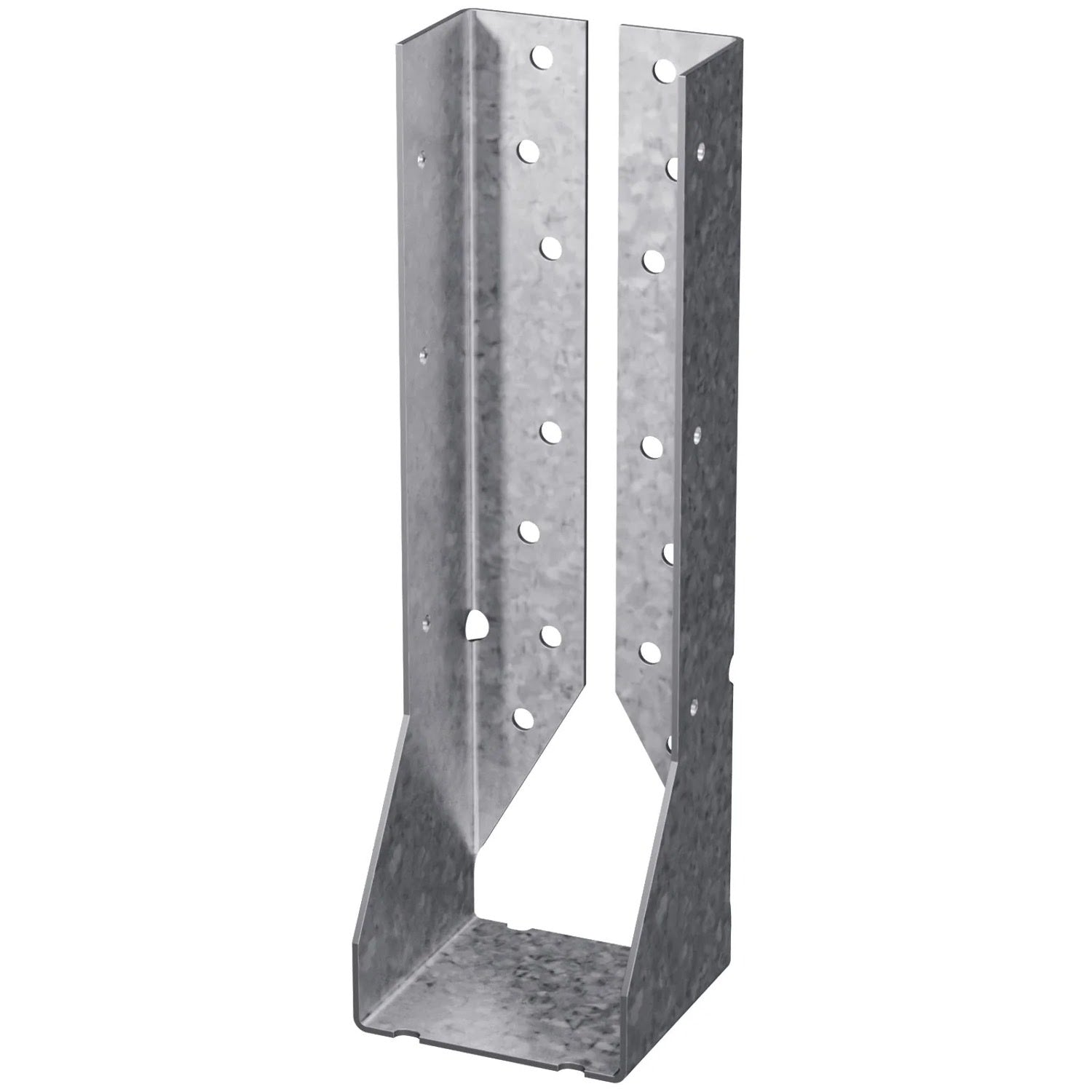

The Simpson HUC410Z is a concealed-flange heavy-duty face-mount joist hanger designed for 4x10 joists, featuring a ZMAX galvanized finish for enhanced corrosion resistance.
Simpson HUC410Z Includes
- (1) Concealed-Flange Heavy Face-Mount Joist Hanger for 4x10
Simpson HUC410Z Features
- Concealed-Flange Design for clean aesthetics and structural integrity
- ZMAX Galvanized Coating for corrosion resistance
- Versatile Applications for wood, masonry, and concrete connections
- Code Compliance ensuring reliable performance
- Heavy-duty construction for robust support
Simpson HUC410Z Applications
- Decks and outdoor structures requiring concealed support

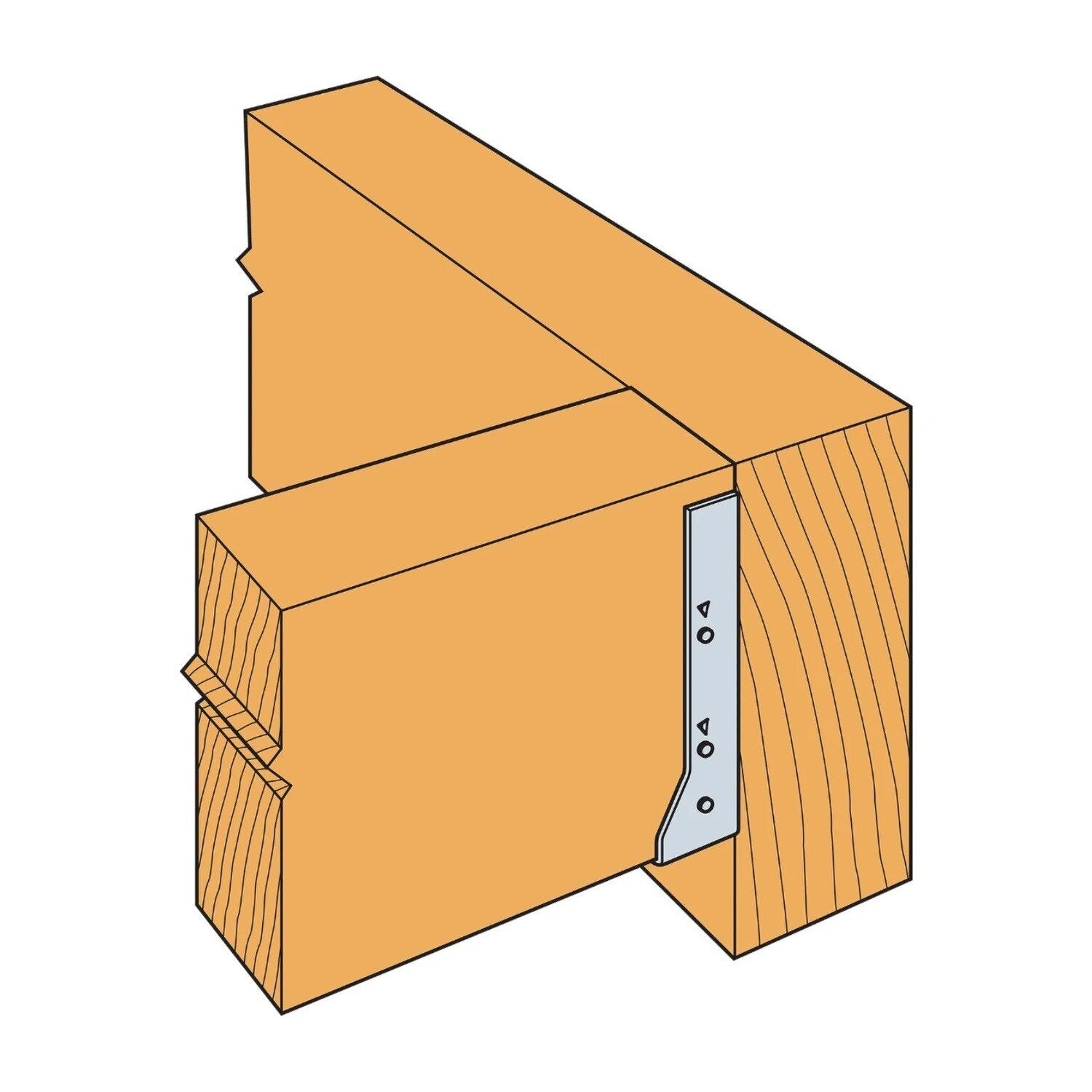

- Timber framing for architectural and decorative wood connections
- Exterior construction with treated wood exposed to moisture

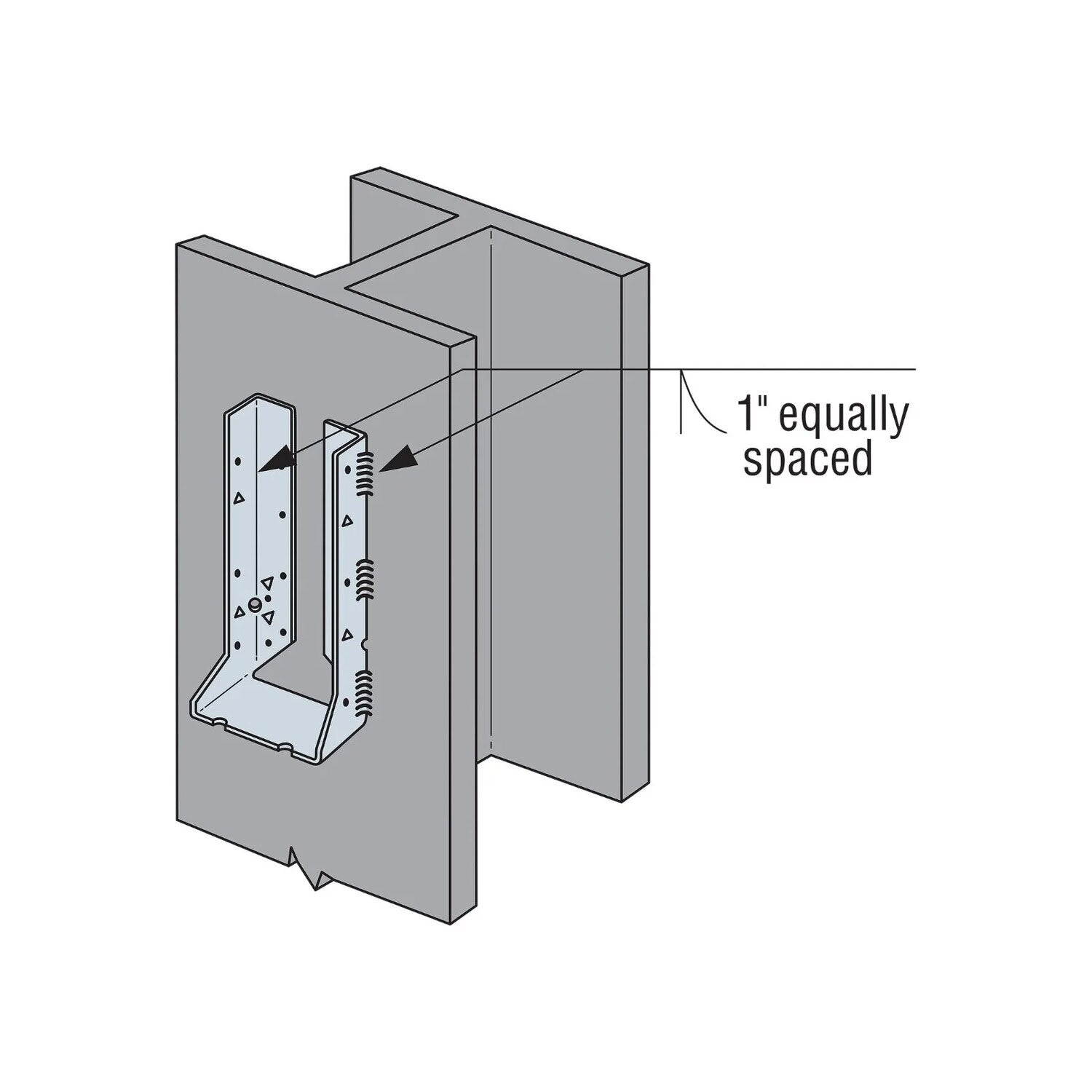

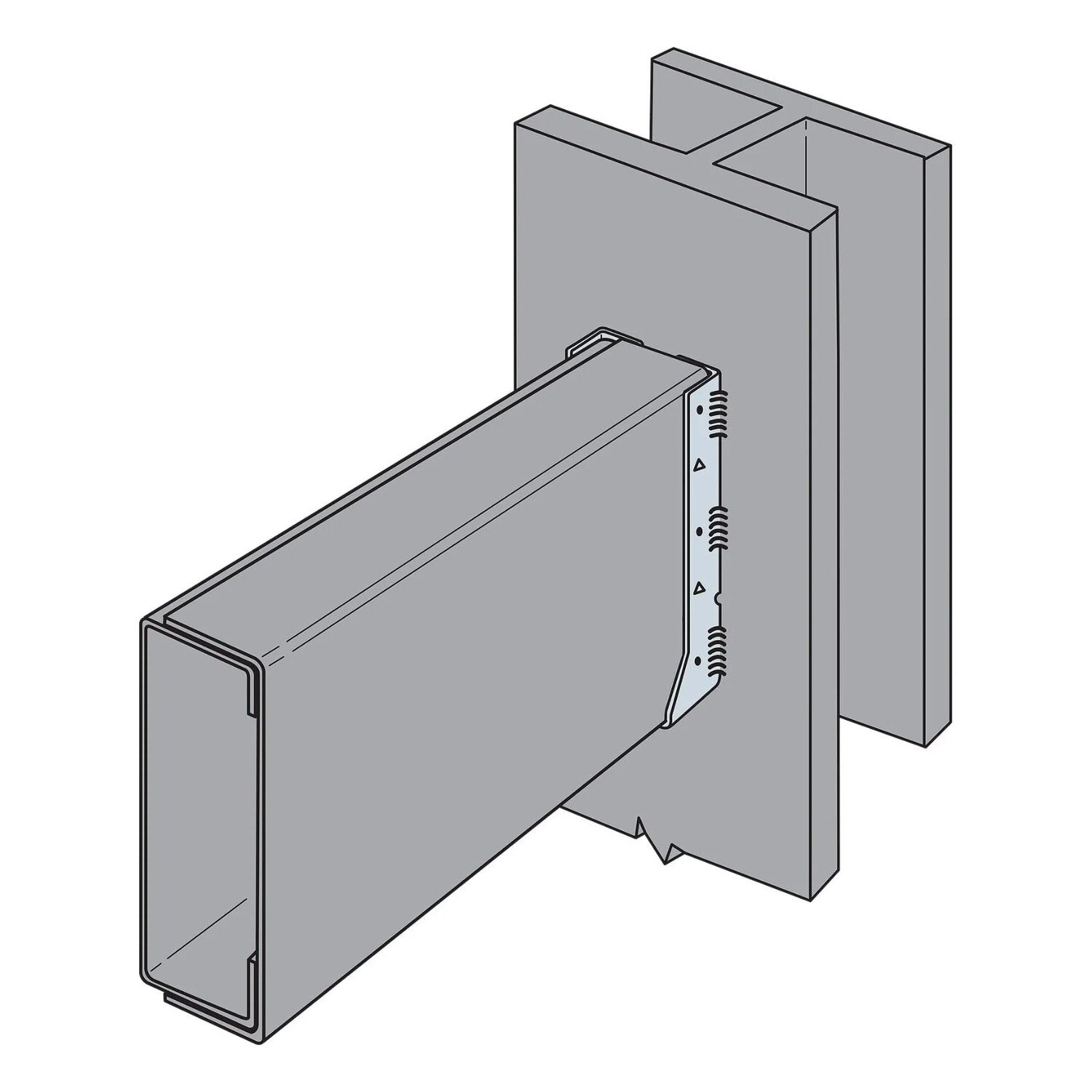

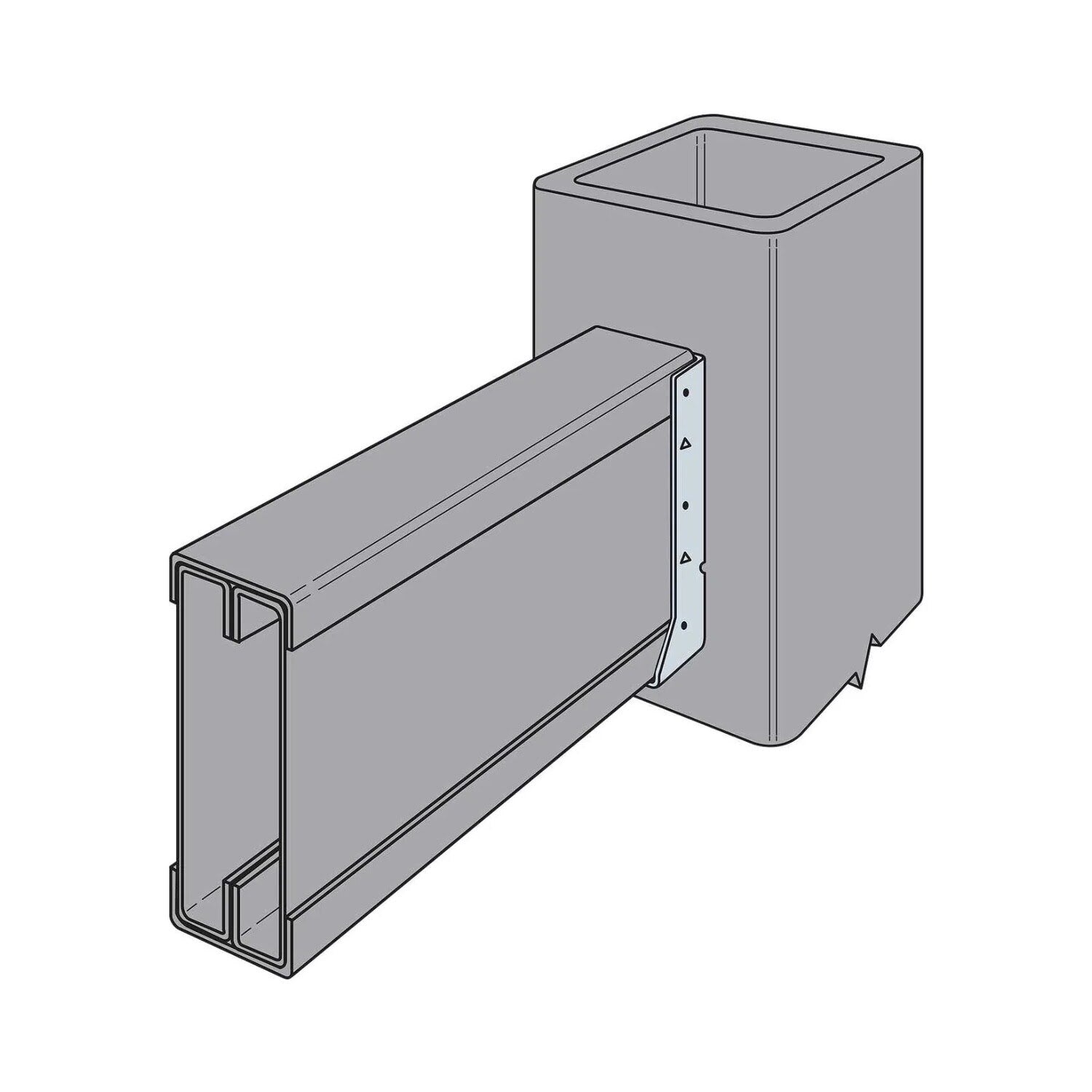

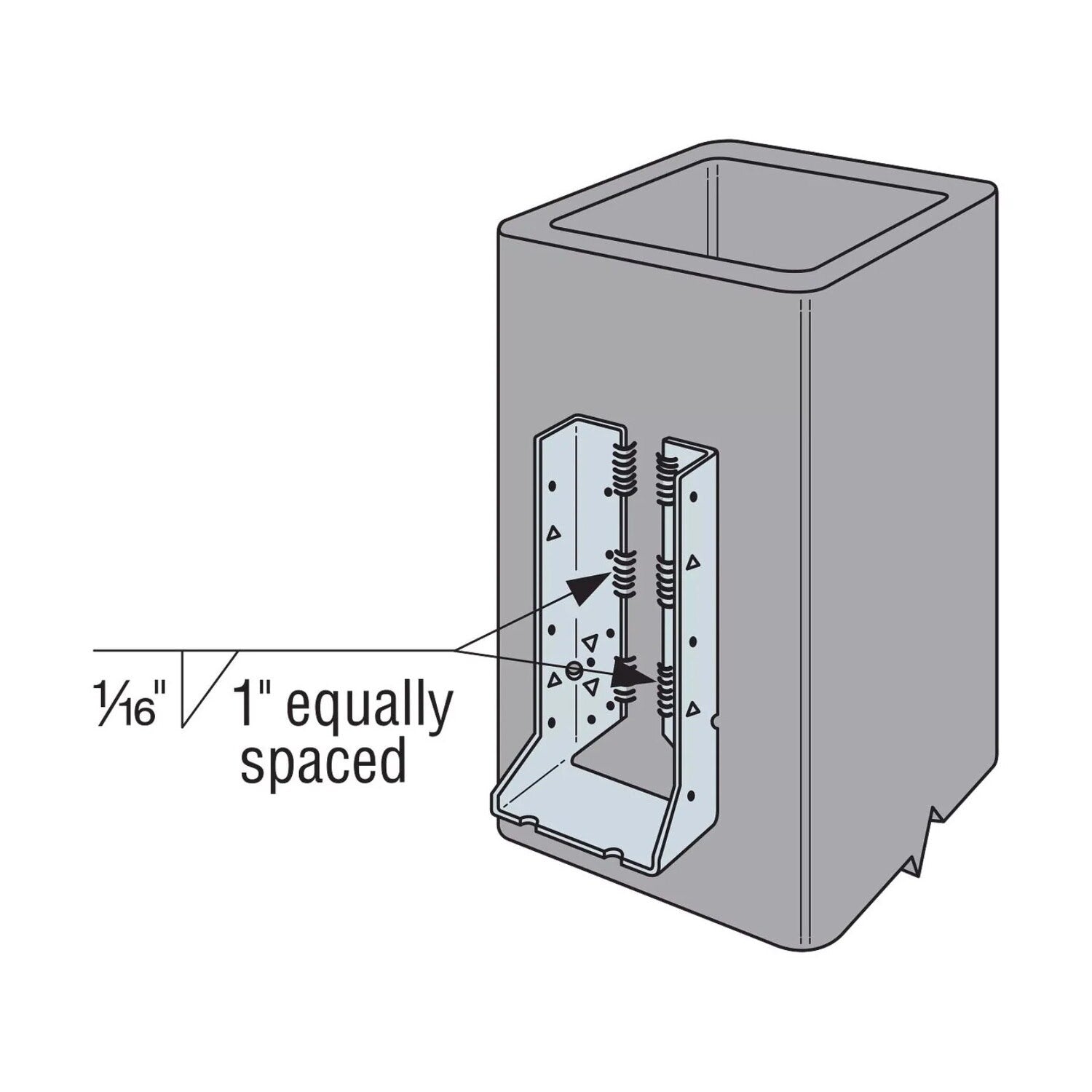

- Masonry and concrete connections for structural support
Simpson HUC410Z Installation Overview
- Use hot-dip galvanized nails for ZMAX hangers
- Fill both round and triangle holes with common nails for maximum load
- Special order options available for skewable and sloped seats

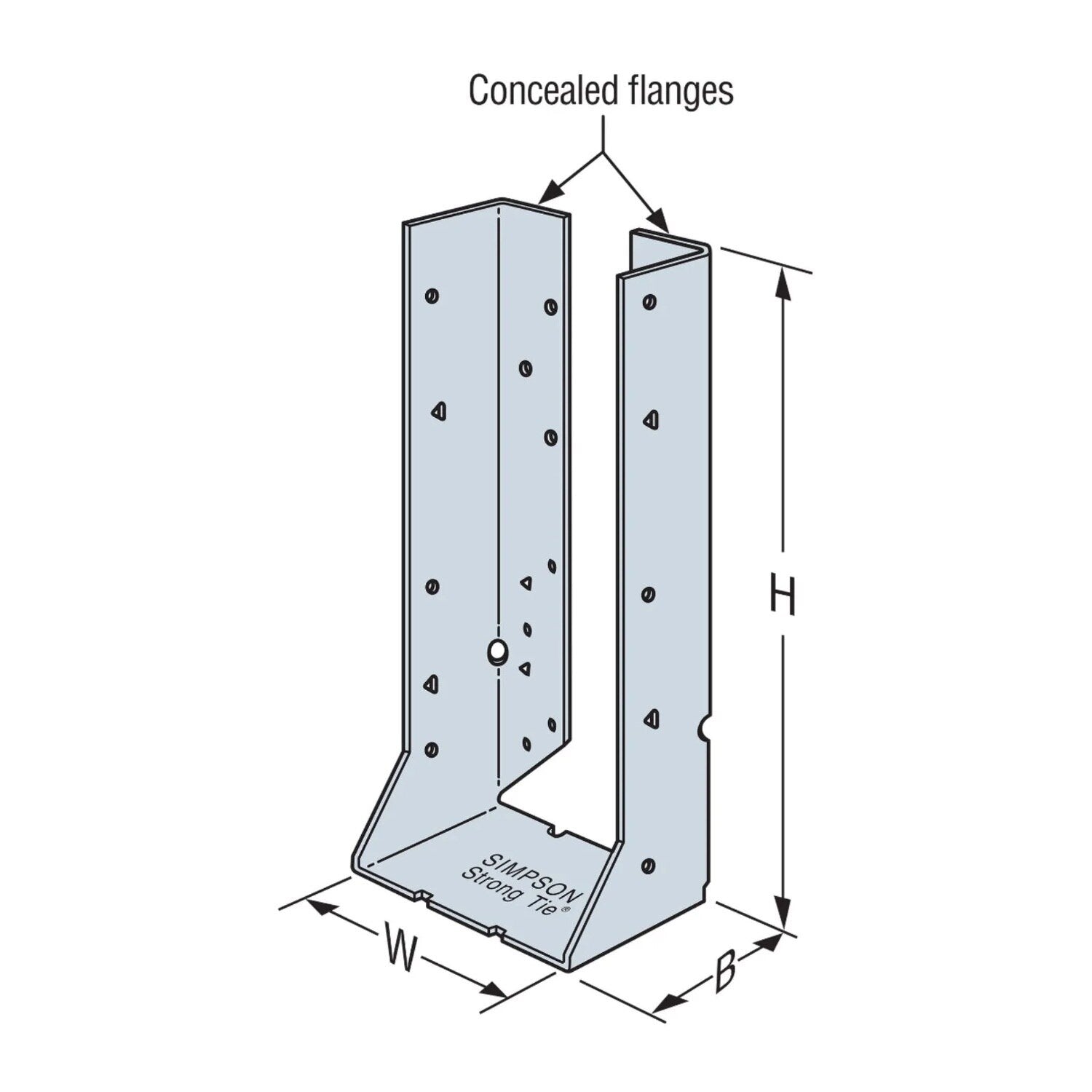

Simpson HUC410Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (18) 0.162" x 3-1/2" Nails, Joist - (10) 0.148" x 3" Nails |
| For Treated Lumber | Yes |
| Height | 8-3/8" |
| Joist size | 4" X 10" |
| Thickness | 14 Gauge |
| Width | 3-9/16" |
NOTE: Ensure the correct fasteners are used in the specified positions to achieve the published load values
