Simpson Hangers | SKU:
HUC412-2
Simpson Strong-Tie HUC412-2 (10-13/16") 14Ga Heavy Galvanized Concealed-Flange Face-Mount Joist Hanger
$37.73
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUC412-2 Description

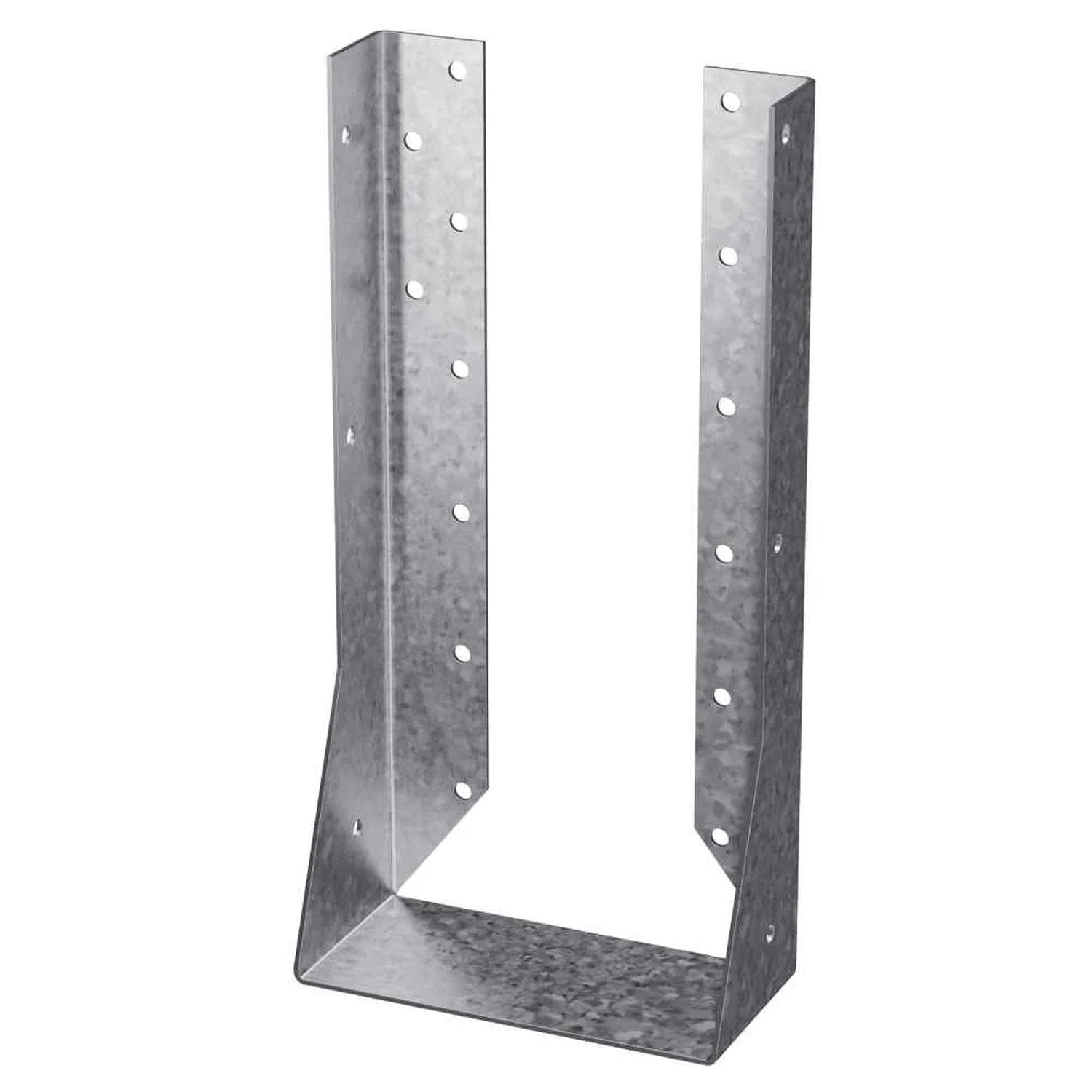

The Simpson Strong-Tie HUC412-2 Concealed Flange Face Mount I-Joist Hanger is crafted from 14-gauge steel with a G90 galvanized finish, ensuring durability and corrosion resistance for various construction applications.
Simpson Strong-Tie HUC412-2 Includes
- (1) Concealed Flange Face Mount I-Joist Hanger
Simpson Strong-Tie HUC412-2 Features
- Concealed Flange Design for clean lines and close installation to beam ends
- G90 Galvanized Finish for corrosion resistance
- Versatile Applications for various joist sizes and materials
- Code Compliance ensuring reliable performance
Simpson Strong-Tie HUC412-2 Applications
- Decks and outdoor structures such as pergolas and porches
- Floor joists and ceiling framing in residential and commercial buildings
- Multi-family housing and commercial building framing
- Engineered wood and steel framing for advanced construction
- Retrofitting and renovation projects for reinforcing structures

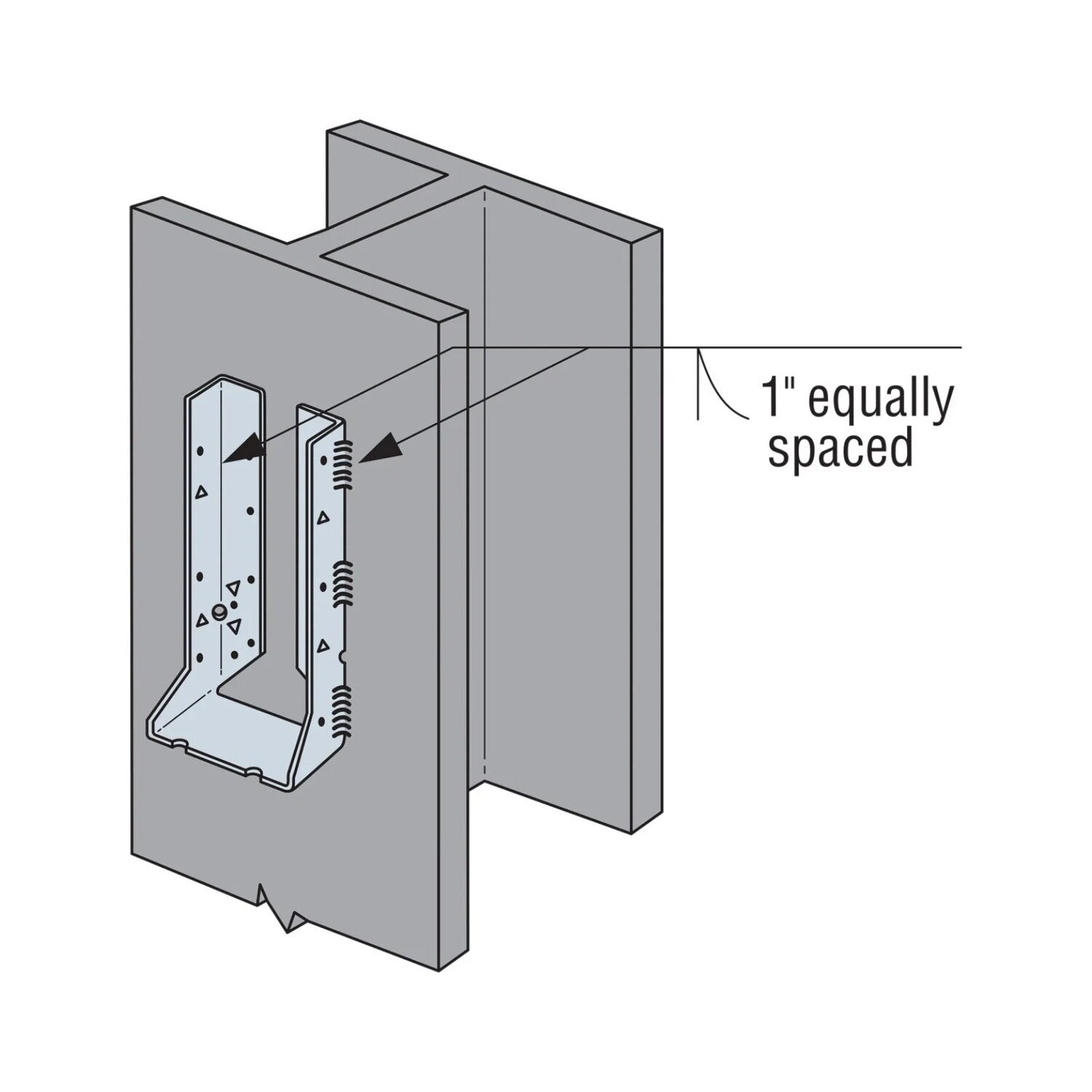

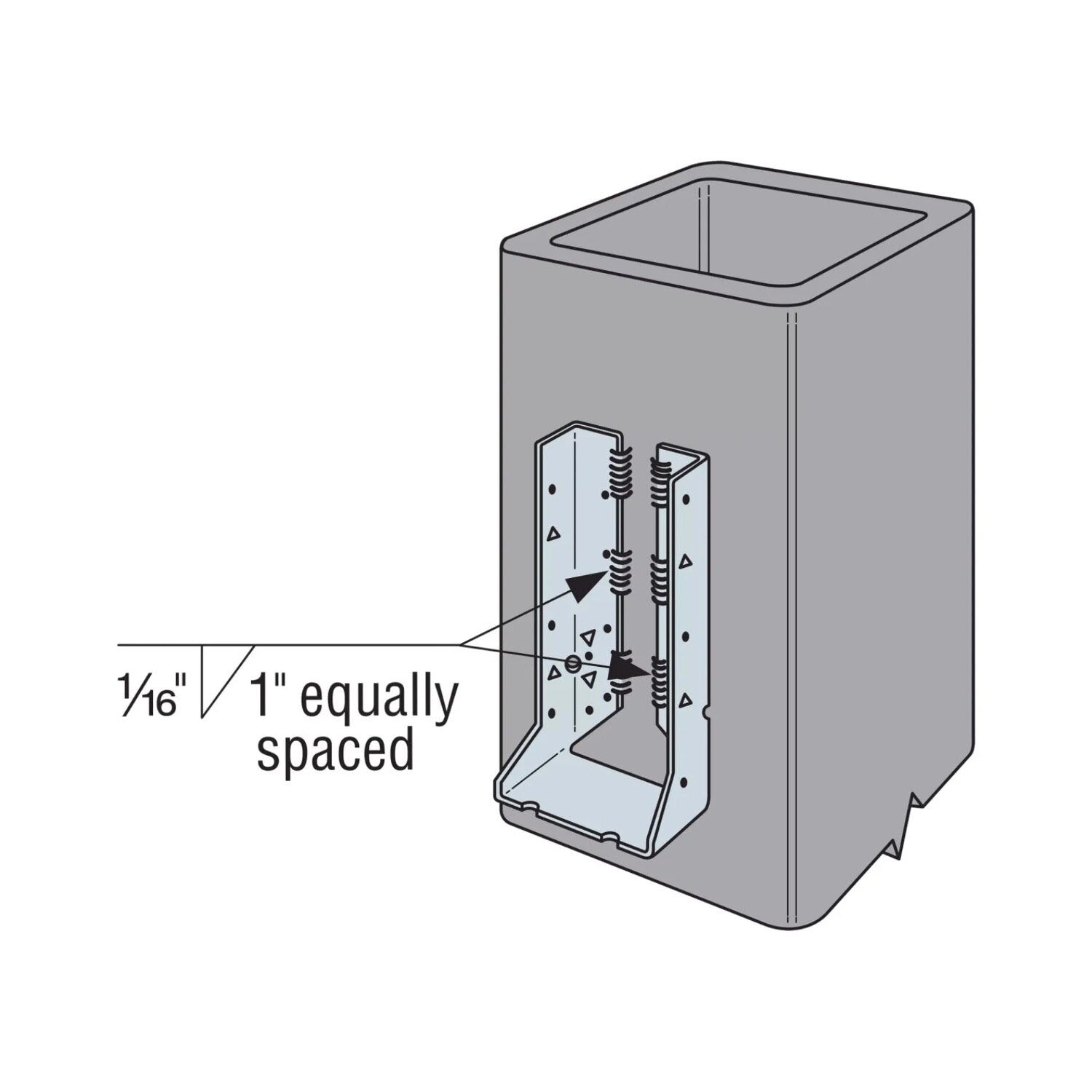

Simpson Strong-Tie HUC412-2 Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance
- Fill both round and triangle holes with common nails for maximum load capacity
Simpson Strong-Tie HUC412-2 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (22) 0.162" x 3-1/2" Nails, Joist - (8) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 10-13/16" |
| Joist size | 7" X 11-1/4" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 7-1/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
