Simpson Hangers | SKU:
HUC412Z
Simpson Strong-Tie HUC412Z 10-3/8") 14Ga Heavy Galvanized Concealed-Flange Face-Mount Joist Hanger
$27.85
$38.12
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUC412Z Description
The Simpson Strong-Tie HUC412Z is a heavy-duty concealed-flange face-mount joist hanger designed for robust support and enhanced aesthetics in construction applications. Featuring a ZMAX galvanized coating, it offers increased corrosion resistance, making it suitable for both interior and exterior projects.
Simpson Strong-Tie HUC412Z Includes

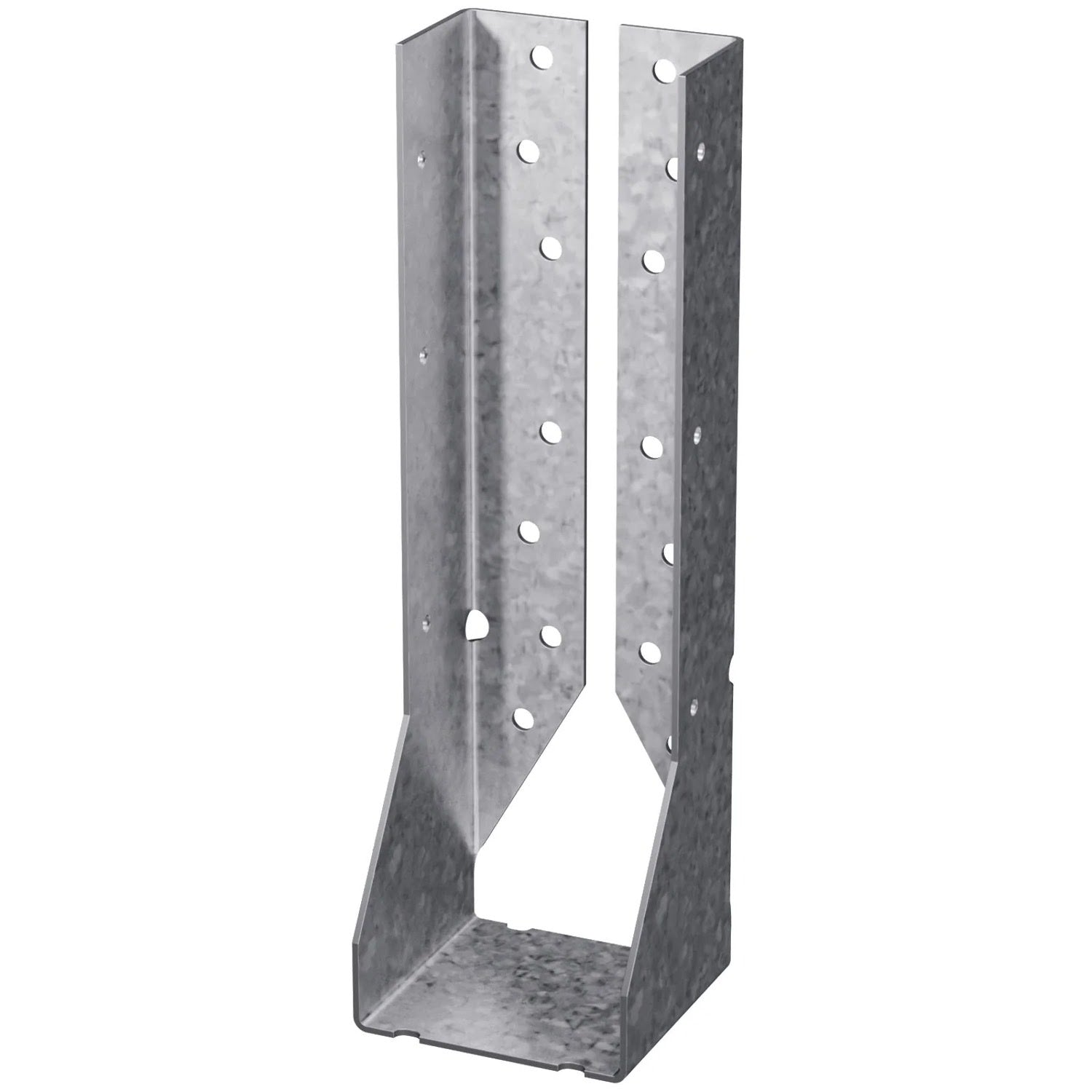

- (1) Concealed Flange Heavy Face Mount Joist Hanger for 4x12
Simpson Strong-Tie HUC412Z Features
- Concealed-Flange Design for clean lines and close installation to beam ends
- ZMAX Galvanized Coating for enhanced corrosion resistance

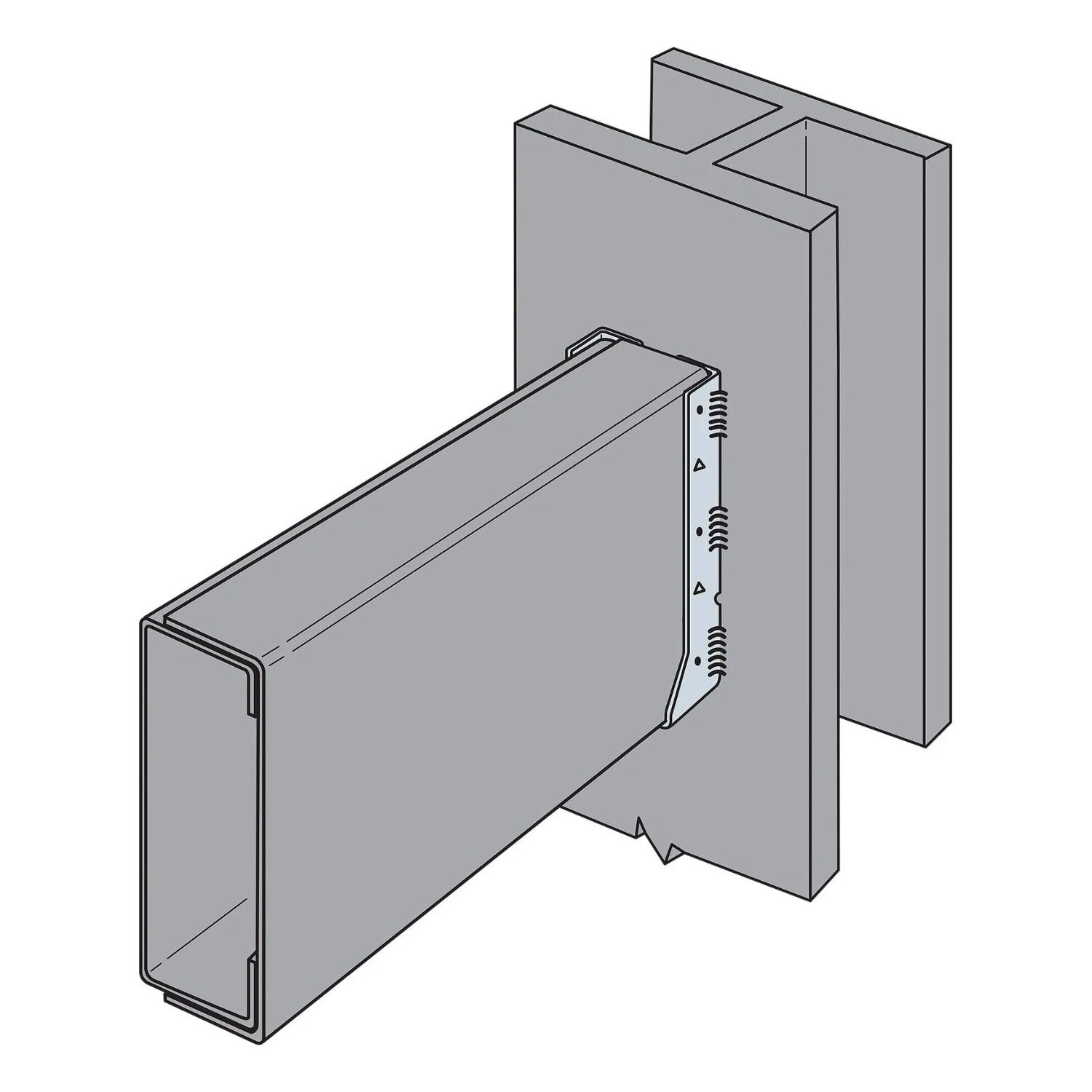

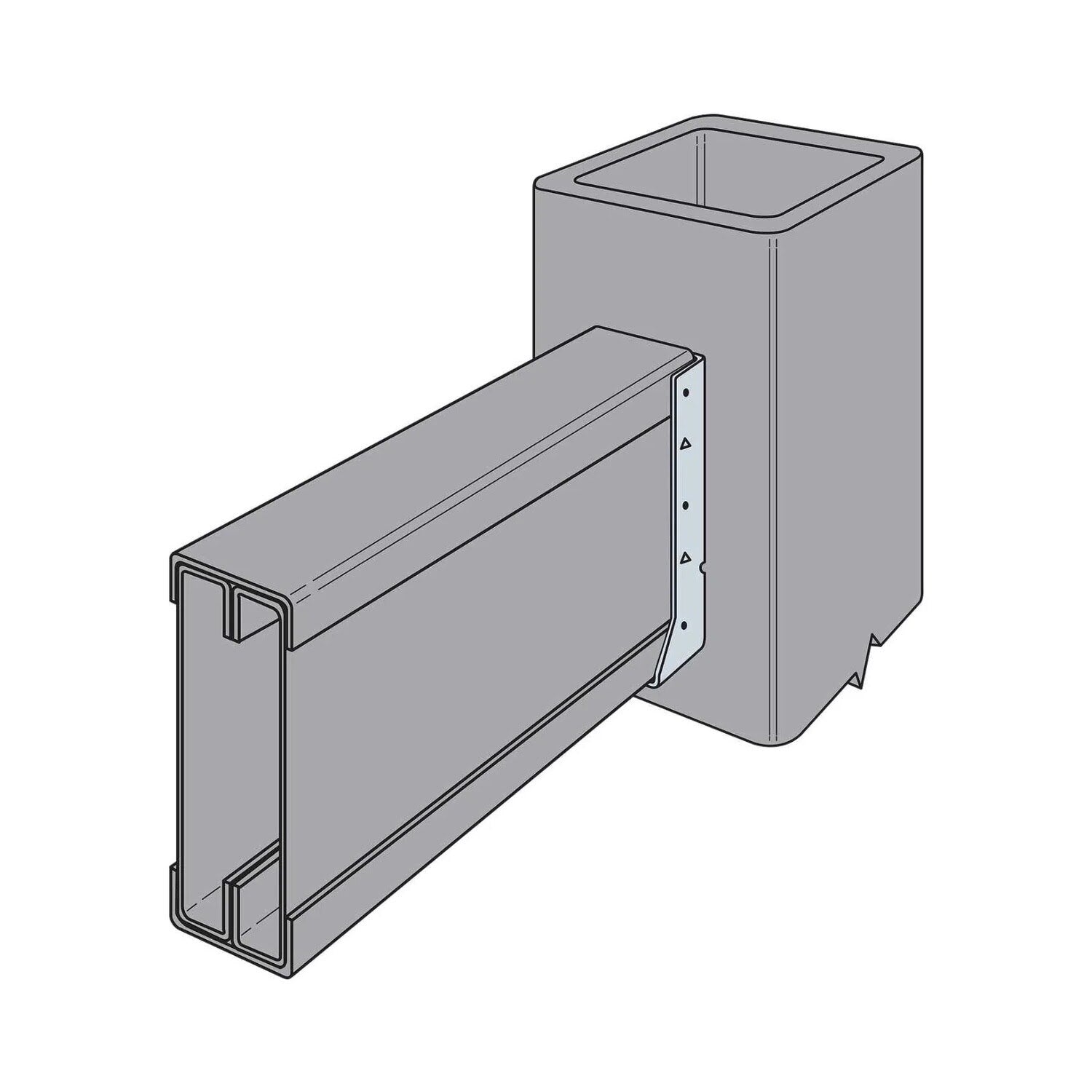

- Versatile Applications for wood, masonry, or concrete connections
- Code Compliance ensuring reliable structural performance
Simpson Strong-Tie HUC412Z Applications

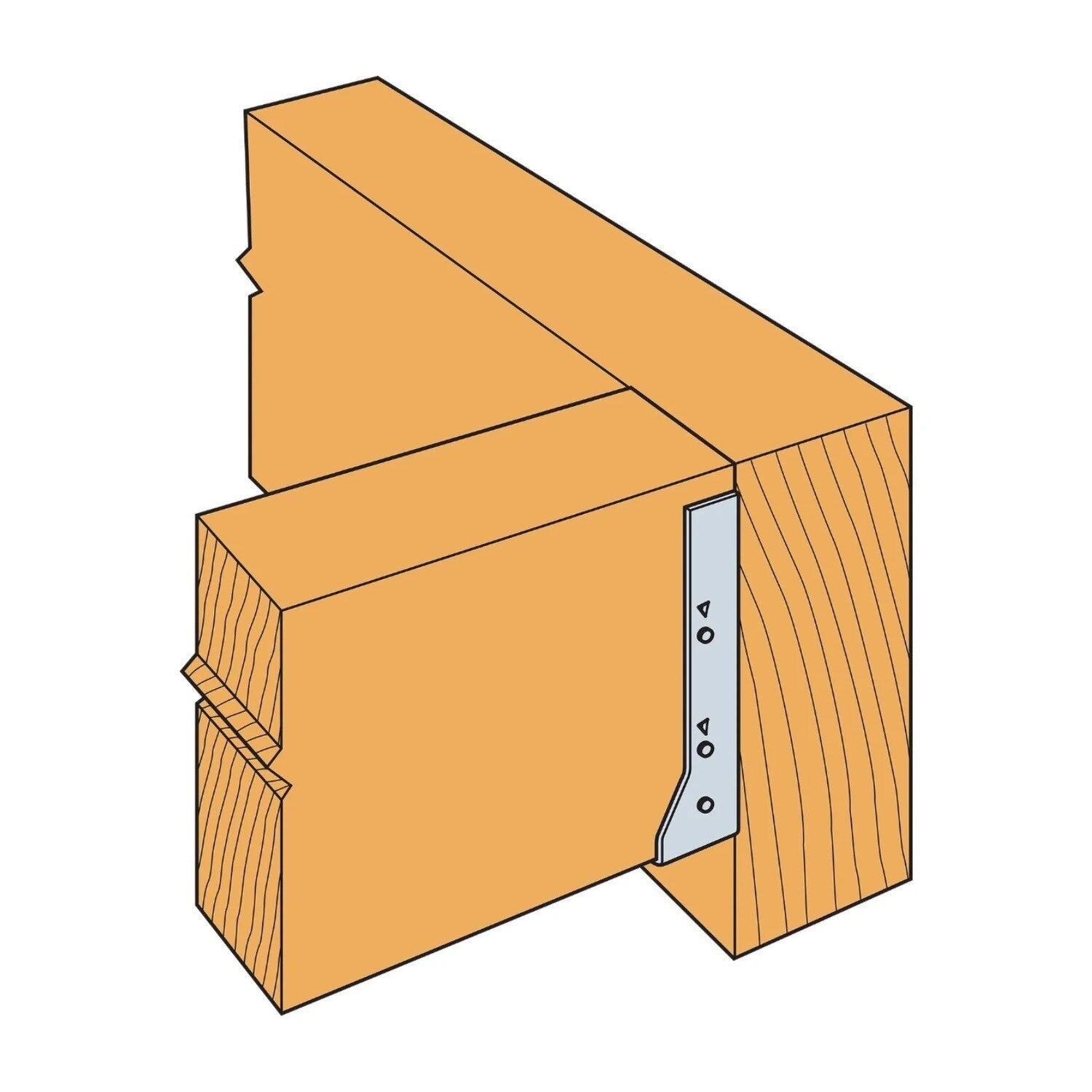

- Decks & Outdoor Structures: Provides strong, concealed support for wood joists in deck construction, pergolas, and gazebos.
- Timber Framing: Ideal for exposed beam connections in architectural and decorative wood framing.
- Treated Wood & Exterior Construction: Corrosion-resistant ZMAX coating makes it suitable for structures exposed to moisture, such as porches, patios, and sheds.

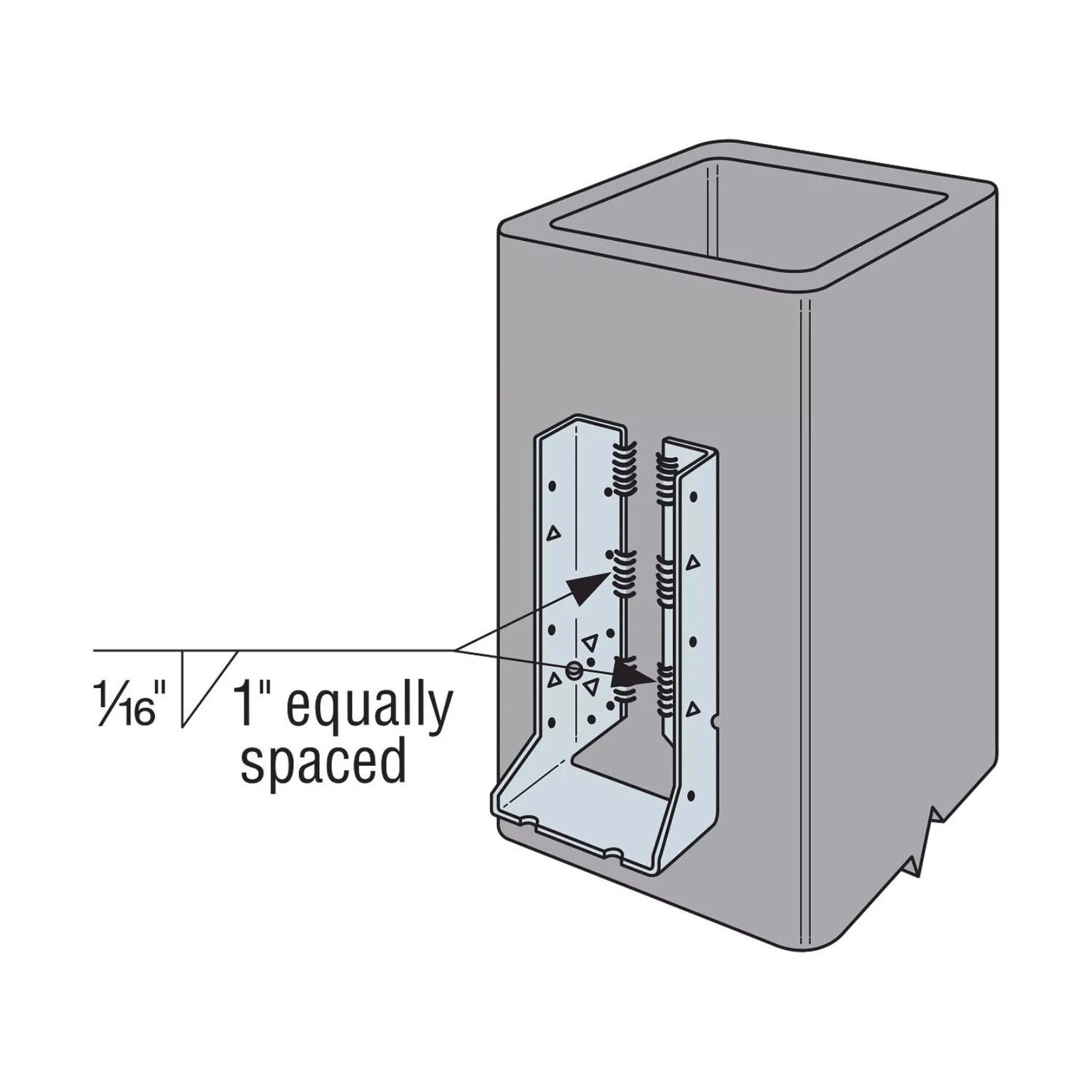

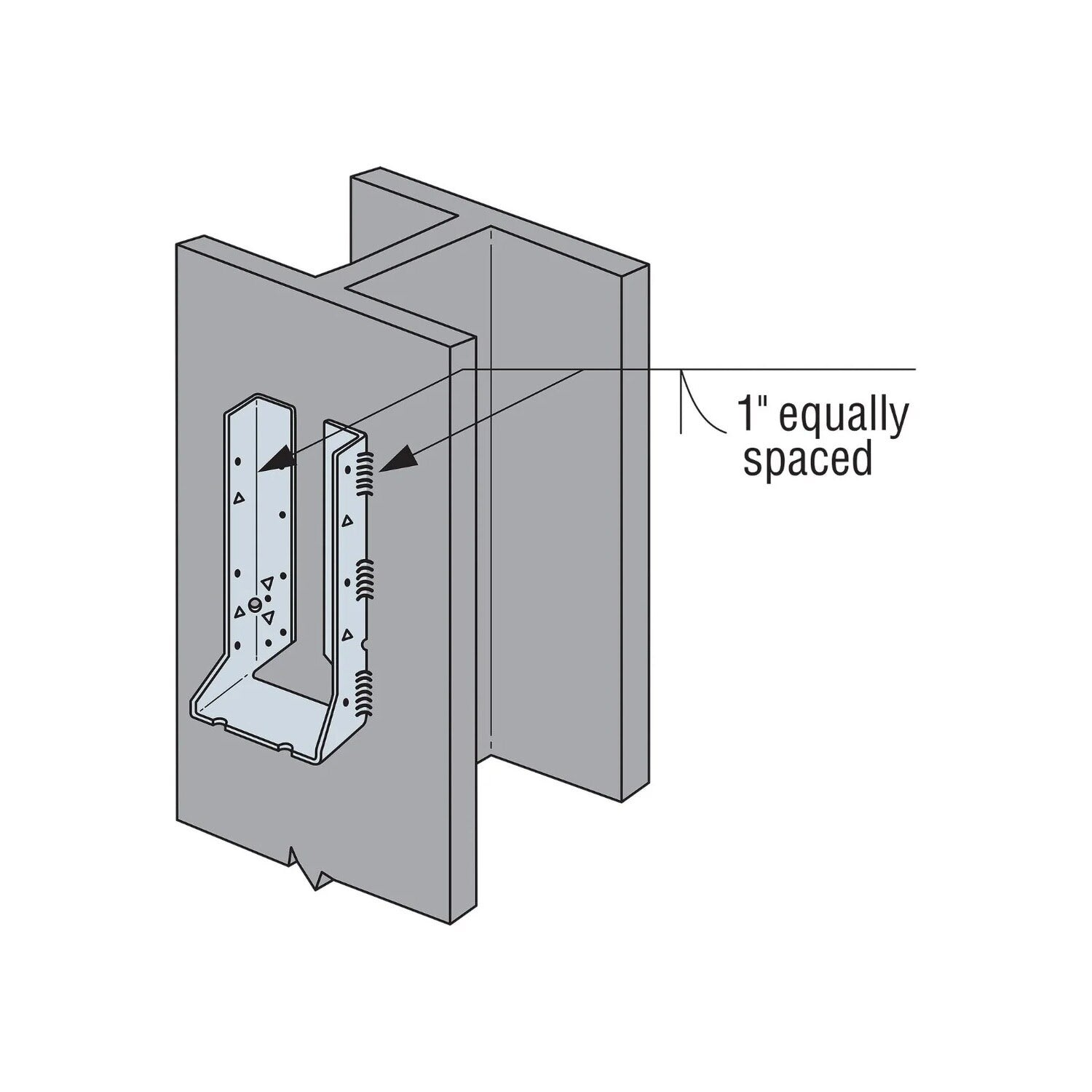

- Masonry & Concrete Connections: Compatible with wood, masonry, or concrete connections.
Simpson Strong-Tie HUC412Z Installation Overview
- Use hot-dip galvanized nails for ZMAX galvanized hangers.
- Optional triangle holes can be used for additional load capacity.
- Special order options available for skewable or sloped seats.
Simpson Strong-Tie HUC412Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (22) 0.162" x 3-1/2" Nails, Joist - (10) 0.148" x 3" Nails |
| For Treated Lumber | Yes |
| Height | 10-3/8" |
| Joist size | 4" X 12" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 3-9/16" |
