Simpson Hangers | SKU:
HUC414-2

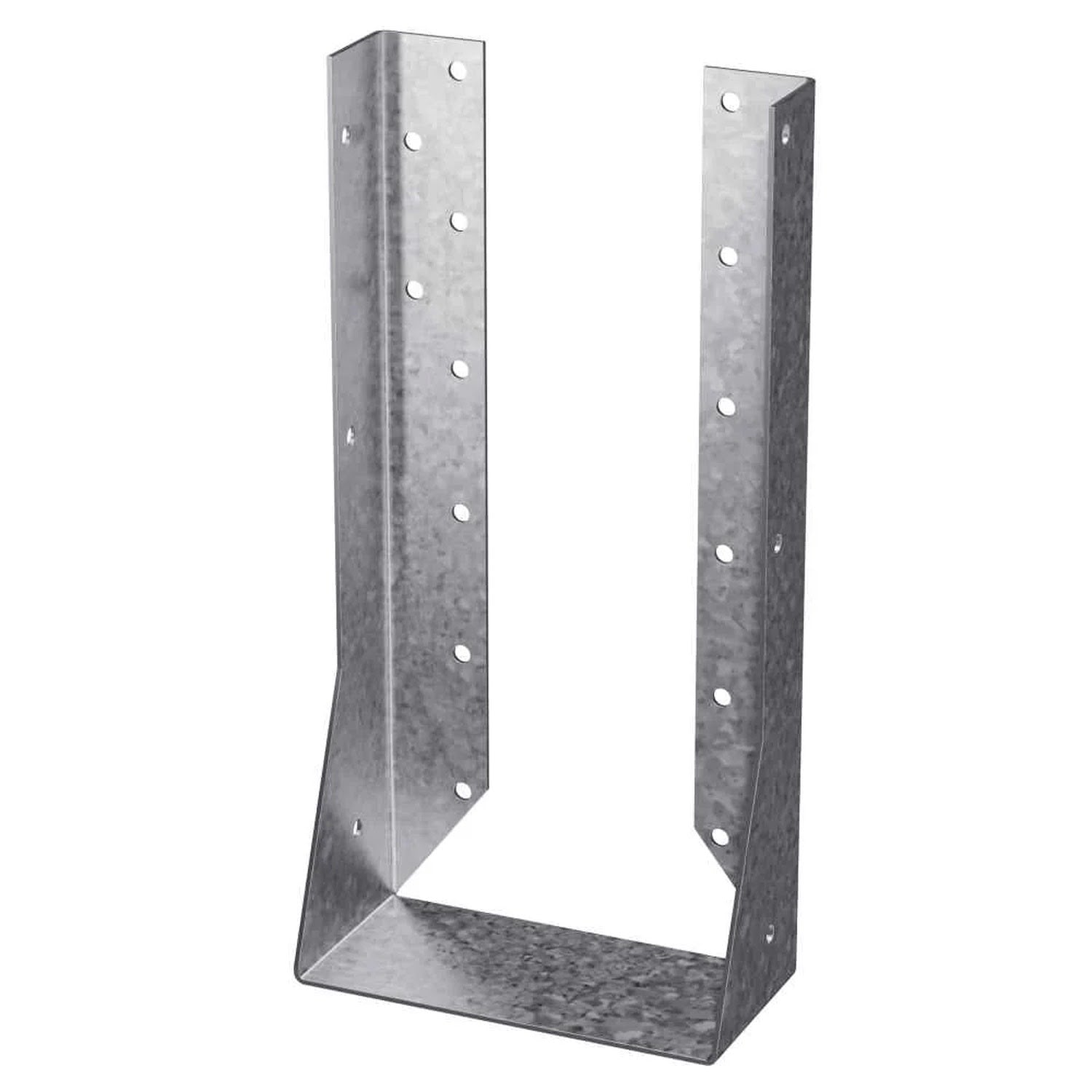

Simpson Strong-Tie HUC414-2 (4" x 14") 14Ga Heavy Galvanized Concealed-Flange Face-Mount Joist Hanger
$44.76
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUC414-2 Description
The Simpson Strong-Tie HUC414-2 is a heavy-duty, concealed-flange face-mount joist hanger designed for robust support in various construction applications. Made from 14-gauge steel with a G90 galvanized finish, it ensures durability and corrosion resistance.
Simpson Strong-Tie HUC414-2 Includes
- (1) HUC414-2 Concealed Flange Face Mount Joist Hanger
Simpson Strong-Tie HUC414-2 Features
- Concealed flange design for clean lines and close installation to beam ends
- G90 galvanized finish for corrosion resistance
- Compatible with solid sawn lumber, engineered wood, and cold-formed steel joists
- Tested, load-rated, and code-compliant for structural applications
Simpson Strong-Tie HUC414-2 Applications

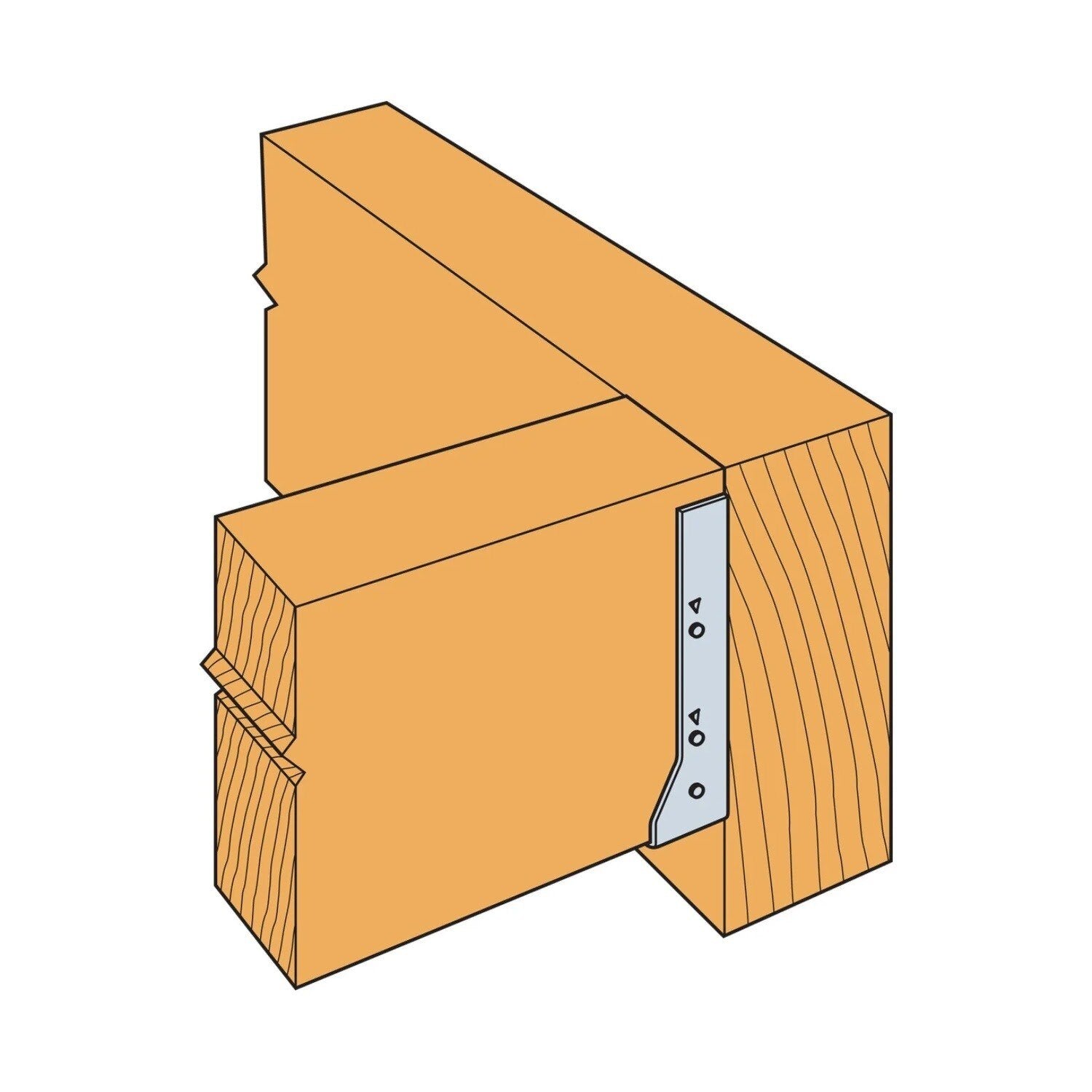

- Decks and outdoor structures: Provides strong, concealed connections for deck framing, pergolas, and covered porches.
- Floor joists and ceiling framing: Ensures secure joist connections in residential and commercial construction.
- Multi-family housing and commercial buildings: Used in large-scale framing applications for apartments, offices, and mixed-use buildings.

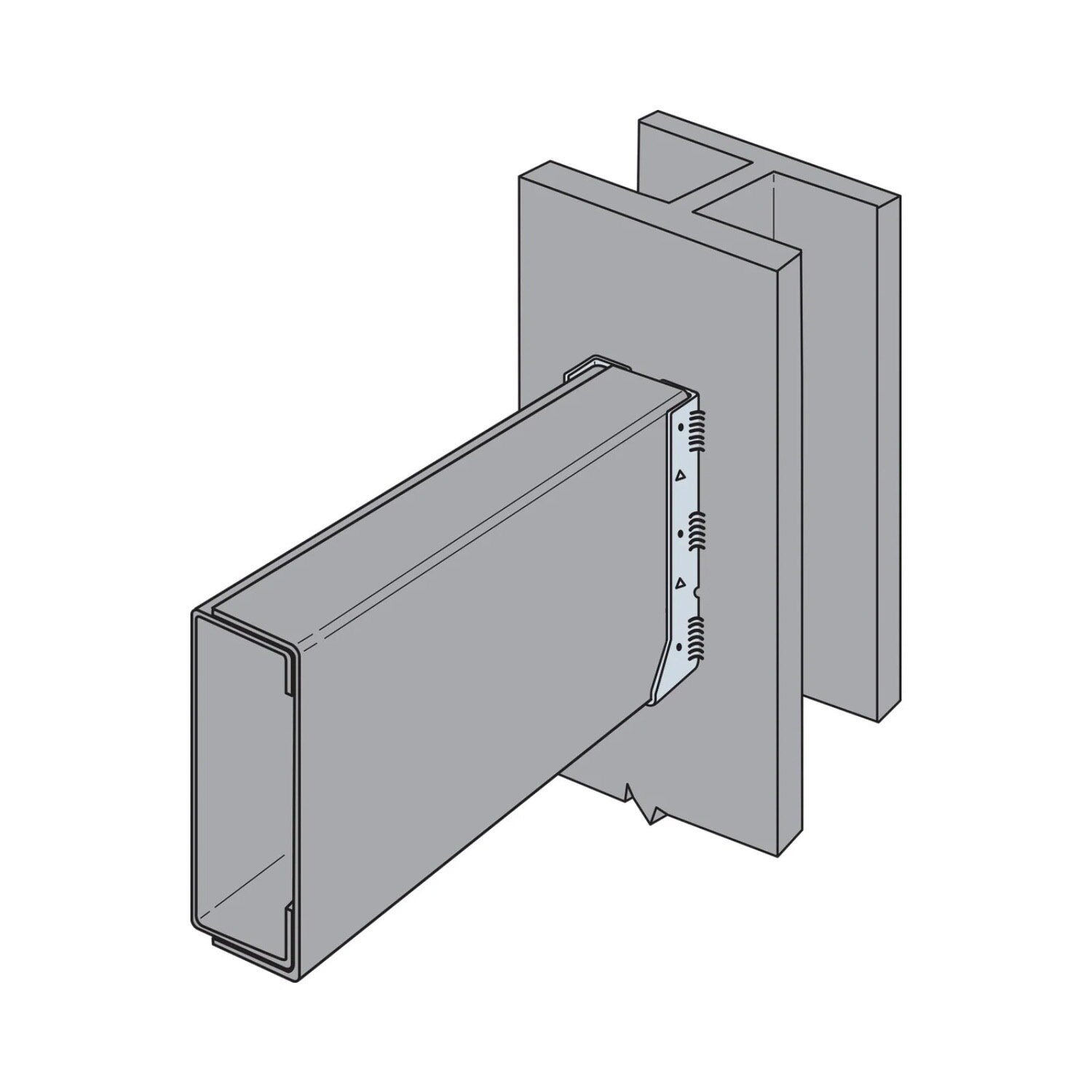

- Engineered wood and steel framing: Compatible with LVL, PSL, and CFS joists for advanced construction needs.
- Retrofitting and renovation projects: Ideal for reinforcing existing structures while maintaining a clean, unobtrusive look.
Simpson Strong-Tie HUC414-2 Installation Overview
- Use all specified fasteners as per guidelines.
- Install by filling round holes only or both round and triangle holes for maximum values.
- Ensure joists sloped up to 1/4:12 achieve table loads.

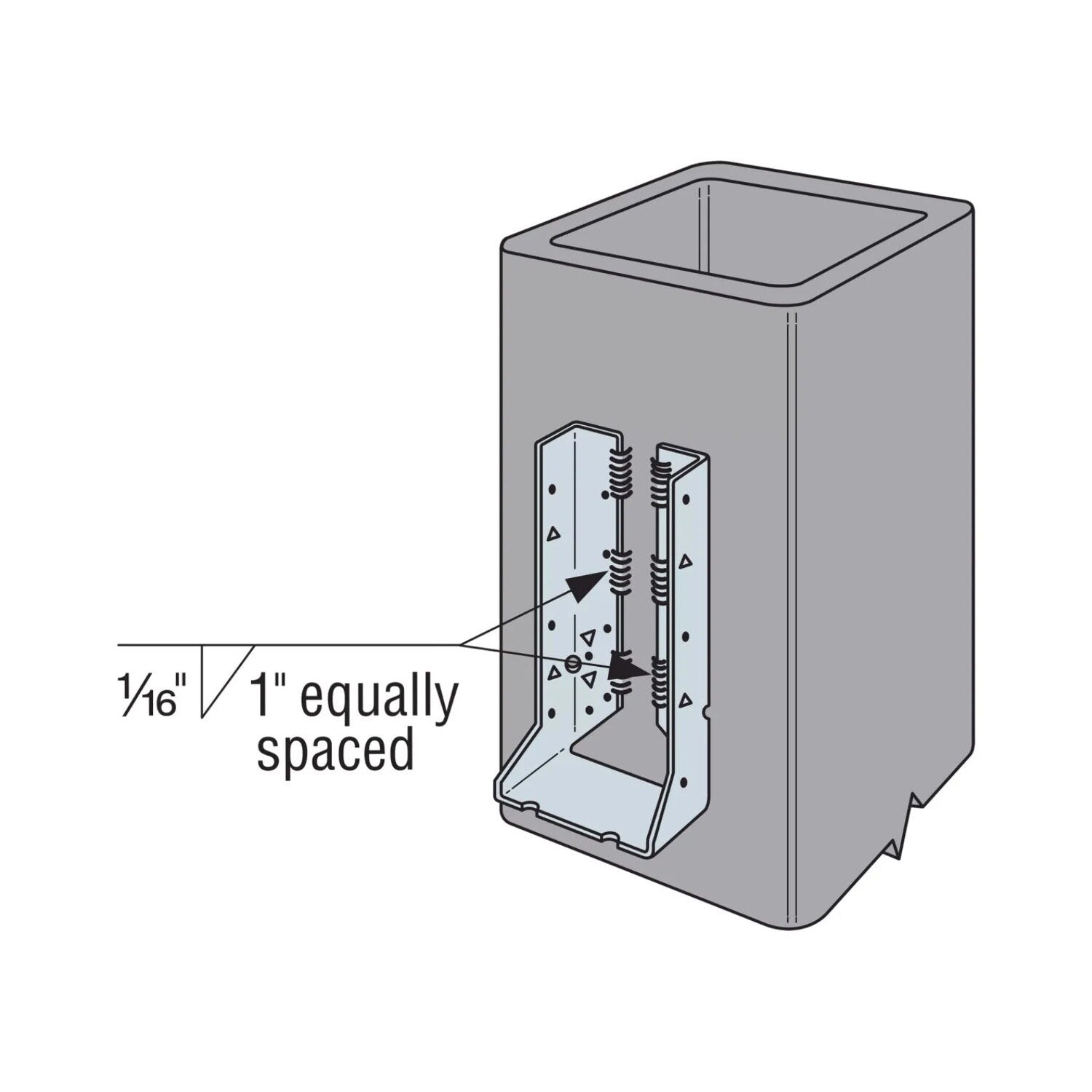

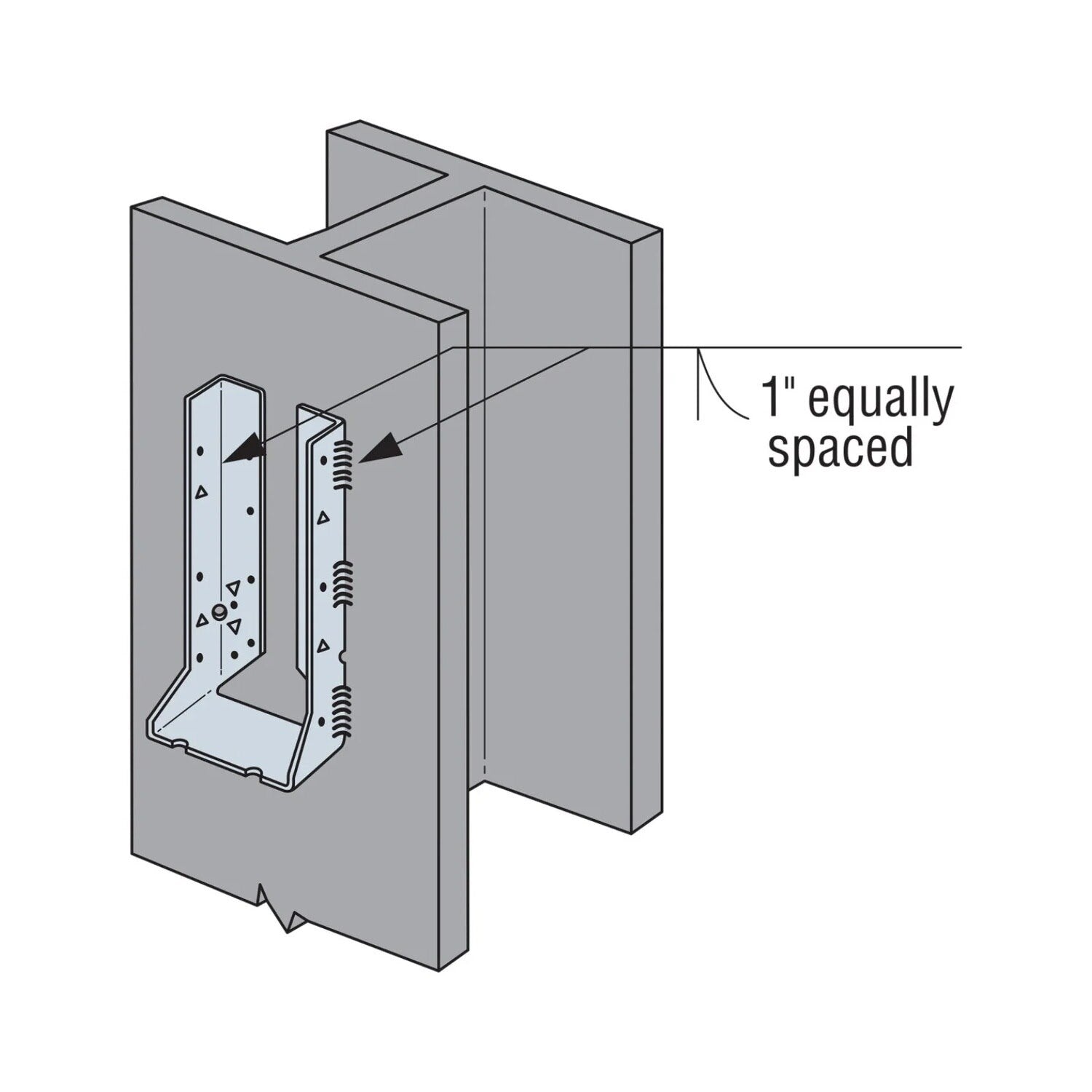

- For masonry or concrete installations, refer to specific guidelines.
- Web stiffeners are required for I-joist applications.
Simpson Strong-Tie HUC414-2 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 14 Gauge |
| Width | 7-1/8" |
| Height | 12-9/16" |
| Joist size | 7" X 14" |
| Fasteners required | Face - (26) 0.162" x 3-1/2" Nails, Joist - (12) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
