Simpson Hangers | SKU:
HUC414TF

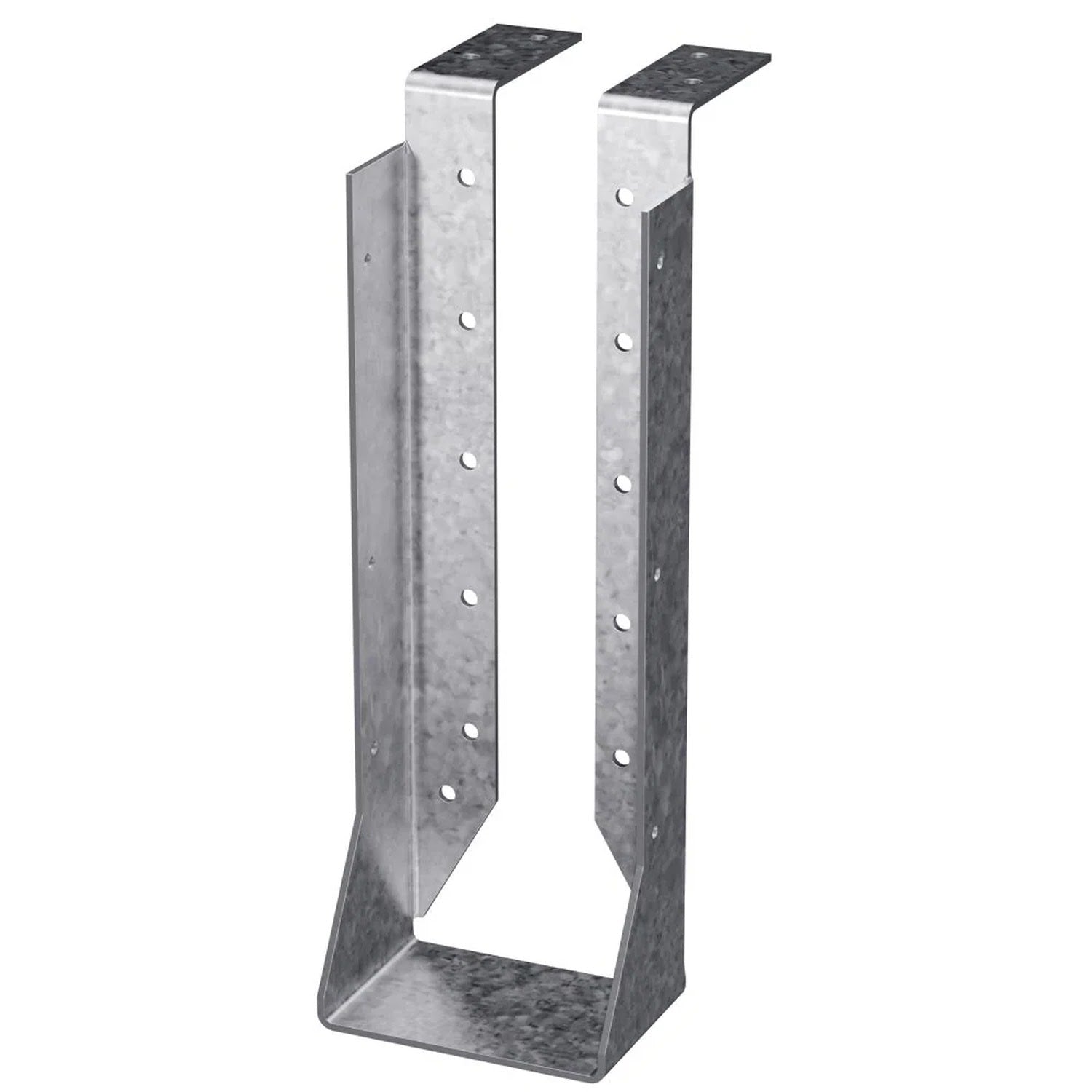

Simpson Strong-Tie HUC414TF (4" x 14") Heavy Top-Flange Hanger with Concealed Flanges
$53.35
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUC414TF Description
The HUC414TF Concealed Top Flange Joist Hanger is designed for securely attaching joists to beams or ledgers, providing strength and durability with a clean aesthetic.
Simpson Strong-Tie HUC414TF Includes
- (1) Concealed Top Flange Joist Hanger
Simpson Strong-Tie HUC414TF Features
- Concealed Flange Design for seamless aesthetic
- Heavy-Duty 12-Gauge Steel Construction
- G90 Galvanized Finish for corrosion resistance
Simpson Strong-Tie HUC414TF Applications
- Residential and Commercial Use: Suitable for structural projects including floors, ceilings, and roofs.
- End-of-Wall Installations: Designed for joists terminating at the end of a wall.
- Corner Joist Connections: Ensures stability in corner placements.
Simpson Strong-Tie HUC414TF Installation Overview
- Use all specified fasteners according to manufacturer guidelines.
- Ensure minimum header or ledger size of 3 1/2 inches.
- Do not modify hangers for sloped or skewed seat applications.
Simpson Strong-Tie HUC414TF Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (18) 0.162" x 3-1/2" Nails, Joist - (8) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 13" |
| Joist size | 4" X 14" |
| Manufacturer name | Simpson Strong-Tie |
| Thickness | 12 Gauge |
| Width | 3-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
