Simpson Hangers | SKU:
HUC416
Simpson Strong-Tie HUC416 (4" x 16") Galvanized Face-Mount Concealed-Flange Joist Hanger
$30.16
Unit price
/
Unavailable
Description
Description

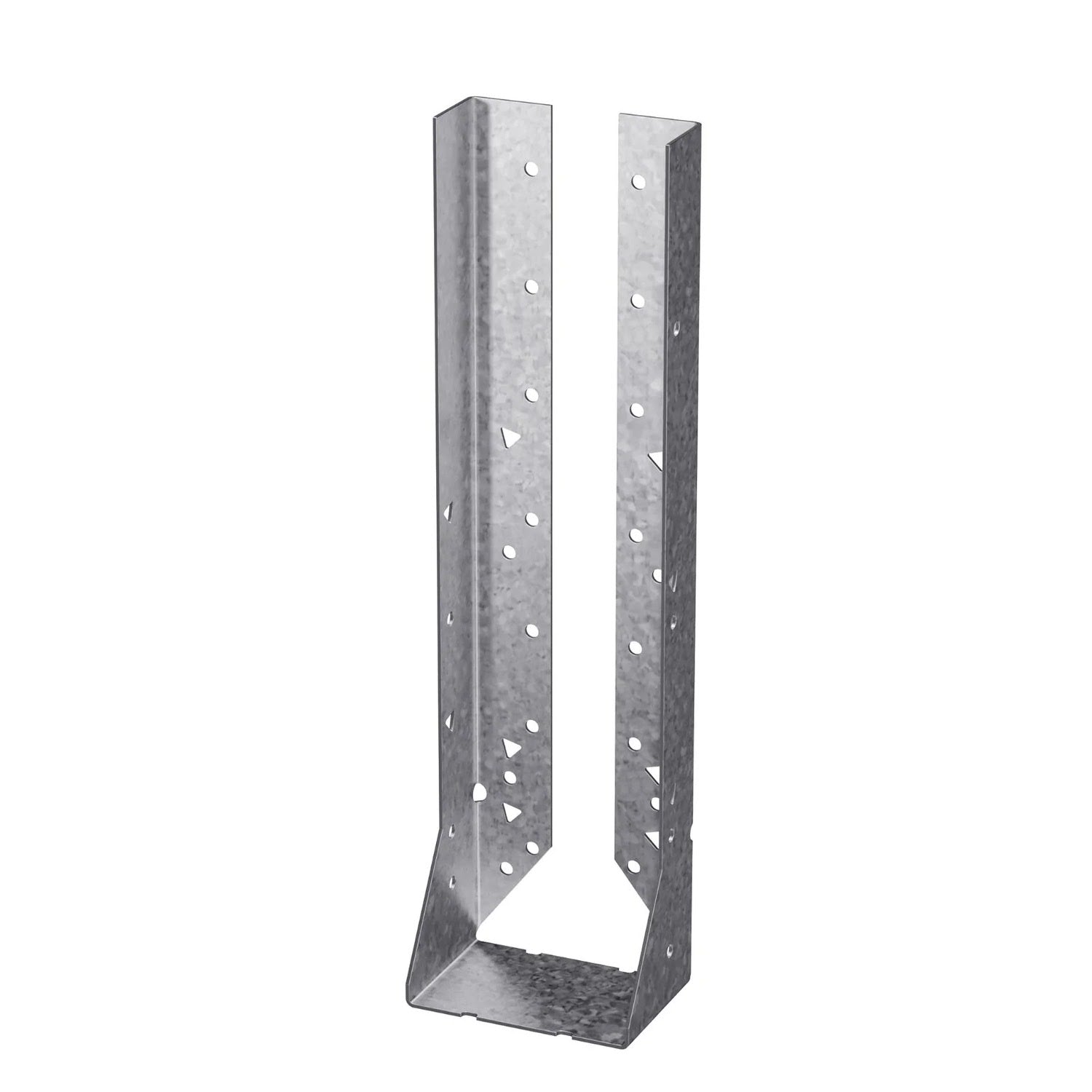

Simpson Strong-Tie HUC416 Description
The Simpson Strong-Tie HUC416 is a heavy-duty, concealed-flange face-mount joist hanger designed for robust support in construction applications. Made from 14-gauge steel with a G90 galvanized finish, it ensures durability and corrosion resistance.
Simpson Strong-Tie HUC416 Includes
- (1) HUC416 Joist Hanger
Simpson Strong-Tie HUC416 Features

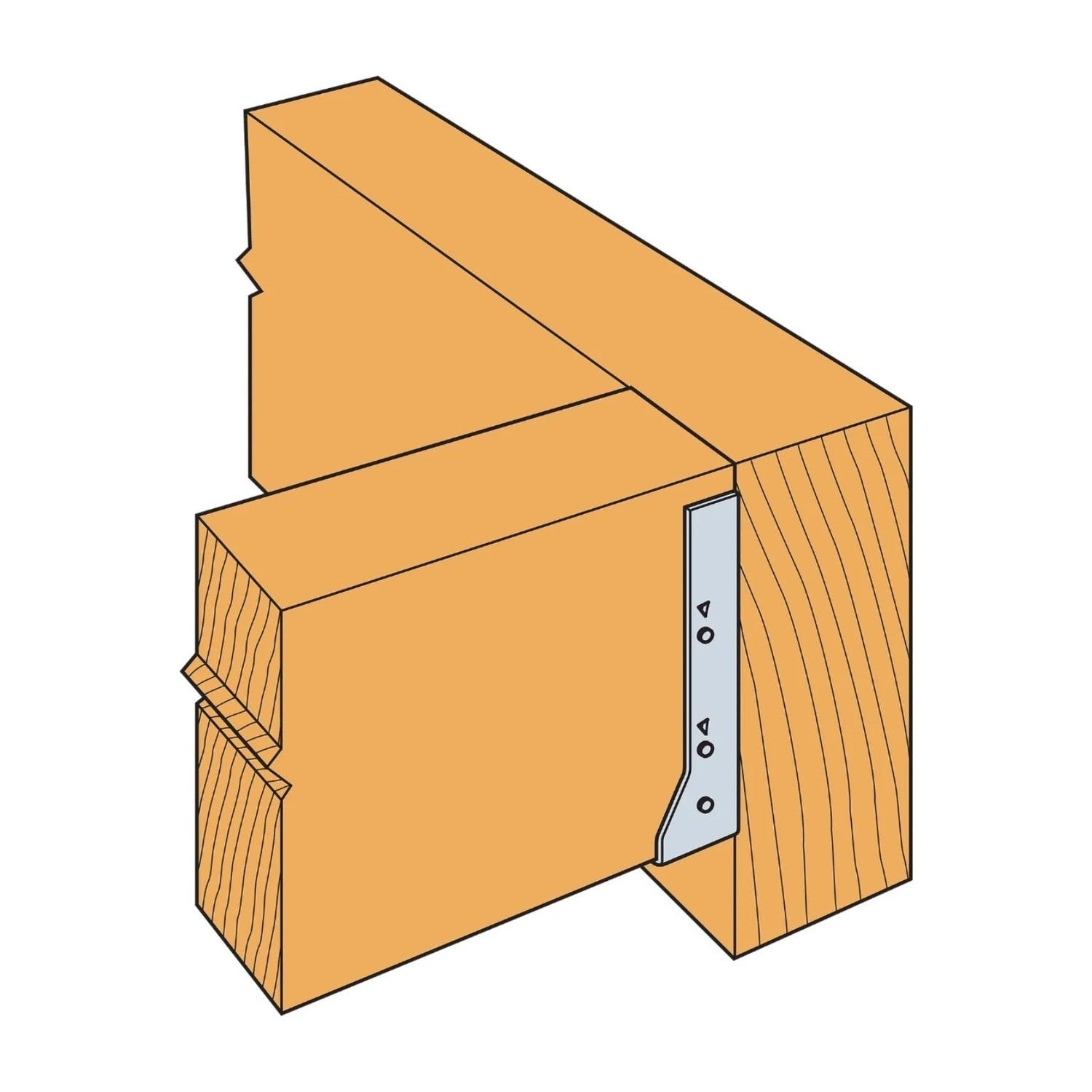

- Concealed Flange Design for clean lines and close installation to beam ends
- G90 Galvanized Finish for corrosion resistance
- Versatile Applications for various joist sizes and materials
- Code Compliance ensuring reliable performance
Simpson Strong-Tie HUC416 Applications
- Decks & Outdoor Structures: Provides strong, concealed connections for deck framing, pergolas, and covered porches.
- Floor Joists & Ceiling Framing: Ensures secure joist connections in residential and commercial construction.
- Multi-Family Housing & Commercial Buildings: Used in large-scale framing applications for apartments, offices, and mixed-use buildings.

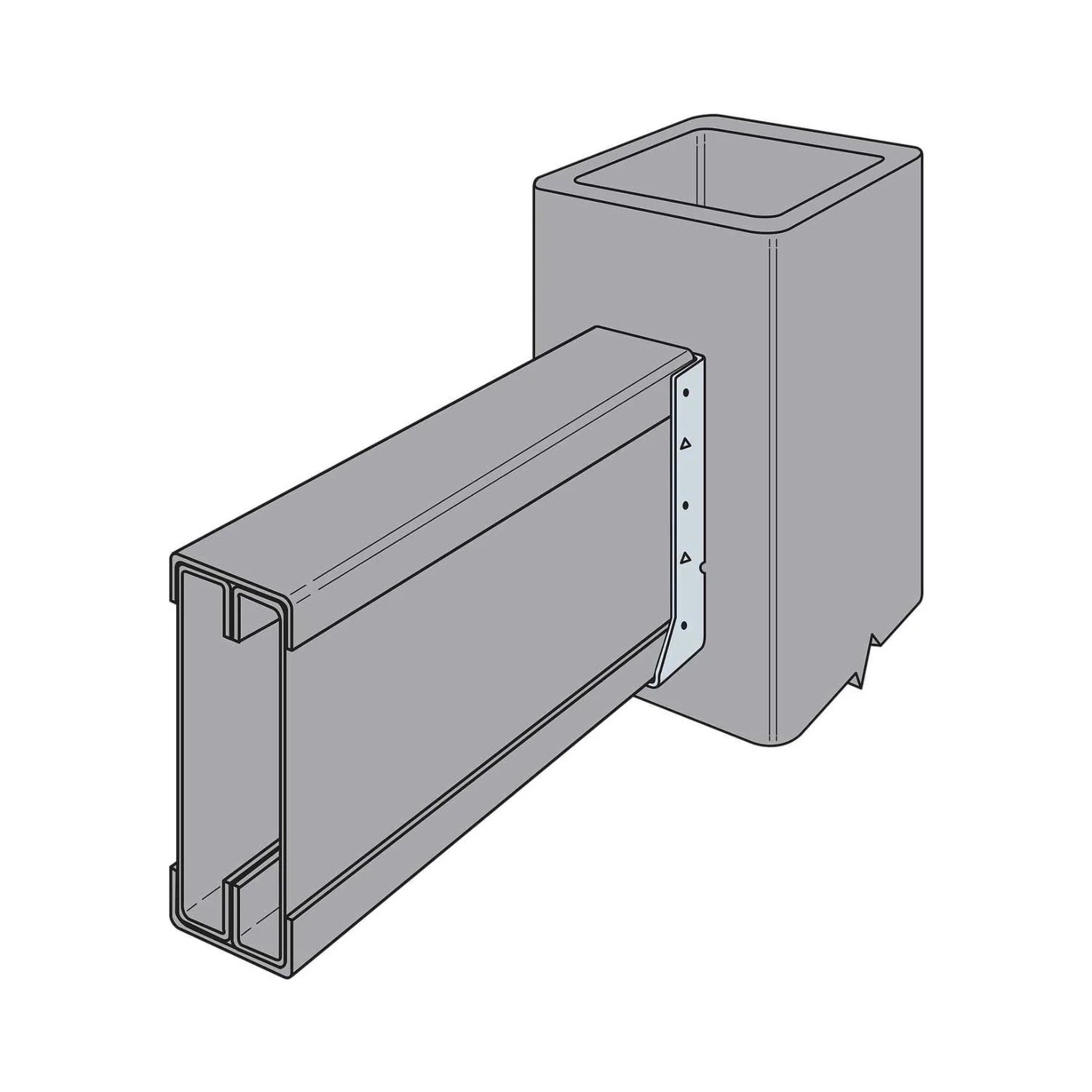

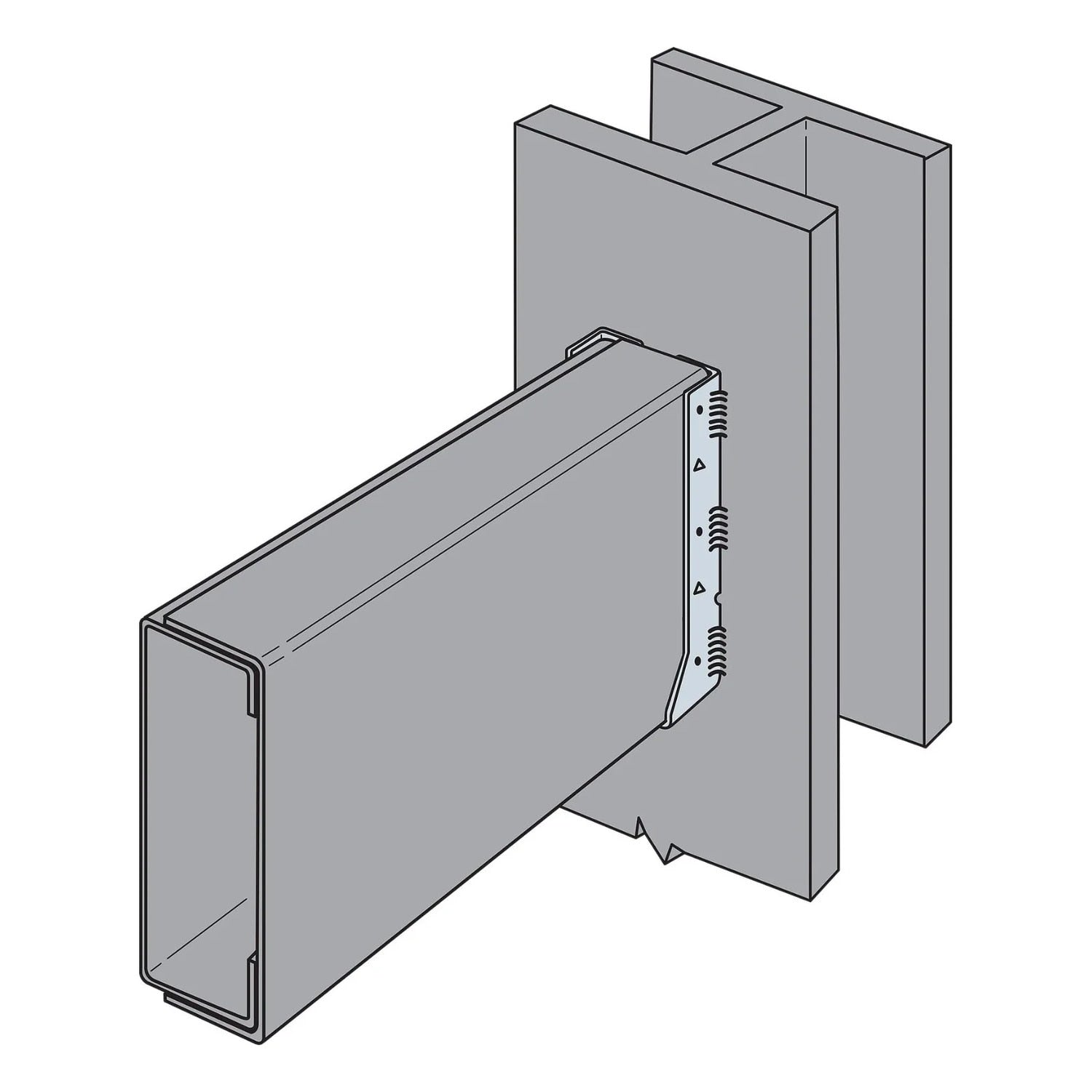

- Engineered Wood & Steel Framing: Compatible with LVL, PSL, and CFS joists for advanced construction needs.
- Retrofitting & Renovation Projects: Ideal for reinforcing existing structures while maintaining a clean, unobtrusive look.

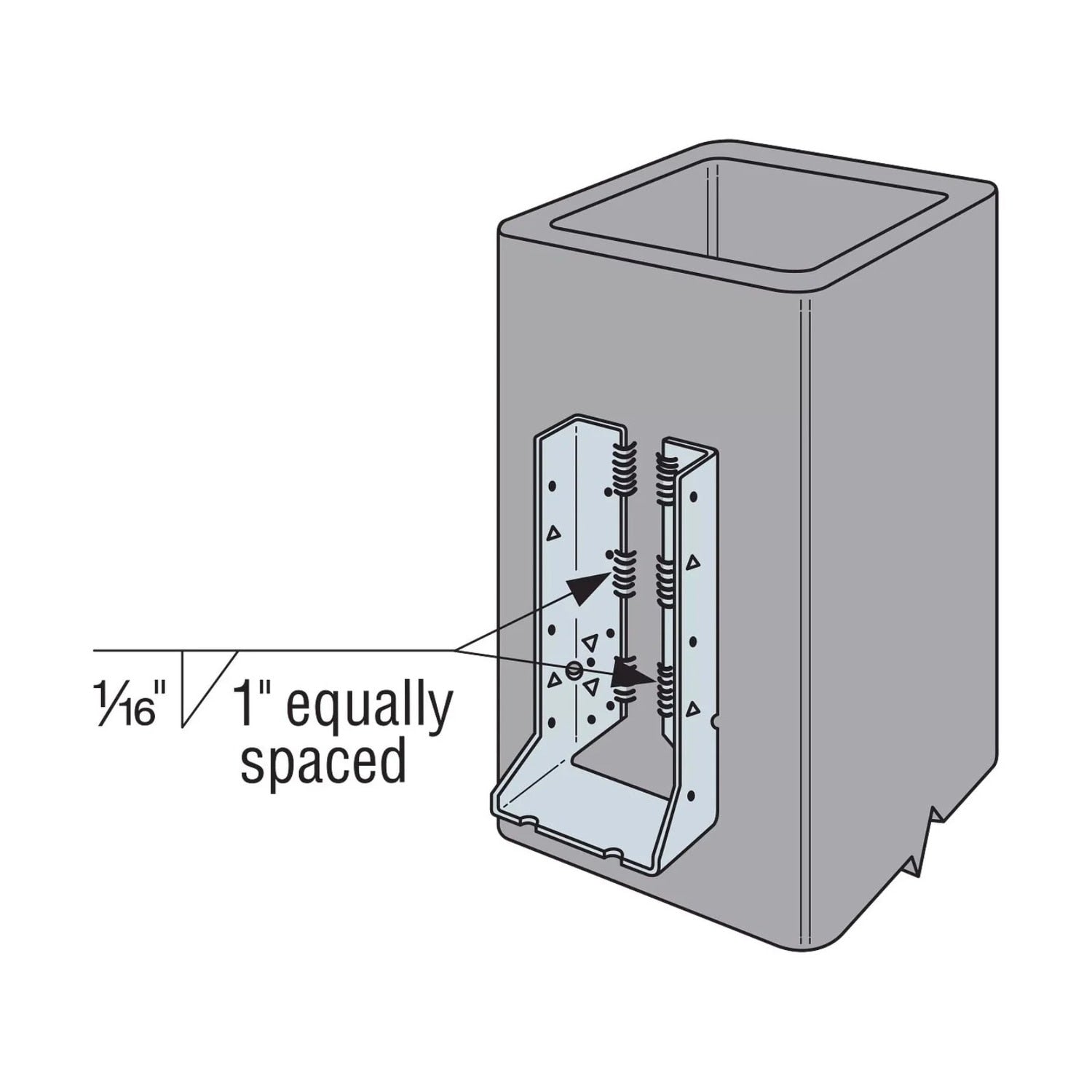

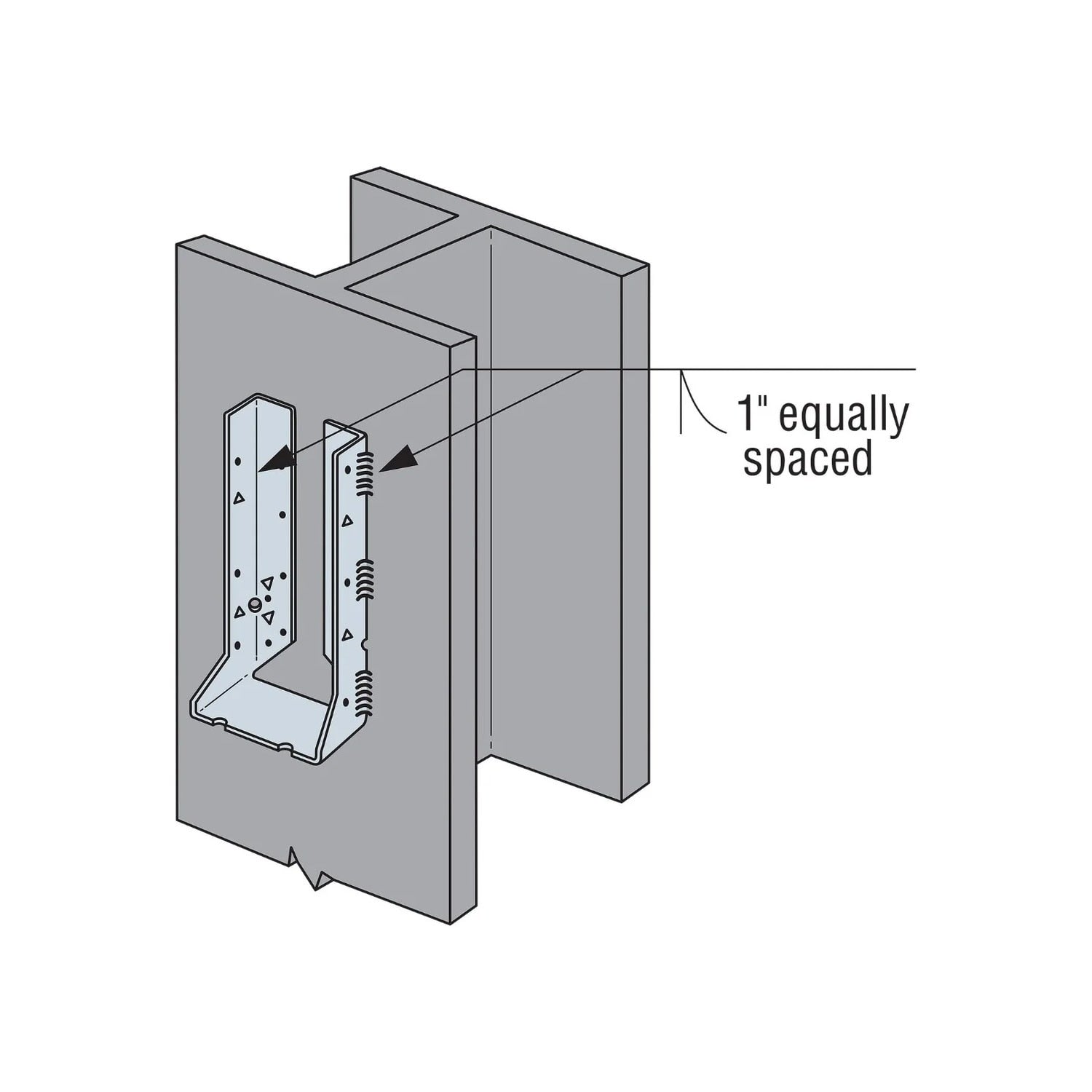

Simpson Strong-Tie HUC416 Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Fill both round and triangle holes with common nails for maximum load capacity.
Simpson Strong-Tie HUC416 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (26) 0.162" x 3-1/2" Nails, Joist - (12) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 13-11/16" |
| Joist size | 4" X 16" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 3-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
