Simpson Hangers | SKU:
HUC416TF

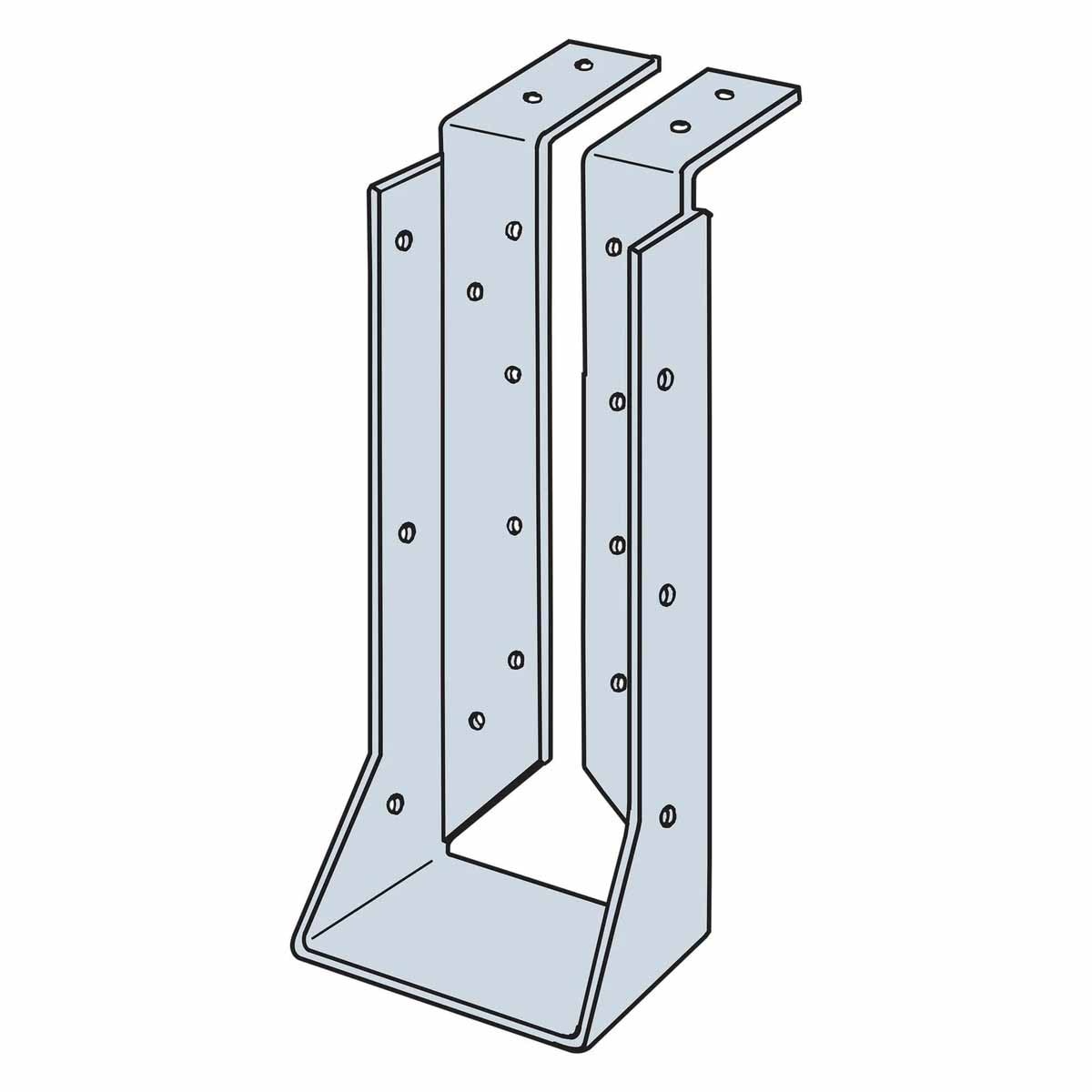

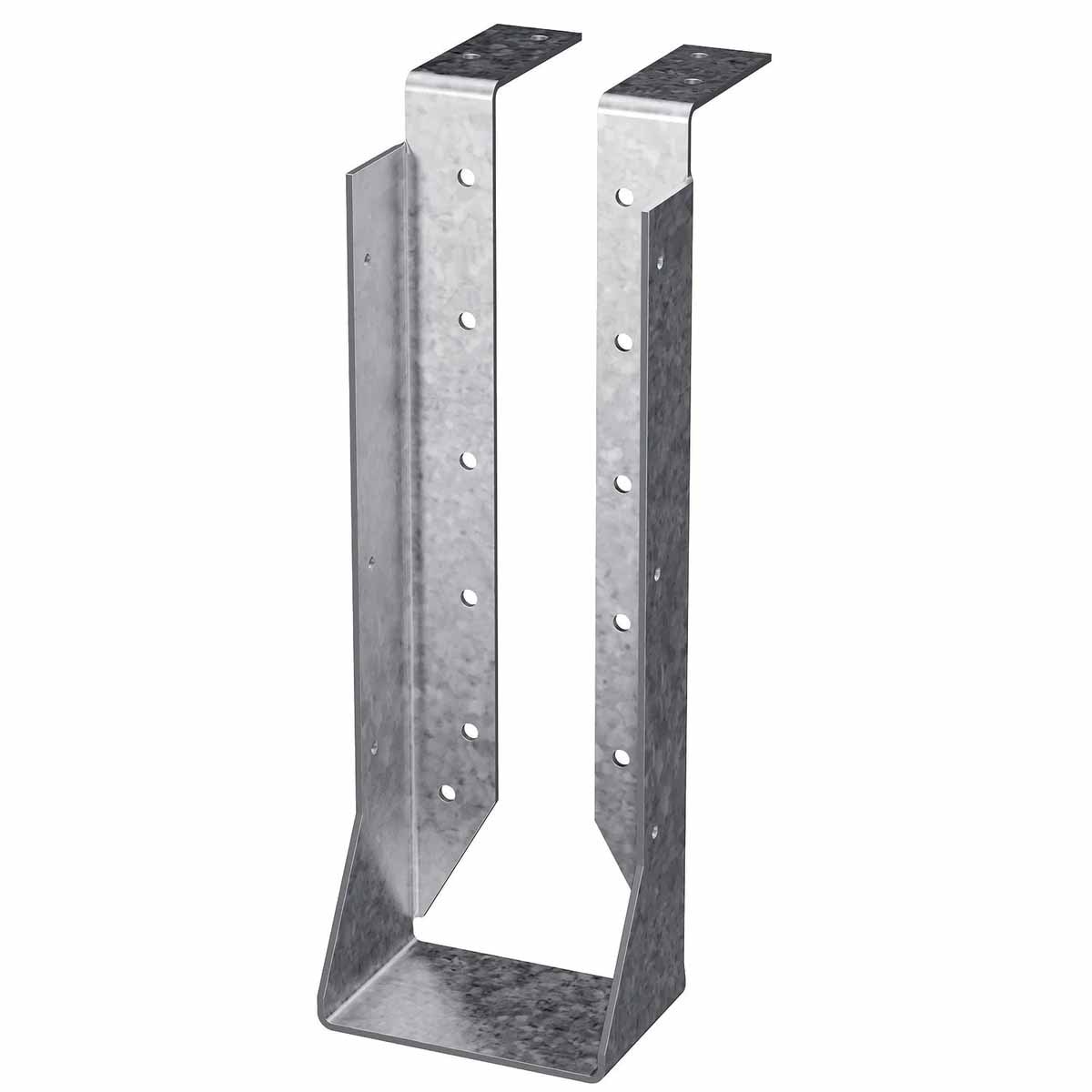

Simpson Strong-Tie HUC416TF (4x16) Heavy Top-Flange Hanger with Concealed Flanges
$60.37
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUC416TF Description
The HUC416TF Heavy Top-Flange Hanger with Concealed Flanges provides a robust solution for securely attaching joists to beams or ledgers, ensuring even load distribution and structural integrity.
Simpson Strong-Tie HUC416TF Includes
- (1) Heavy Top-Flange Hanger
Simpson Strong-Tie HUC416TF Features
- Concealed Flange Design for a clean, seamless aesthetic
- Heavy-duty 12-gauge steel construction for durability
- G90 Galvanized finish for corrosion resistance
Simpson Strong-Tie HUC416TF Applications
- Residential and commercial structural projects including floors, ceilings, and roofs
- End-of-wall installations for joists terminating at the end of a wall
- Corner joist connections for structural stability in corner placements
Simpson Strong-Tie HUC416TF Installation Overview
- Use all specified fasteners according to manufacturer guidelines
- Ensure the minimum recommended header or ledger size is 3 1/2 inches
- Do not modify for sloped or skewed seat applications
Simpson Strong-Tie HUC416TF Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | See Spec Sheet |
| For Treated Lumber | No |
| Height | 15" |
| Joist size | 4" X 16" |
| Thickness | 12 Gauge |
| Width | 3-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
