Simpson Hangers | SKU:
HUC44
Simpson Strong-Tie HUC44 (4" x 4") 14Ga Heavy Galvanized Concealed-Flange Face-Mount Joist Hanger
$9.50
$14.11
Unit price
/
Unavailable
Description
Description

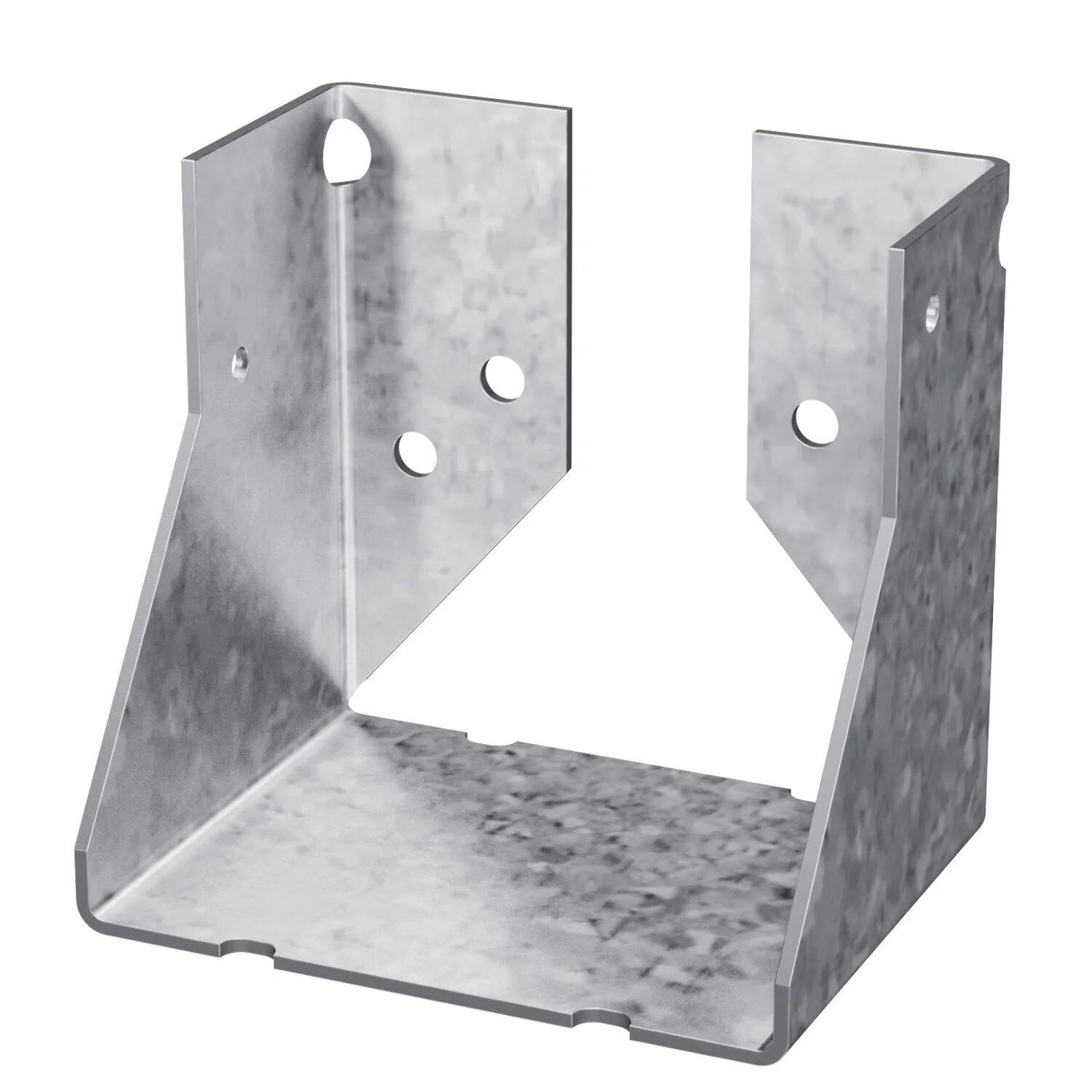

Simpson Strong-Tie HUC44 Description
The HUC44 is a concealed flange joist hanger designed for 4x4 lumber, offering a ZMAX galvanized finish for enhanced corrosion resistance and durability.
Simpson Strong-Tie HUC44 Includes
- (1) HUC44 Concealed Flange Joist Hanger
Simpson Strong-Tie HUC44 Features
- Concealed flange design for a clean appearance
- ZMAX galvanized finish for corrosion resistance
- Compatible with 4x4 lumber
- Heavy-duty construction for structural applications
- Supports joists sloped up to 1/4:12
Simpson Strong-Tie HUC44 Applications
- Structural framing requiring concealed flange hangers
- Use in schools and structures needing additional strength
- Applications requiring corrosion-resistant connectors
Simpson Strong-Tie HUC44 Installation Overview
- Use all specified fasteners for installation
- Fill both round and triangle holes for maximum load values
- Compatible with joists sloped up to 1/4:12

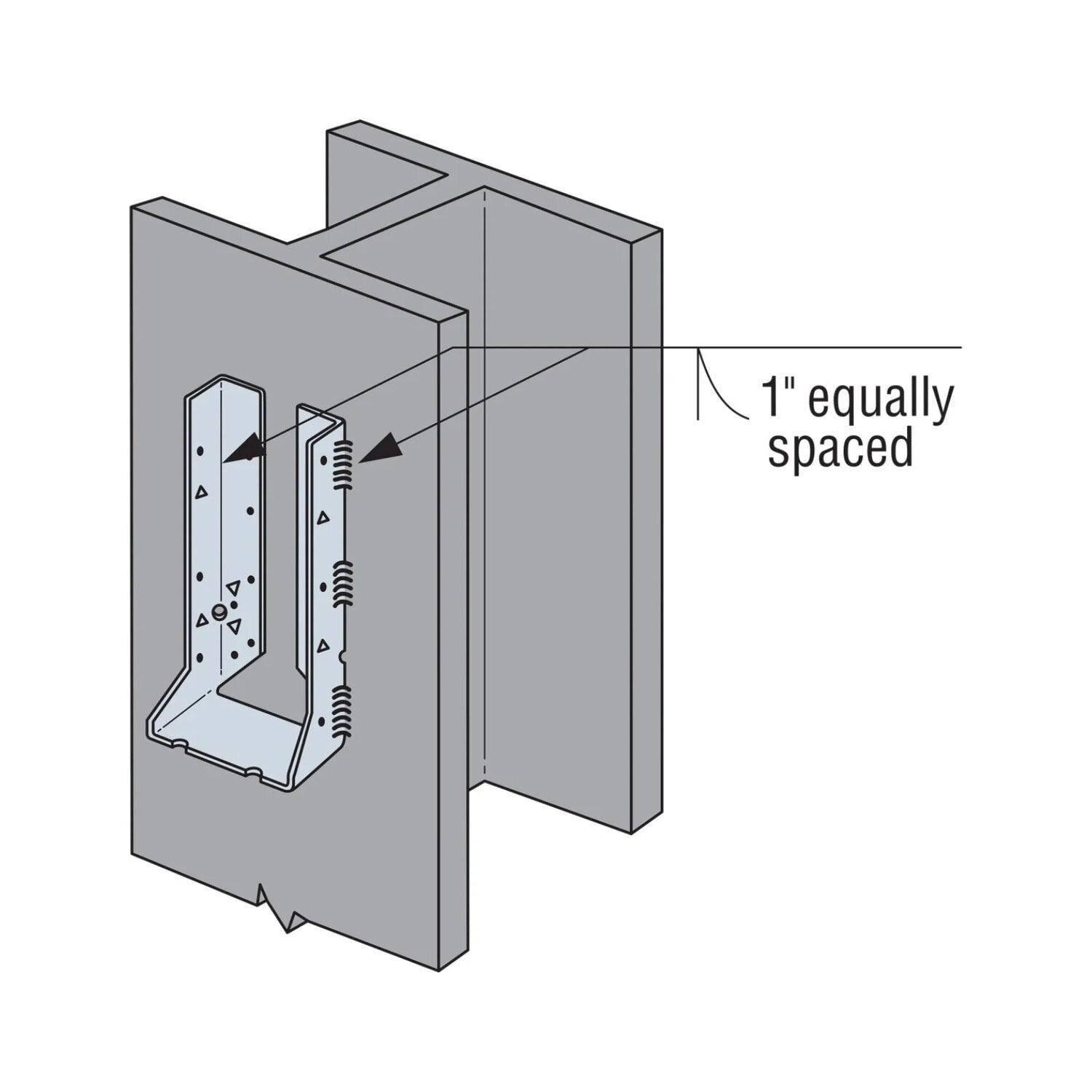

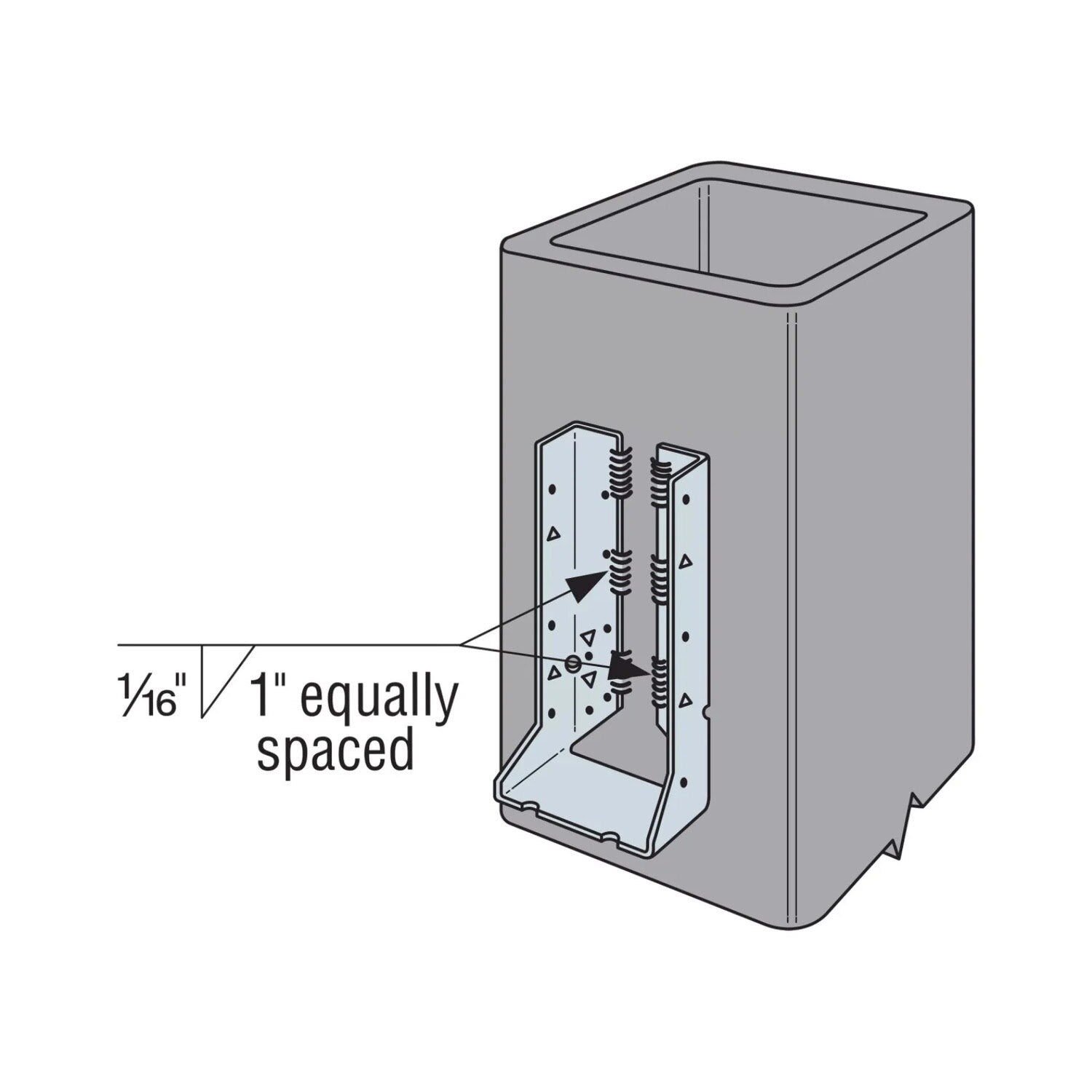

- Can be welded to steel members following technical guidelines
Simpson Strong-Tie HUC44 Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (4) 0.162" x 3-1/2" Nails, Joist - (2) 0.148" x 3" Nails |
| For Treated Lumber | Yes |
| Height | 2-7/8" |
| Joist size | 4" X 4" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 3-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
