Simpson Hangers | SKU:
HUC44Z
Simpson Strong-Tie HUC44Z (4" x 4") 14Ga Heavy Galvanized Concealed-Flange Face-Mount Joist Hanger
$14.19
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUC44Z Description

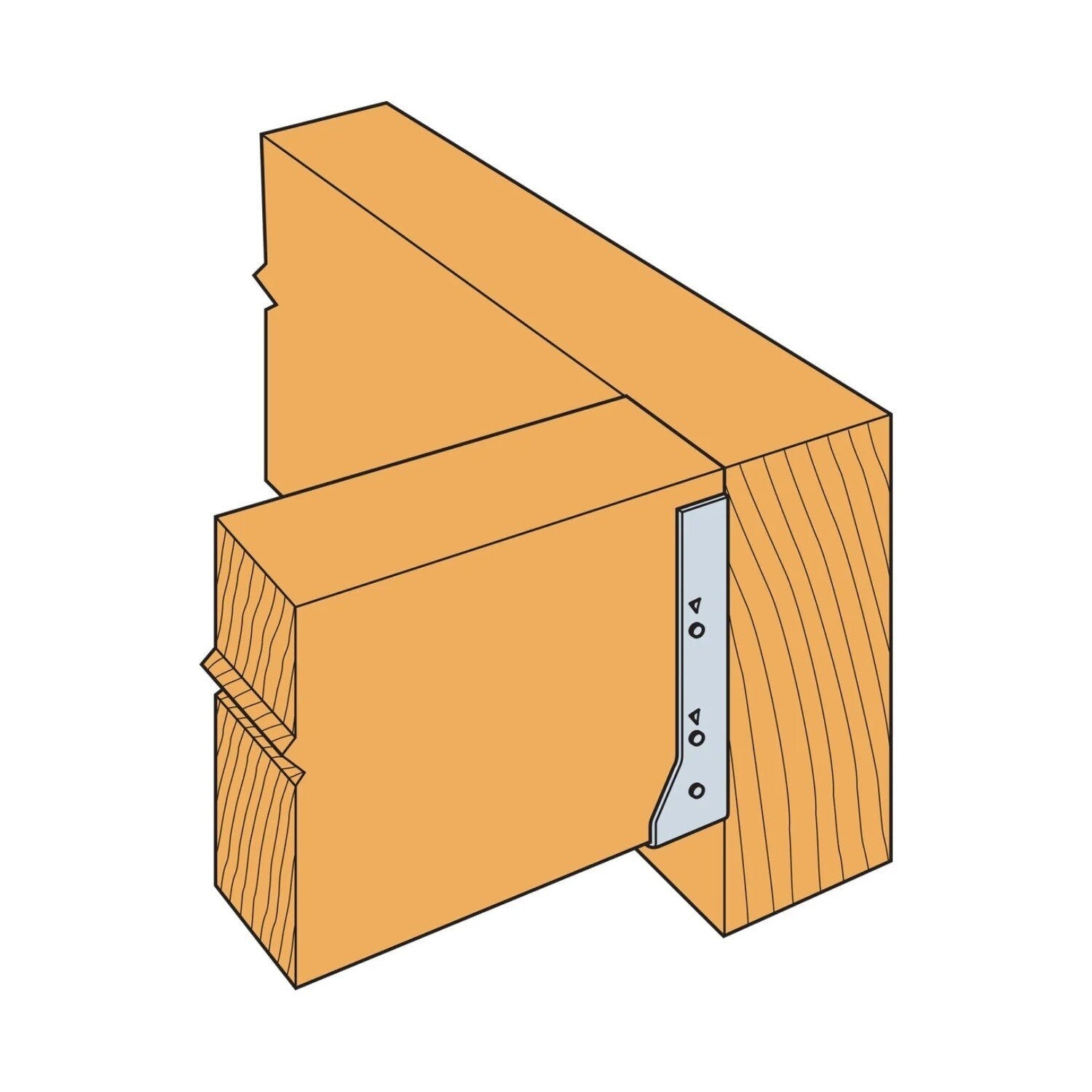

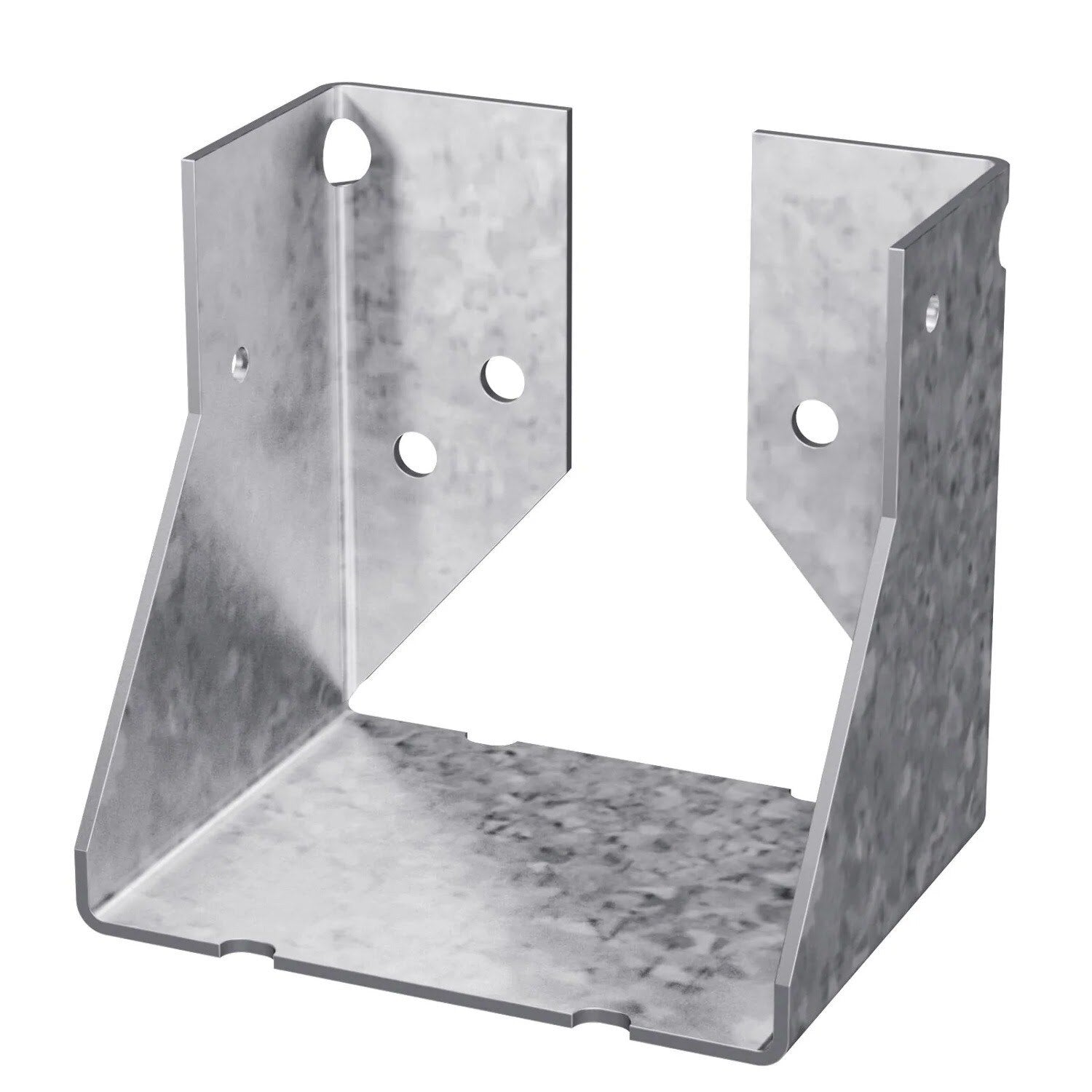

The Simpson Strong-Tie HUC44Z is a concealed flange heavy face mount joist hanger designed for 4x4 joists, featuring a ZMAX galvanized finish for enhanced corrosion resistance.
Simpson Strong-Tie HUC44Z Includes
- (1) Concealed Flange Heavy Face Mount Joist Hanger
Simpson Strong-Tie HUC44Z Features
- Concealed flange design for a clean look
- ZMAX galvanized finish for corrosion resistance
- Compatible with 4x4 joists
- Heavy-duty construction for structural integrity
- Designed for use with hot-dip galvanized fasteners
Simpson Strong-Tie HUC44Z Applications
- Structural framing requiring concealed flange joist hangers
- Use in schools and other structures needing additional strength and safety
- Applications requiring corrosion-resistant connectors
Simpson Strong-Tie HUC44Z Installation Overview
- Use all specified fasteners for installation
- Can be installed filling round holes only or both round and triangle holes for maximum values
- Supports joists sloped up to 1/4:12

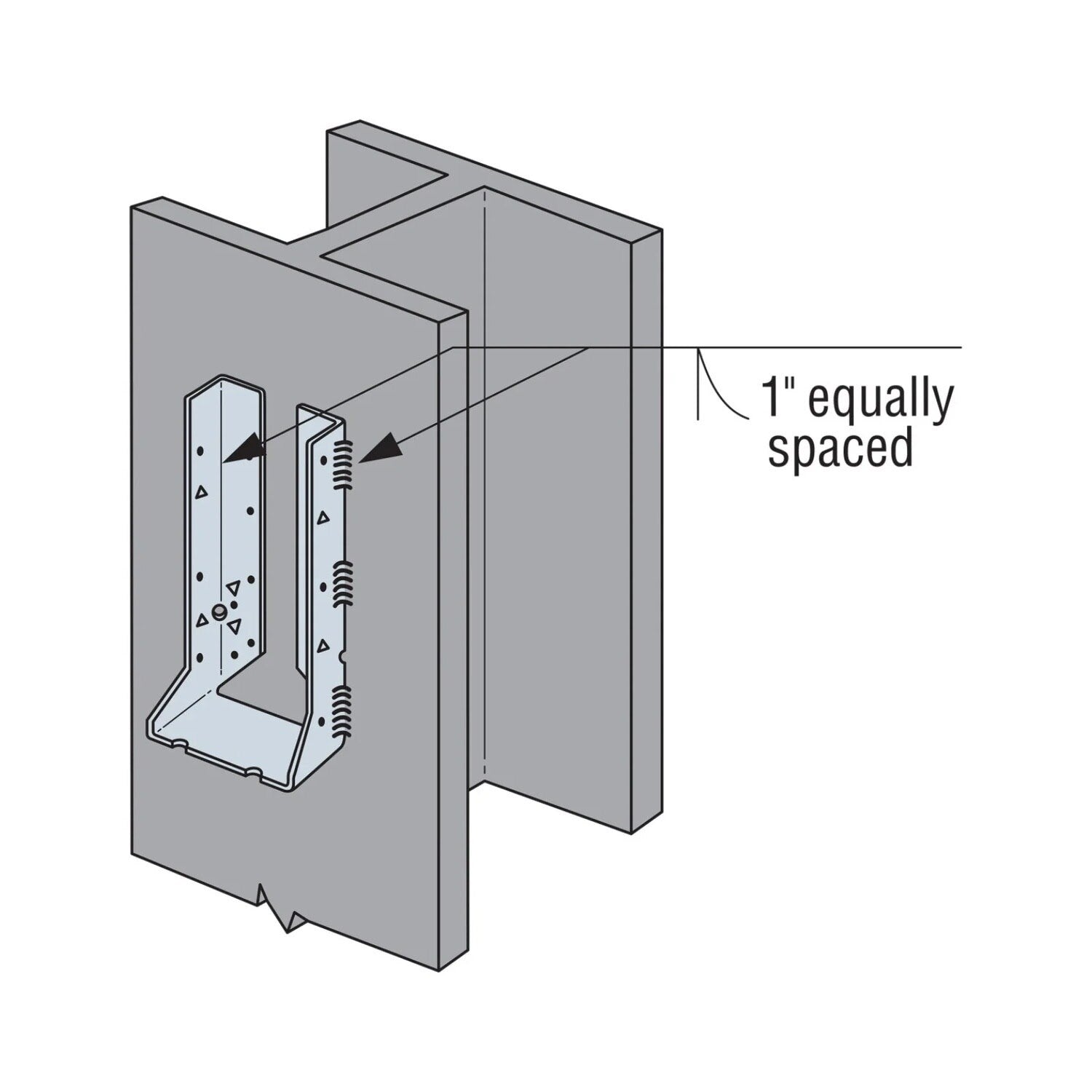

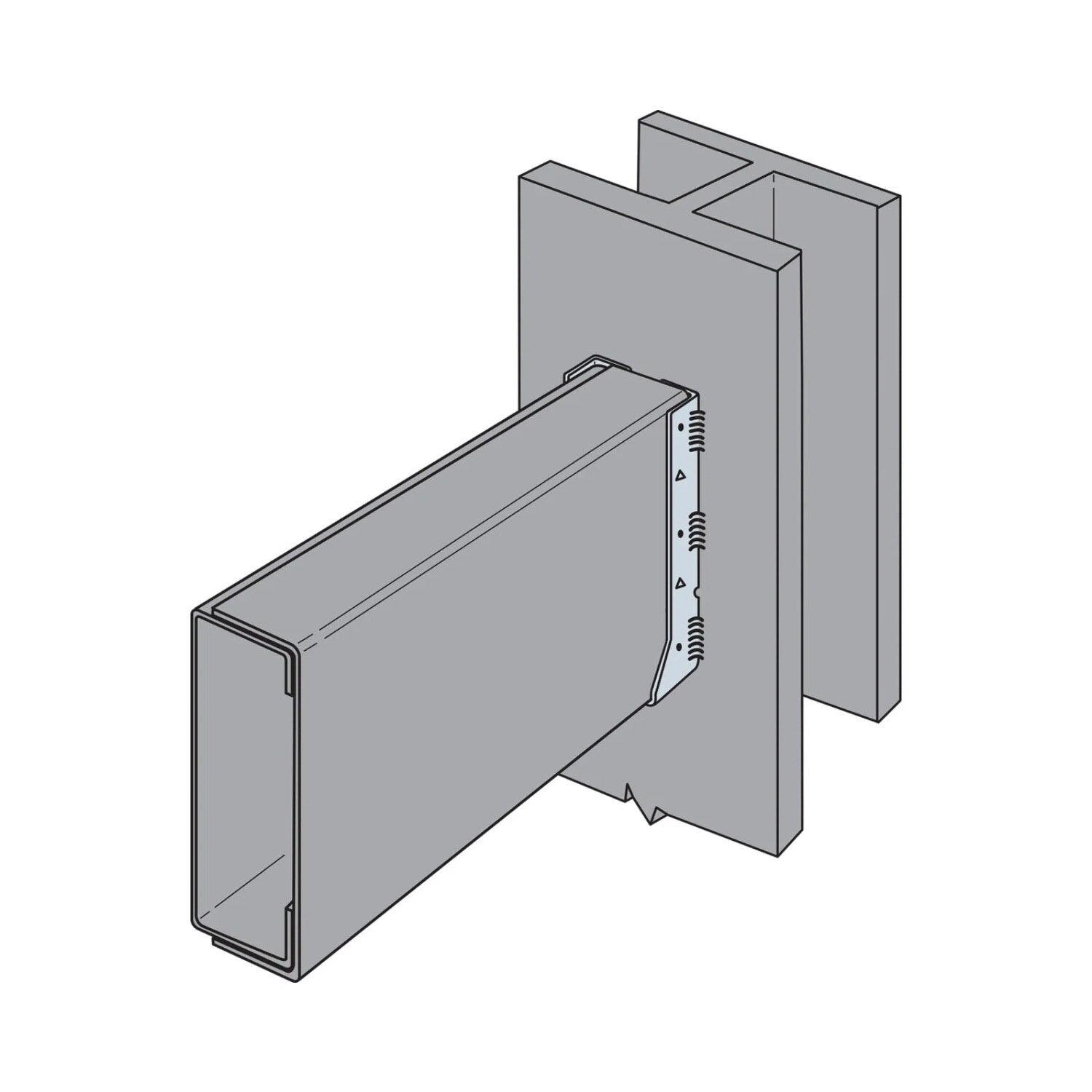

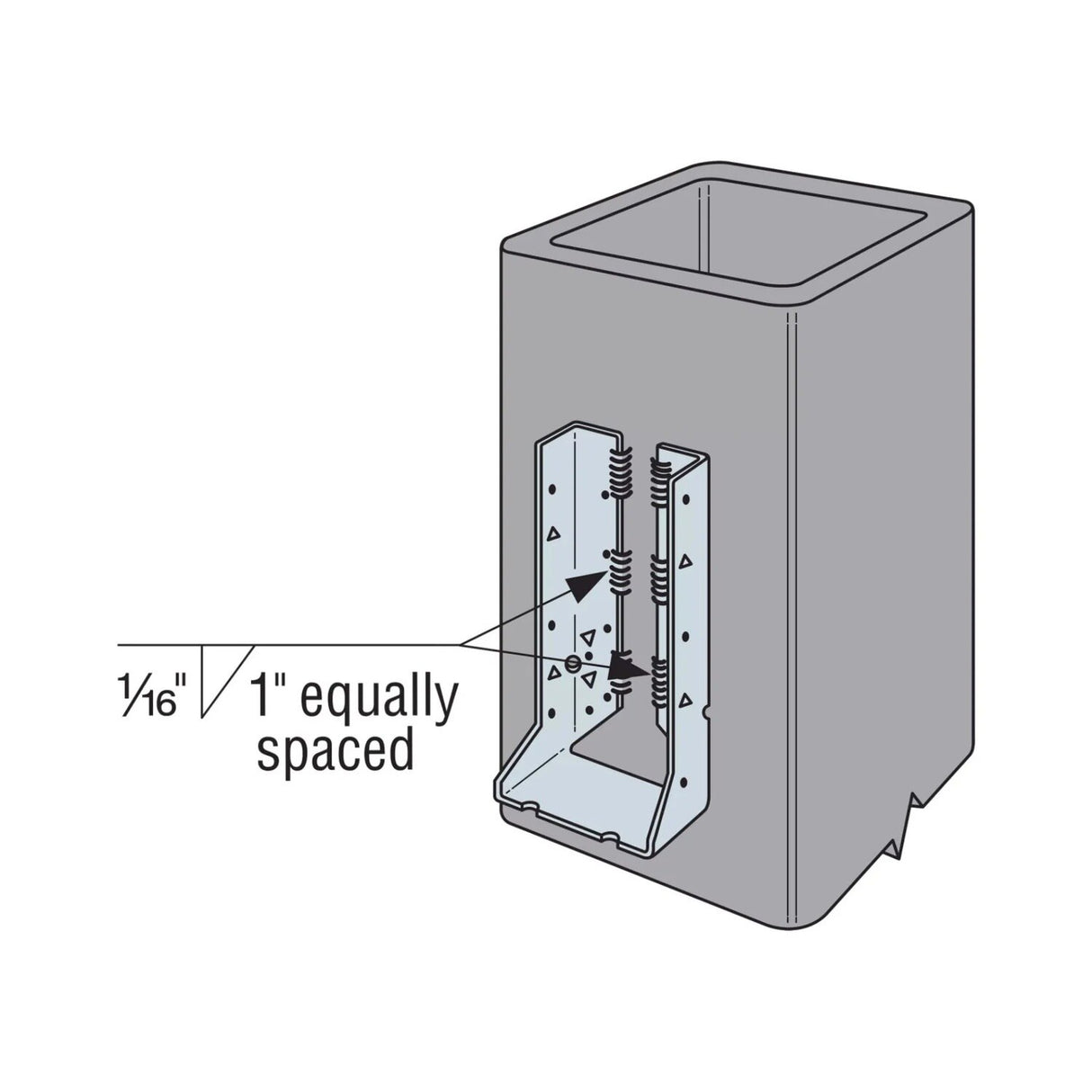

- Can be welded to steel members following technical guidelines
Simpson Strong-Tie HUC44Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (4) 0.162" x 3-1/2" Nails, Joist - (2) 0.148" x 3" Nails |
| For Treated Lumber | Yes |
| Height | 2-7/8" |
| Joist size | 4" X 4" |
| Thickness | 14 Gauge |
| Width | 3-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
