Simpson Hangers | SKU:
HUC46
Simpson Strong-Tie HUC46 (4-3/4) 14Ga Heavy Galvanized Concealed-Flange Face-Mount Joist Hanger
$10.78
$16.99
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description

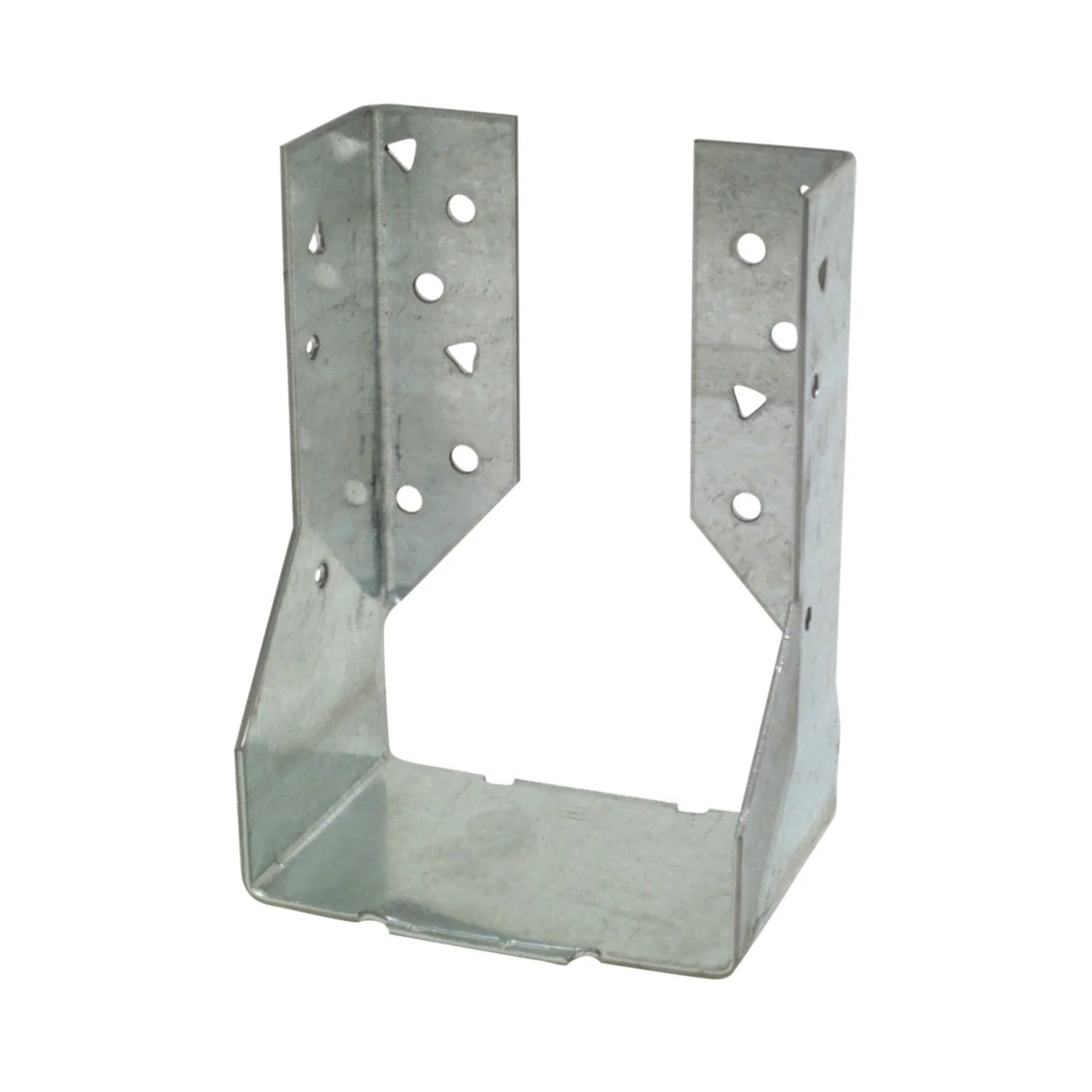

Simpson HUC46 Description
The Simpson HUC46 is a concealed flange heavy-duty face-mount hanger designed for 4x6 joists, featuring G90 galvanized coating for durability and safety.
Simpson HUC46 Includes
- (1) Galvanized Face-Mount Concealed-Flange Joist Hanger for 4x6
Simpson HUC46 Features
- Concealed flange design for a clean appearance
- G90 Galvanized coating for corrosion resistance
- Heavy-duty construction for enhanced strength
- Compatible with 4x6 joists
- Designed for schools and structures requiring additional safety
Simpson HUC46 Applications
- Structural framing for schools and other buildings
- Joist support in wood construction
- Heavy-duty applications requiring concealed flange hangers
Simpson HUC46 Installation Overview
- Use all specified fasteners
- Fill round and triangle holes for maximum load values
- Joists sloped up to 1/4:12 achieve load tables

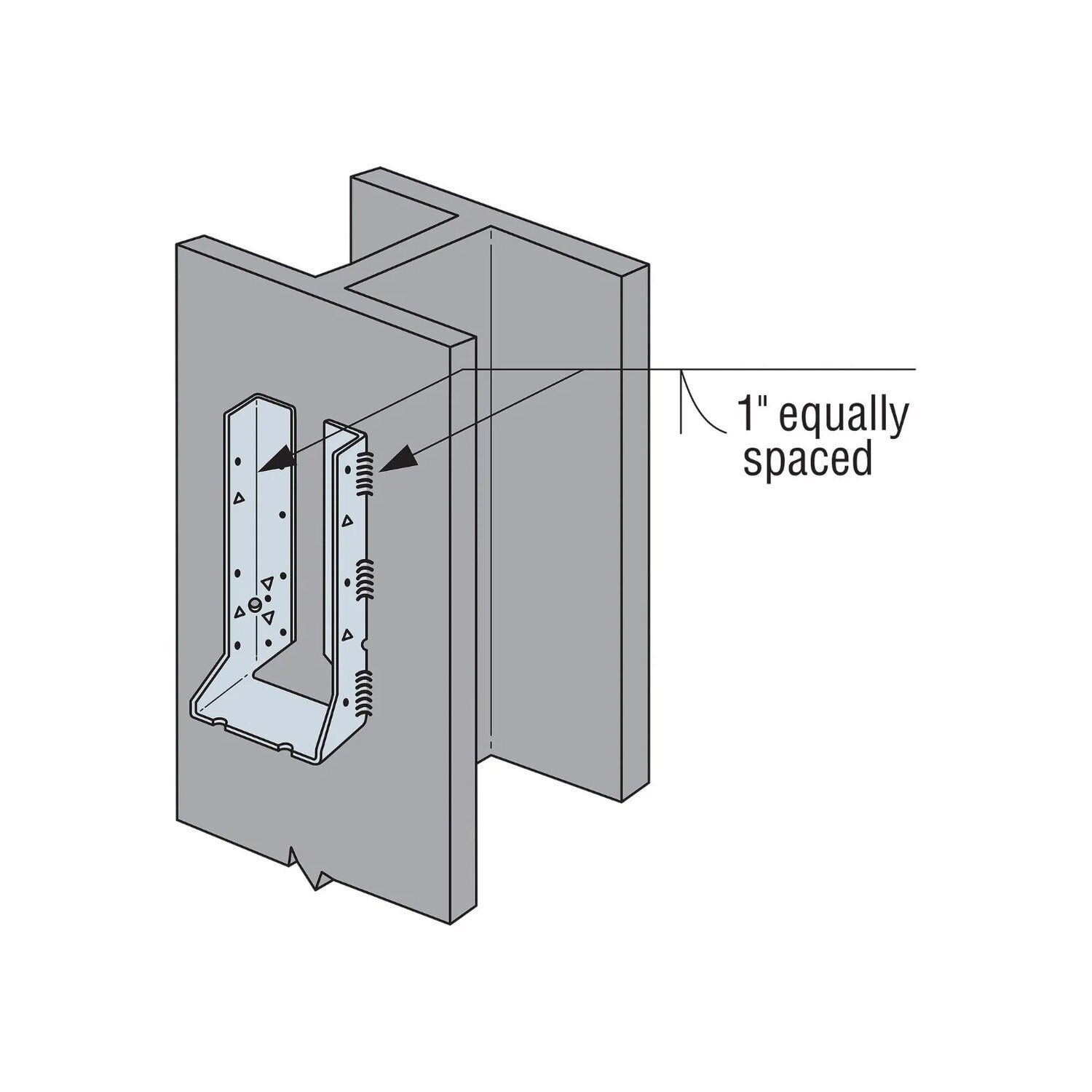

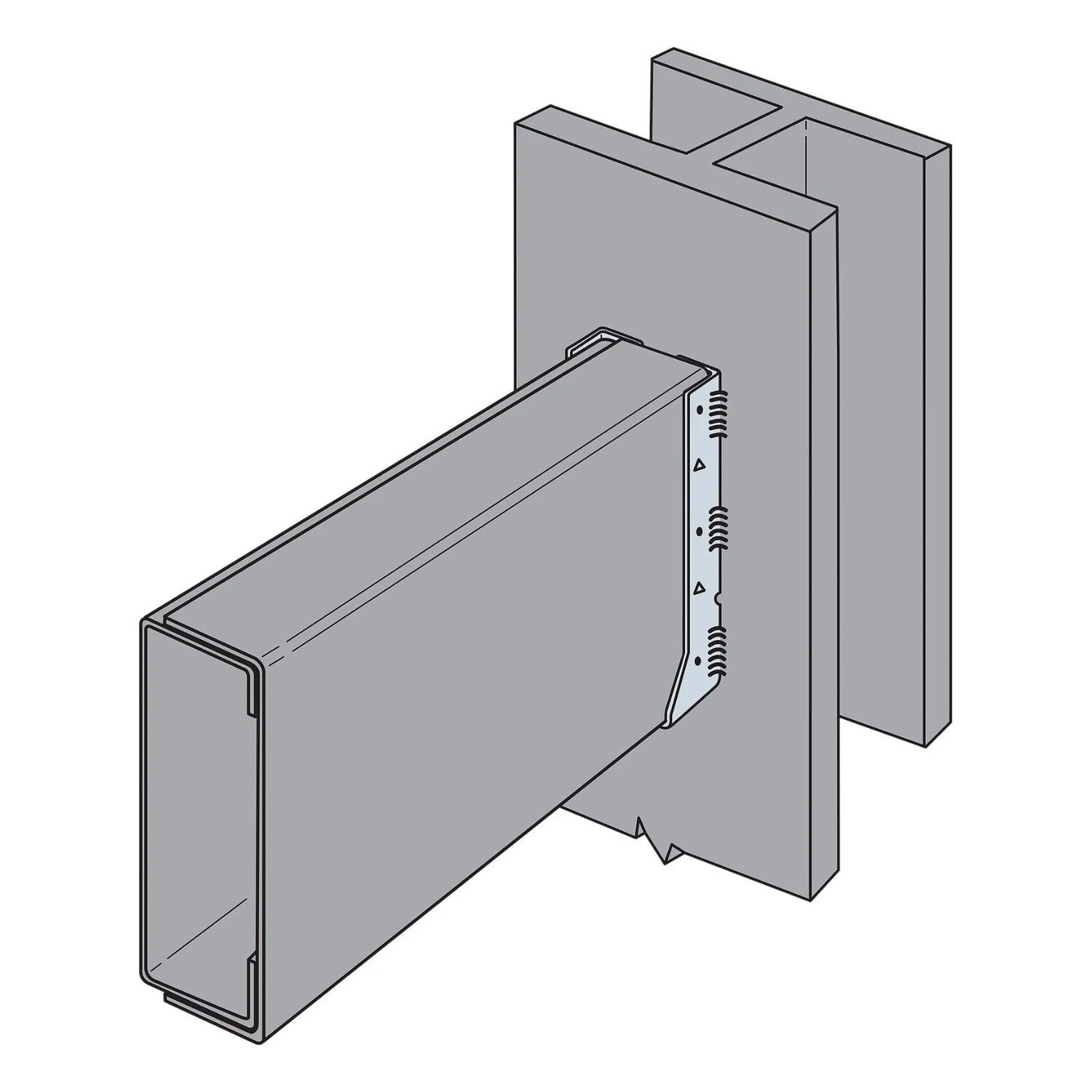

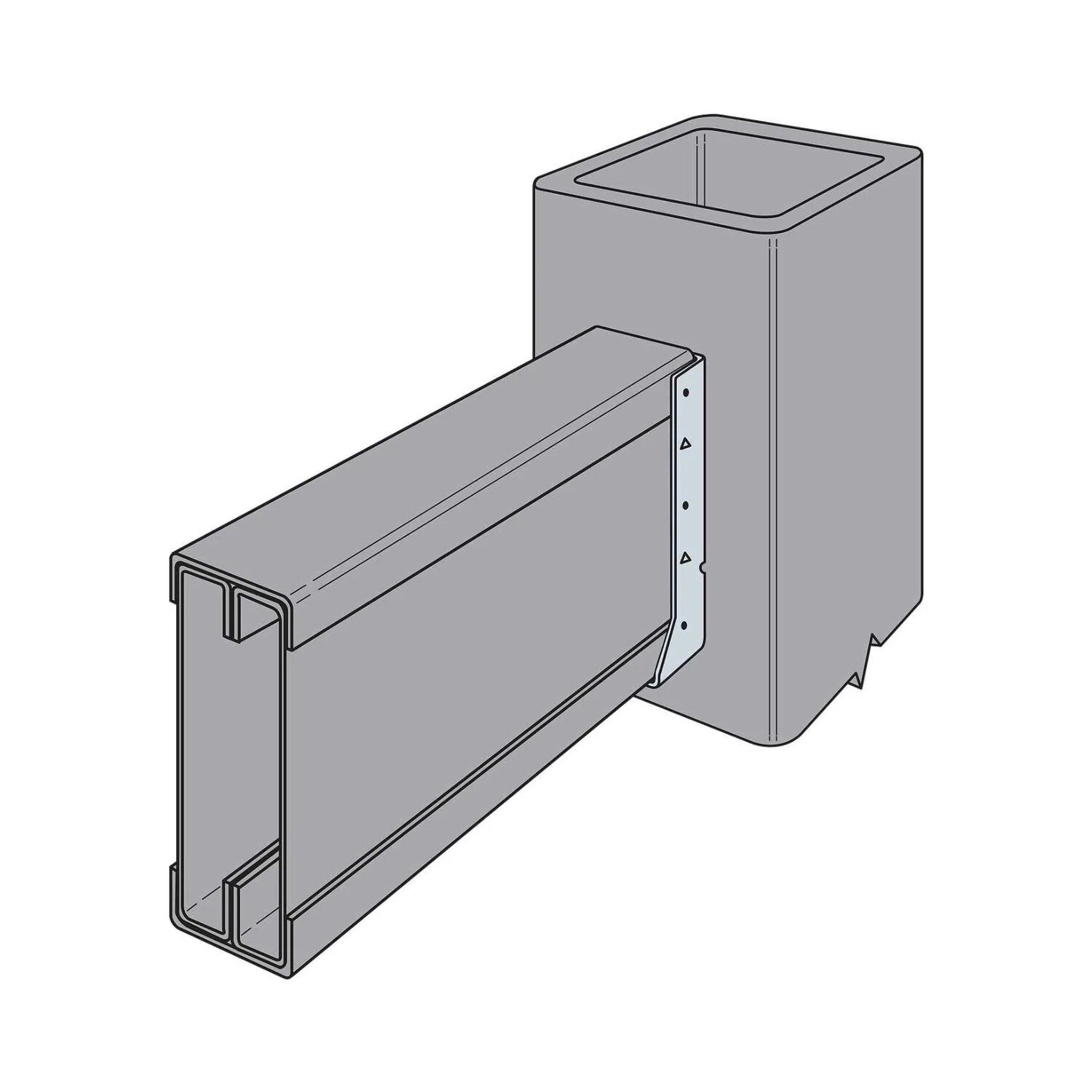

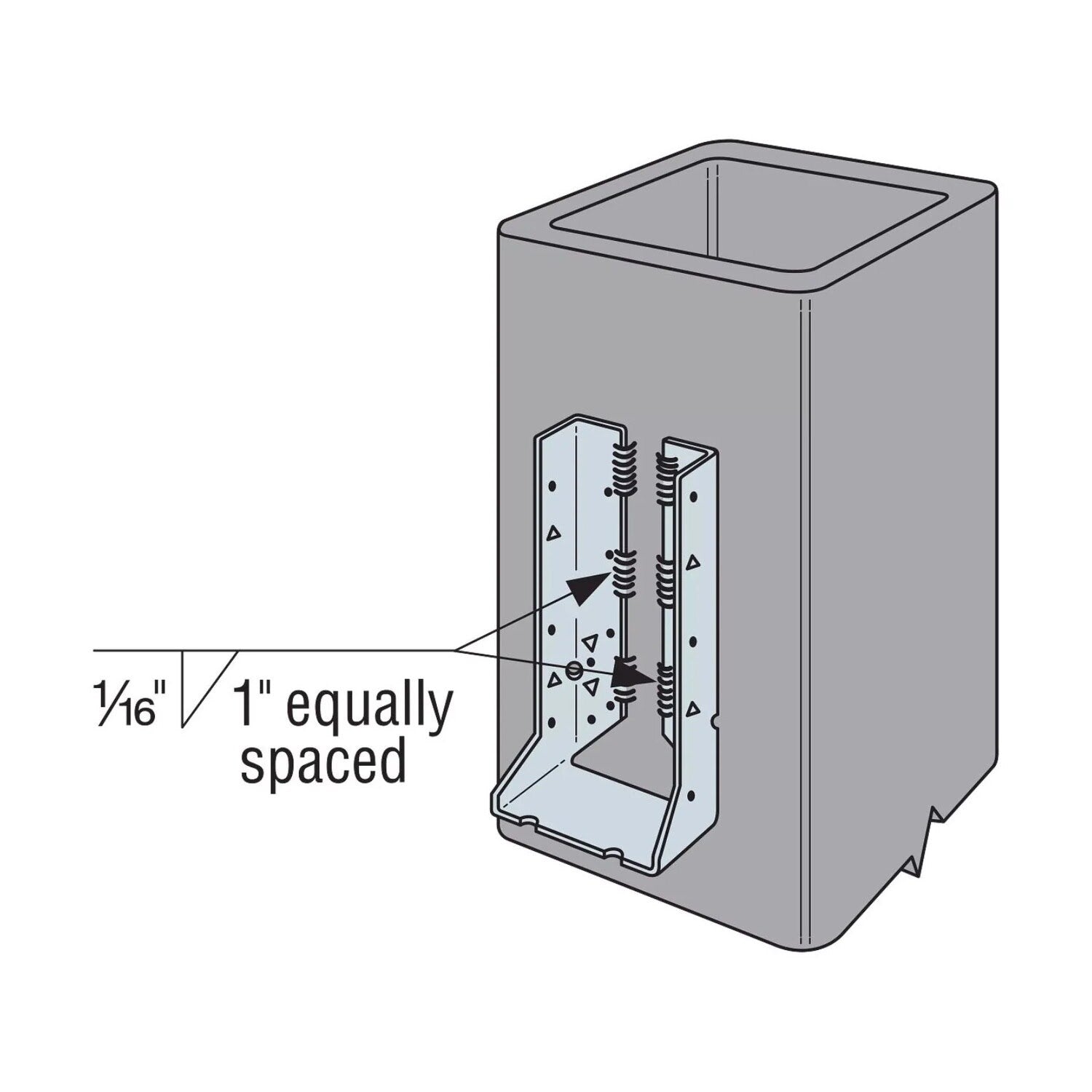

- Can be welded to steel members following technical guidelines
Simpson HUC46 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (12) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 4-3/4" |
| Joist size | 4" X 6" |
| Thickness | 14 Gauge |
| Width | 3-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
