Simpson Strong-Tie HUC46TF Description

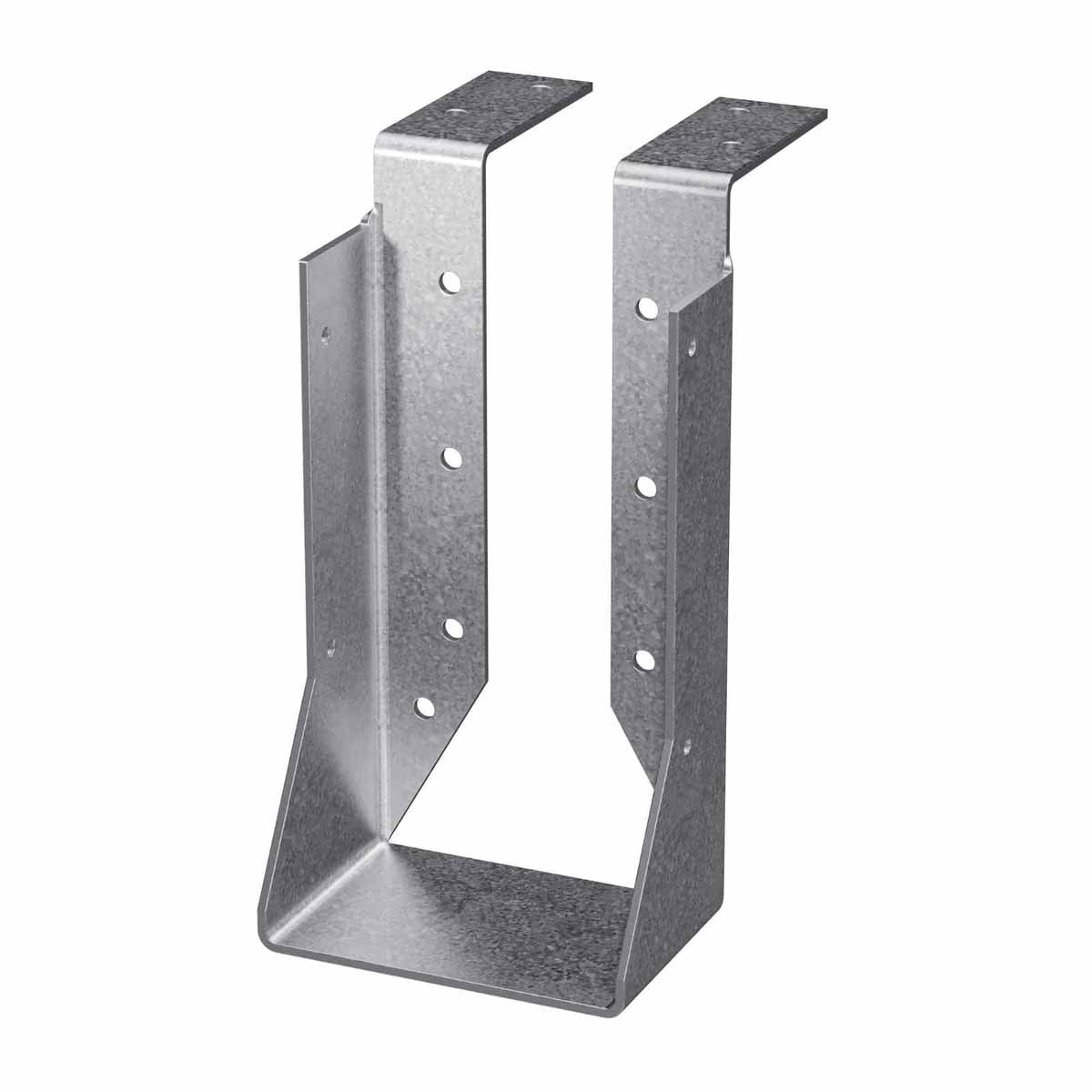

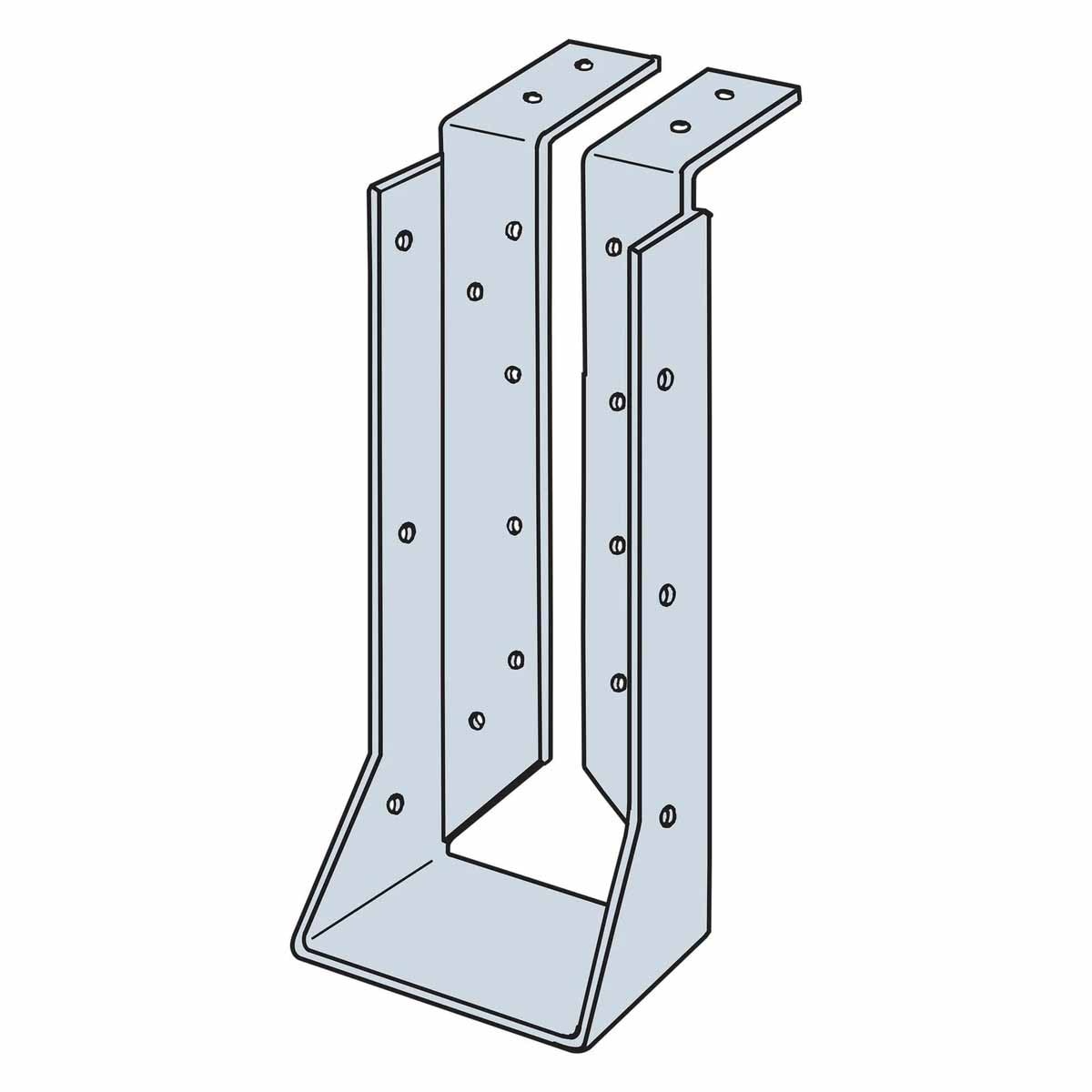

The HUC46TF Heavy-Duty Top-Flange Concealed-Flange Joist Hanger is designed for securely attaching joists to beams or ledgers, ensuring even load distribution and structural integrity.
Simpson Strong-Tie HUC46TF Includes
- (1) HUC46TF Heavy-Duty Top-Flange Concealed-Flange Joist Hanger
Simpson Strong-Tie HUC46TF Features
- Concealed Flange Design for a clean, seamless aesthetic
- Heavy-Duty Construction made from 12-gauge steel
- G90 Galvanized Finish for excellent corrosion resistance
Simpson Strong-Tie HUC46TF Applications
- Residential and Commercial Use: Suitable for floors, ceilings, and roofs
- End-of-Wall Installations: Designed for joists terminating at the end of a wall
- Corner Joist Connections: Ensures structural stability in corner placements
Simpson Strong-Tie HUC46TF Installation Overview
- Use all specified fasteners according to manufacturer guidelines
- Minimum recommended header or ledger size is 3 1/2 inches
- These hangers cannot be modified for sloped or skewed seat applications
Simpson Strong-Tie HUC46TF Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (10) 0.162" x 3-1/2" Nails, Joist - (4) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 5-3/8" |
| Joist size | 4" X 6" |
| Manufacturer name | Simpson Strong-Tie |
| Thickness | 12 Gauge |
| Width | 3-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
