Simpson Hangers | SKU:
HUC46Z
Simpson Strong-Tie HUC46Z (4-3/4") 14Ga Heavy Galvanized Concealed-Flange Face-Mount Joist Hanger
$16.52
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUC46Z Description

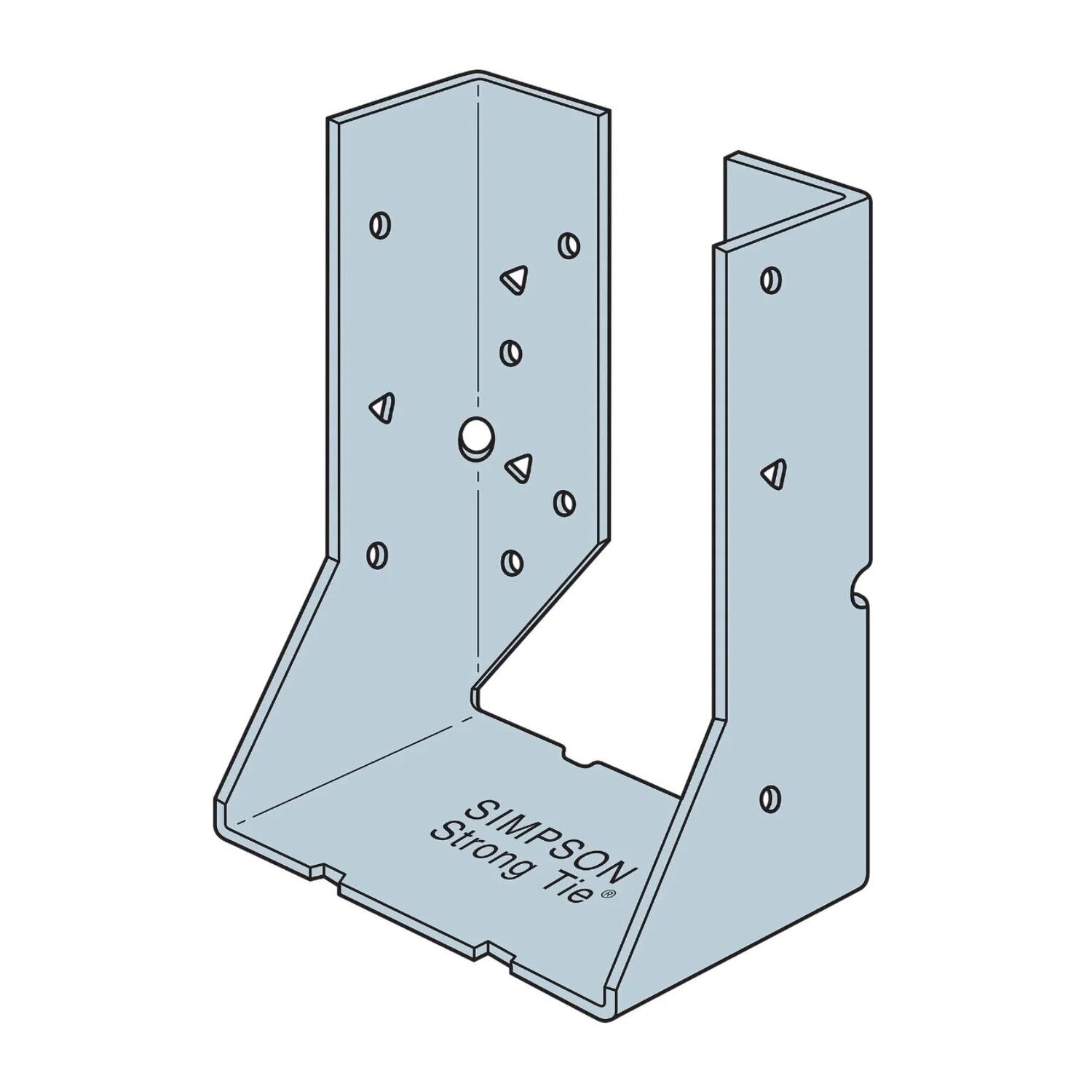

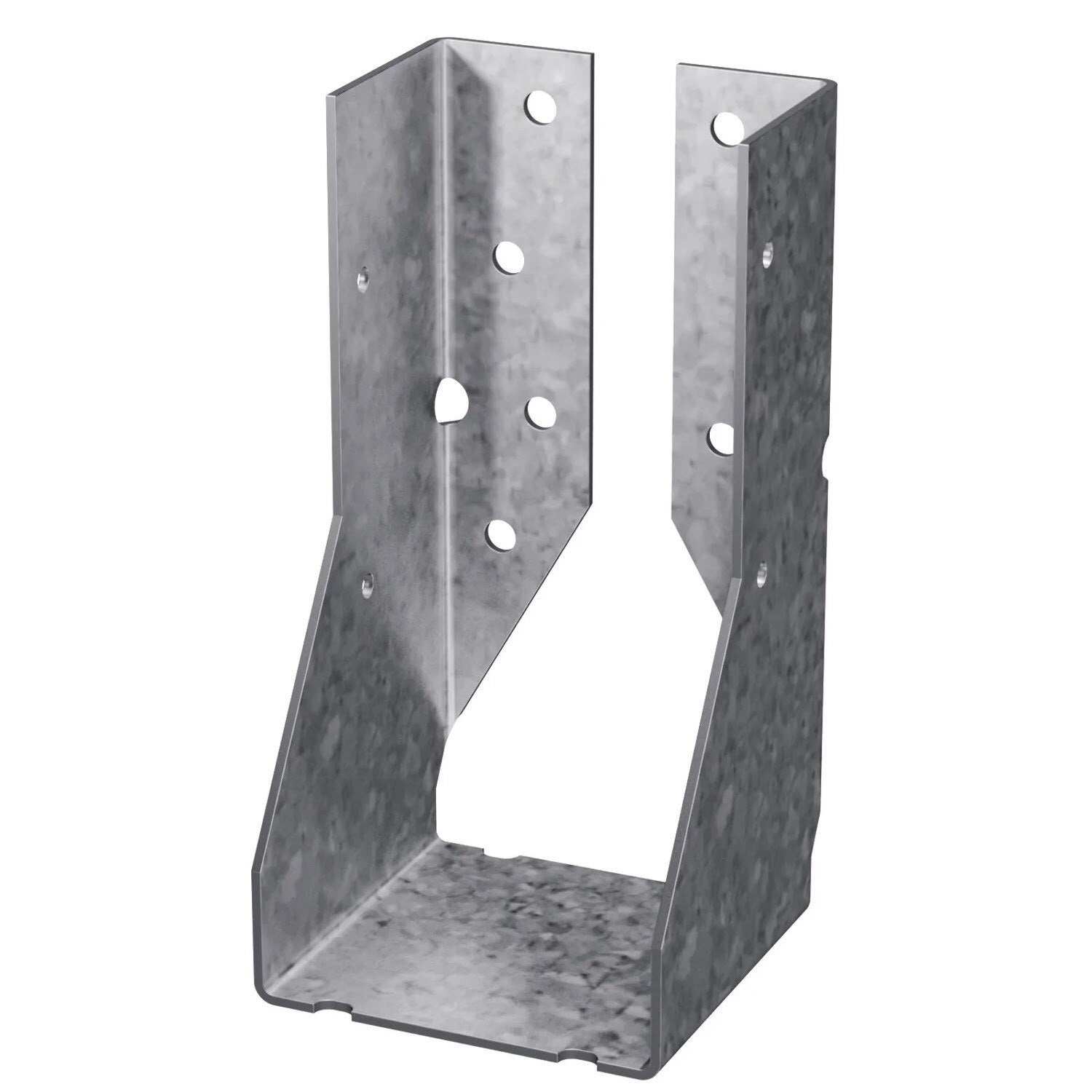

The Simpson Strong-Tie HUC46Z is a concealed flange heavy face mount joist hanger designed for 4x6 joists. It features a ZMAX galvanized finish for enhanced corrosion resistance and is suitable for use with treated lumber.
Simpson Strong-Tie HUC46Z Includes
- (1) Concealed Flange Heavy Face Mount Joist Hanger
Simpson Strong-Tie HUC46Z Features
- Concealed flange design for a clean look
- ZMAX galvanized finish for corrosion resistance
- Compatible with treated lumber
- Heavy-duty construction for structural applications
- Designed for 4x6 joists
Simpson Strong-Tie HUC46Z Applications

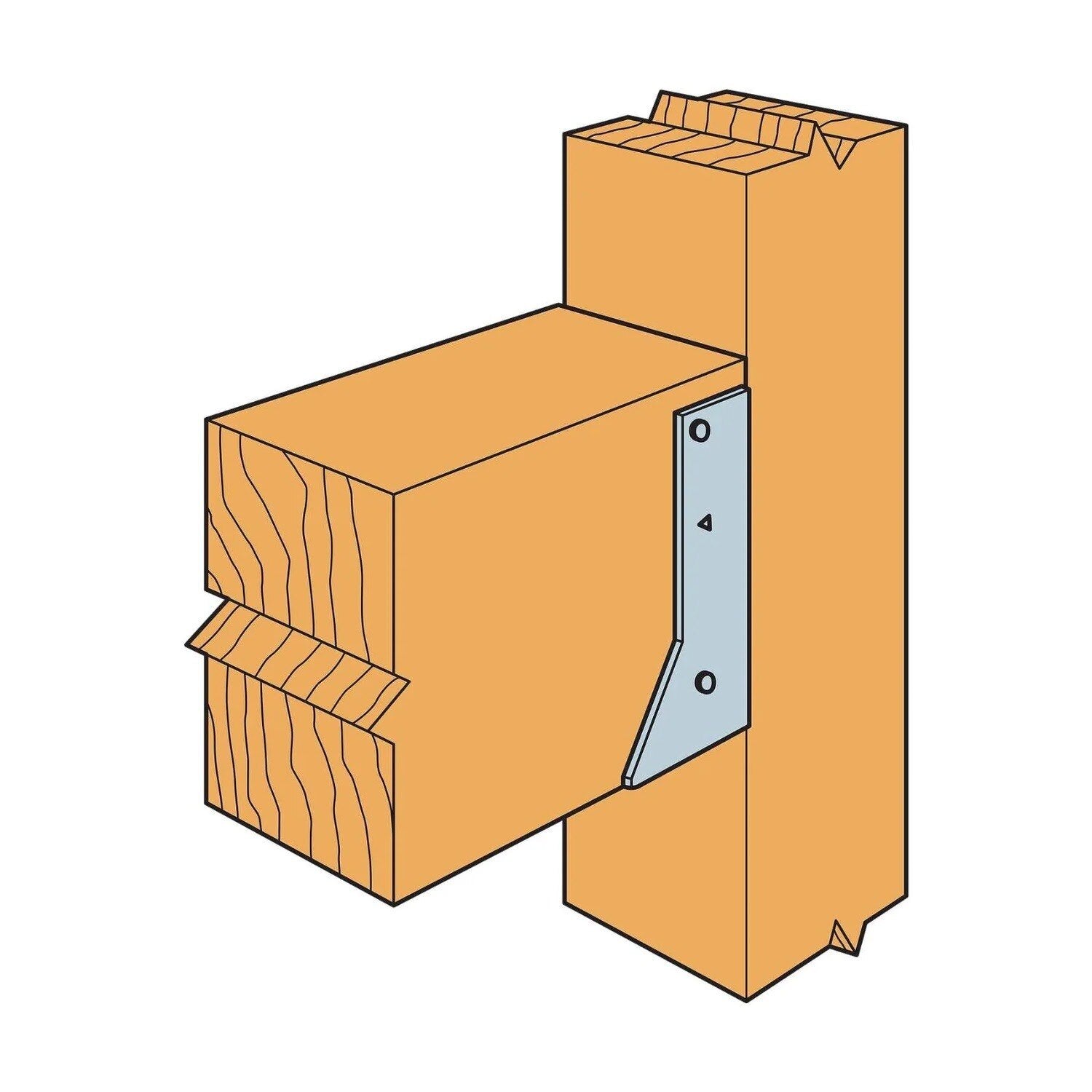

- Structural framing requiring concealed flange joist hangers
- Use in schools and other structures needing additional strength
- Applications requiring corrosion-resistant connectors
Simpson Strong-Tie HUC46Z Installation Overview
- Use all specified fasteners for installation
- Can be installed filling round holes only or both round and triangle holes for maximum values
- Supports joists sloped up to 1/4:12

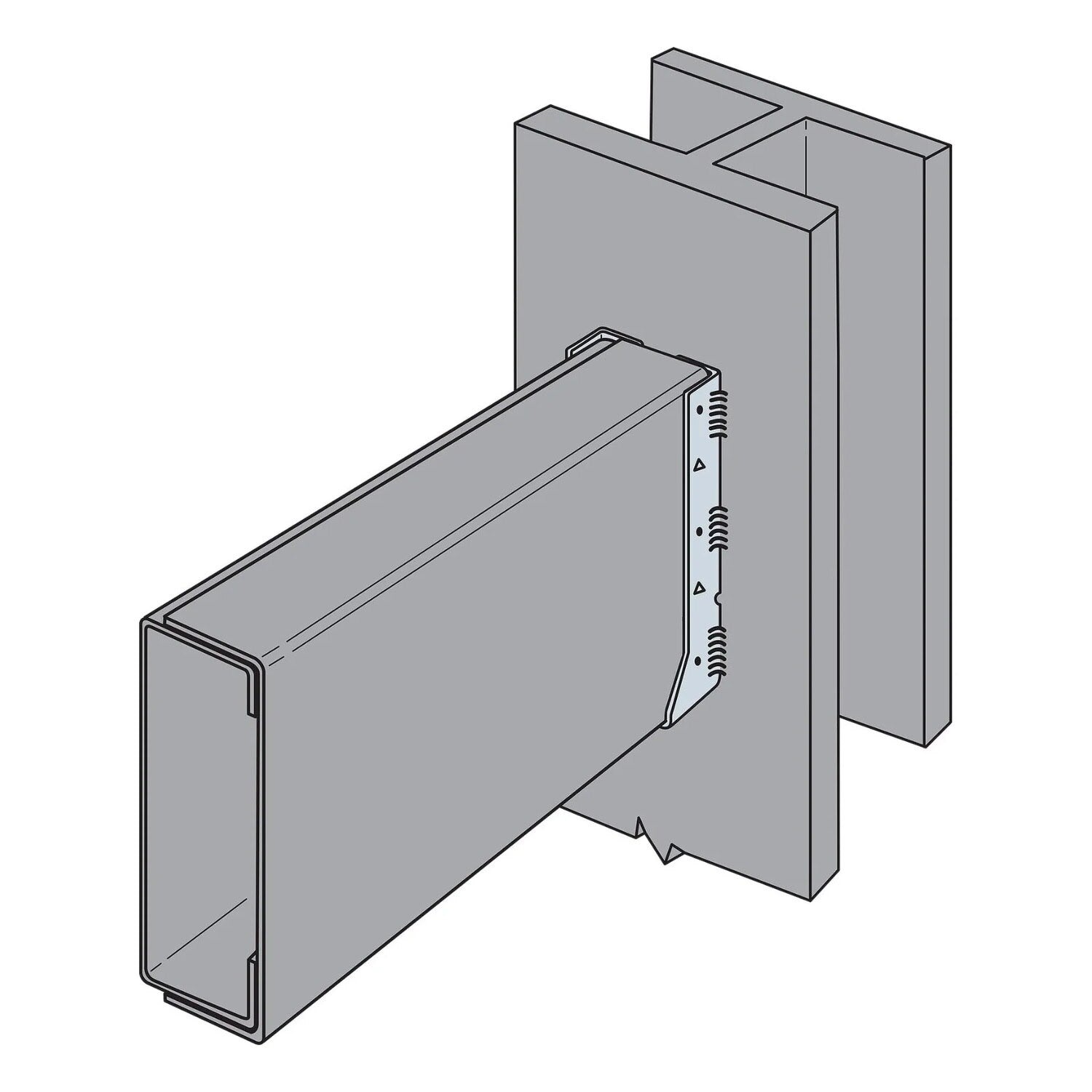

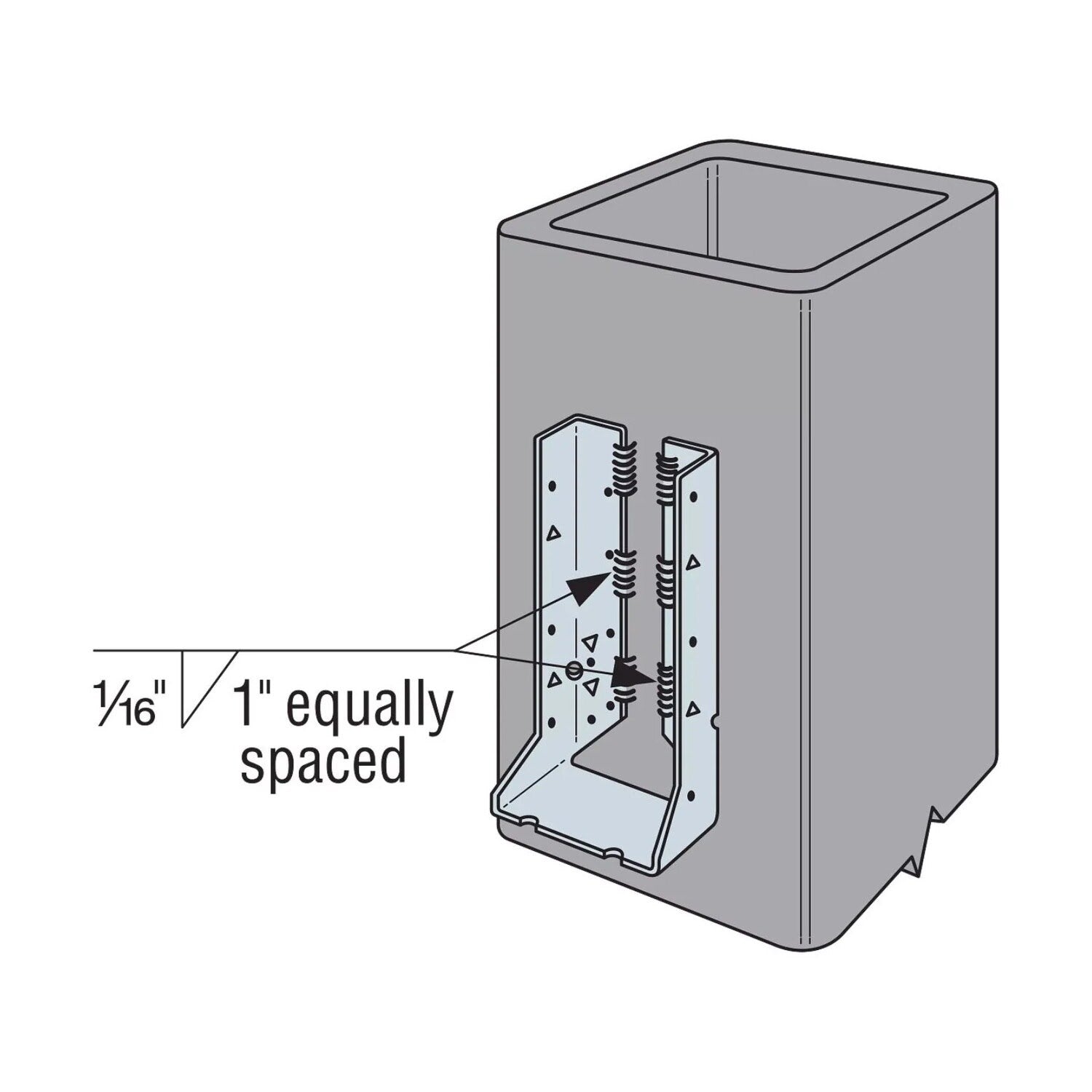

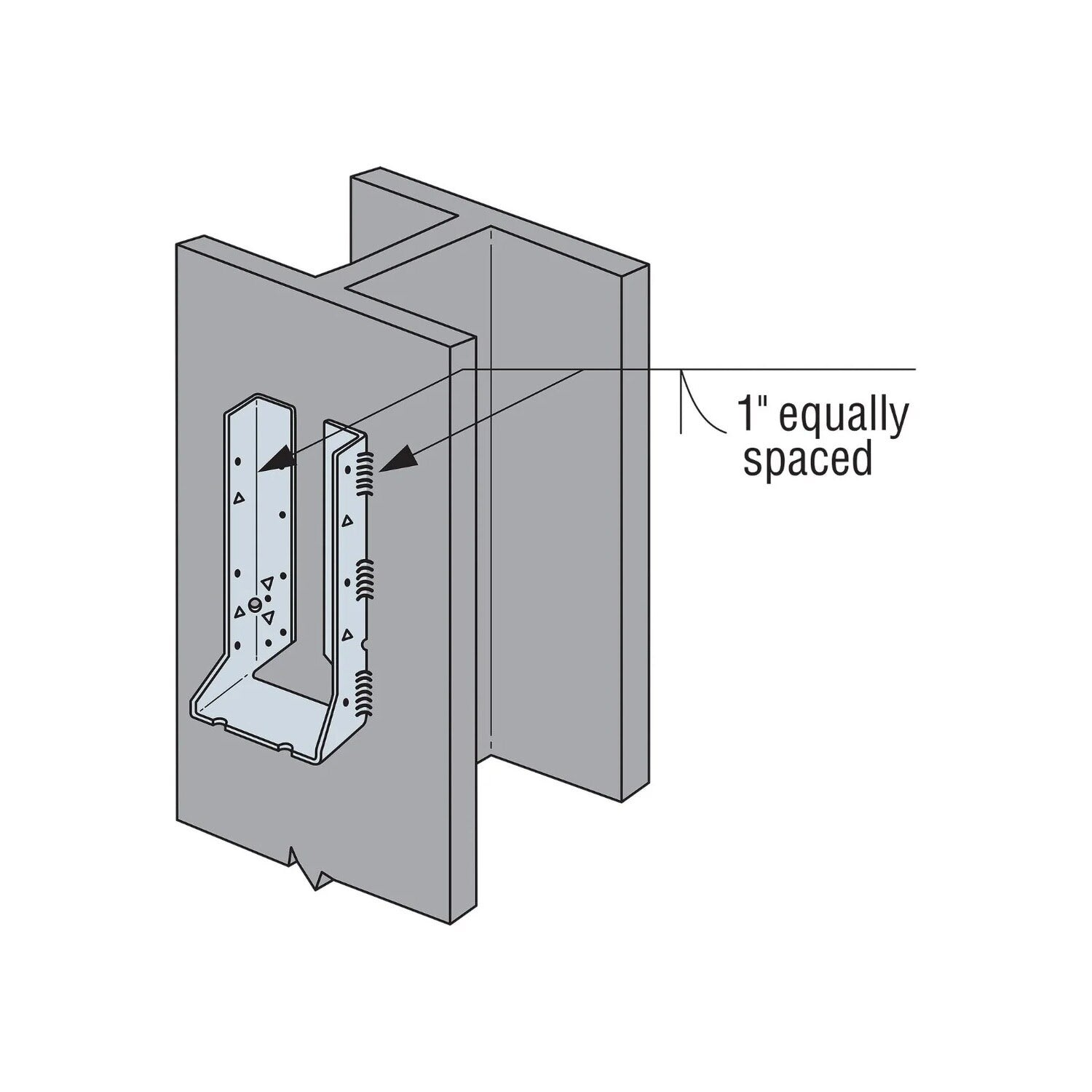

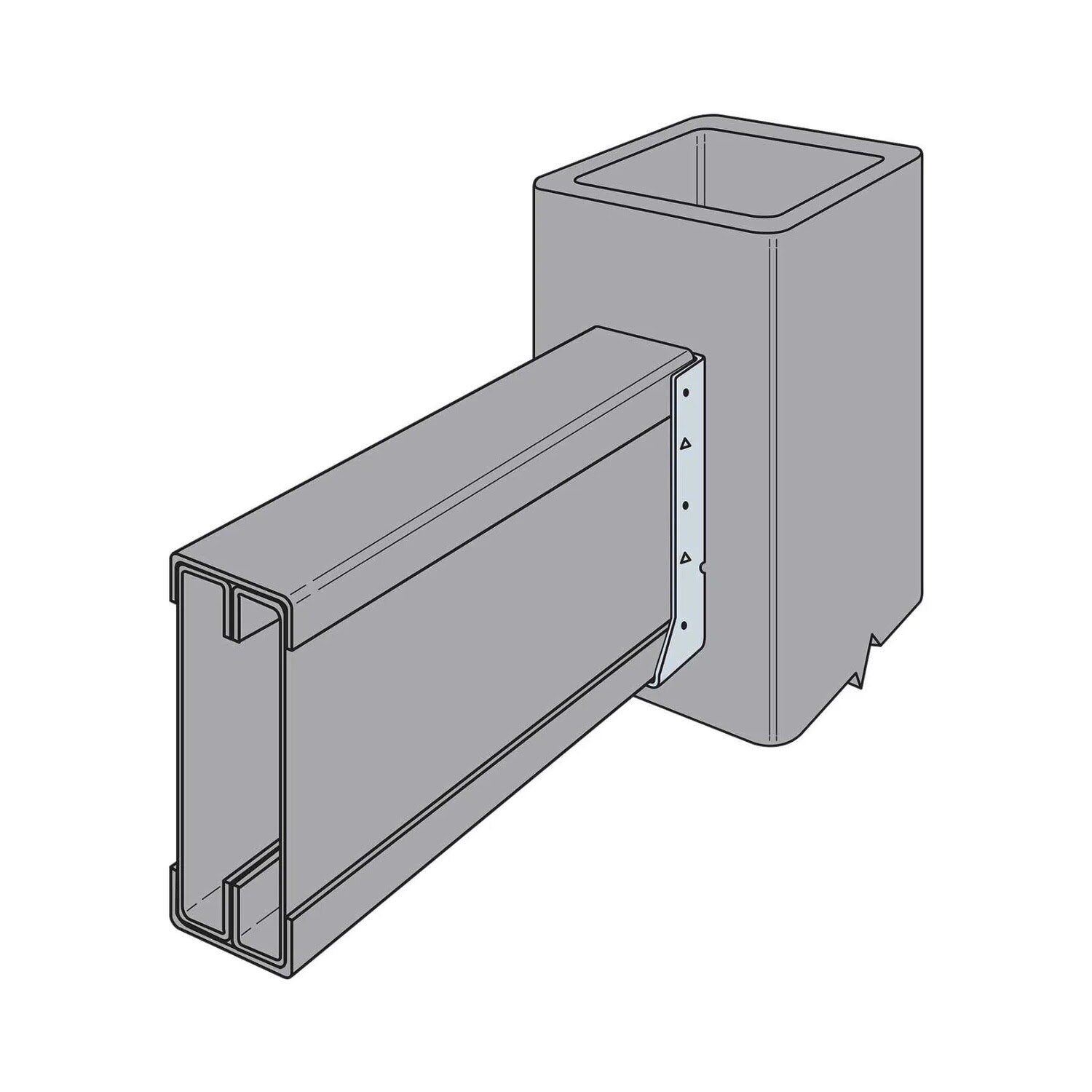

- Can be welded to steel members following technical guidelines
Simpson Strong-Tie HUC46Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (12) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 3" Nails |
| For Treated Lumber | Yes |
| Height | 4-3/4" |
| Joist size | 4" X 6" |
| Thickness | 14 Gauge |
| Width | 3-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
