Simpson Hangers | SKU: HUC48 | Barcode: 044315427800

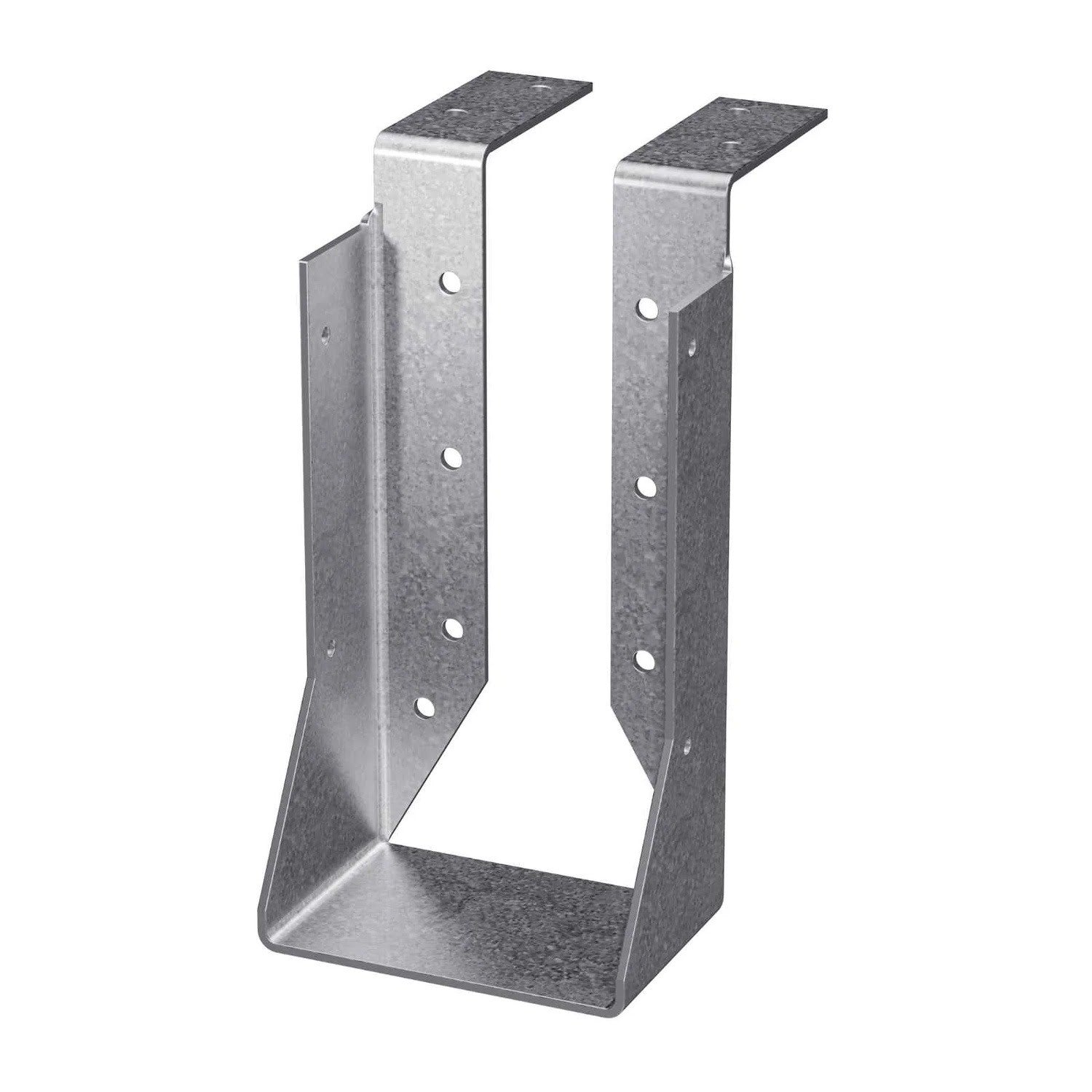

Simpson Strong-Tie HUC48 (4" x 8") 14Ga Heavy Galvanized Concealed-Flange Face-Mount Joist Hanger

Name: Simpson Strong-Tie HUC48 (4" x 8") 14Ga Heavy Galvanized Concealed-Flange Face-Mount Joist Hanger
Brand: Simpson Hangers
SKU: 746447
Price: 13.13 USD
Availability: InStock

$13.13 ~~$19.94~~

Description

Simpson HUC48 Description

The Simpson HUC48 Galvanized Face-Mount Concealed-Flange Joist Hanger is designed for securely attaching joists to beams or ledgers, providing strength and durability.

Simpson HUC48 Includes

(1) Galvanized Face-Mount Concealed-Flange Joist Hanger for 4x8

Simpson HUC48 Features

Concealed Flange Design for seamless aesthetic
Heavy-Duty Construction with 12-gauge steel
G90 Galvanized Finish for corrosion resistance

Simpson HUC48 Applications

Residential and Commercial Use: Suitable for structural projects including floors, ceilings, and roofs.
End-of-Wall Installations: Designed for joists terminating at the end of a wall.
Corner Joist Connections: Ensures structural stability in corner placements.

Simpson HUC48 Installation Overview

Use all specified fasteners according to manufacturer guidelines.
Minimum recommended header or ledger size is 3 1/2 inches.
These hangers cannot be modified for sloped or skewed seat applications.

Simpson HUC48 Specifications

Finish	G90 Galvanized
Material	Carbon Steel
Fasteners required	Face - (12) 0.162" x 3-1/2" Nails, Joist - (4) 0.148" x 3" Nails
For Treated Lumber	No
Height	7-1/8"
Joist size	4" X 8"
Thickness	12 Gauge
Width	3-9/16"

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
