Simpson Hangers | SKU:
HUC48TF

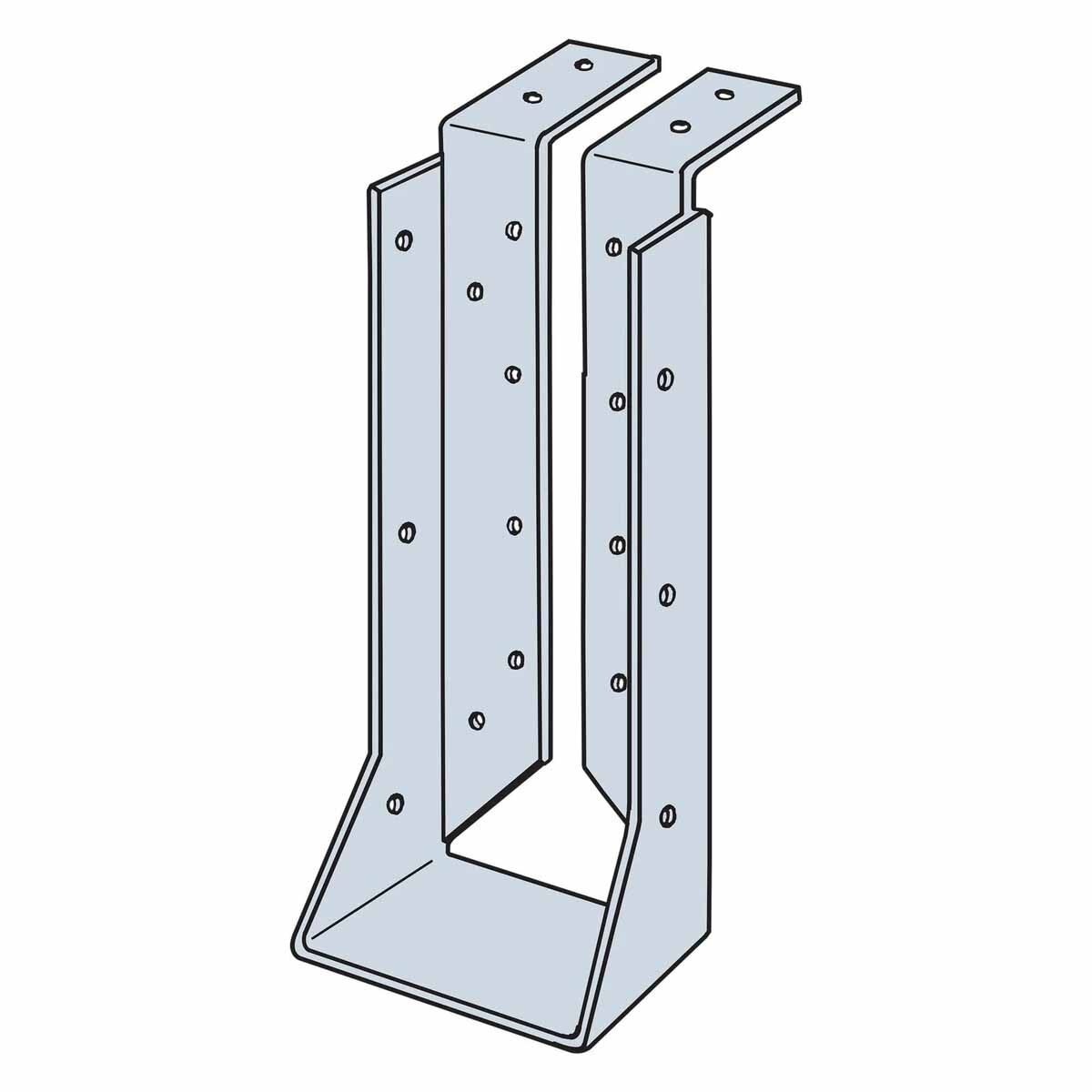

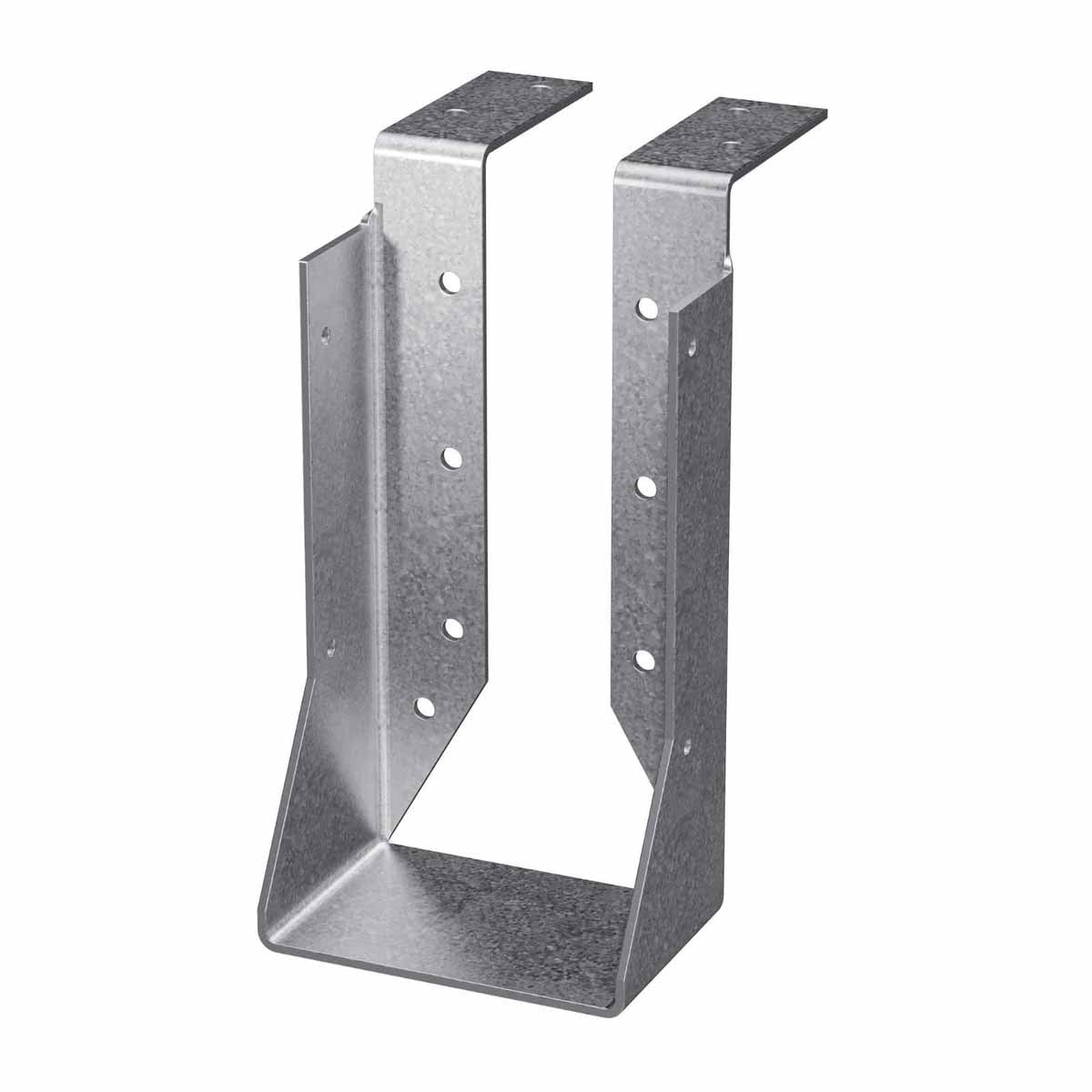

Simpson Strong-Tie HUC48TF (4" x 8") Heavy-Duty Top-Flange Concealed-Flange Joist Hanger, G90 Galvanized
$32.70
$47.03
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUC48TF Description
The HUC48TF Heavy-Duty Top-Flange Concealed-Flange Joist Hanger provides a robust solution for securely attaching joists to beams or ledgers, ensuring even load distribution and enhancing structural integrity.
Simpson Strong-Tie HUC48TF Includes
- (1) Heavy-Duty 4x8 Top-Flange Concealed-Flange Joist Hanger
Simpson Strong-Tie HUC48TF Features
- Concealed Flange Design for seamless aesthetic
- Heavy-Duty Construction with 12-gauge steel
- G90 Galvanized Finish for corrosion resistance
Simpson Strong-Tie HUC48TF Applications
- Residential and Commercial Use for structural projects
- End-of-Wall Installations for joists terminating at the end of a wall
- Corner Joist Connections for structural stability in corner placements
Simpson Strong-Tie HUC48TF Installation Overview
- Use all specified fasteners according to manufacturer guidelines
- Minimum recommended header or ledger size is 3 1/2 inches
- These hangers cannot be modified for sloped or skewed seat applications
Simpson Strong-Tie HUC48TF Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (12) 0.162" x 3-1/2" Nails, Joist - (4) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 7-1/8" |
| Joist size | 4" X 8" |
| Manufacturer name | Simpson Strong-Tie |
| Thickness | 12 Gauge |
| Width | 3-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
