Simpson Hangers | SKU:
HUC610TF

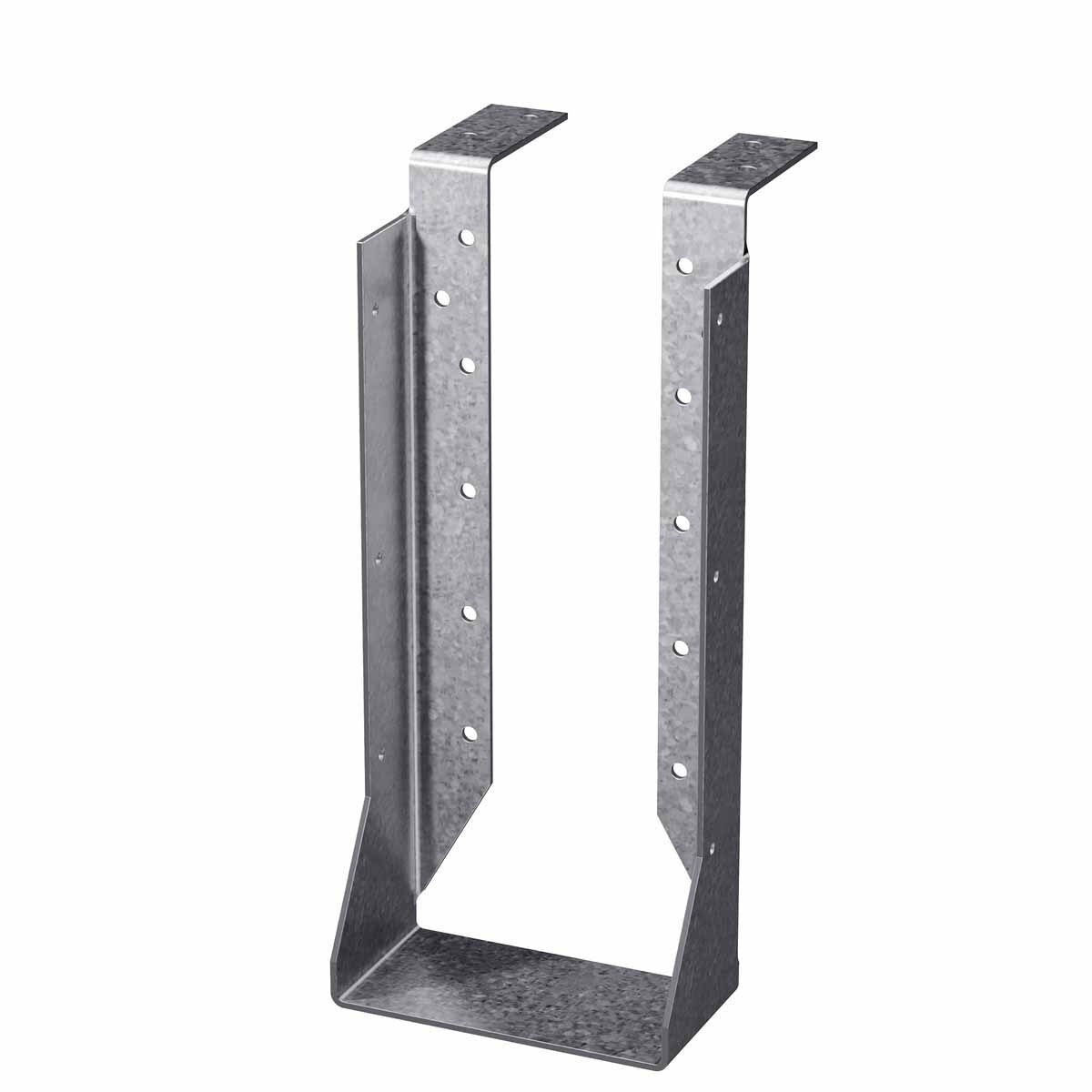

Simpson Strong-Tie HUC610TF (6" x 10") Heavy Top-Flange Hanger with Concealed Flanges
$41.58
$59.81
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie HUC610TF Description
The HUC610TF Concealed Top Flange Face Mount Hanger is designed for securely attaching joists to beams or ledgers, providing strength and durability with a clean aesthetic.
Simpson Strong-Tie HUC610TF Includes
- (1) Simpson HUC610TF 6x10 Concealed Top Flange Face Mount Hanger
Simpson Strong-Tie HUC610TF Features
- Concealed Flange Design for seamless aesthetic
- Heavy-Duty Construction with 12-gauge steel
- G90 Galvanized Finish for corrosion resistance
Simpson Strong-Tie HUC610TF Applications
- Residential and Commercial Use for structural projects
- End-of-Wall Installations for joists terminating at the end of a wall
- Corner Joist Connections for structural stability in corner placements
Simpson Strong-Tie HUC610TF Installation Overview
- Use all specified fasteners according to manufacturer guidelines
- Minimum recommended header or ledger size is 3 1/2 inches
- These hangers cannot be modified for sloped or skewed seat applications
Simpson Strong-Tie HUC610TF Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (14) 0.162" x 3-1/2" Nails, Joist - (6) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 9-1/8" |
| Joist size | 6" X 10" |
| Manufacturer name | Simpson Strong-Tie |
| Thickness | 12 Gauge |
| Width | 5-1/2" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
